Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

27 part groups · 3 illustrations

Illustrations

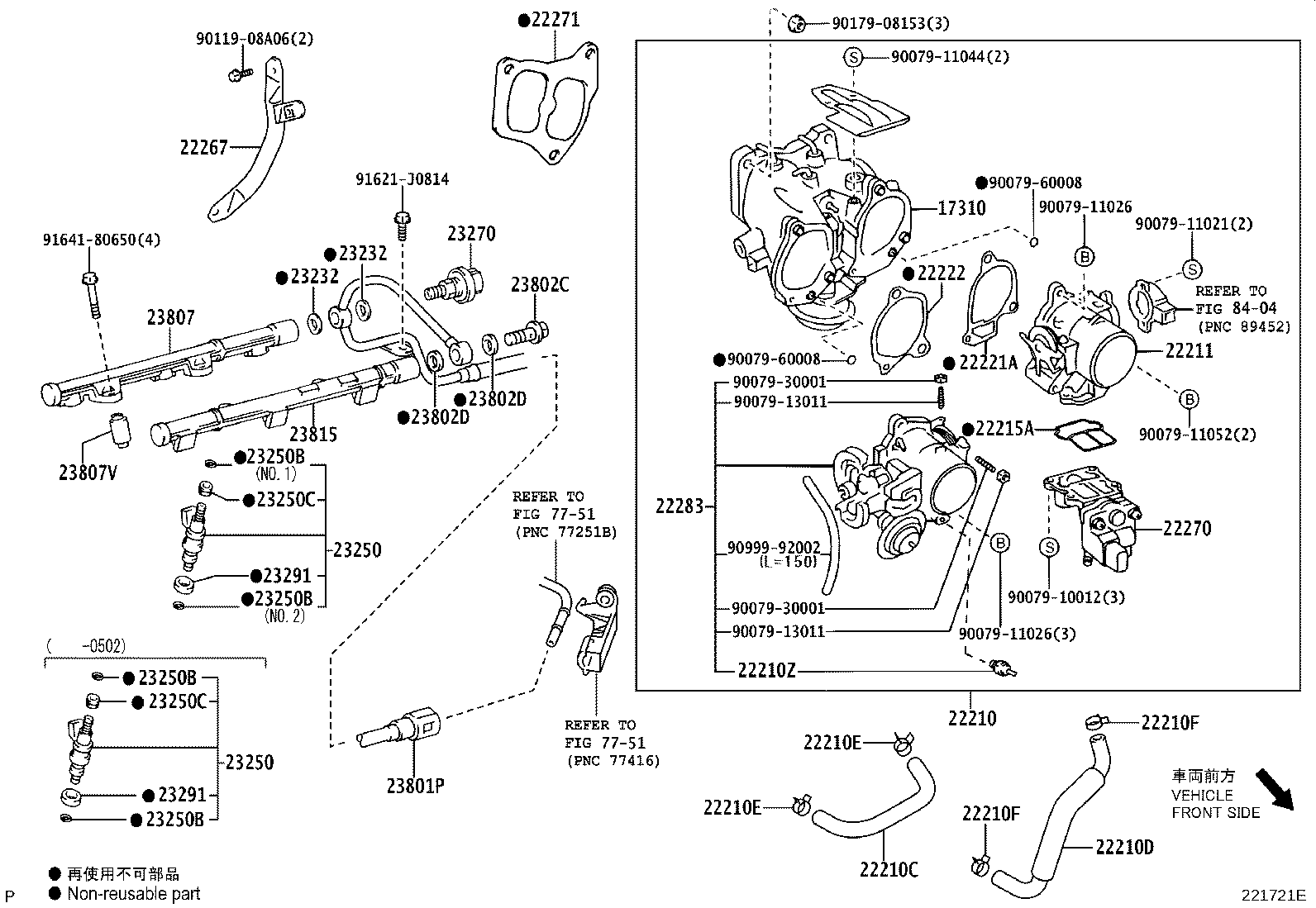

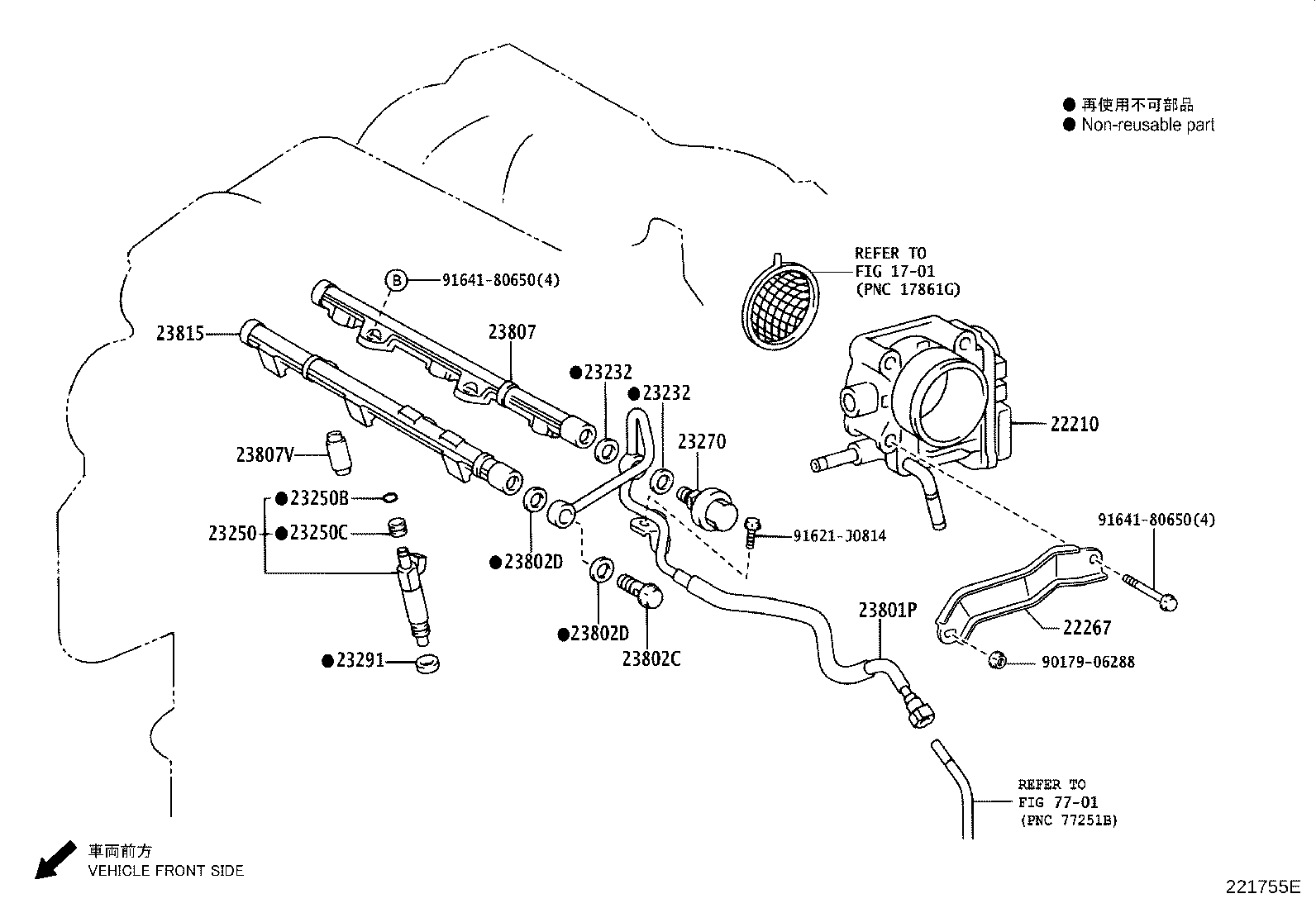

Figure 221538D 221538D 2003-12 → 2004-03 Figure 221721E 221721E 2004-03 → 2005-04 Figure 221755E 221755E 2005-04 → —

Part groups

PNCDescription
17310 Valve Assy, Intake Air Control, NO.1
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22210F Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2)
22210Z Thermostat, Manifold
22211 Body, Throttle
22215A Gasket, Idle Speed Control Valve
22221A Gasket, Intake Air Control Valve, NO.1
22222 Gasket, Intake Air Control Valve, NO.2
22267 Bracket, Throttle Body
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22271 Gasket, Throttle Body
22283 Body, Throttle, NO.2
23232 Gasket(FOR FUEL PUMP HOSE)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23291 Insulator, Injector Vibration
23801P Pipe Sub-assy, Fuel, NO.1
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23815 Pipe, Fuel Delivery, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
