Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

14 part groups · 2 illustrations

Illustrations

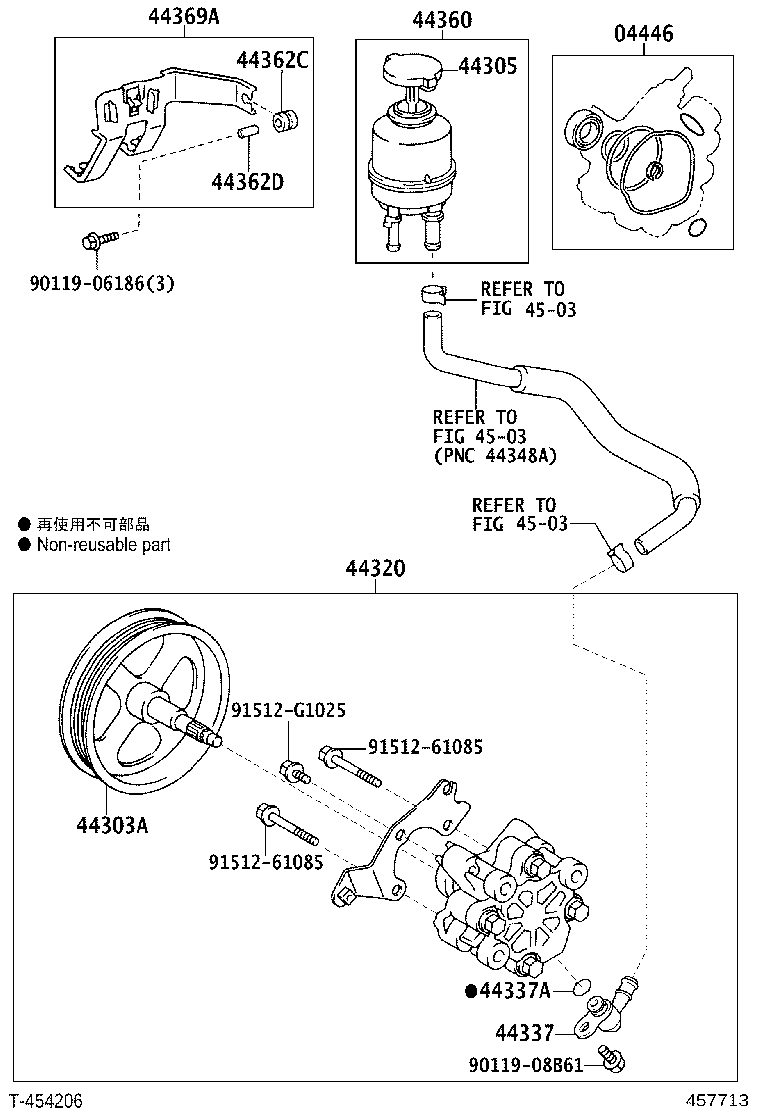

Figure 453713D 453713D 2003-12 → 2005-04 Figure 457713 457713 2005-04 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
44303A Shaft Sub-assy, W/Pulley
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44311 Pulley, Vane Pump
44311B Nut(FOR VANE PUMP PULLEY)
44320 Pump Assy, Vane
44337 Union, Power Steering Suction Port
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44360 Reservoir Assy, Vane Pump Oil
44362C Cushion(FOR VANE PUMP OIL RESERVOIR)
44362D Spacer(FOR VANE PUMP OIL RESERVOIR)
44369A Bracket, Oil Reservoir, NO.1
44441B Bracket, Pump, Front
44442A Bracket, Vane Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
