Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

15 part groups · 4 illustrations

Illustrations

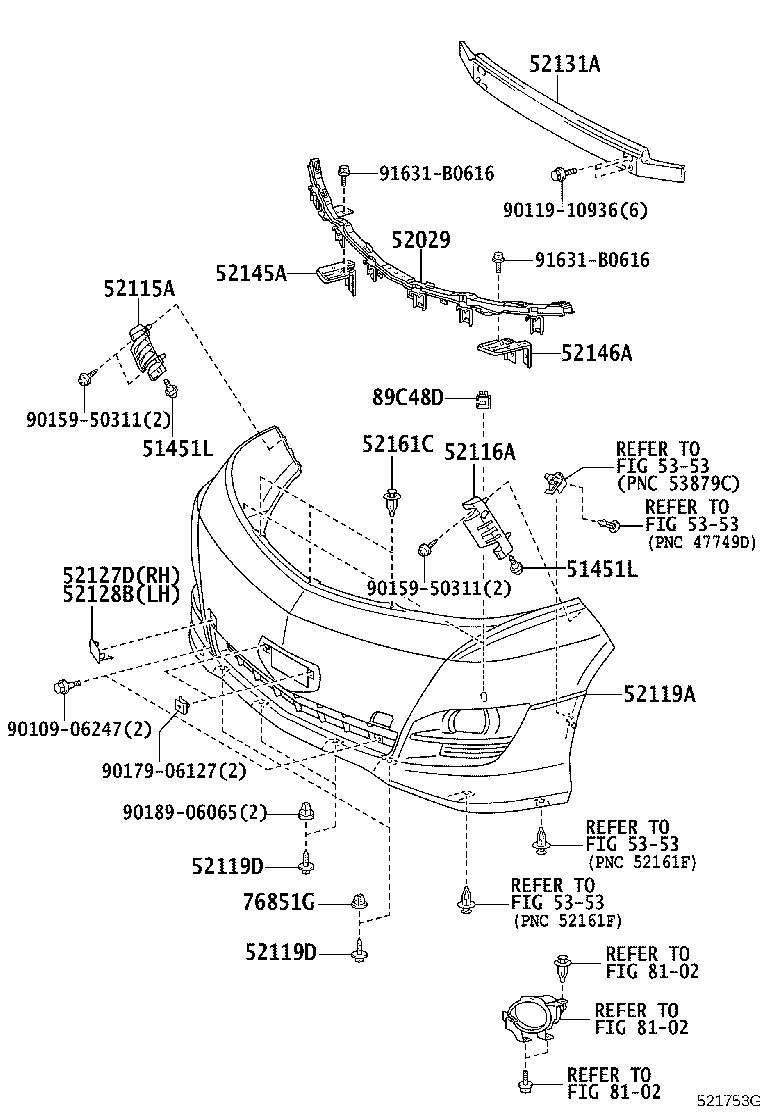

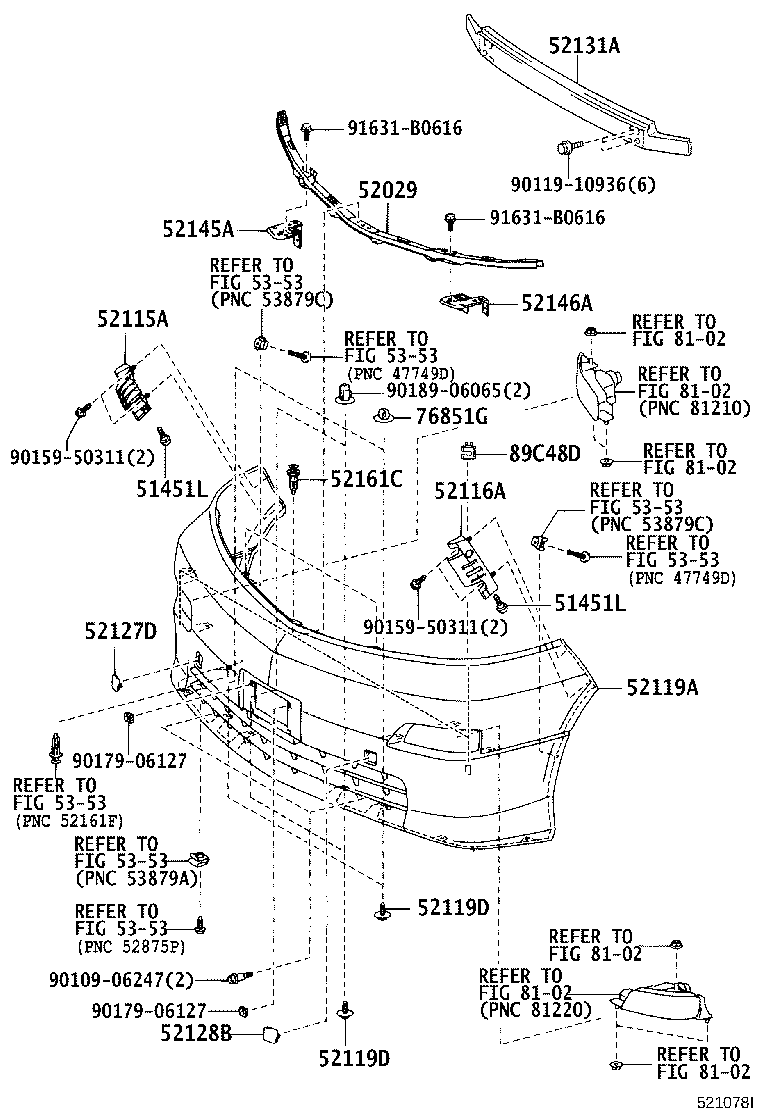

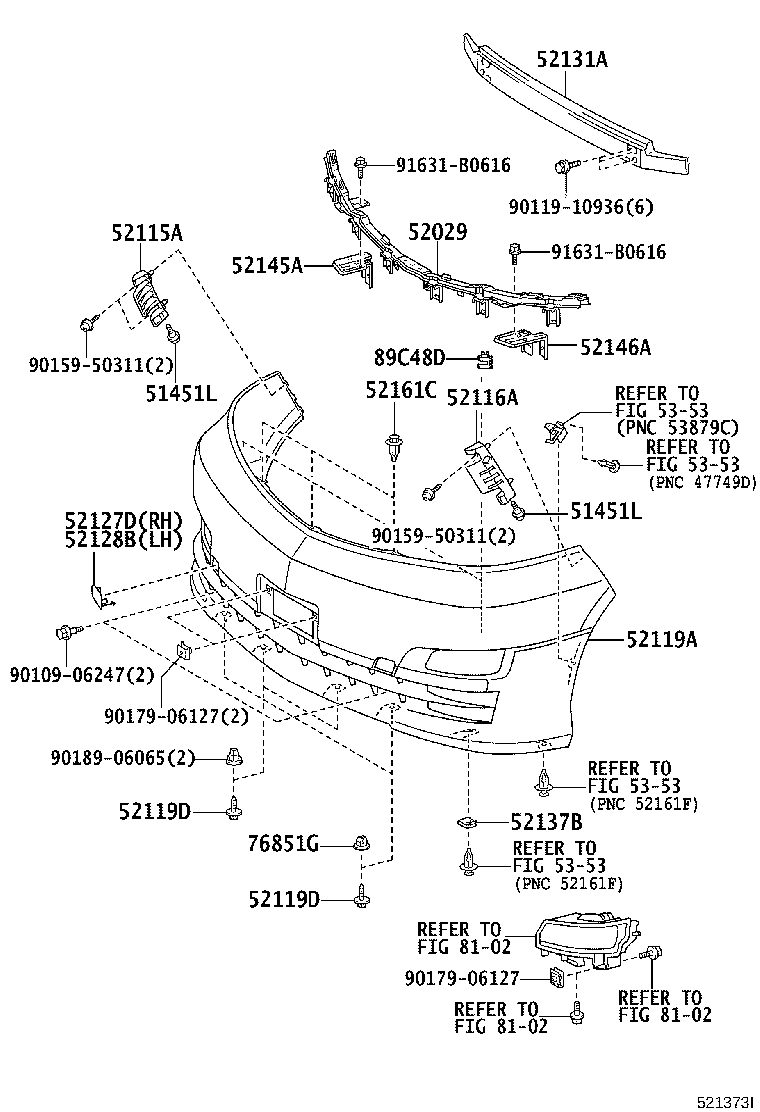

Figure 523316D 523316D 2003-12 → 2005-04 Figure 521078I 521078I 2003-12 → 2005-04 Figure 521753G 521753G 2005-04 → — Figure 521373I 521373I 2005-04 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119D Screw, NO.1
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52137B Plate, Front Bumper Bracket, NO.1
52145A Stay, Front Bumper, NO.2 RH
52146A Stay, Front Bumper, NO.2 LH
52161C Piece, Front Bumper
76851G Grommet, Screw, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
