Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

7 part groups · 2 illustrations

Illustrations

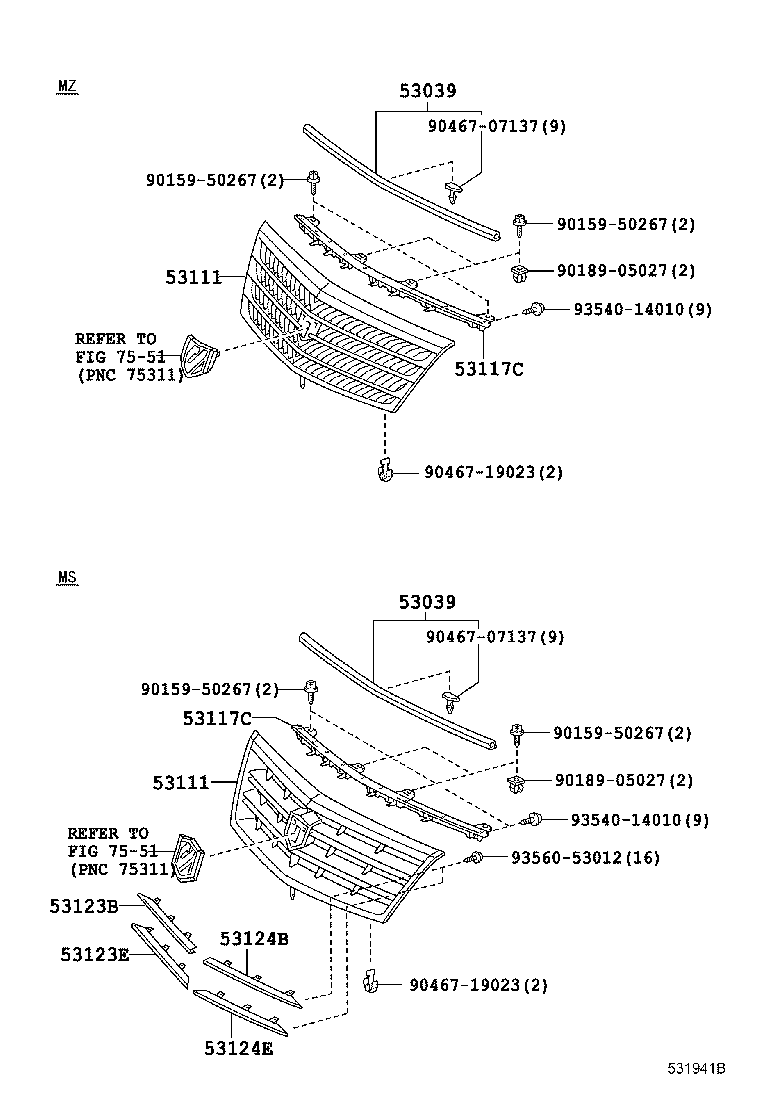

Figure 531617A 531617A 2003-12 → 2005-04 Figure 531941B 531941B 2005-04 → —

Part groups

PNCDescription
53039 Seal, Radiator, Upper
53111 Grille, Radiator
53117C Retainer, Radiator Grille, NO.1
53123B Moulding, Radiator Grille Side, RH
53123E Moulding, Radiator Grille, Lower RH
53124B Moulding, Radiator Grille Side, LH
53124E Moulding, Radiator Grille, Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
