Toyota Alphard
2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General
Supported model
Data version 2008-10

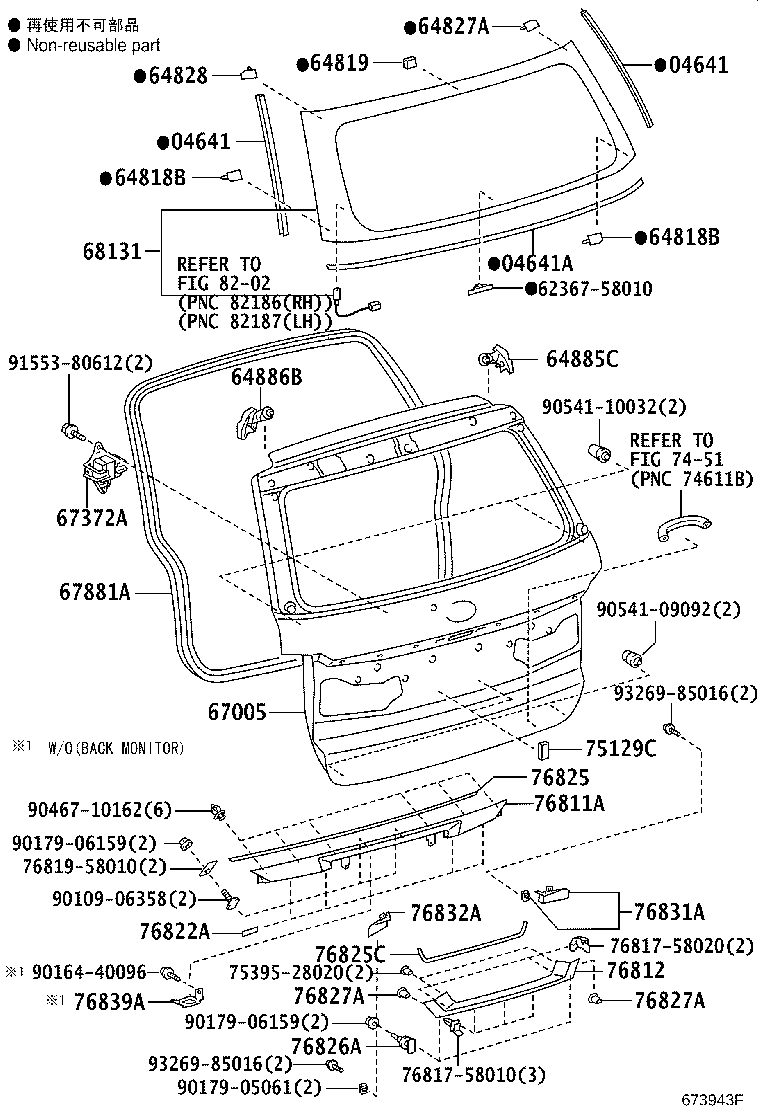

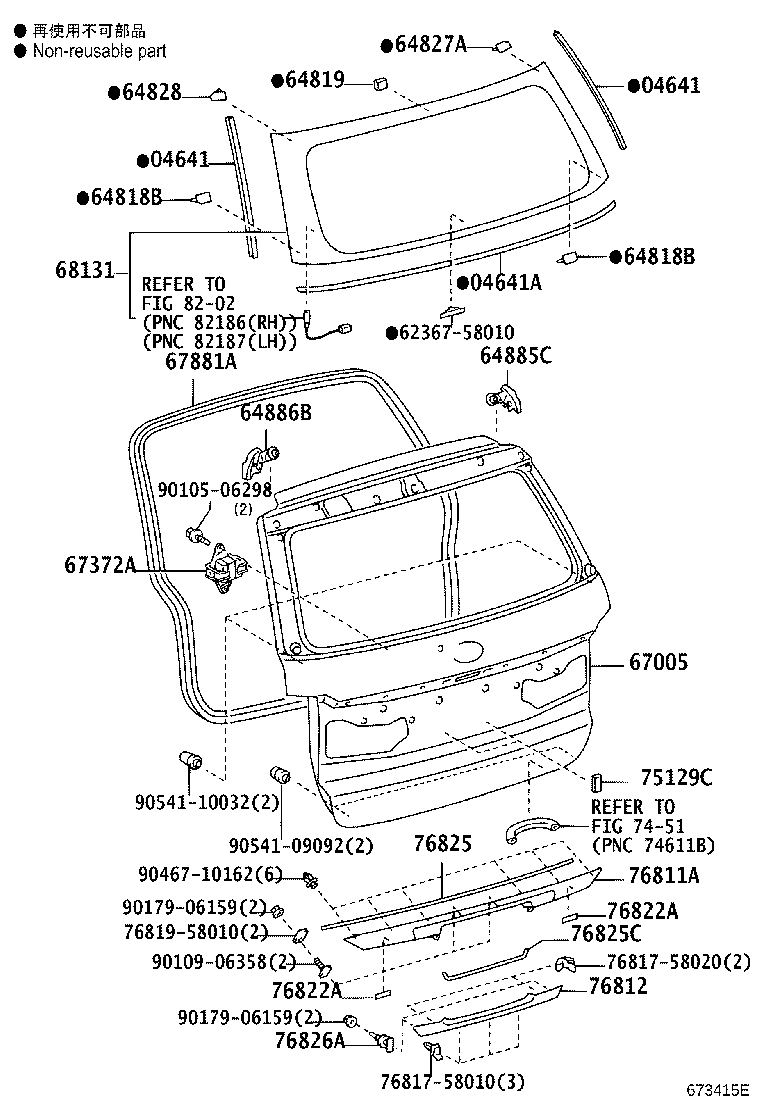

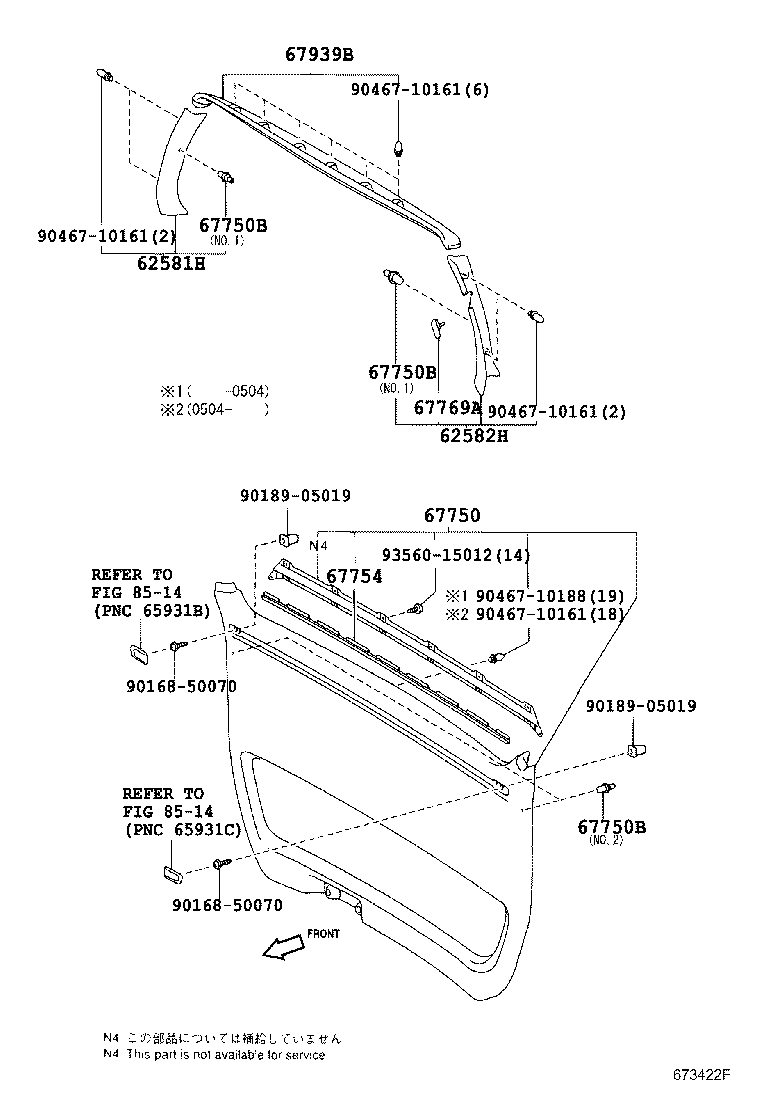

Back Door Panel & Glass
32 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04641 | Dam Kit, Back Window Glass |
| 04641A | Dam Kit, Back Window Glass Adhesive |
| 62581H | Garnish, Rear Window Side, RH |
| 62582H | Garnish, Rear Window Side, LH |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819 | Spacer, Back Window Glass, NO.2 |
| 64827A | Clip, Back Window Glass, RH |
| 64828 | Clip, Back Window Glass, LH |
| 64885C | Channel, Back Door Glass, RH |
| 64886B | Channel, Back Door Glass, LH |
| 67005 | Panel Sub-assy, Back Door |
| 67372A | Weight, Back Door |
| 67750 | Board Assy, Back Door Trim |
| 67750B | Fastner(FOR BACK DOOR TRIM) |
| 67754 | Moulding, Back Door Trim |
| 67754E | Cover, Back Door Hole, RH |
| 67754F | Cover, Back Door Hole, LH |
| 67769A | Plate, Back Door Service Hole |
| 67881A | Weatherstrip, Back Door |
| 67939B | Garnish, Back Door, Center |
| 68131 | Glass, Back Door |
| 75129C | Cushion, Rear Licence Plate |
| 76811A | Garnish, Back Door, Outside |
| 76812 | Garnish, Back Door, Outside Lower |
| 76822A | Protector, Back Door Garnish Moulding, Lwr |
| 76825 | Protector, Back Door Outside Garnish |
| 76825C | Protector, Back Door Outside Garnish |
| 76826A | Retainer, Back Door Garnish, NO.1 |
| 76827A | Retainer, Back Door Garnish, NO.2 |
| 76831A | Cover, Back Door Finish Panel, RH |
| 76832A | Cover, Back Door Finish Panel, LH |
| 76839A | Cover, Back Door Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
