Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

125 part groups · 4 illustrations

Illustrations

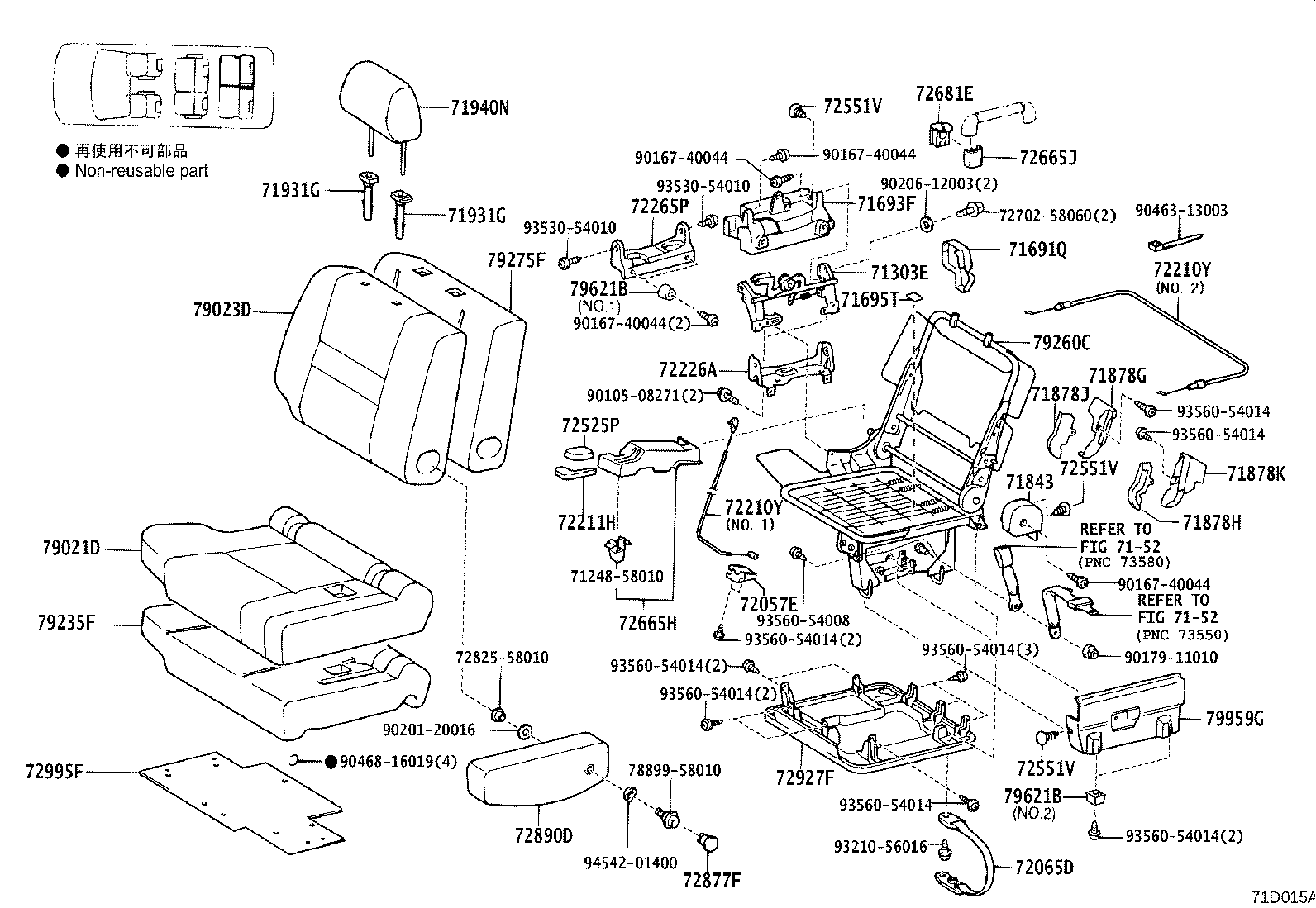

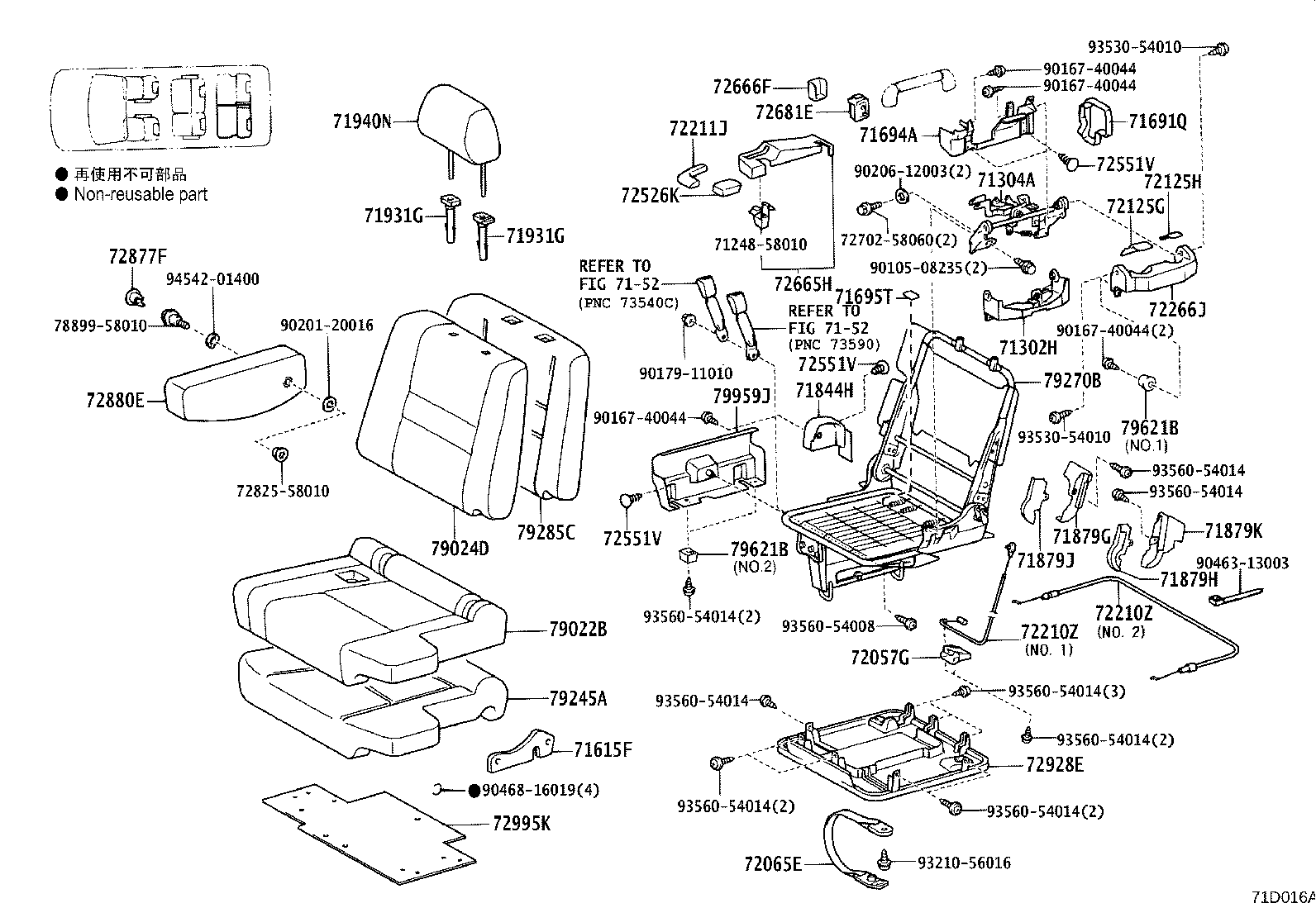

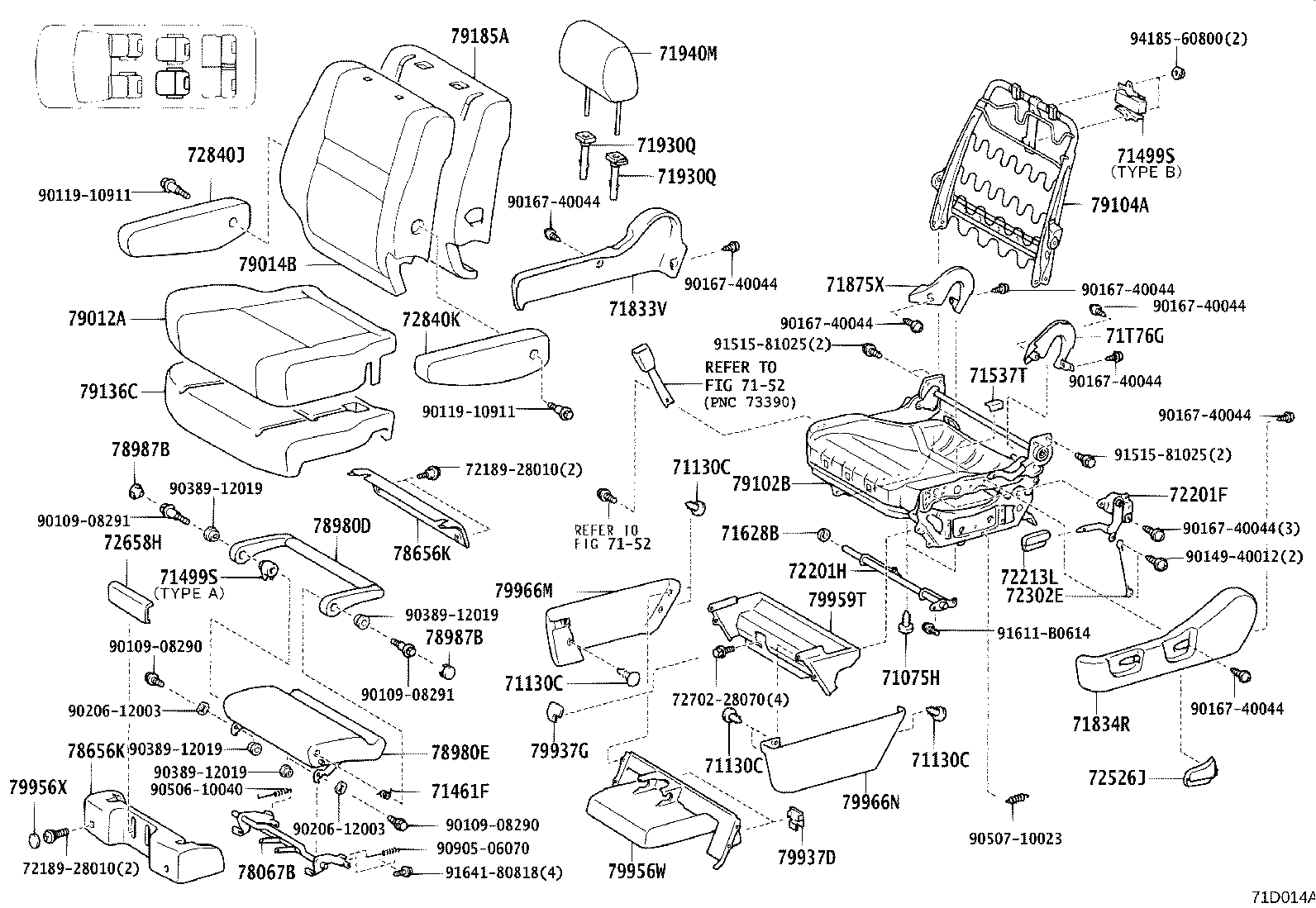

Figure 71D013D 71D013D 2003-12 → — Figure 71D014D 71D014D 2003-12 → — Figure 71D015C 71D015C 2003-12 → — Figure 71D016C 71D016C 2003-12 → —

Part groups

PNCDescription
71075H Clip(FOR REAR SEAT)
71130C Clip, Rear Seat Leg
71302H Stopper Sub-assy, Rear Seat Leg
71303E Hinge Sub-assy, Rear NO.2 Seat, RH
71304A Hinge Sub-assy, Rear NO.2 Seat, LH
71461D Spring, NO.1 Seat Cushion, NO.1(FOR RH SEAT)
71461F Spring, NO.1 Seat Cushion, NO.1(FOR LH SEAT)
71499S Damper, Seat Cushion Spring
71537T Protector, Rear Seat Cushion, NO.1
71615F Pad, Rear Seat Cushion, E
71628B Spacer, Rear Seat Cushion, RH
71691Q Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71693F Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71694A Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71695T Protector, Rear Seat, NO.2
71833S Cover, Rear Seat Reclining, NO.1 RH
71833V Cover, NO.1 Seat Reclining, NO.2 RH
71834R Cover, Rear Seat Reclining, LH
71834S Cover, Rear Seat Reclining, NO.1 LH
71843 Cover, Rear Seat Reclining, NO.2 RH
71844H Cover, Rear Seat Reclining, NO.2 LH
71875X Cover, Reclining Adjuster Inside, RH
71878G Cover, NO.3 Seat Reclining, Inner RH
71878H Cover, Rear Seat Reclining, Inner RH
71878J Cover, Rear NO.1 Seat Reclining, Inner RH
71878K Cover, Rear NO.2 Seat Reclining, Inner RH
71879G Cover, NO.3 Seat Reclining, Inner LH
71879H Cover, Rear Seat Reclining, Inner LH
71879J Cover, Rear NO.1 Seat Reclining, Inner LH
71879K Cover, Rear NO.2 Seat Reclining, Inner LH
71930Q Support Assy, Rear Seat Headrest
71931G Support Assy, Rear Seat Headrest
71940M Headrest Assy, Rear Seat
71940N Headrest Assy, Rear Seat, NO.2
71T76B Cover, Reclining Adjuster Inside, LH
71T76G Cover, Reclining Adjuster Inside, LH
72057E Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057G Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72065D Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72125G Cover, Seat Track Lock Plate, NO.1
72125H Cover, Seat Track Lock Plate, NO.2
72201E Handle Sub-assy, Seat Track RH
72201F Handle Sub-assy, Seat Track LH
72201G Handle Sub-assy, Seat Track, RH
72201H Handle Sub-assy, Seat Track, LH
72210Y Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z Cable Assy, NO.1 Seat Track Control, RH NO.2
72211H Handle, Seat Track Adjusting, RH
72211J Handle, Seat Track Adjusting, LH
72213K Knob, Seat Track Adjusting Handle, RH
72213L Knob, Seat Track Adjusting Handle, LH
72226A Bracket, Seat Track, NO.1
72265P Cover, Seat Track Upper Rail, RH
72266J Cover, Seat Track Upper Rail, LH
72302E Wire Sub-assy, Rear Seat Track Equalizing
72525N Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P Handle, NO.2 Seat Reclining Adjuster Release, RH
72526J Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K Handle, NO.2 Seat Reclining Adjuster Release, LH
72551V Clip(FOR RECLINING HINGE)
72658G Knob, Rear Seat Lock Handle, RH
72658H Knob, Rear Seat Lock Handle, LH
72665H Cover, Rear Seatback Lock
72665J Cover, Rear Seat Lock, RH
72666F Cover, Rear Seat Lock, LH
72681E Hook, Rear Seat
72830U Armrest Assy, Rear Seat, RH
72830V Armrest Assy, Rear NO.1 Seat, RH
72840J Armrest Assy, Rear Seat, LH
72840K Armrest Assy, Rear NO.1 Seat, LH
72877F Cover, Seat Armrest
72880E Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890D Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72927F Cover, Rear Seat Cushion Under, RH
72928E Cover, Rear Seat Cushion Under, LH
72995F Cover, Rear Seat Cushion, RH
72995K Cover, Rear NO.2 Seat Cushion
78067A Bracket Sub-assy, Rear Seat Legrest, Outer(FOR RH SEAT)
78067B Bracket Sub-assy, Rear Seat Legrest, Outer(FOR LH SEAT)
78631B Table, Rear Seat Side
78656J Cover, Rear Seat Legrest, RH
78656K Cover, Rear Seat Legrest, LH
78980D Footrest Assy, Rear Seat, NO.1
78980E Footrest Assy, Rear Seat, NO.2
78987B Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C Cover, Rear NO.1 Seat Footrest, NO.1 RH
79011B Cover Sub-assy, NO.1 Seat Cushion, RH
79012A Cover Sub-assy, NO.1 Seat Cushion, LH
79013D Cover Sub-assy, NO.1 Seatback, RH
79014B Cover Sub-assy, NO.1 Seatback, LH
79021D Cover Sub-assy, NO.2 Seat Cushion, RH
79022B Cover Sub-assy, NO.2 Seat Cushion, LH
79023D Cover Sub-assy, NO.2 Seatback, RH
79024D Cover Sub-assy, NO.2 Seatback, LH
79101C Frame Sub-assy, NO.1 Seat Cushion, RH
79102B Frame Sub-assy, NO.1 Seat Cushion, LH
79103B Frame Sub-assy, NO.1 Seatback, RH
79104A Frame Sub-assy, NO.1 Seatback, LH
79135C Pad, NO.1 Seat Cushion, RH
79136C Pad, NO.1 Seat Cushion, LH
79175F Pad, NO.1 Seatback, RH
79185A Pad, NO.1 Seatback, LH
79235F Pad, NO.2 Seat Cushion, RH
79245A Pad, NO.2 Seat Cushion, LH
79260C Spring Assy, NO.2 Seat Cushion, RH
79270B Spring Assy, NO.2 Seat Cushion, LH
79275F Pad, NO.2 Seatback, RH
79285C Pad, NO.2 Seatback, LH
79621B Stopper, NO.2 Seat Cushion
79937C Cover, NO.1 Seat Leg, NO.1(FOR RH SEAT)
79937D Cover, NO.1 Seat Leg, NO.1(FOR LH SEAT)
79937G Cover, Rear Seat Leg, NO.2
79937H Cover, Rear Seat Leg, NO.2
79956V Cover, Rear Seat Leg Side, RH
79956W Cover, Rear Seat Leg Side, LH
79956X Cap(FOR REAR SEAT LEG SIDE COVER)
79959G Cover, NO.2 Seat Leg, RH NO.1
79959J Cover, NO.2 Seat Leg, LH NO.1
79959S Cover, Rear Seat Leg, RH
79959T Cover, Rear Seat Leg, LH
79966K Cover, Rear Seat Leg, RH(FOR RH SEAT)
79966L Cover, Rear Seat Leg, LH(FOR RH SEAT)
79966M Cover, Rear Seat Leg, RH(FOR LH SEAT)
79966N Cover, Rear Seat Leg, LH(FOR LH SEAT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
