Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate

24 part groups · 3 illustrations

Illustrations

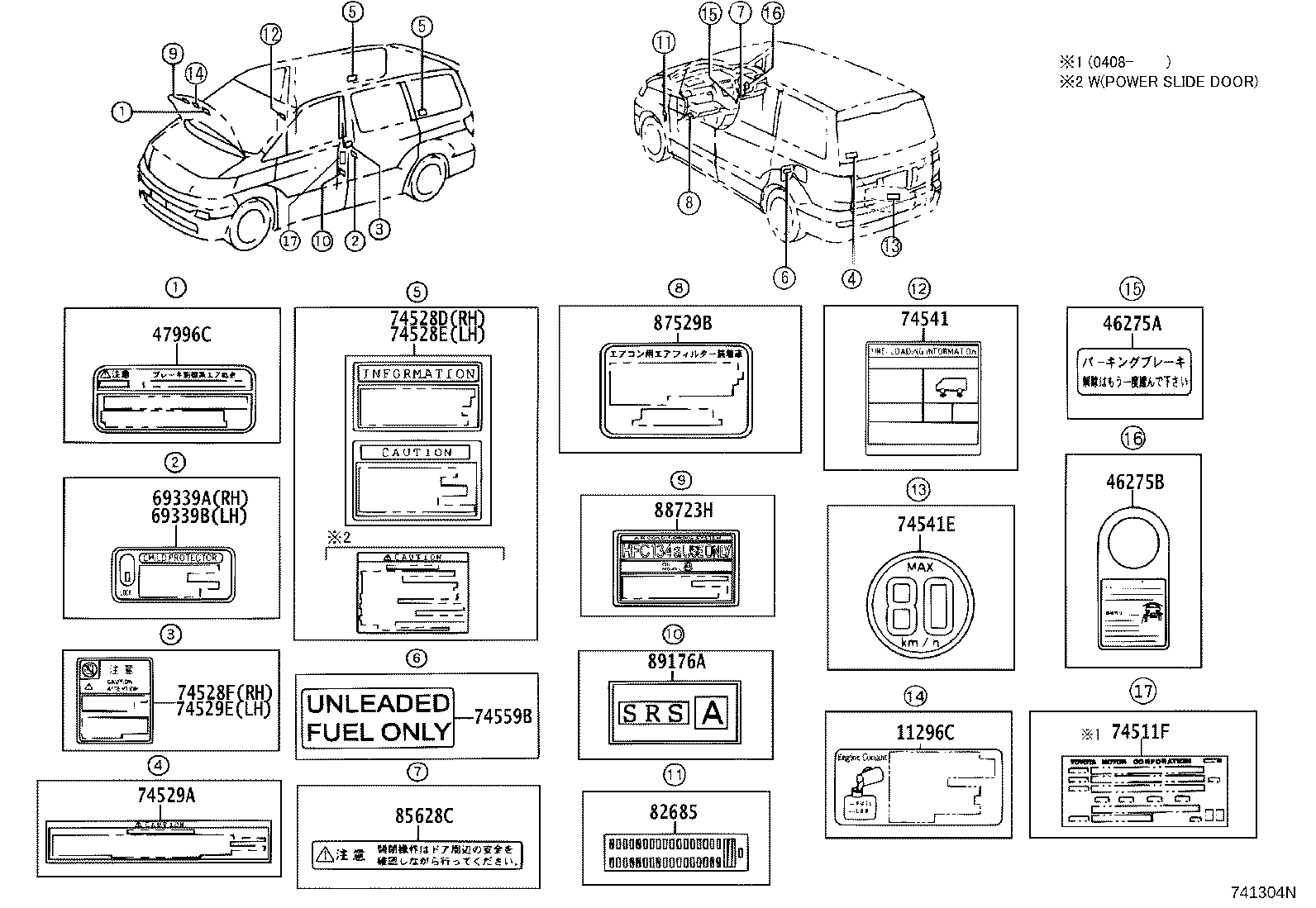

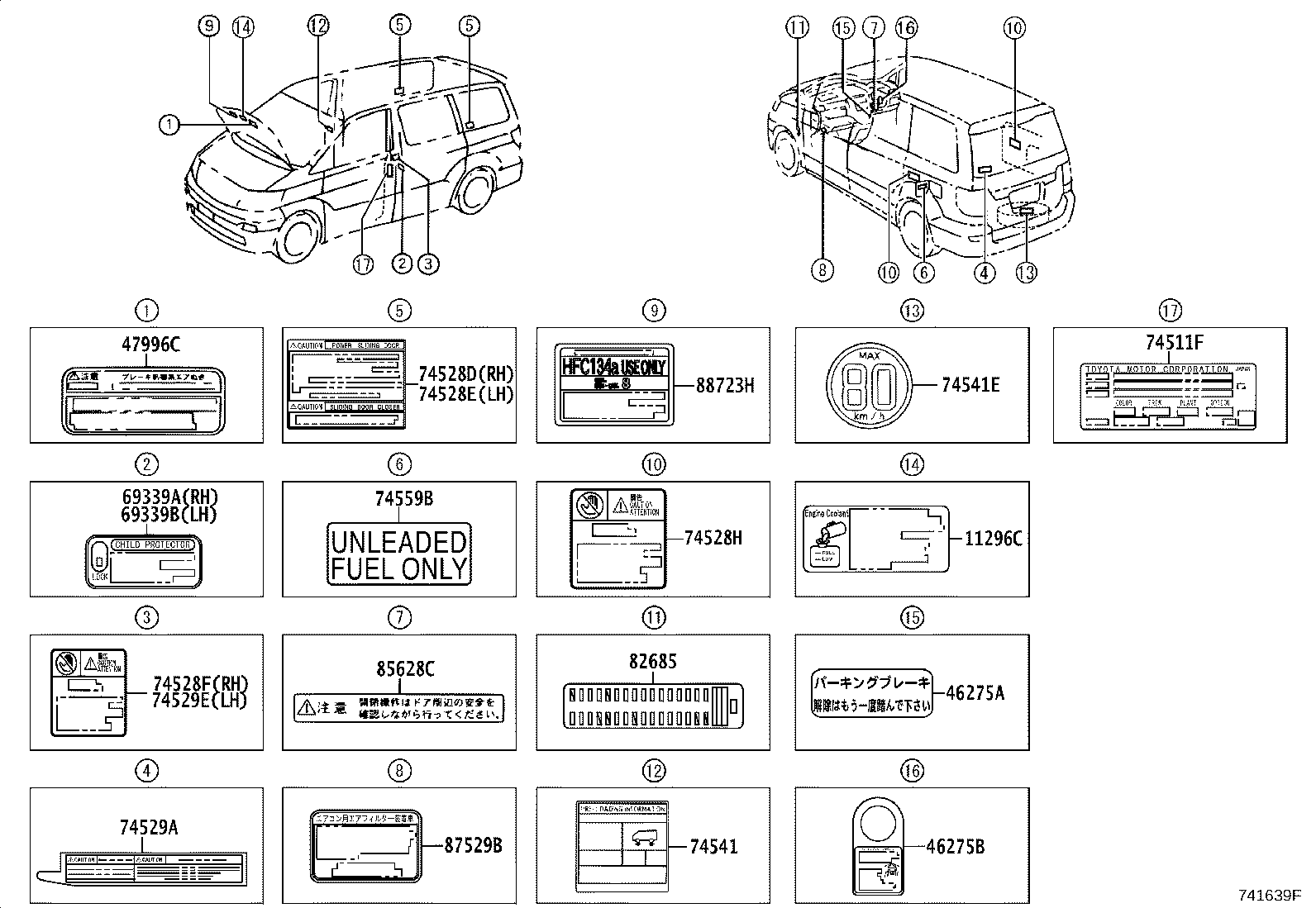

Figure 746048A 746048A 2003-12 → — Figure 741304N 741304N 2003-12 → 2005-04 Figure 741639F 741639F 2005-04 → —

Part groups

PNCDescription
11296C Label, Engine Service Information
13564 Label, Timing Belt Replacement Information
16448A Plate, Radiator Caution
46275A Label, Parking Brake Release Information, NO.1
46275B Label, Parking Brake Release Information, NO.2
47996C Label, Brake Bleed Caution
69339A Plate, Child Protector Lock Caution
69339B Plate, Child Protector Lock Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528D Label, Power Slide Door Notice
74528E Label, Power Slide Door Notice
74528F Label, Door Closer Caution, RH
74528H Label, Power Slide Door Caution
74529A Plate, Back Door Caution
74529E Label, Door Closer Caution, LH
74532A Plate, Caution
74541 Plate, Tire Pressure Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
82685 Plate, Caution
85628C Label, Automatic Door
87529B Label, A/C Filter Information
88723H Label, Cooler Service Caution
89176A Label, Airbag Deployment Information
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
