Toyota Alphard
2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General
Supported model
Data version 2008-10

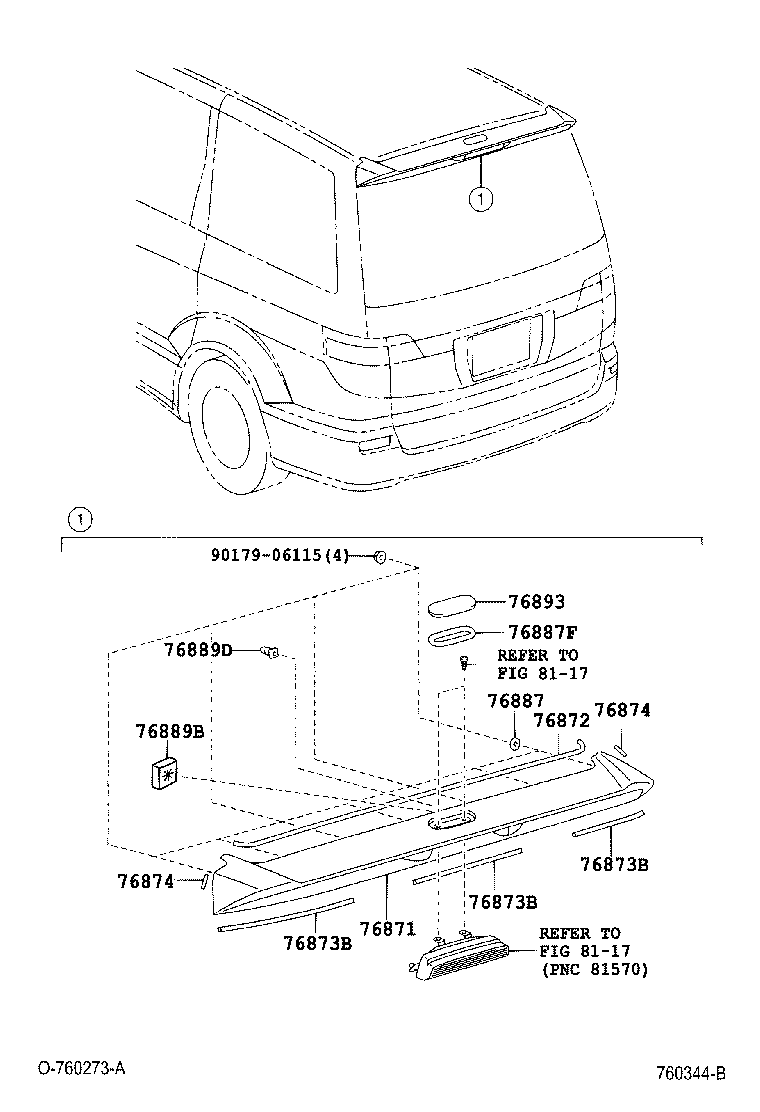

Spoiler & Side Mudguard
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 76871 | Spoiler, Rear |
| 76872 | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76887 | Seal, Rear Spoiler |
| 76887F | Seal, Rear Spoiler, NO.2 |
| 76889B | Seal, Rear Spoiler, NO.1 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76893 | Cover, Rear Spoiler, NO.1 |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915E | Mudguard, Slide Door, RH |
| 76916E | Mudguard, Slide Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76918B | Mudguard, Quarter Panel, LH |
| 76921C | Protector, Side Mudguard, RH |
| 76922C | Protector, Side Mudguard, NO.2 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76922F | Protector, Side Mudguard, LH |
| 76923 | Retainer, Side Mudguard |
| 76925D | Protector, Side Mudguard, RH |
| 76925F | Protector, Side Mudguard, RH |
| 76926D | Protector, Side Mudguard, LH |
| 76926F | Protector, Side Mudguard, LH |
| 76931 | Retainer, Side Mudguard, NO.3 |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932 | Retainer, Side Mudguard, NO.4 |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76933 | Retainer, Side Mudguard, NO.5 |
| 76933A | Bracket, Side Mudguard, NO.2 RH |
| 76934A | Bracket, Side Mudguard, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
