Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

32 part groups · 3 illustrations

Illustrations

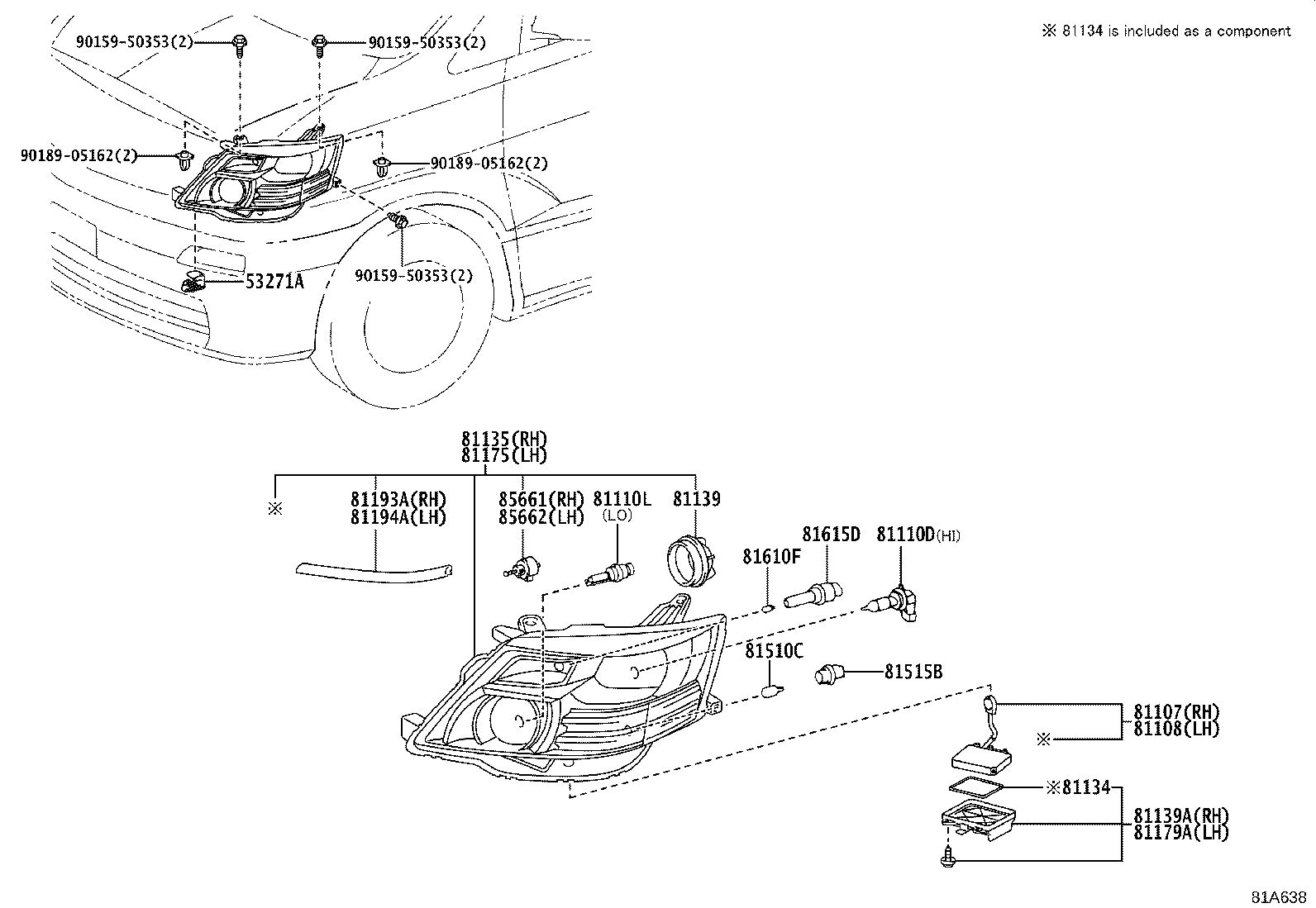

Figure 812728C 812728C 2003-12 → 2005-04 Figure 81A638 81A638 2005-04 → — Figure 812152A 812152A 2003-12 → —

Part groups

PNCDescription
53271A Bracket, Headlamp Mounting
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110D Bulb(FOR HEADLAMP, NO.2)
81110L Bulb, Discharge Headlamp
81125 Cord, Headlamp
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81136 Protector, Headlamp, NO.1 RH
81139 Cover, Headlamp Socket
81139A Cover, Light Control Computer, RH
81175 Unit Assy, Headlamp, LH
81176 Protector, Headlamp, NO.1 LH
81179A Cover, Light Control Computer, LH
81193A Protector, Headlamp, RH
81193C Retainer, RH Headlamp Protector, Upper RH
81193D Retainer, RH Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194C Retainer, LH Headlamp Protector, Upper RH
81194D Retainer, LH Headlamp Protector, Upper LH
81195B Retainer, RH Headlamp Protector, Lower RH
81195C Retainer, RH Headlamp Protector, Lower LH
81196B Retainer, LH Headlamp Protector, Lower RH
81196C Retainer, LH Headlamp Protector, Lower LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
81730E Bulb (FOR SIDE TURN SIGNAL)
81730F Socket Plug, Side Turn Signel Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
