Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

17 part groups · 4 illustrations

Illustrations

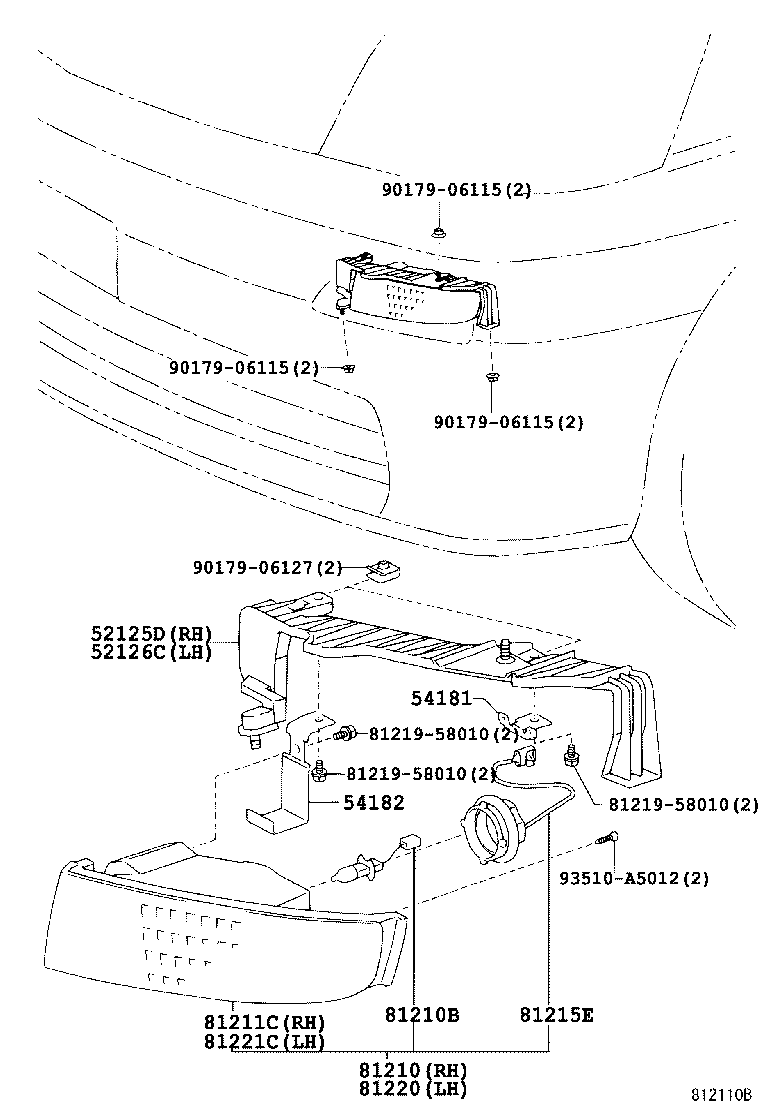

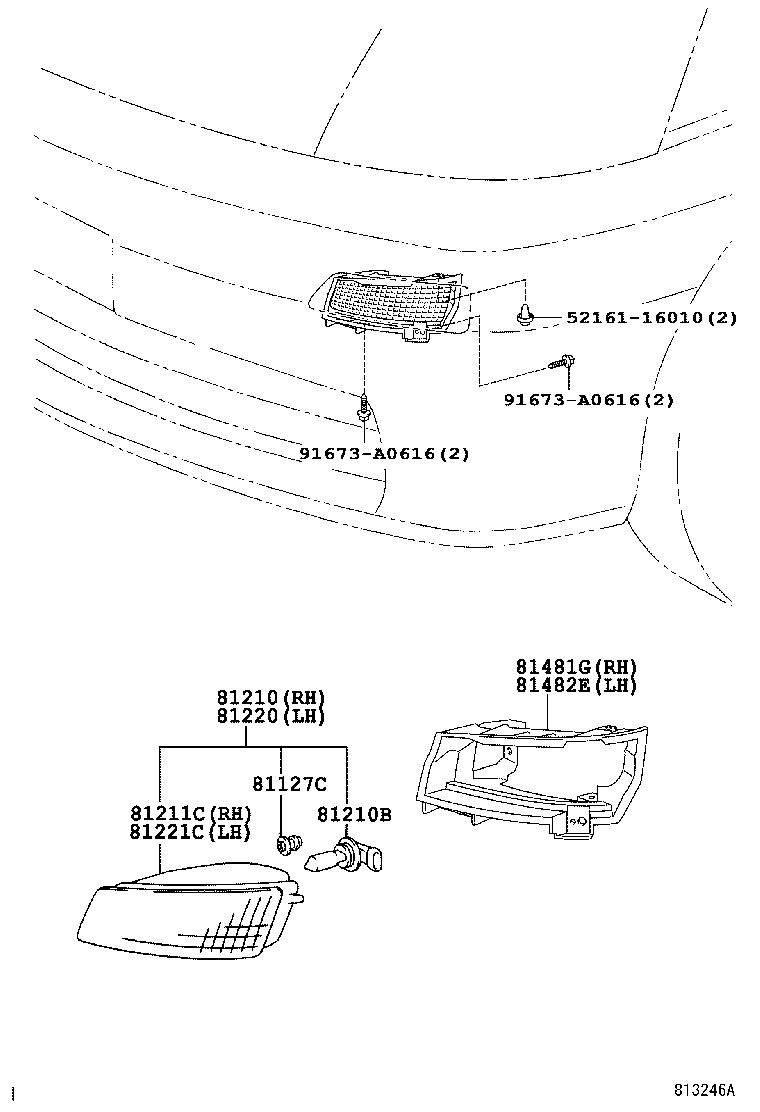

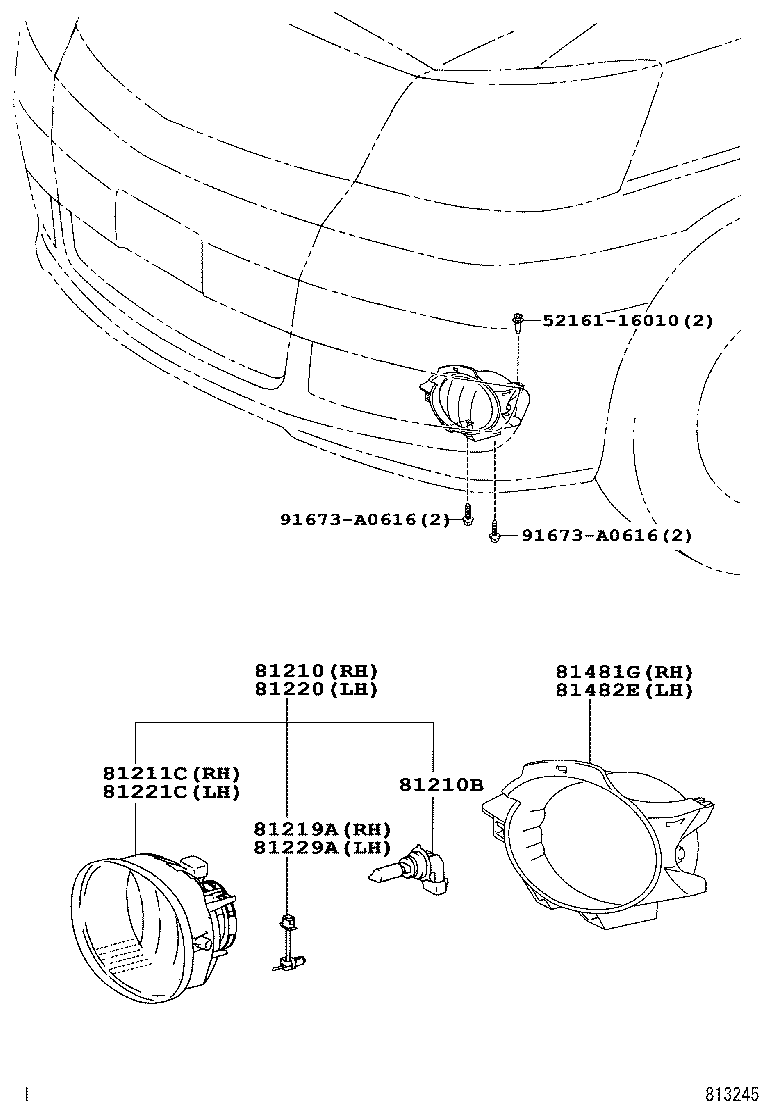

Figure 812109 812109 2003-12 → 2005-04 Figure 812110B 812110B 2003-12 → 2005-04 Figure 813245 813245 2005-04 → — Figure 813246A 813246A 2005-04 → —

Part groups

PNCDescription
52125D Bracket, Fog Lamp Mounting, RH
52126C Bracket, Fog Lamp Mounting, LH
54181 Bracket, Fog Lamp Base, NO.1
54182 Bracket, Fog Lamp Base, NO.2
81127C Bearing Fog Lamp
81210 Lamp Assy, Fog
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81212C Cover, Fog Lamp
81215E Cord, Fog Lamp
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229 Bracket, Fog Lamp
81229A Bracket, Fog Lamp, LH
81481G Bracket, Fog Lamp, RH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
