Toyota Alphard

2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General

Supported model Data version 2008-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

59 part groups · 11 illustrations

Illustrations

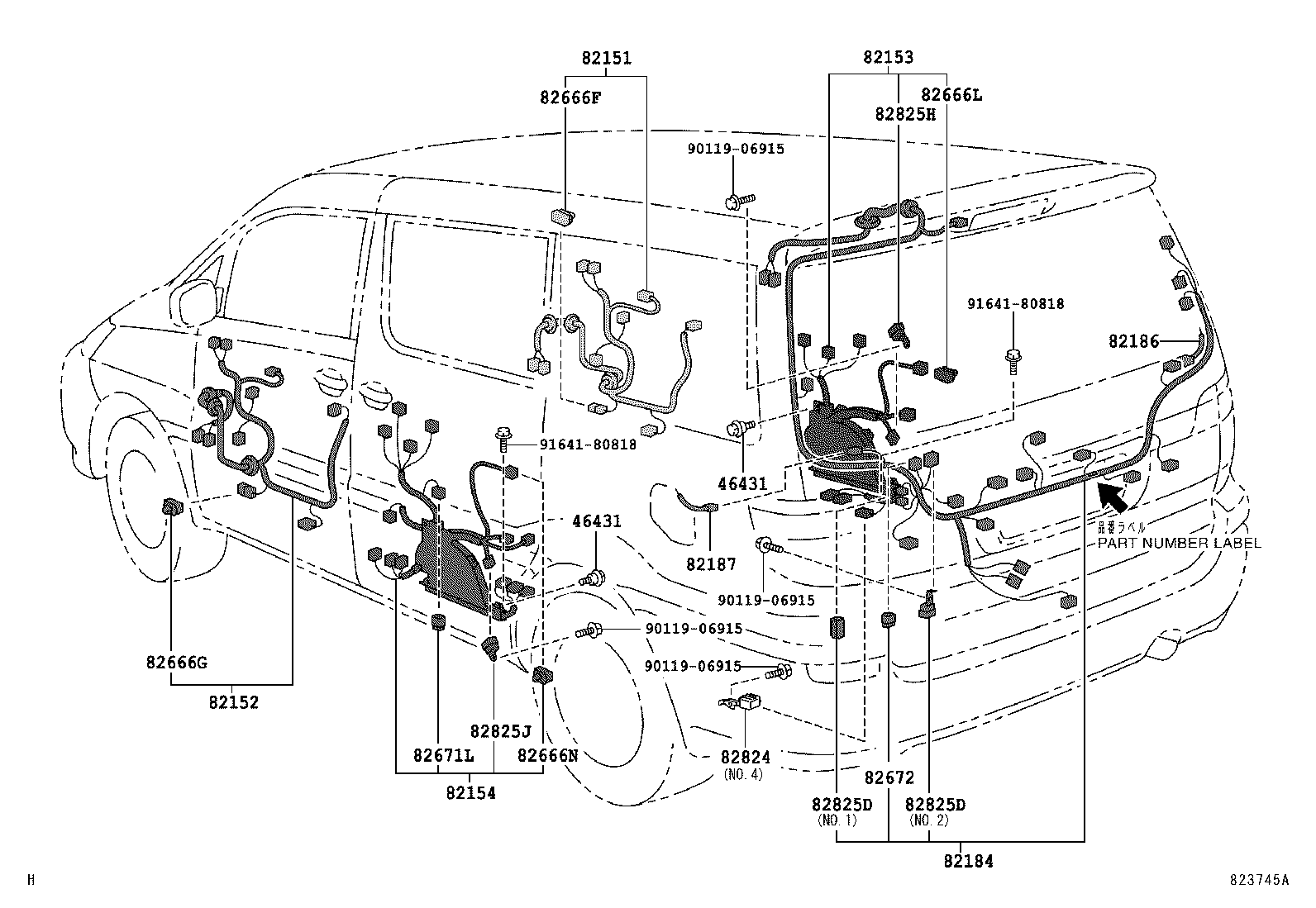

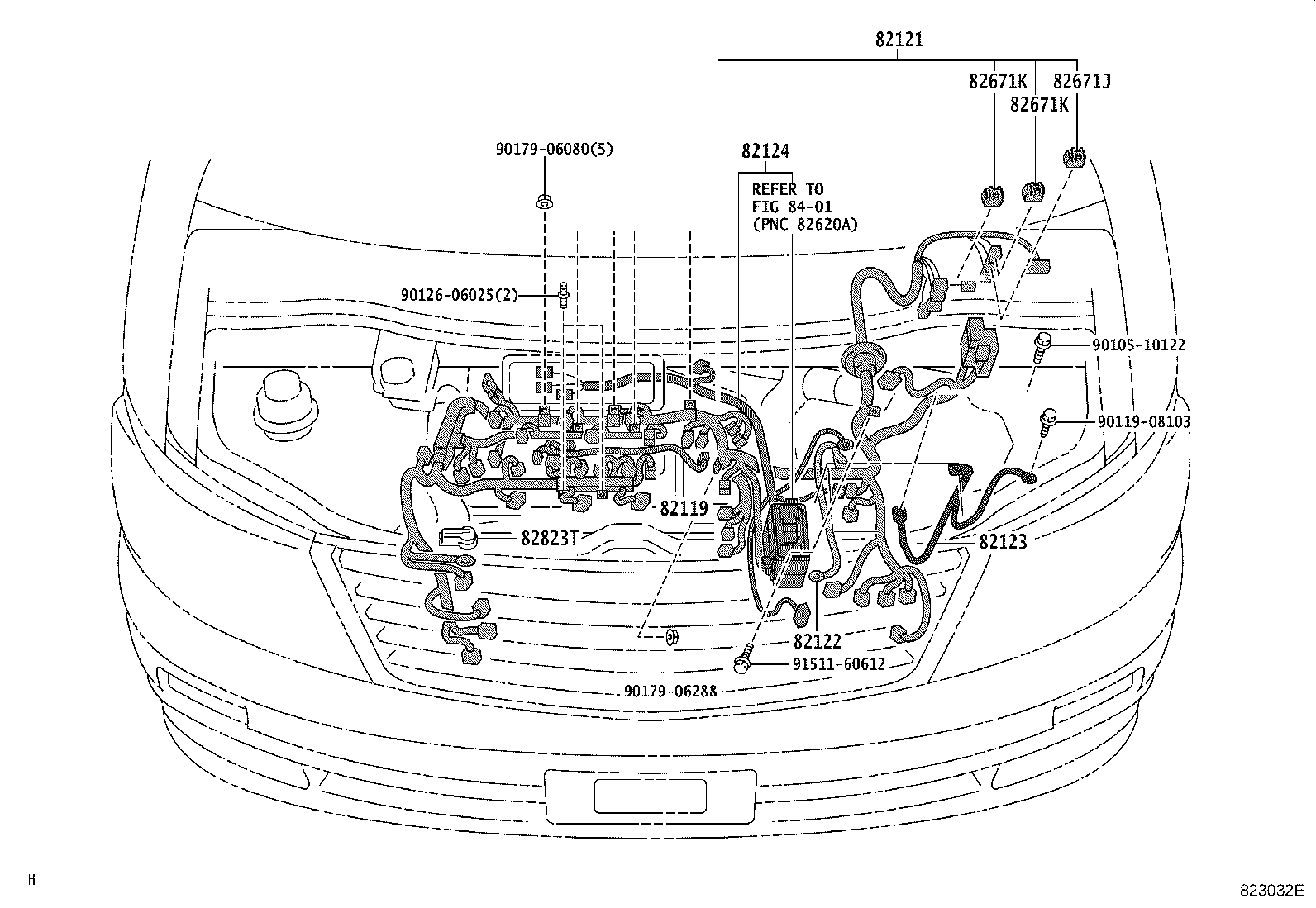

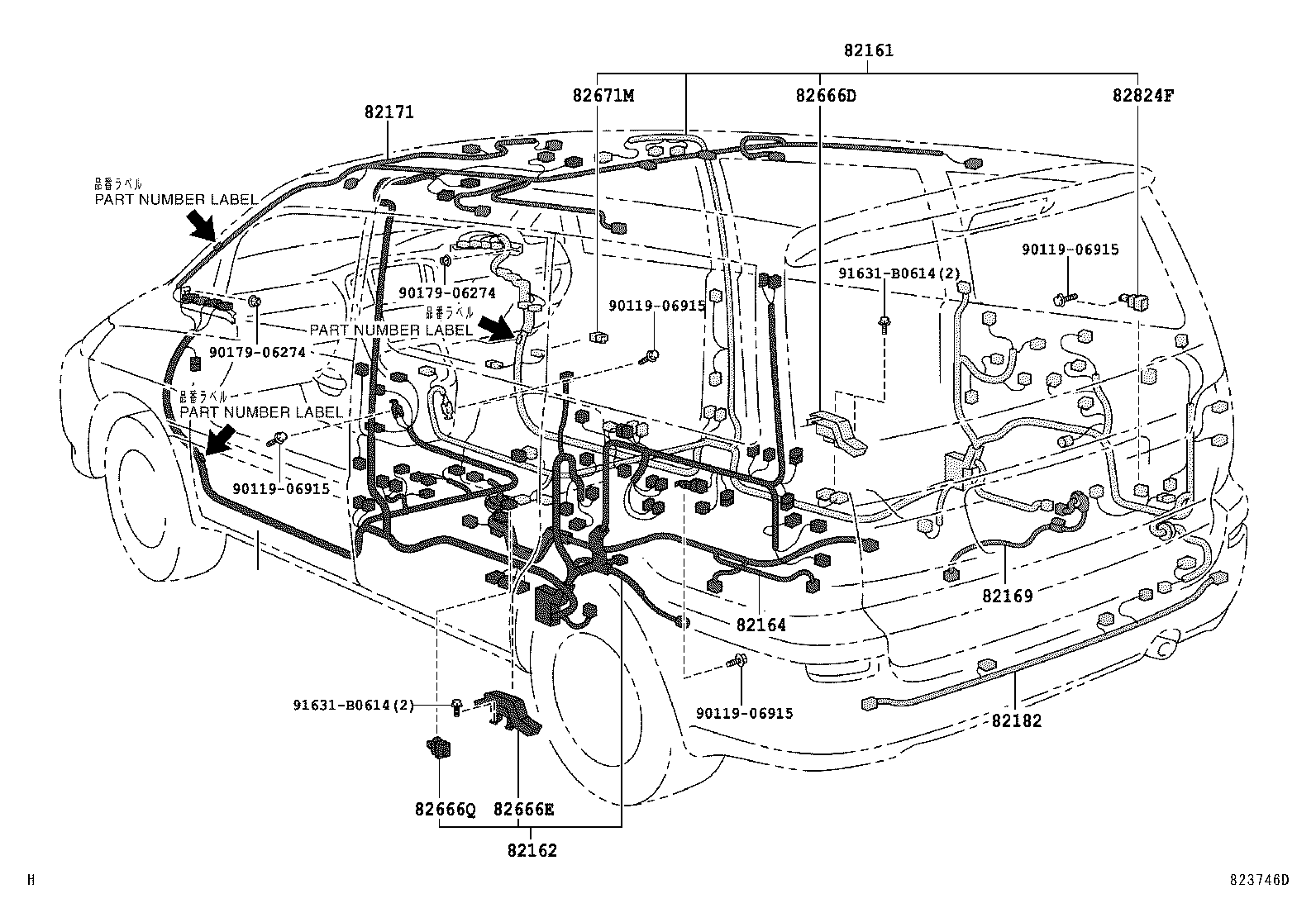

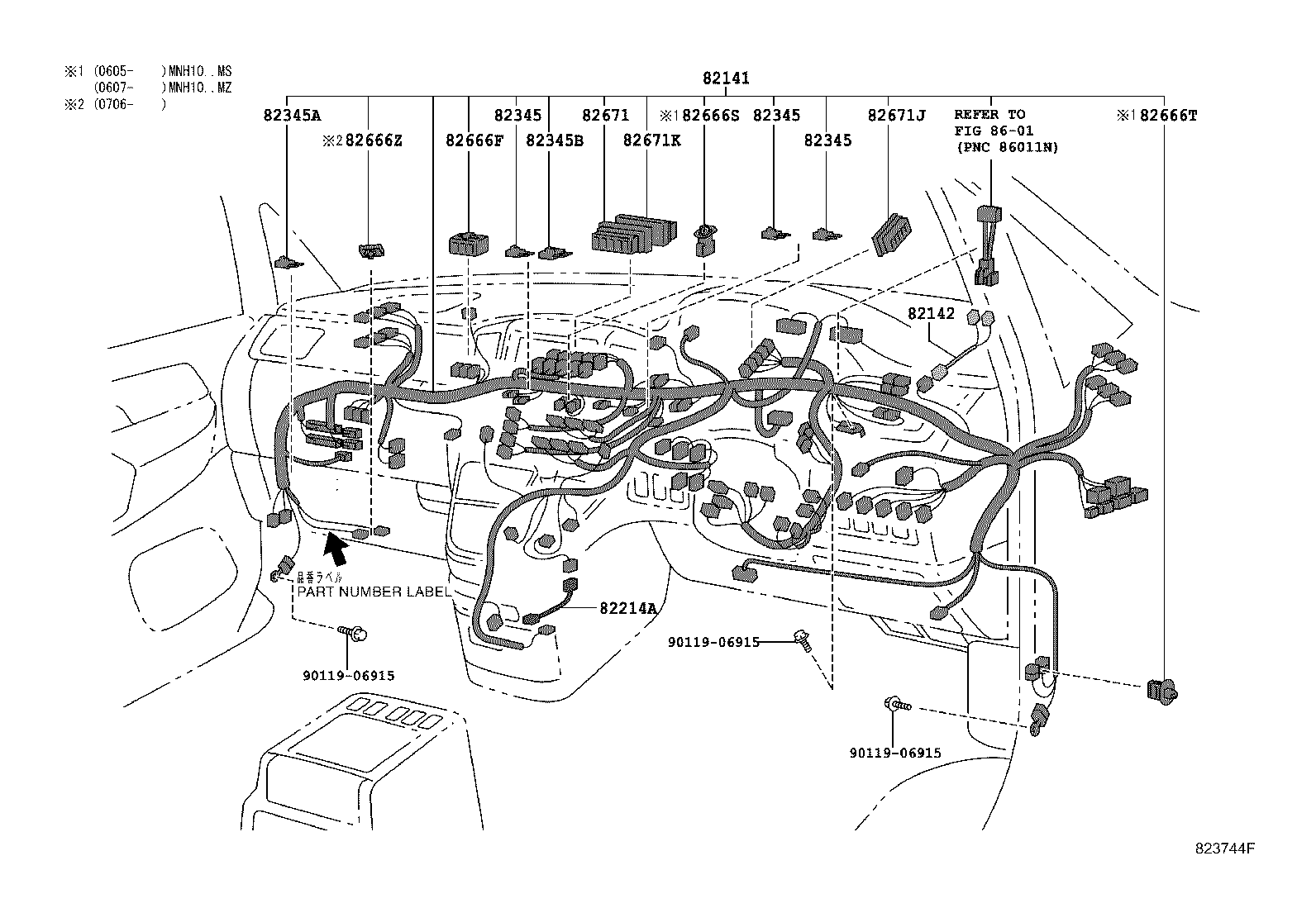

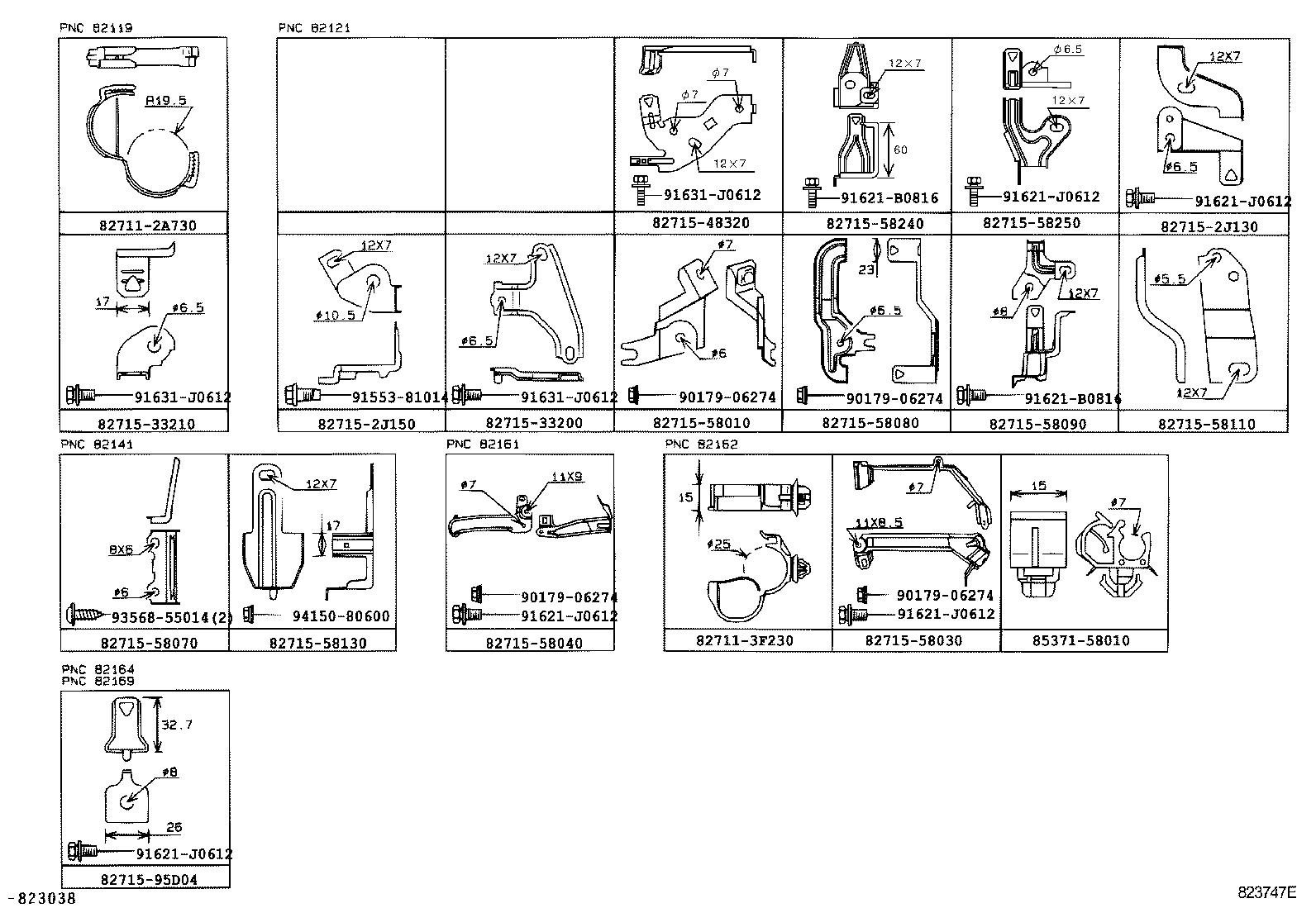

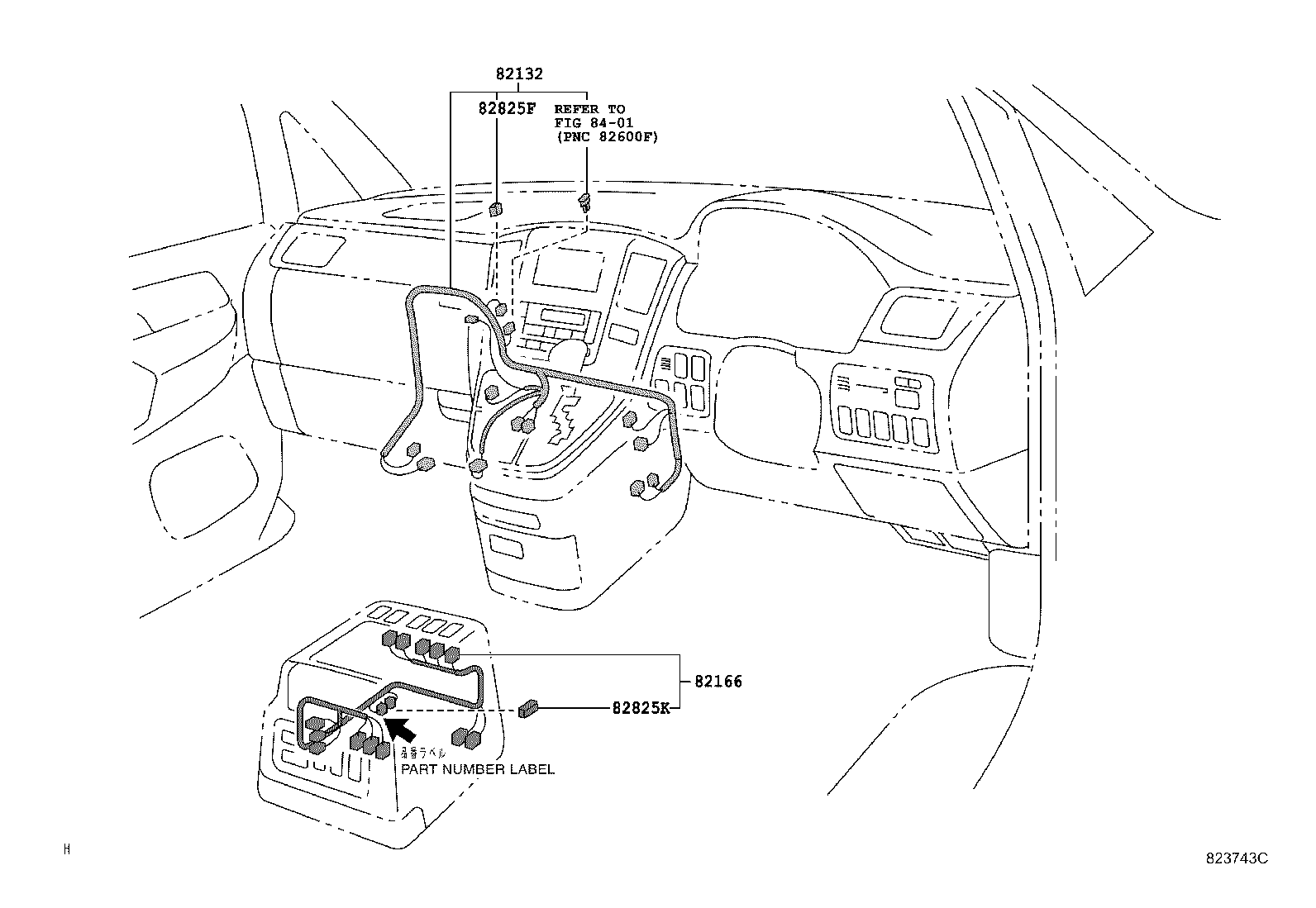

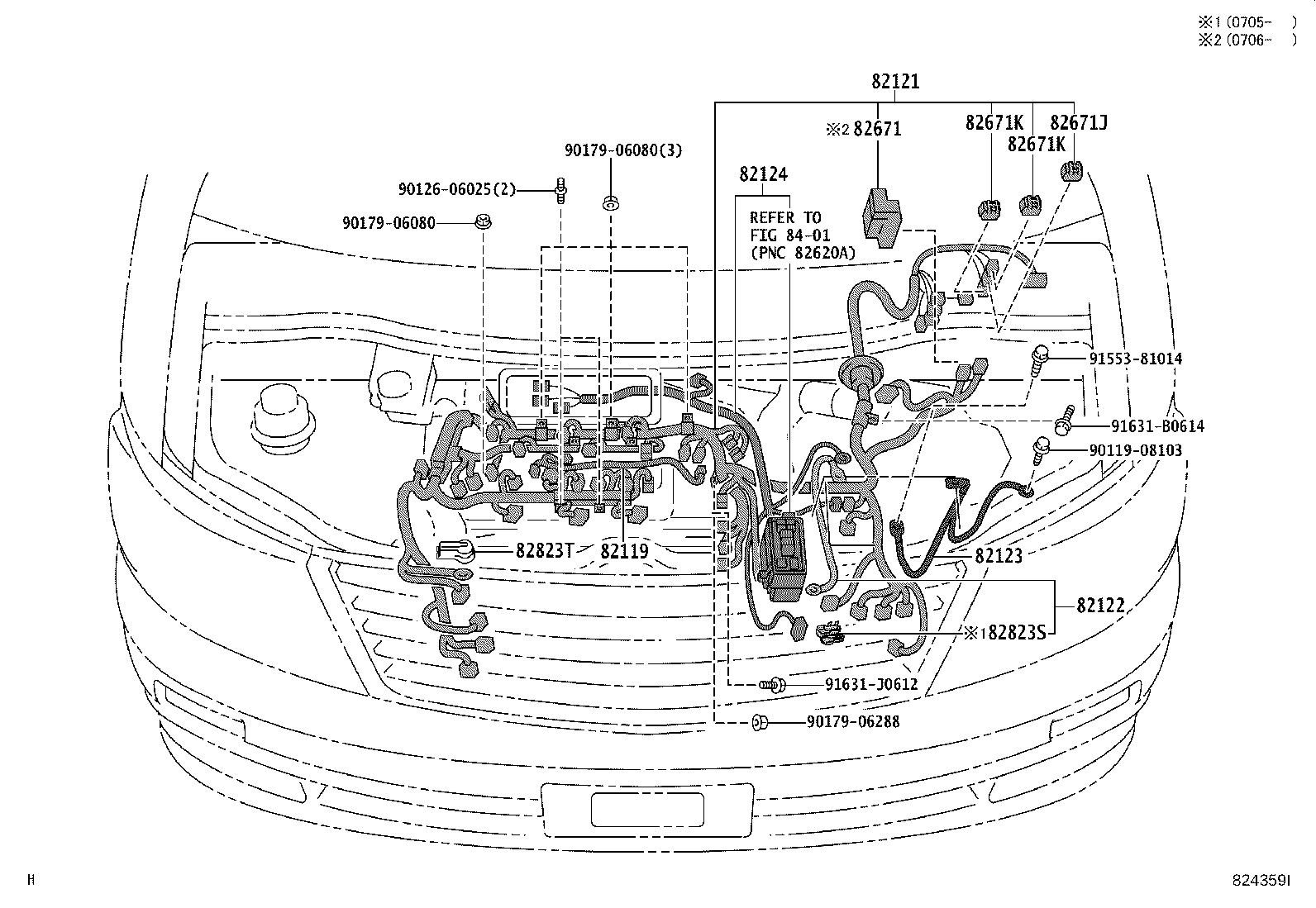

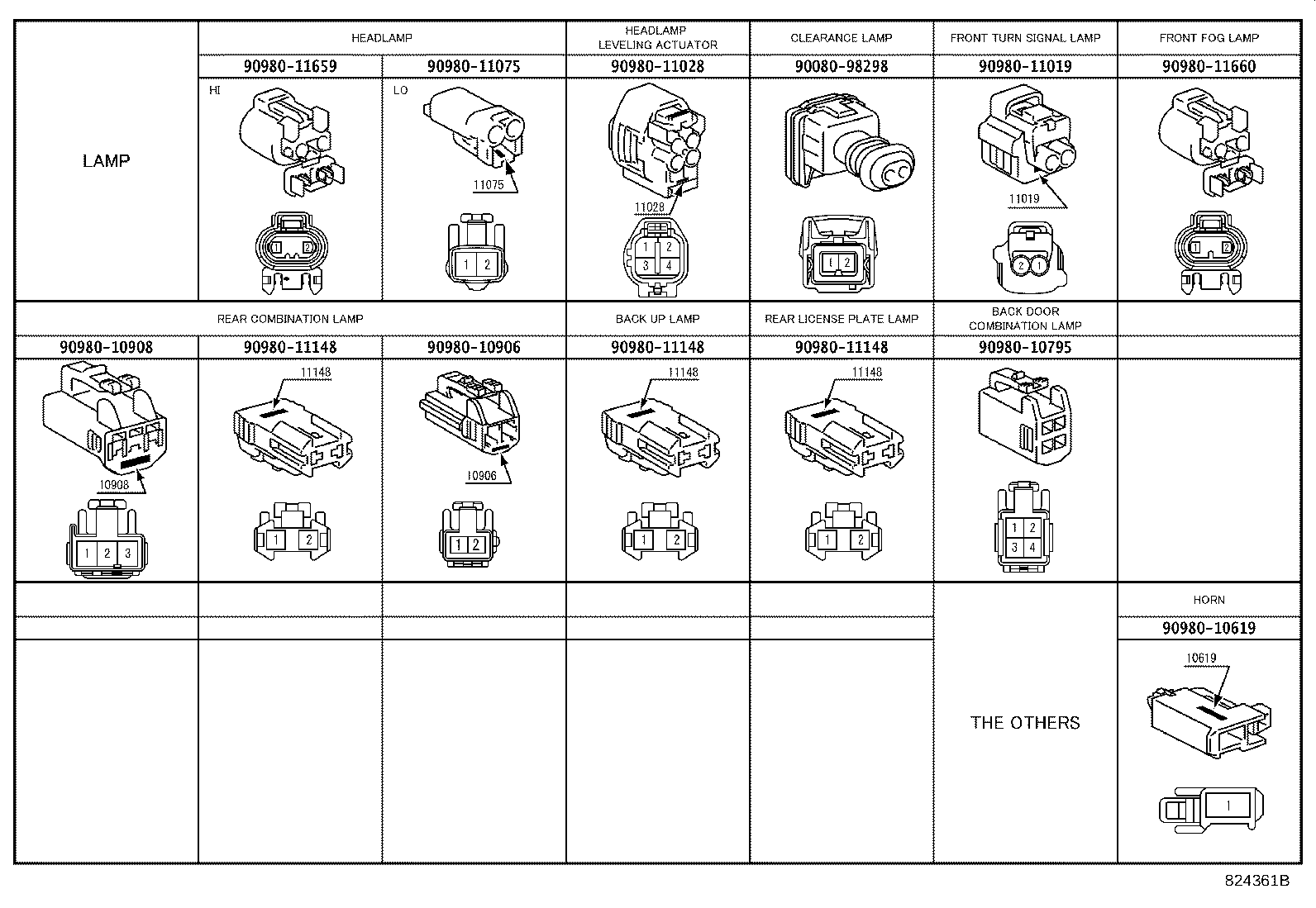

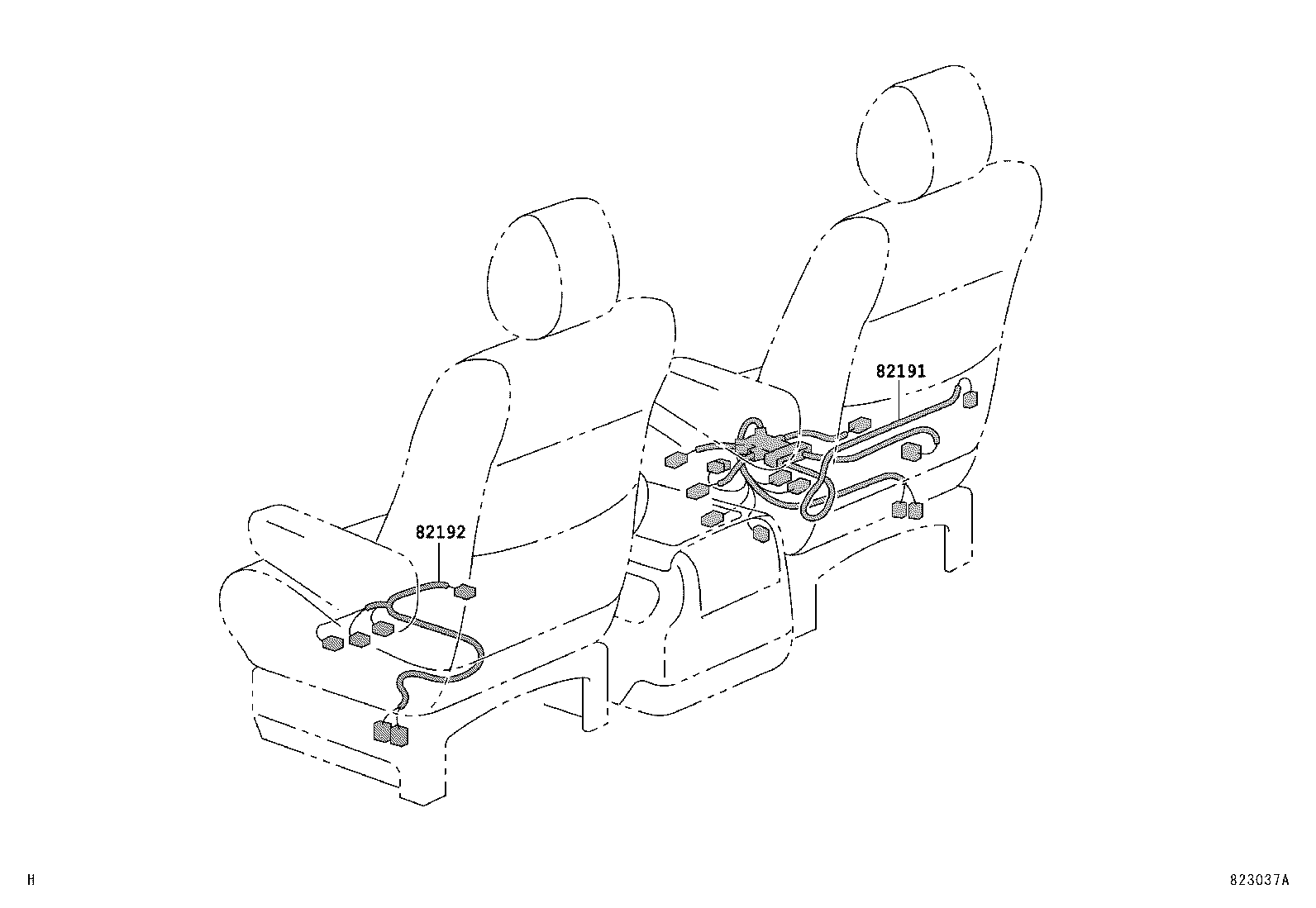

Figure 824362D 824362D 2003-12 → — Figure 823032E 823032E 2003-12 → 2005-04 Figure 824359I 824359I 2005-04 → — Figure 823743C 823743C 2003-12 → — Figure 823744F 823744F 2003-12 → — Figure 823745A 823745A 2003-12 → — Figure 823746D 823746D 2003-12 → — Figure 823037A 823037A 2003-12 → — Figure 823747E 823747E 2003-12 → — Figure 823767B 823767B 2003-12 → — Figure 824361B 824361B 2003-12 → —

Part groups

PNCDescription
46431 Bolt, Wire
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82114 Wire, Engine Room, NO.4
82119 Wire, Sensor
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82132 Wire, Cowl, NO.2
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82166 Wire, Console Box
82169 Wire Frame, NO.3
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82214A Wire, Lamp
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666Z Holder, Connector NO.19
82671 Block, Junction
82671J Block, Junction, NO.2
82671K Block, Junction, NO.3
82671L Block, Junction, NO.4
82671M Block, Junction, NO.5
82672 Cover, Junktion Block
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824F Connector, Wiring Harness
82825D Connector, Wiring Harness
82825F Connector, Wiring Harness
82825H Connector, Wiring Harness
82825J Connector, Wiring Harness
82825K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
