Toyota Alphard
2003-12 → 2008-04 · chassis MNH10 · catalogue 713220 · General
Supported model
Data version 2008-10

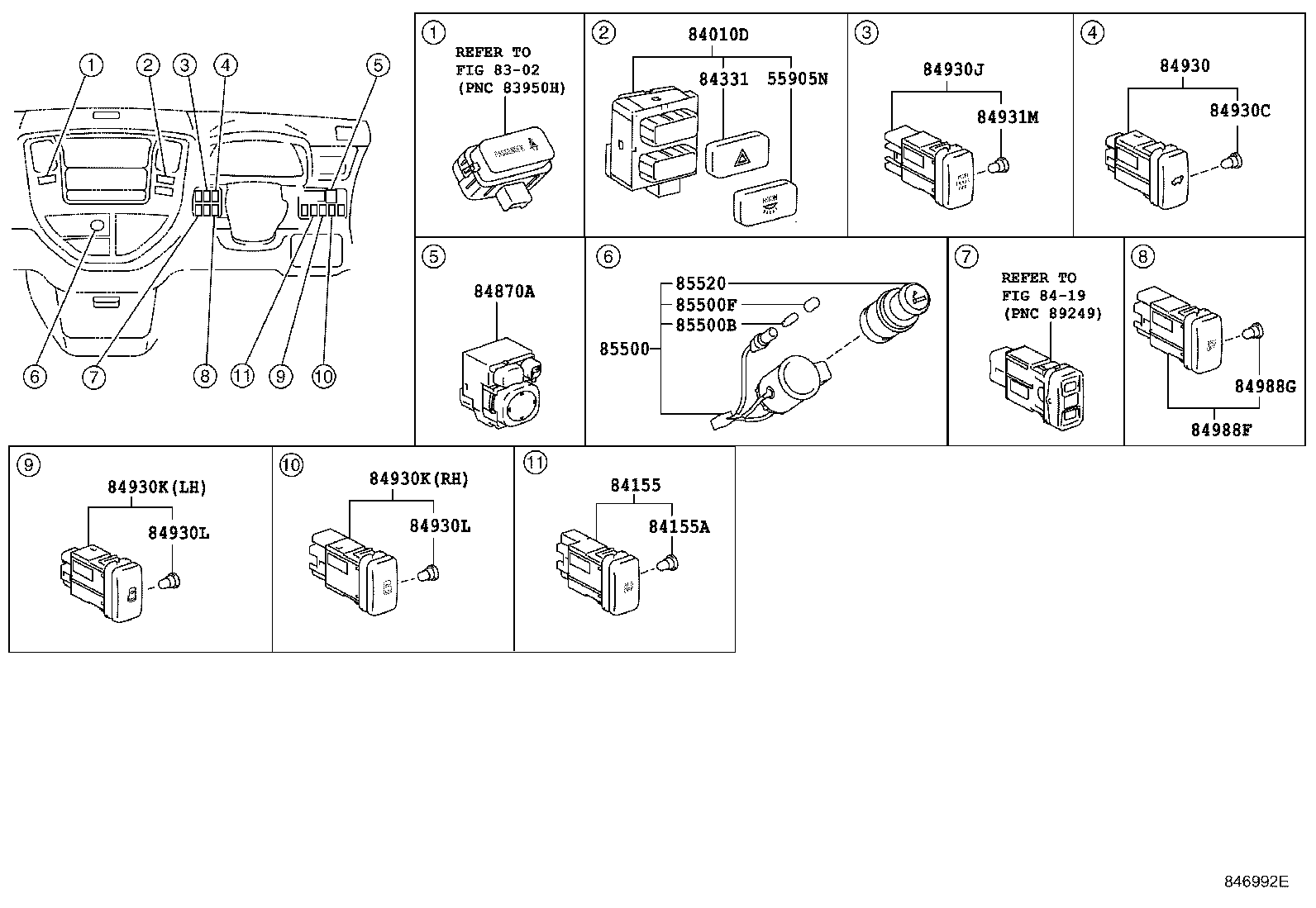

Switch & Relay & Computer
103 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28371C | Relay, Ignition, NO.2 |
| 55905N | Knob Sub-assy, Control, NO.1 |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |

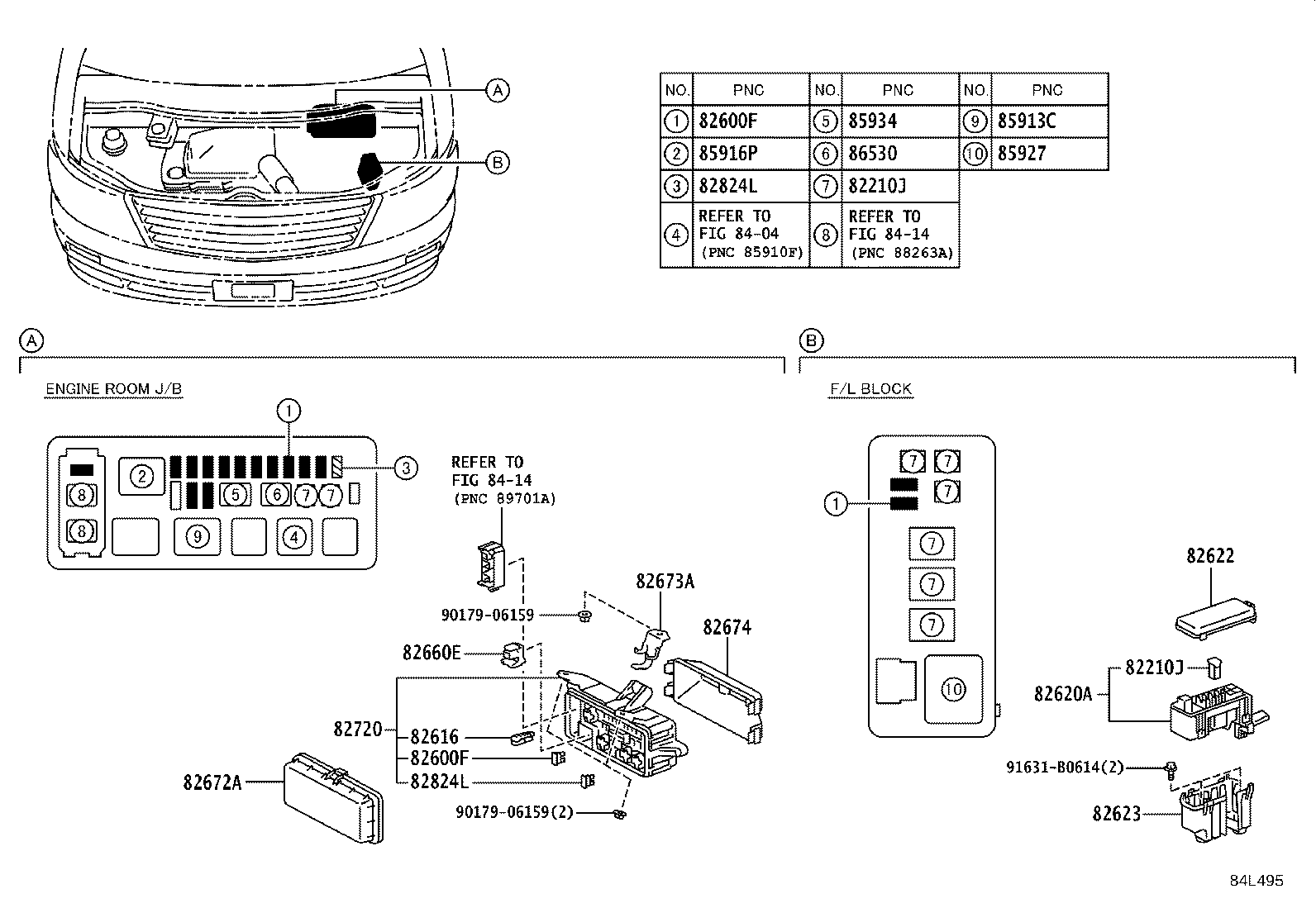

| 82620A | Block Assy, Fusible Link |
| 82622 | Cover, Fusible Link, Upper |
| 82623 | Cover, Fusible Link, Lower |
| 82660E | Block Assy, Relay |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82674 | Cover, Junction Block Lower |
| 82720 | Block Assy, Engine Room Junction |

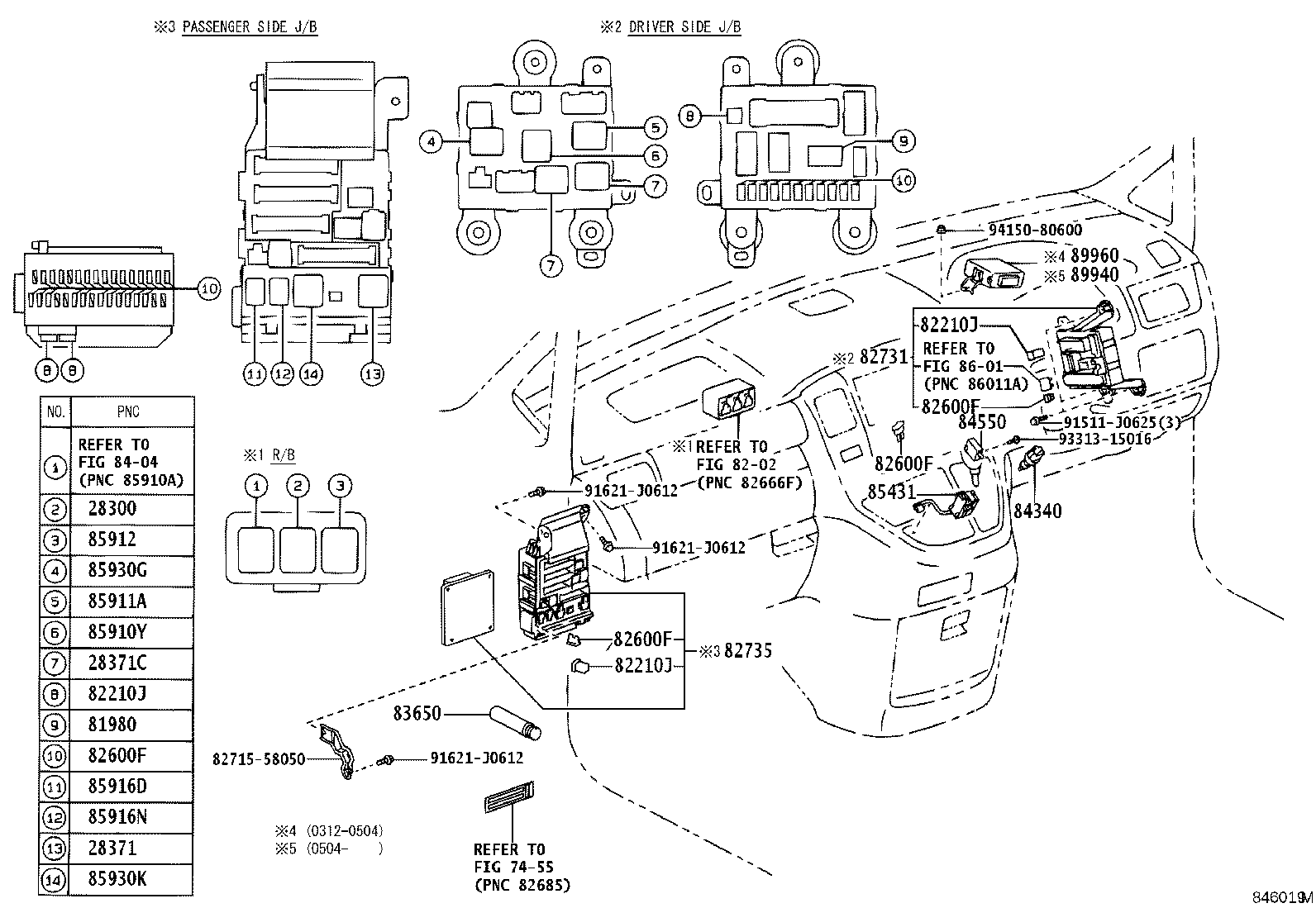

| 82731 | Block, Driver Side Junction |
| 82735 | Block, Passenger Side Junction |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83420 | Gage Assy, Water Temperature Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84010D | Control & Panel Assy, Integration |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84155 | Switch, Headlamp Swivel Main |
| 84155A | Bulb, Hdeadlamp Swivel Main Switch |
| 84170 | Switch Assy, Interior Dome Lamp |
| 84170C | Bulb,Room Lamp Switch |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |

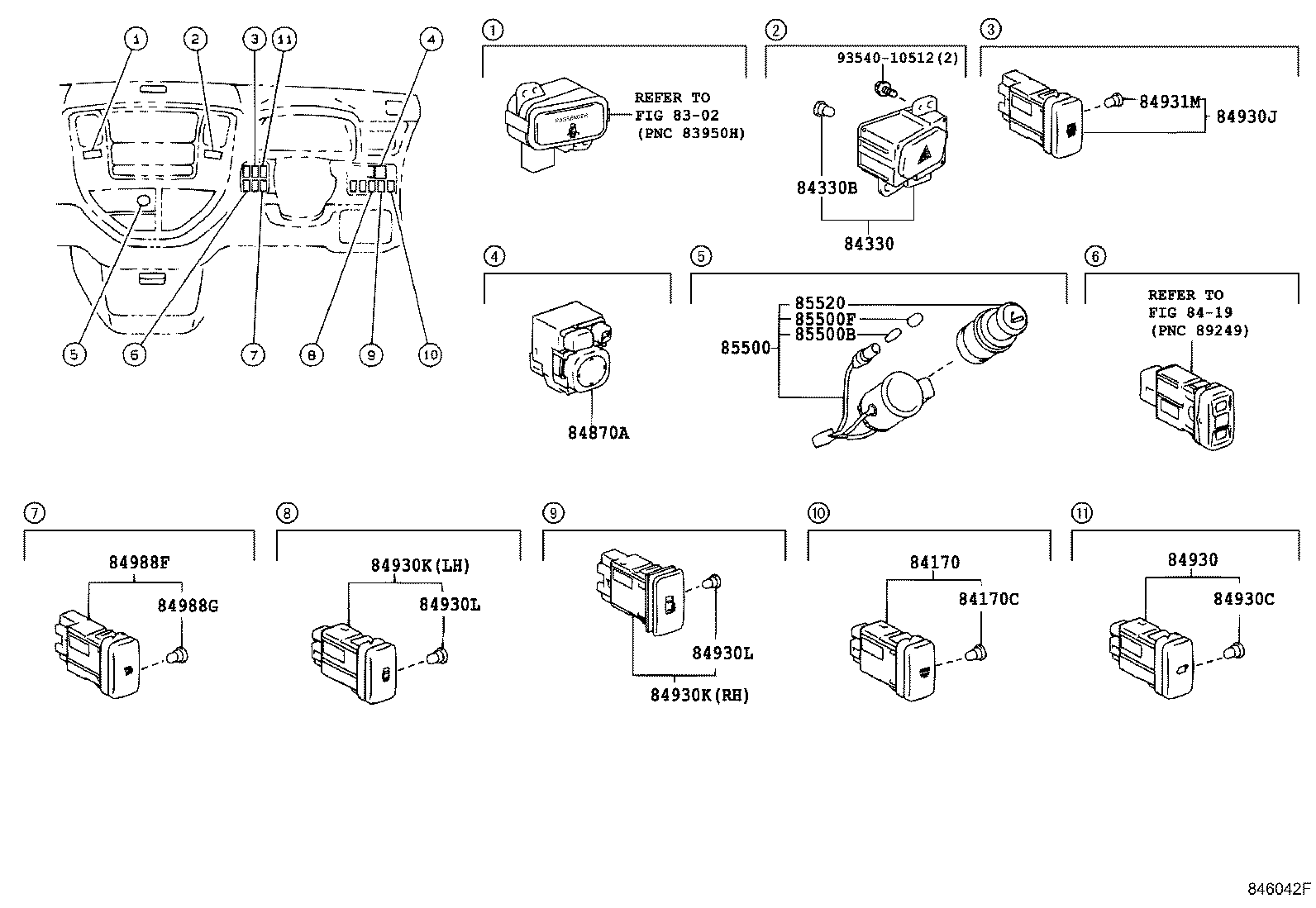

| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84331 | Knob, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |

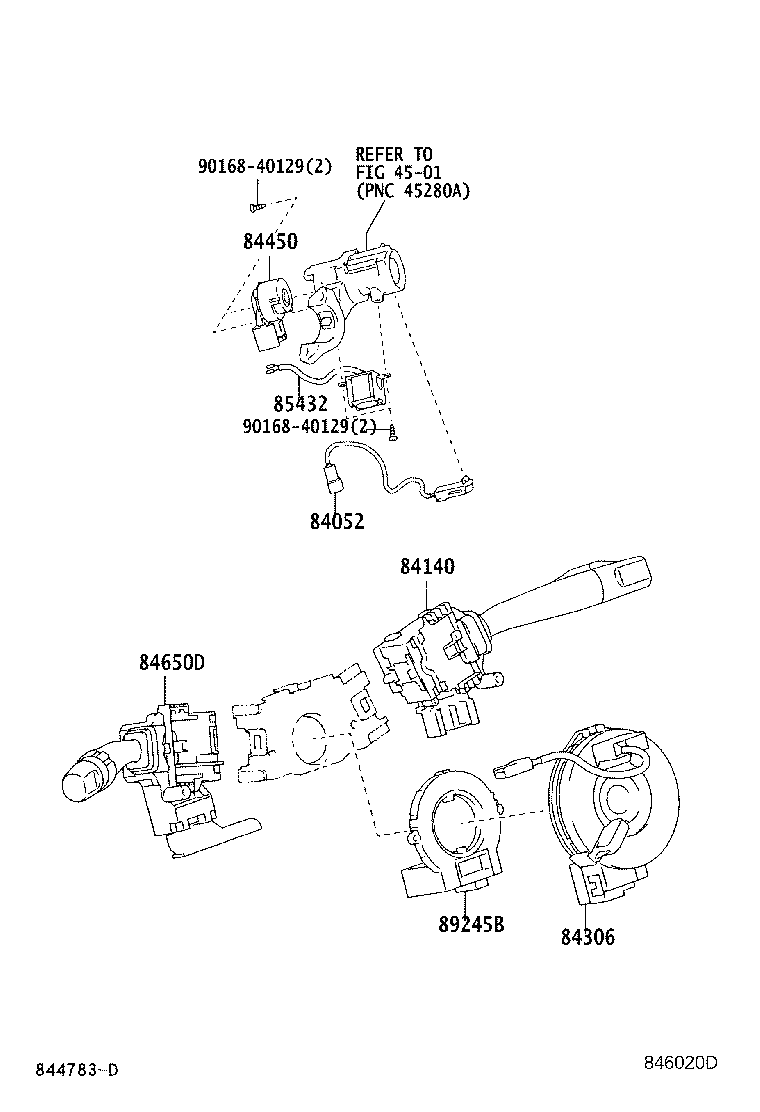

| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |

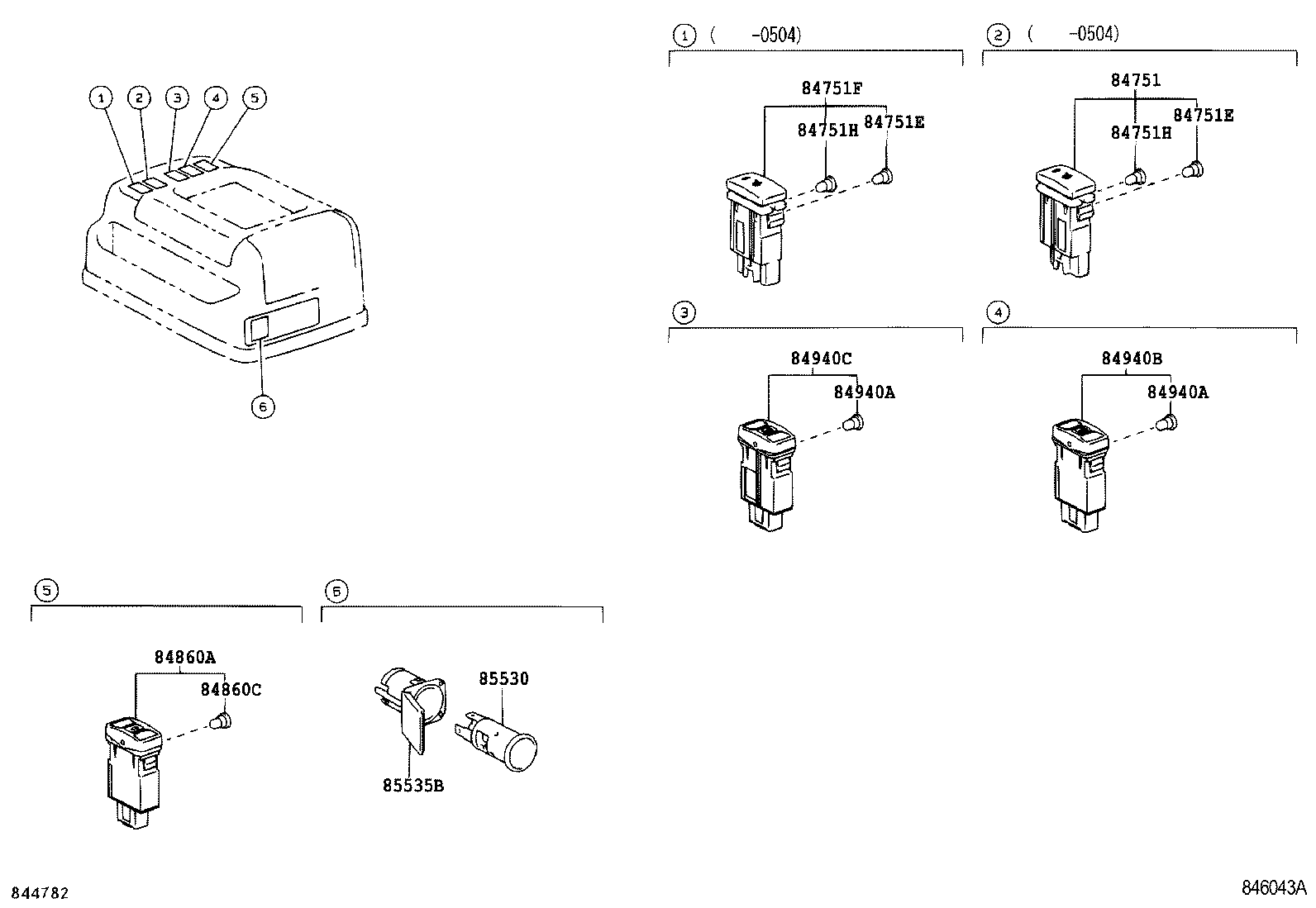

| 84751 | Switch, Seat Heater |
| 84751E | Bulb, Seat Heater Switch(FRONT) |
| 84751F | Switch, Seat Heater |
| 84751H | Bulb, Seat Heater Switch(FRONT) |

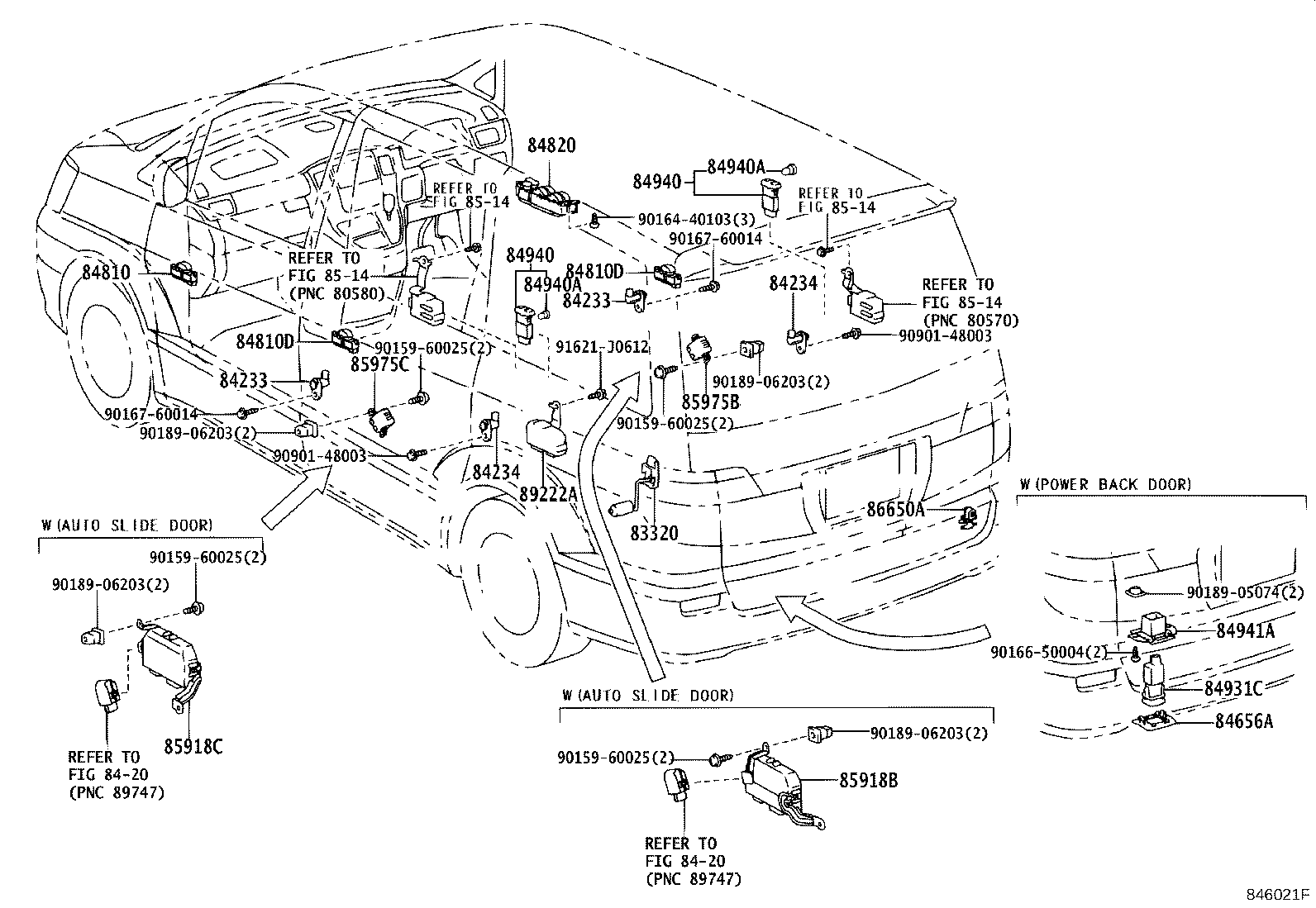

| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84860C | Blub, Sliding Roof Switch |
| 84870A | Switch Assy, Outer Mirror |

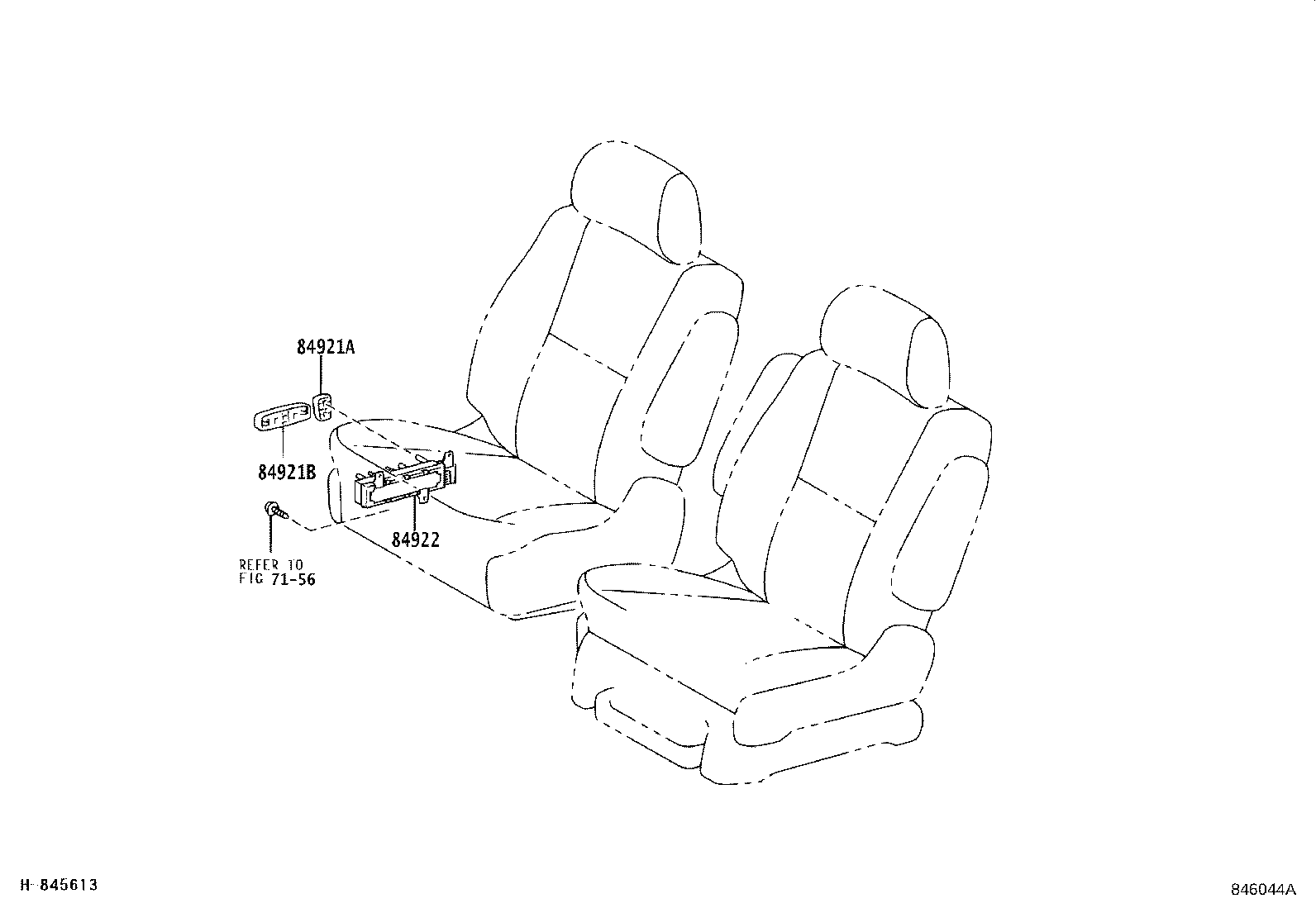

| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922 | Switch, Front Power Seat |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84930J | Switch Assy, Auto Slide Door Main |
| 84930K | Switch Assy, Auto Slide Door Control |
| 84930L | Bulb, Auto Slide Door Control Switch |
| 84931C | Switch, Back Door Control |
| 84931M | Bulb, Door Control Switch |
| 84940 | Switch Assy, Curtain |
| 84940A | Bulb, Curtain Switch |
| 84940B | Switch Assy, Curtain(SIDE) |
| 84940C | Switch Assy, Curtain(BACK) |
| 84941A | Base, Switch |
| 84988F | Switch, Traction Control |
| 84988G | Bulb, Traction Control Switch |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85500F | Cap, Cigarette Lighter Bulb |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85910Y | Relay, Rear Heater |
| 85911A | Relay, Auto Curtain |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85918B | Relay, Door Control, RH |
| 85918C | Relay, Door Control, LH |
| 85927 | Relay, Cooling Fan |
| 85930G | Relay, Acc |
| 85930K | Relay, Acc, NO.2 |
| 85934 | Relay, Magnet-clutch |
| 85975B | Relay, Slide Door Closer, RH |
| 85975C | Relay, Slide Door Closer, LH |
| 86530 | Relay Assy, Horn |
| 86650A | Buzzer Assy, Door Opening |
| 89222A | Computer, Multiplex Network Door |
| 89245B | Sensor, Steering |

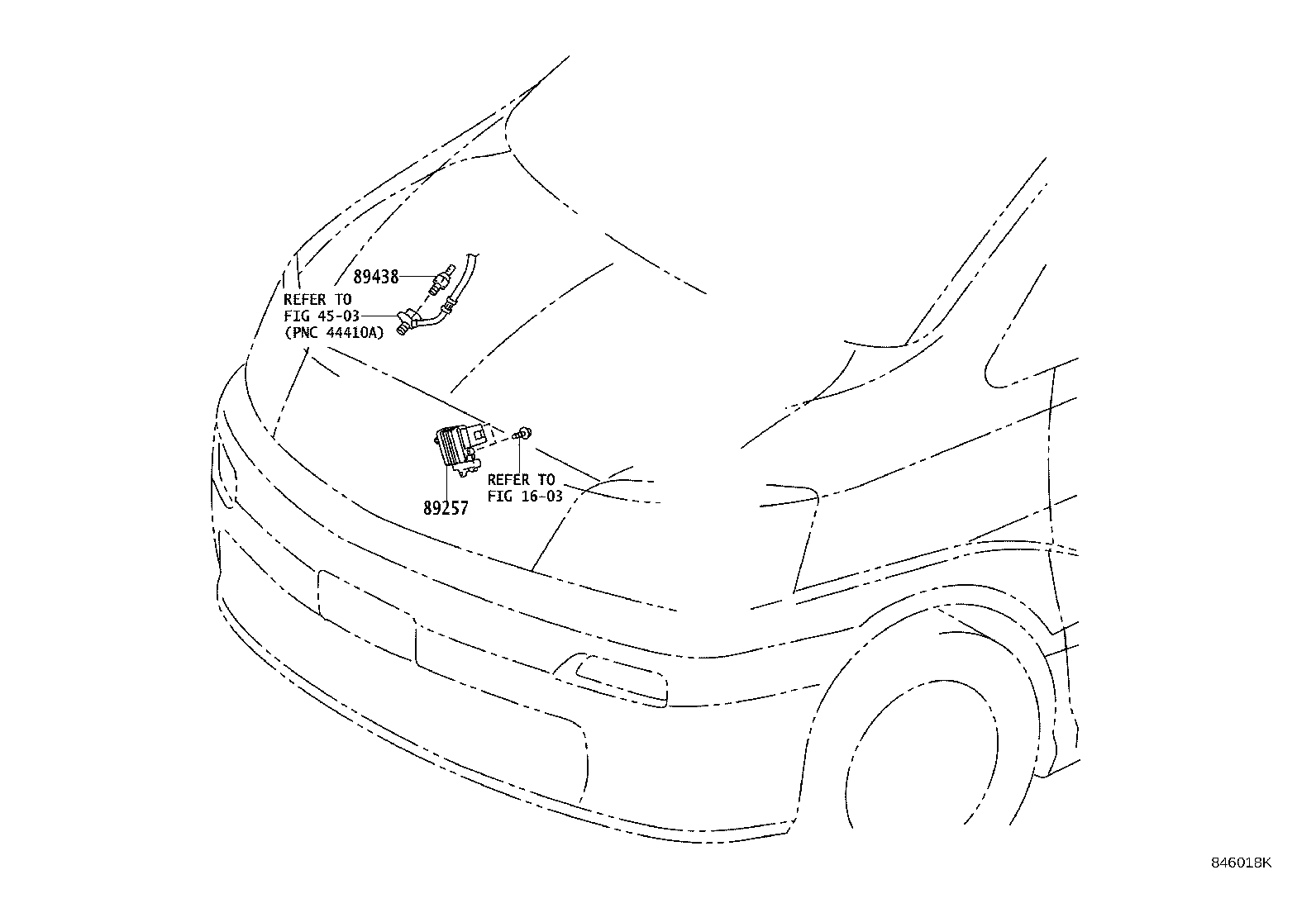

| 89257 | Computer, Cooling Fan |
| 89438 | Switch, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89615 | Sensor, Knock Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
