Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

16 part groups · 7 illustrations

Illustrations

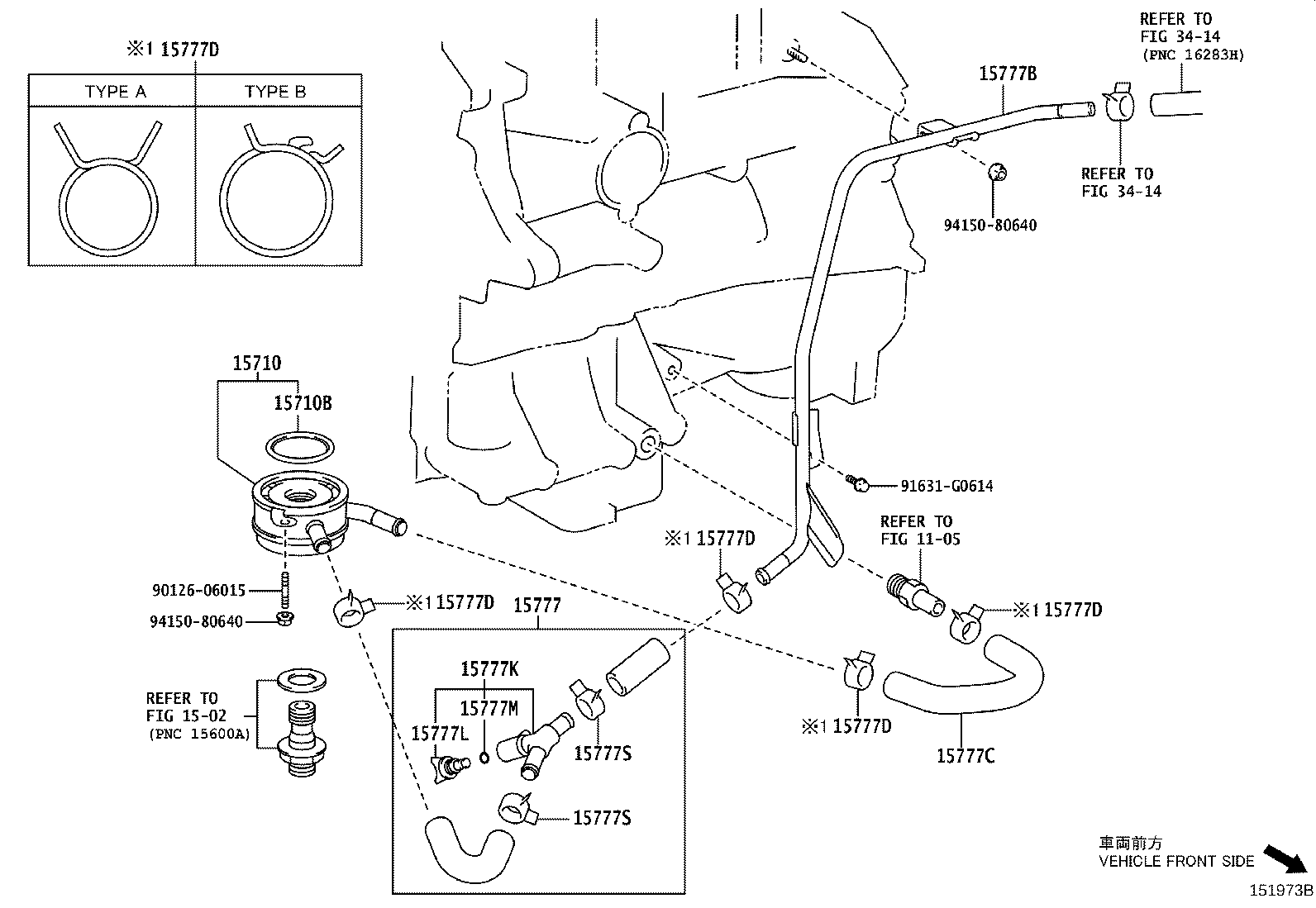

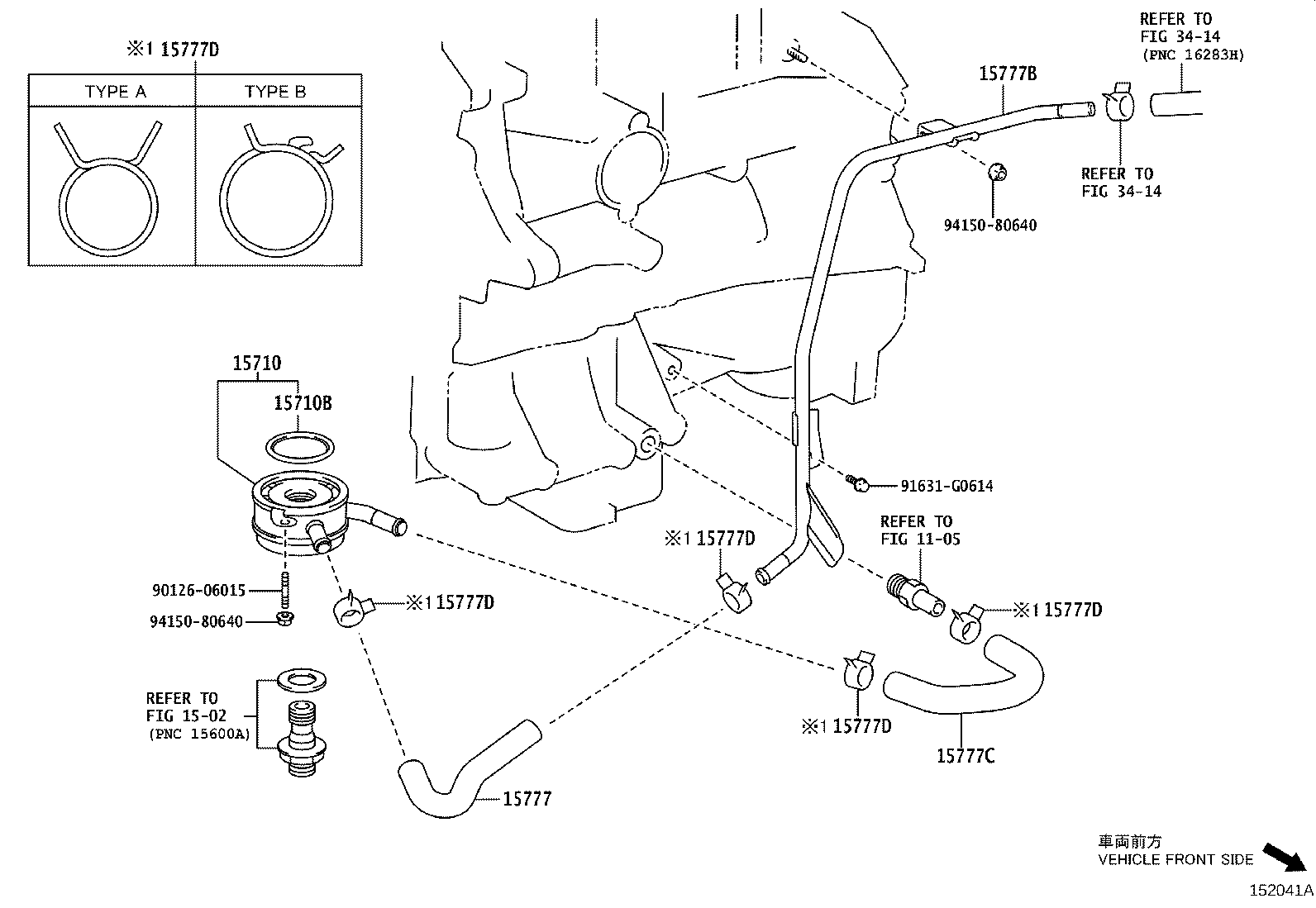

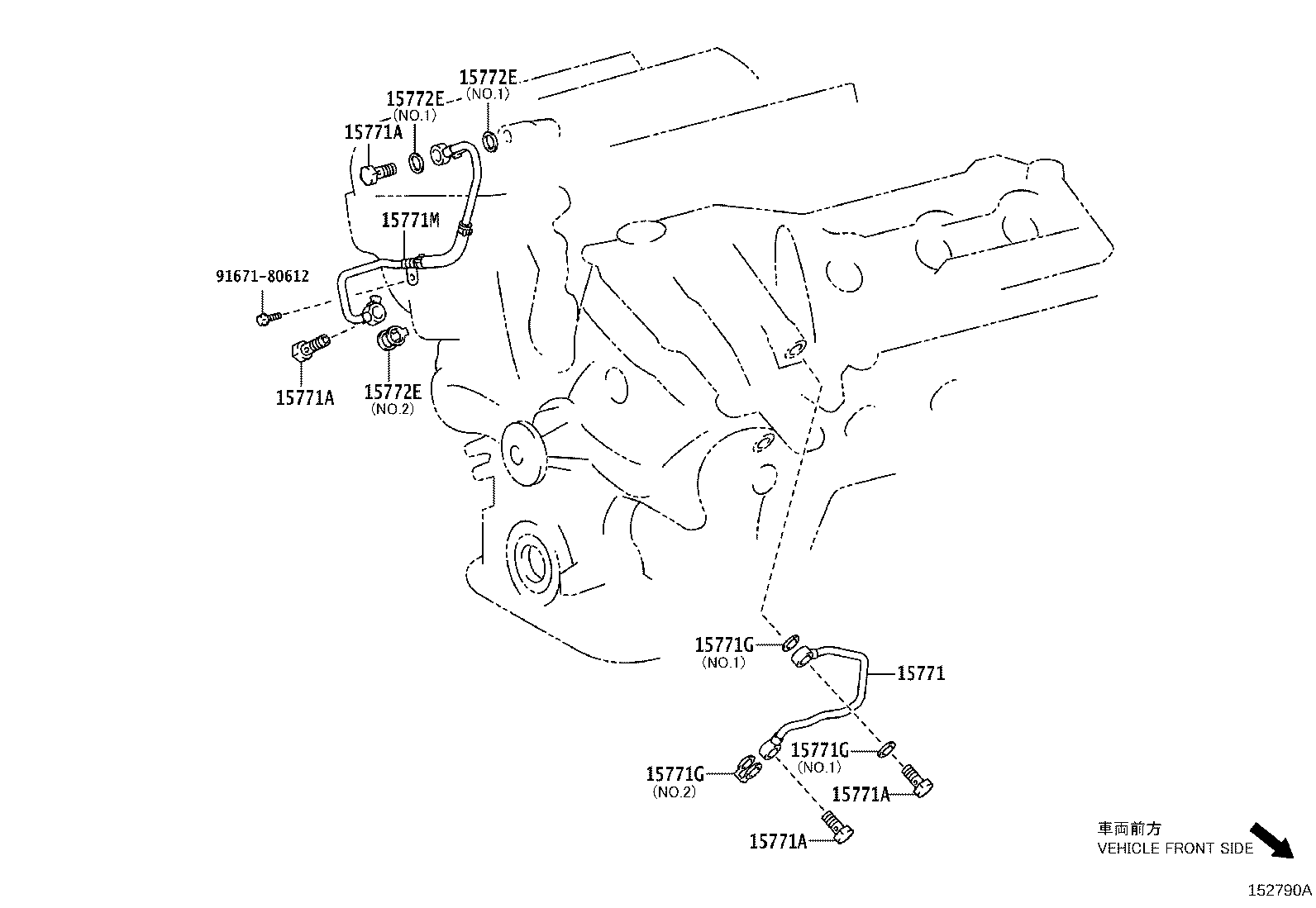

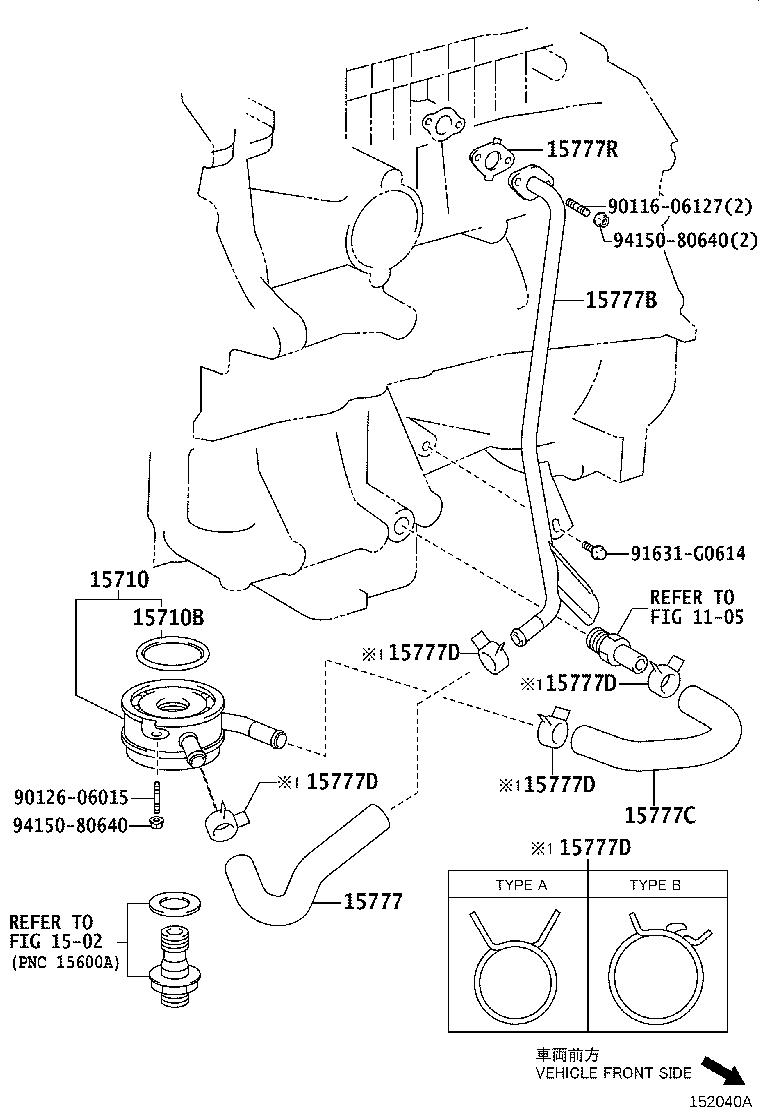

Figure 151749C 151749C 2010-06 → 2012-12 Figure 152040A 152040A 2012-12 → — Figure 151973B 151973B 2012-05 → 2012-12 Figure 151973B 151973B 2012-08 → 2012-12 Figure 152041A 152041A 2012-12 → — Figure 152041A 152041A 2014-02 → — Figure 152790A 152790A 2008-04 → —

Part groups

PNCDescription
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15771A Union(FOR OIL PIPE)
15771G Gasket
15771M Pipe, Oil
15772E Gasket(FOR OIL PIPE)
15777 Hose, Oil Cooler
15777B Pipe, Oil Cooler
15777C Hose, Oil Cooler
15777D Clamp OR Clip, Hose(FOR OIL COOLER HOSE)
15777K Cock Assy, Drain(FOR OIL COOLER HOSE)
15777L Plug,Air(FOR OIL COOLER DRAIN COCK)
15777M Ring, O(FOR OIL COOLER DRAIN COCK)
15777R Gasket(FOR OIL COOLER PIPE UNION BOLT)
15777S Clamp OR Clip, Hose
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
