Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Water Pump

9 part groups · 4 illustrations

Illustrations

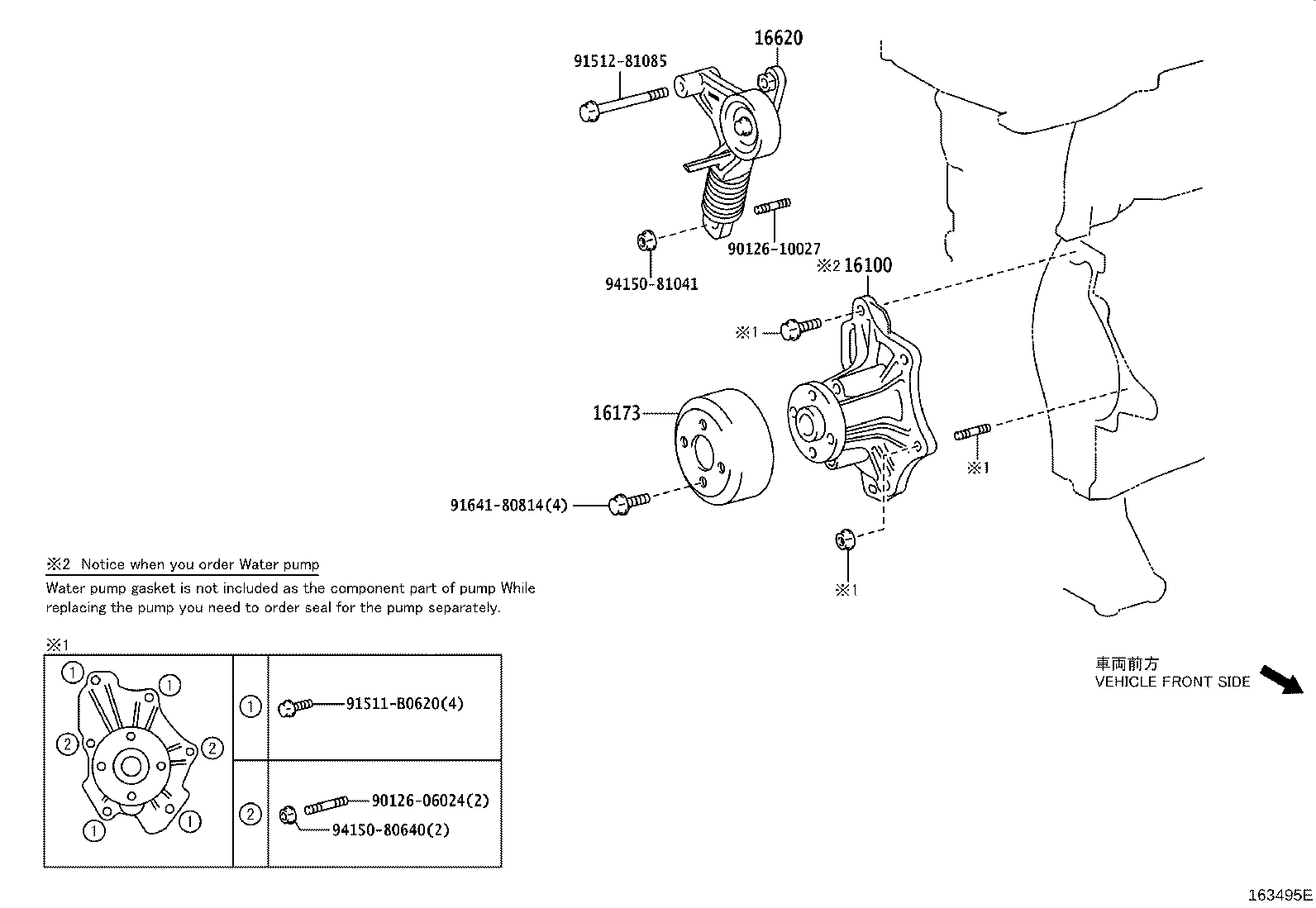

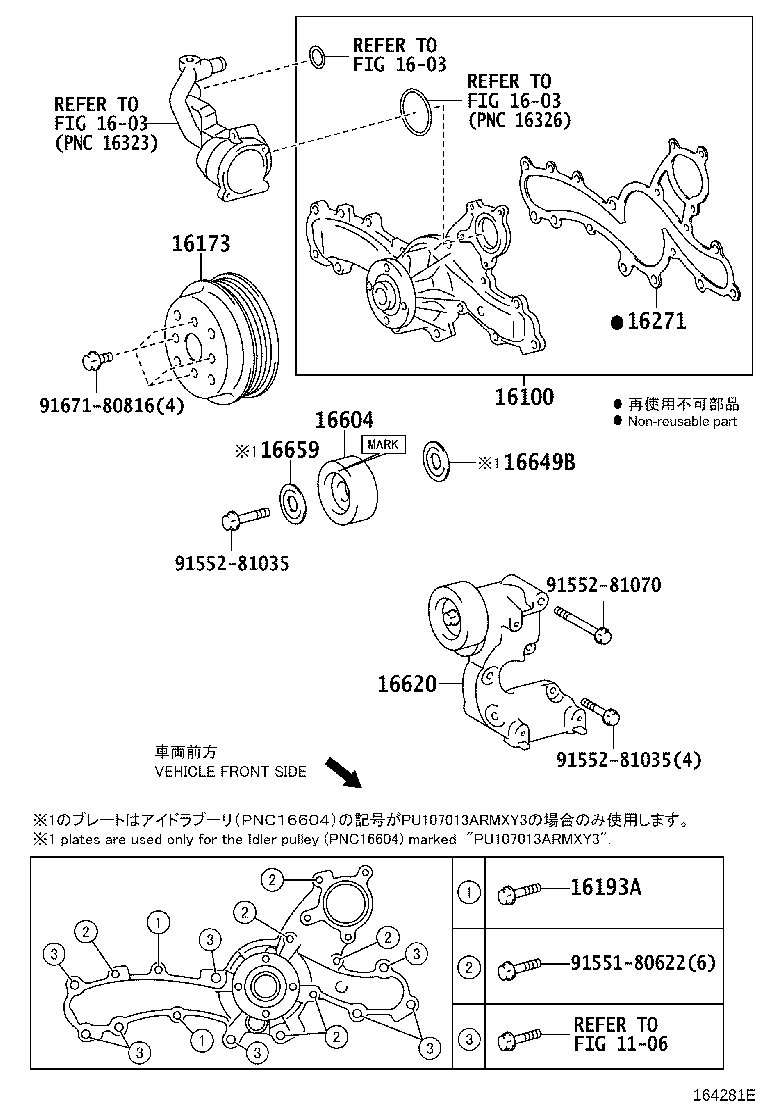

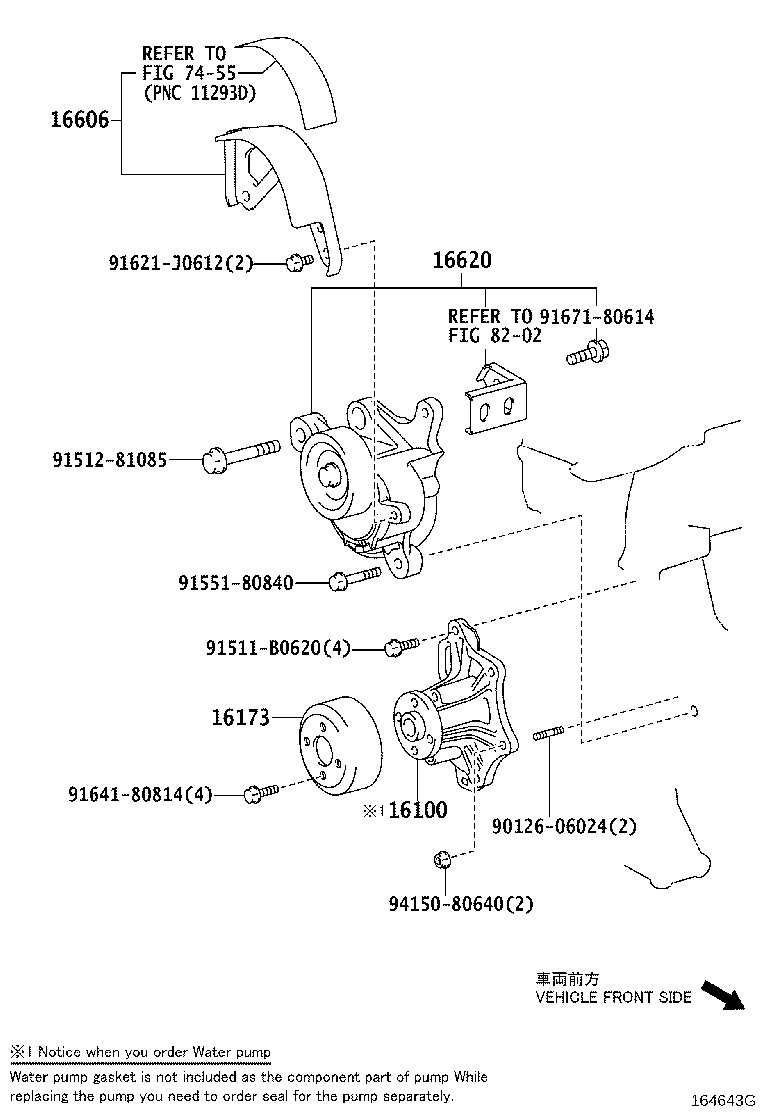

Figure 163538D 163538D 2009-06 → — Figure 163495E 163495E 2009-06 → — Figure 164643G 164643G 2011-12 → — Figure 164281E 164281E 2008-04 → —

Part groups

PNCDescription
16100 Pump Assy, Engine Water
16173 Pulley, Water Pump
16193A Bolt(FOR WATER PUMP COVER)
16271 Gasket, Water Pump
16604 Pulley Sub-assy, Idler, NO.2
16606 Cover Sub-assy, V-ribbed Belt Tensioner
16620 Tensioner Assy, V-ribbed Belt
16649B Plate, Idler Pulley Cover
16659 Plate, Idler Pulley Cover, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
