Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 4 illustrations

Illustrations

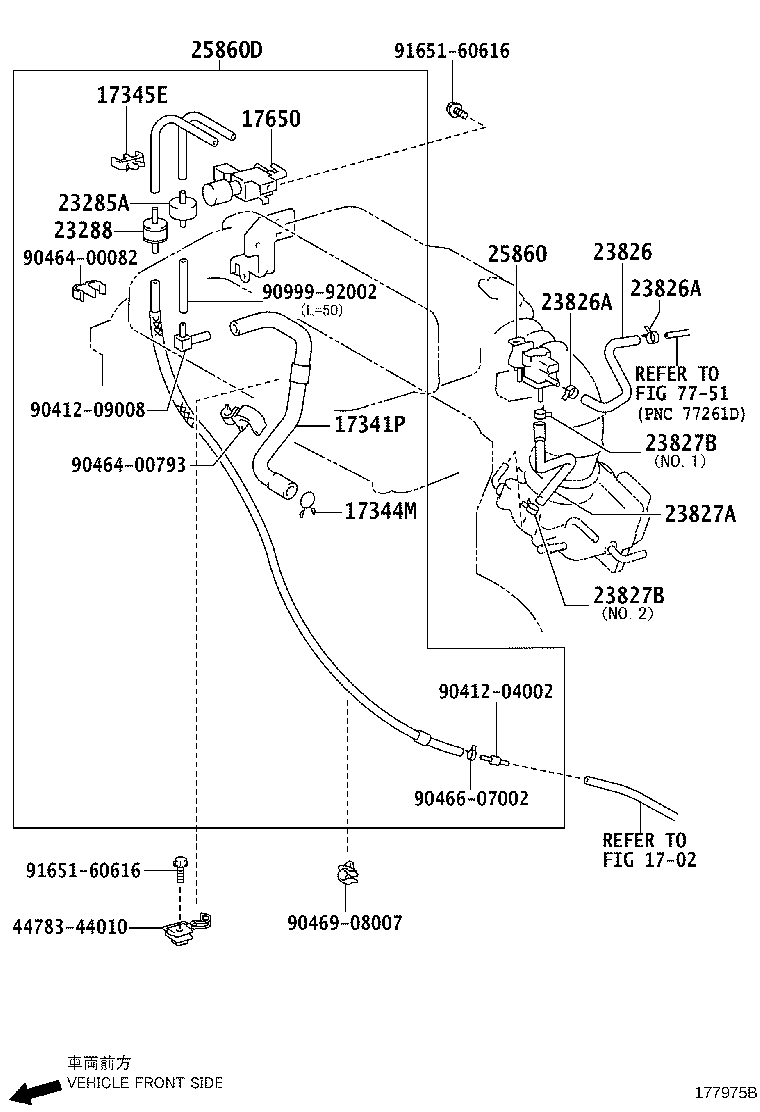

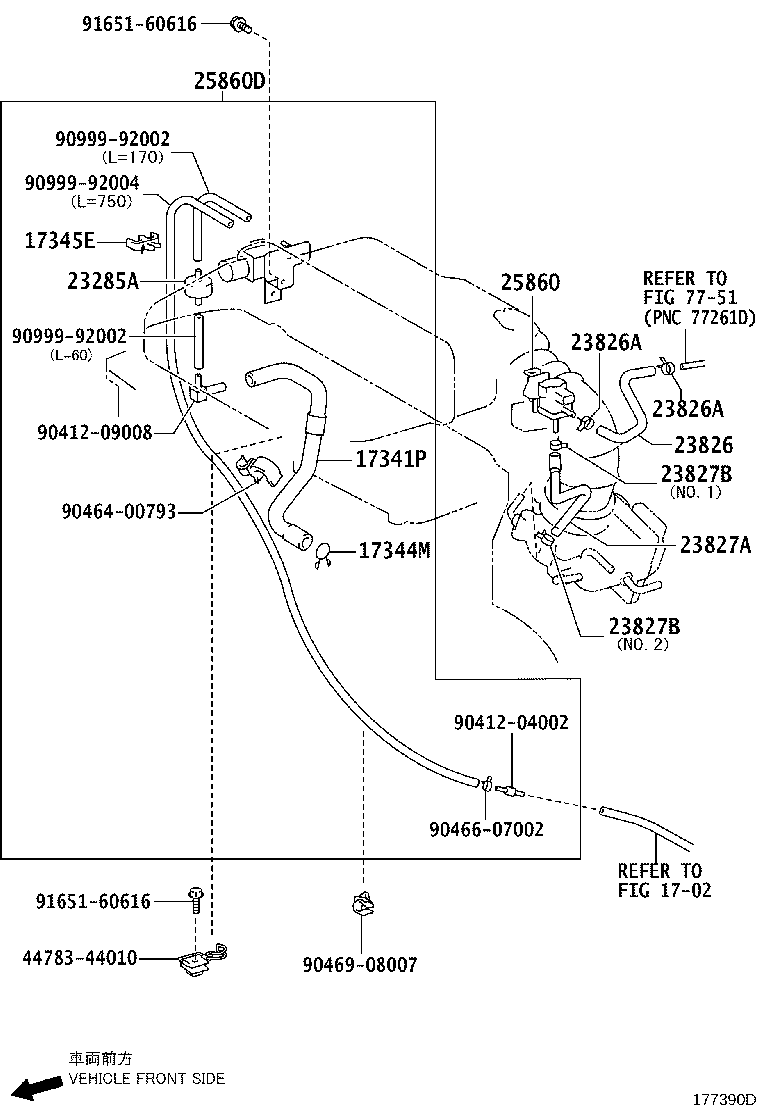

Figure 175954B 175954B 2009-06 → — Figure 177390D 177390D 2011-12 → 2013-01 Figure 177975B 177975B 2013-01 → — Figure 175945B 175945B 2008-04 → —

Part groups

PNCDescription
17341P Hose, Air
17344M Clip(FOR AIR HOSE, NO.4)
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23288 Jet, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
