Oil Cooler & Tube (ATM)

15 part groups · 2 illustrations

Illustrations

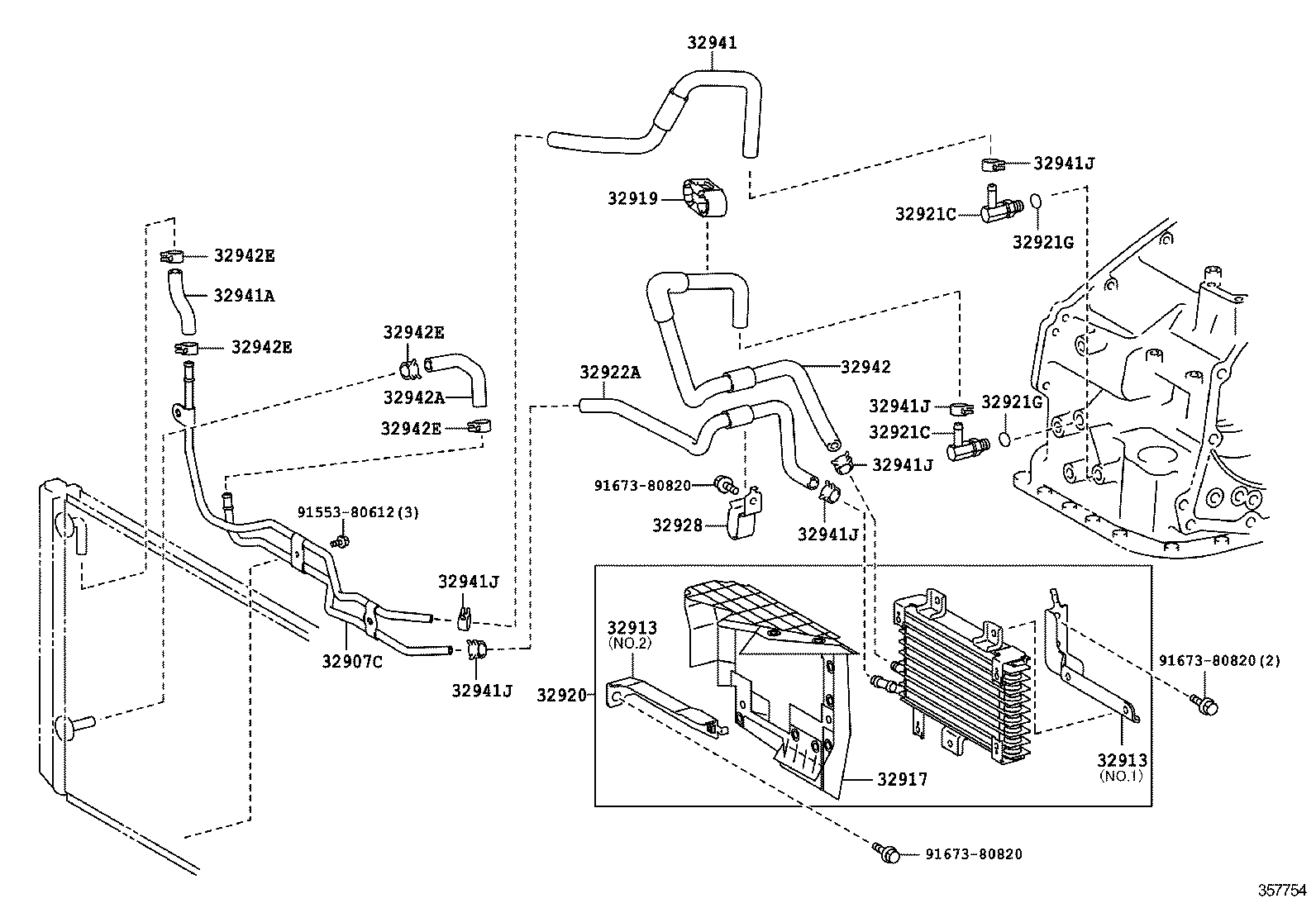

Figure 357755B 357755B 2008-04 → — Figure 357754 357754 2010-06 → —

Part groups

PNCDescription
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32913 Bracket, Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32919 Holder, Oil Cooler Tube
32920 Cooler Assy, Oil W/Hose
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32922A Hose(FOR OIL COOLER OUTLET)
32928 Clamp, Flexible Hose, NO.1
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942E Clip, NO.2(FOR OIL COOLER HOSE)
