Front Axle Housing & Differential

26 part groups · 3 illustrations

Illustrations

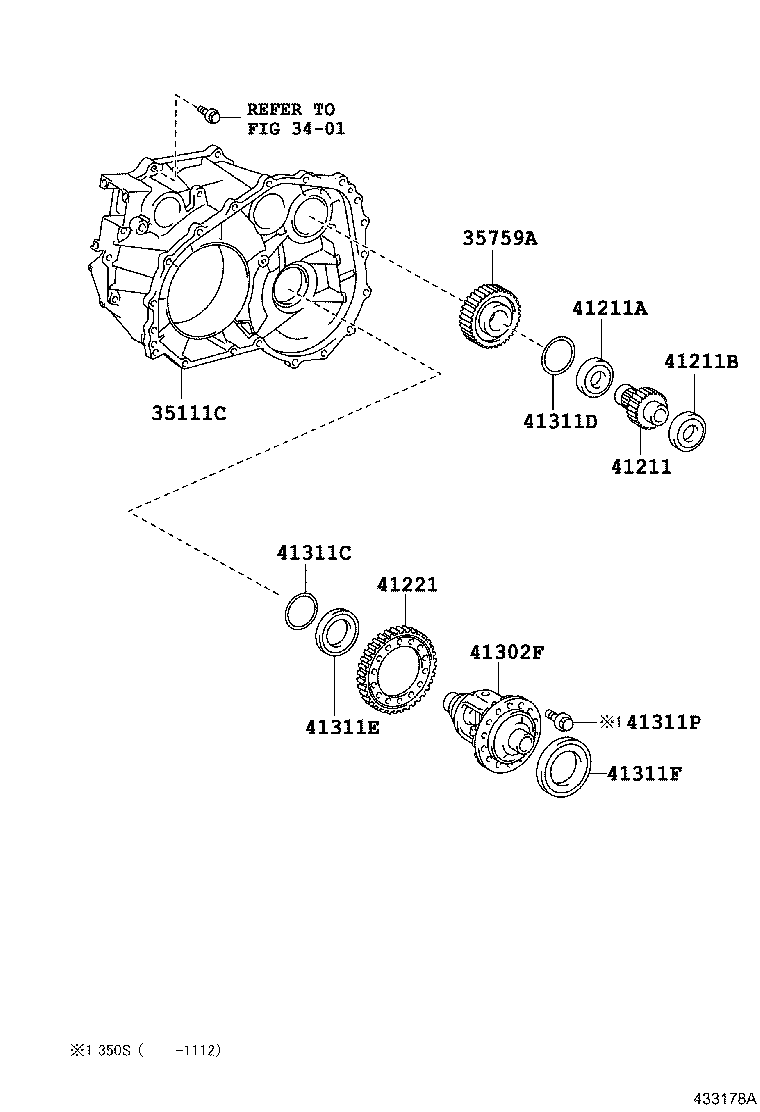

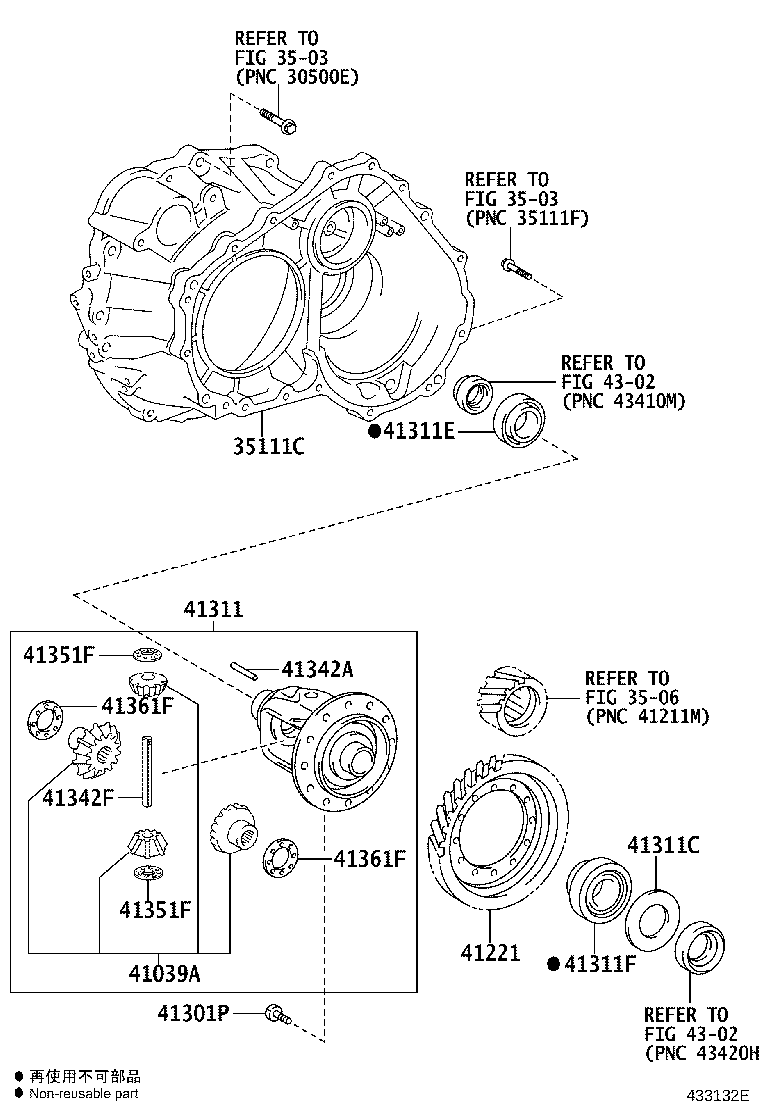

Figure 432039F 432039F 2008-04 → — Figure 433132E 433132E 2009-06 → — Figure 433178A 433178A 2011-10 → —

Part groups

PNCDescription
35111C Housing, Transaxle
35759A Gear, Reduction Driven
35783R Gear, Counter Driven
41039A Gear Kit, Differential
41211 Pinion, Differential Drive
41211A Bearing, Tapered Roller (FOR FRONT DRIVE PINION FRONT)
41211B Bearing, Tapered Roller (FOR FRONT DRIVE PINION REAR)
41211J Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION RH)
41211K Bearing, Tapered Roller (FOR DIFFERENTIAL DRIVE PINION LH)
41211L Shim (FOR DIFFERENTIAL DRIVE PINION)
41221 Gear, Front Differential Ring
41301P Screw(FOR FRONT DIFFERENTIAL CASE)
41302F Case Sub-assy, Front Differential
41311 Case, Front Differential
41311C Shim (FOR FRONT DIFFERENTIAL CASE REAR)
41311D Shim (FOR FRONT DIFFERENTIAL CASE FRONT)
41311E Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE FRONT)
41311F Bearing, Tapered Roller (FOR FRONT DIFFERENTIAL CASE REAR)
41311P Bolt (FOR FRONT DIFFERENTIAL CASE)
41331Q Gear, Differential Side
41341H Pinion, Differential
41342A Pin, Straight (FOR FRONT DIFFERENTIAL PINION SHAFT)
41342F Shaft, Front Differential Pinion, NO.1
41351F Washer, Front Differential Pinion Thrust
41361F Washer, Front Differential Side Gear Thrust, NO.1
41361G Washer, Conical Spring(FOR CENTER DIFFERENTIAL SIDE GEAR)
