Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

17 part groups · 3 illustrations

Illustrations

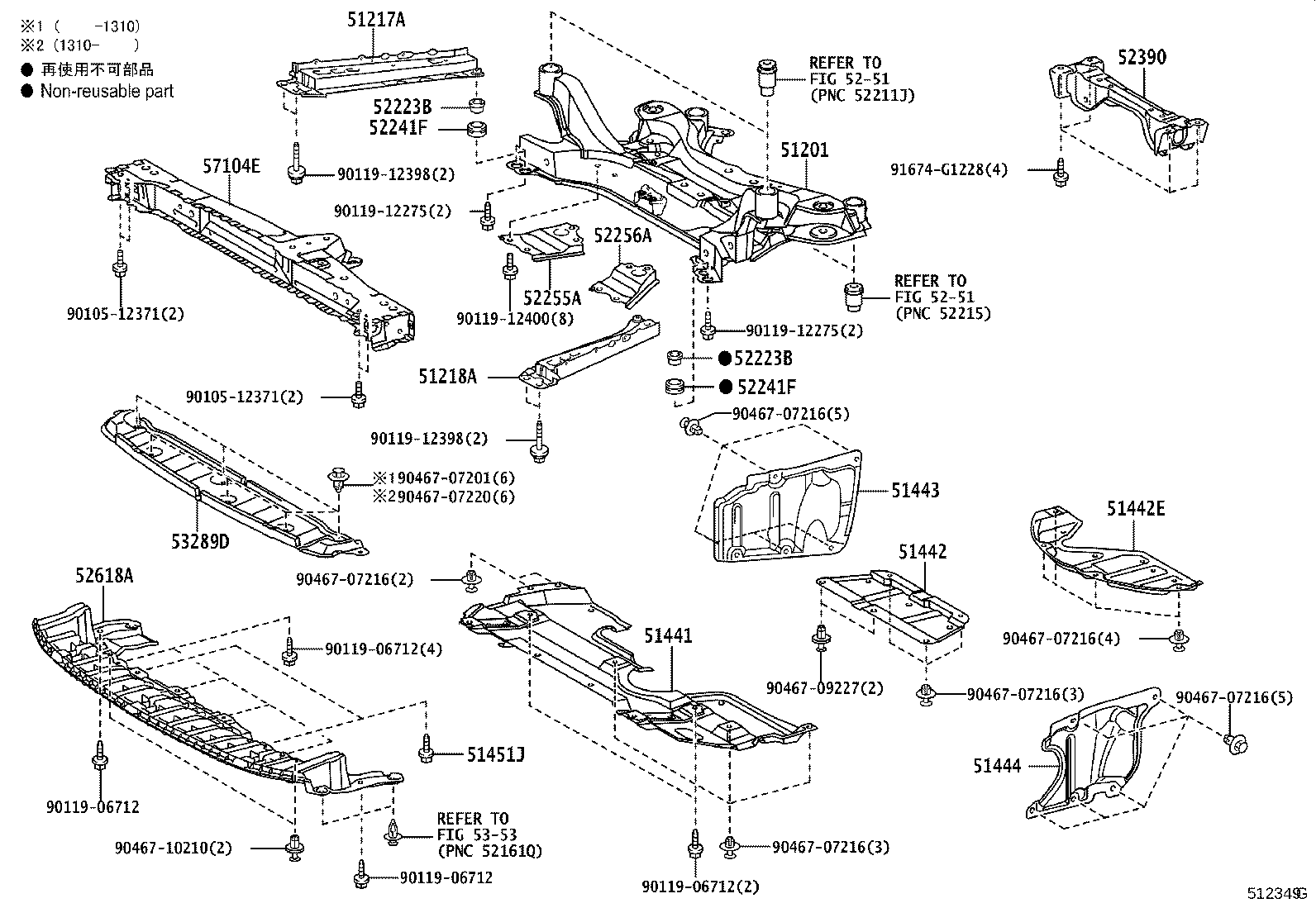

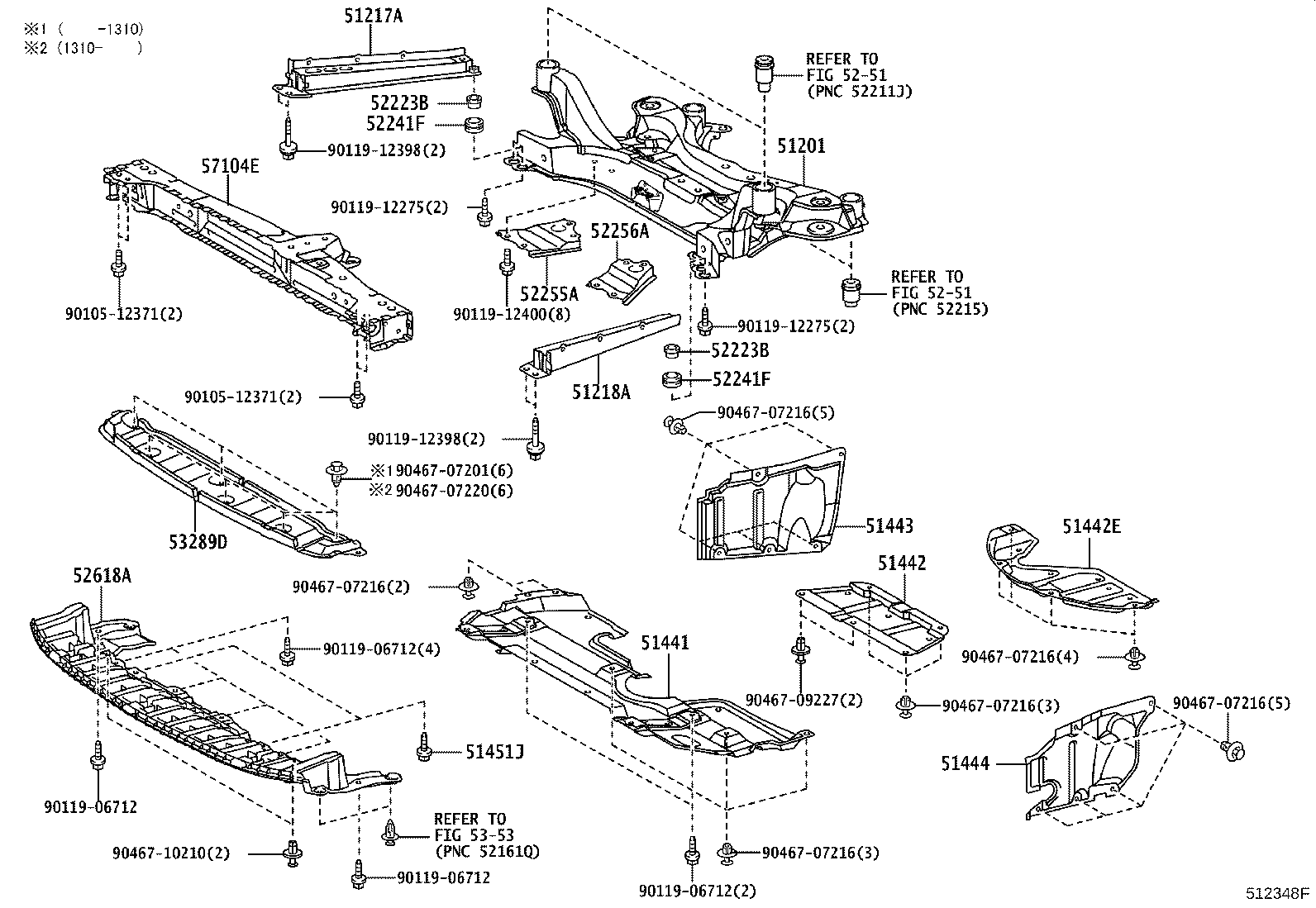

Figure 511832M 511832M 2008-04 → 2011-10 Figure 512348F 512348F 2011-10 → — Figure 512349G 512349G 2011-12 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51217A Reinforcement, Front Suspension Member, RH
51218A Reinforcement, Front Suspension Member, LH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51442E Cover, Engine Under, NO.2
51443 Cover, Engine Under, Rear RH
51444 Cover, Engine Under, Rear LH
51451J Bolt, NO.1
52223B Spacer, Front Suspension Member Mountiong, Lower
52241F Cushion, Front Suspension Member Mounting, Lwr
52255A Brace, Front Suspension Member, Front RH
52256A Brace, Front Suspension Member, Front LH
52390 Support Assy, Front Differential, Rear
52618A Absorber, Front Bumper, Lower
53289D Cover, Radiator Support Opening
57104E Member Sub-assy, Front Cross
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
