Front Bumper & Bumper Stay

18 part groups · 12 illustrations

Illustrations

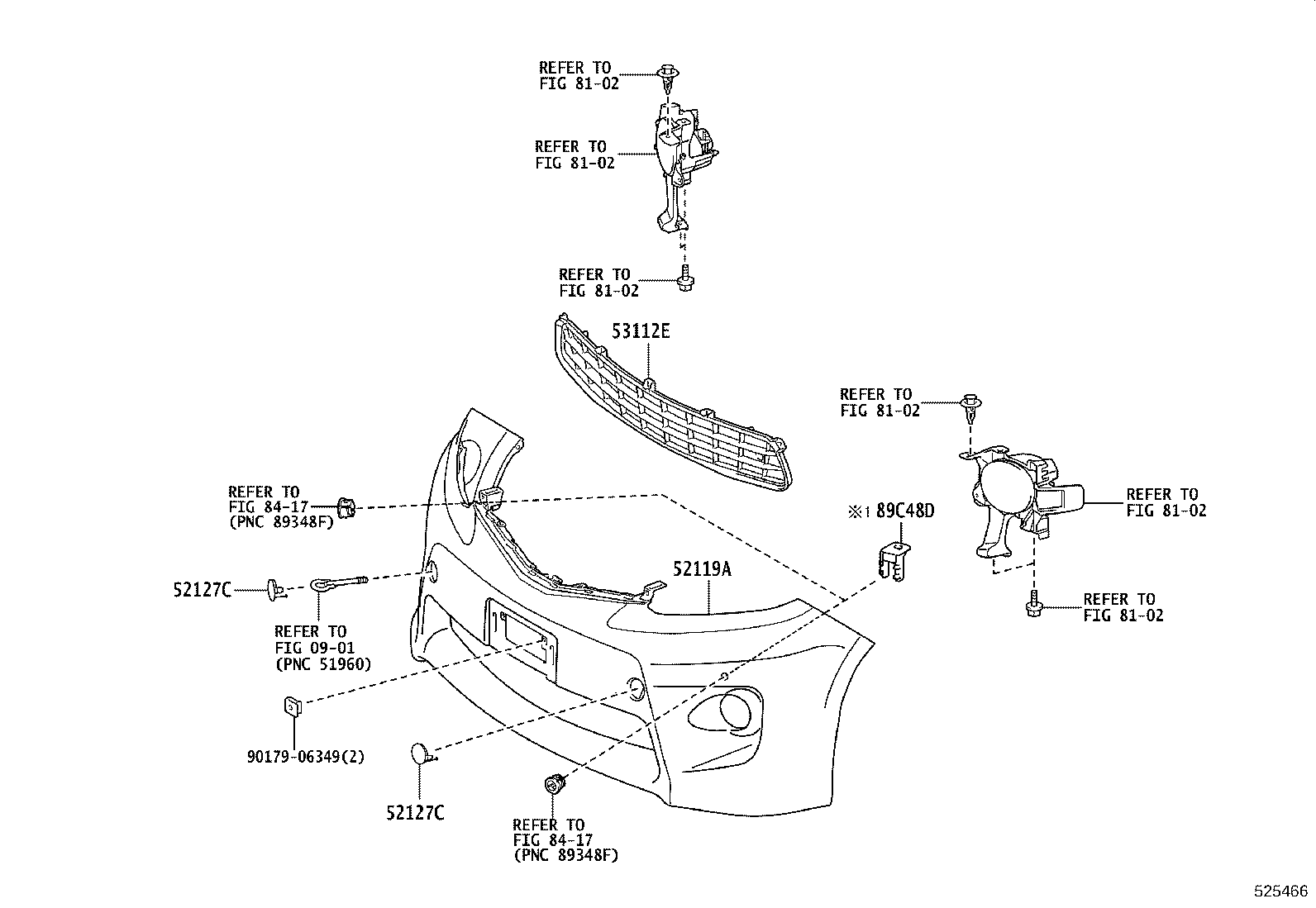

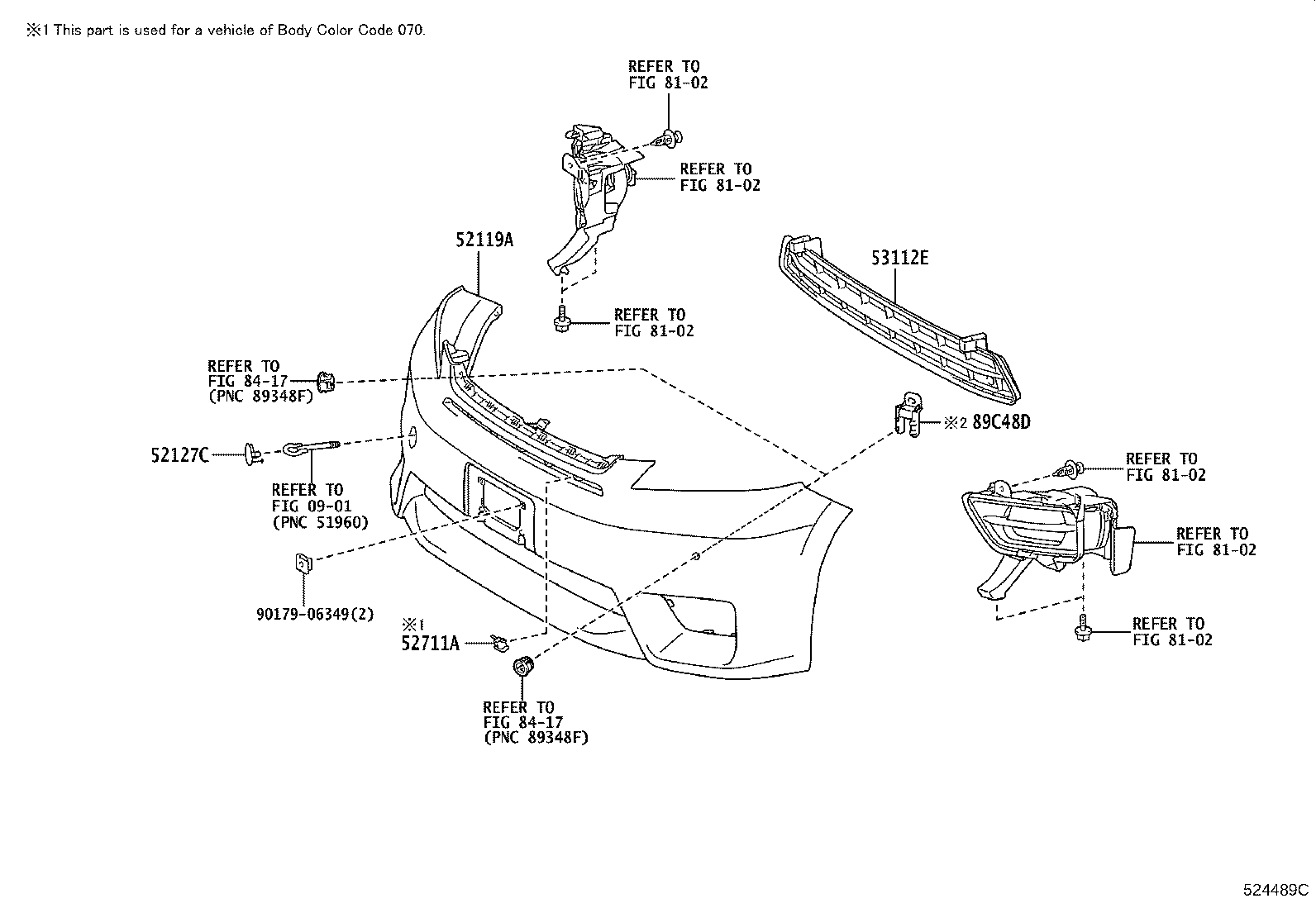

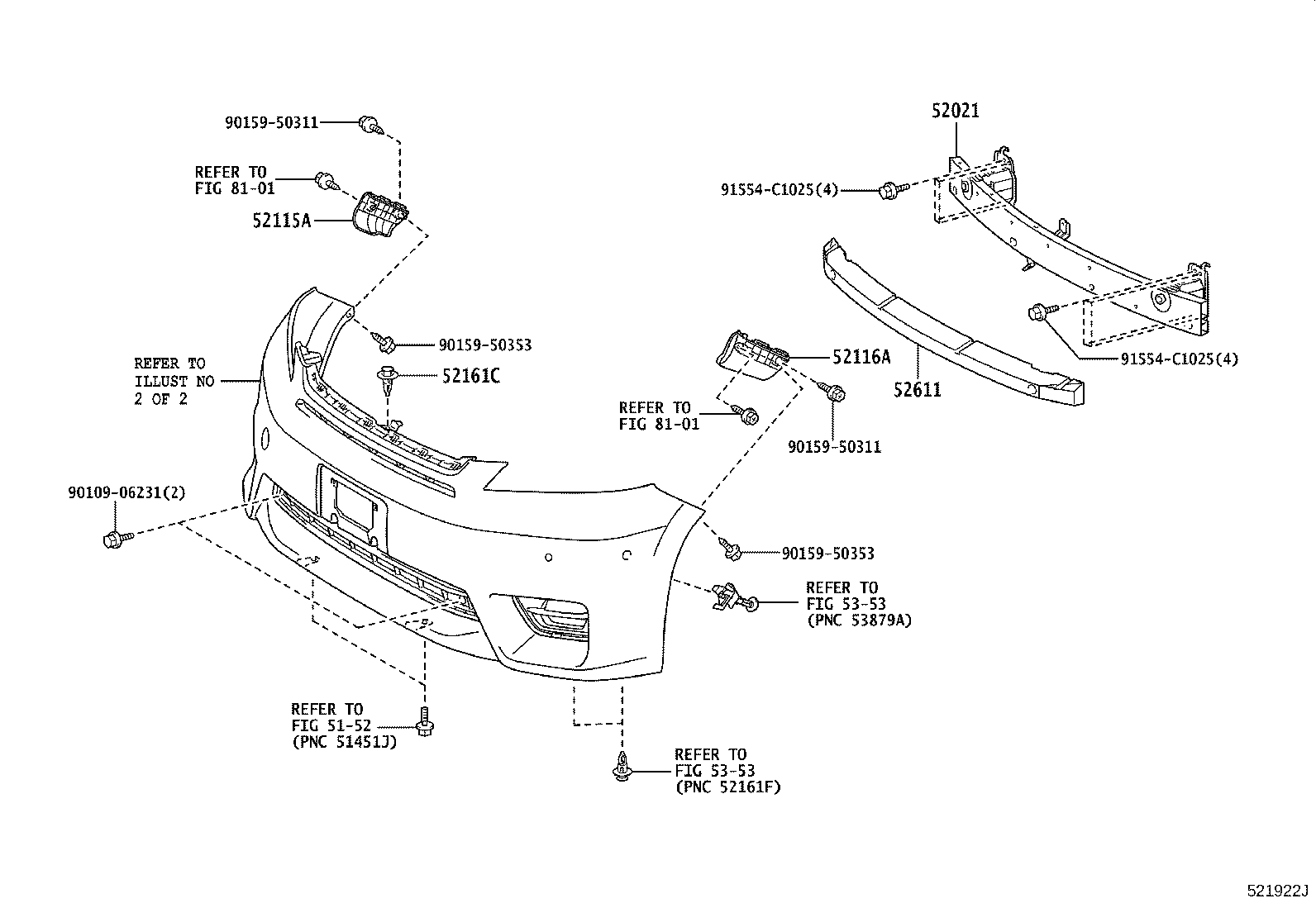

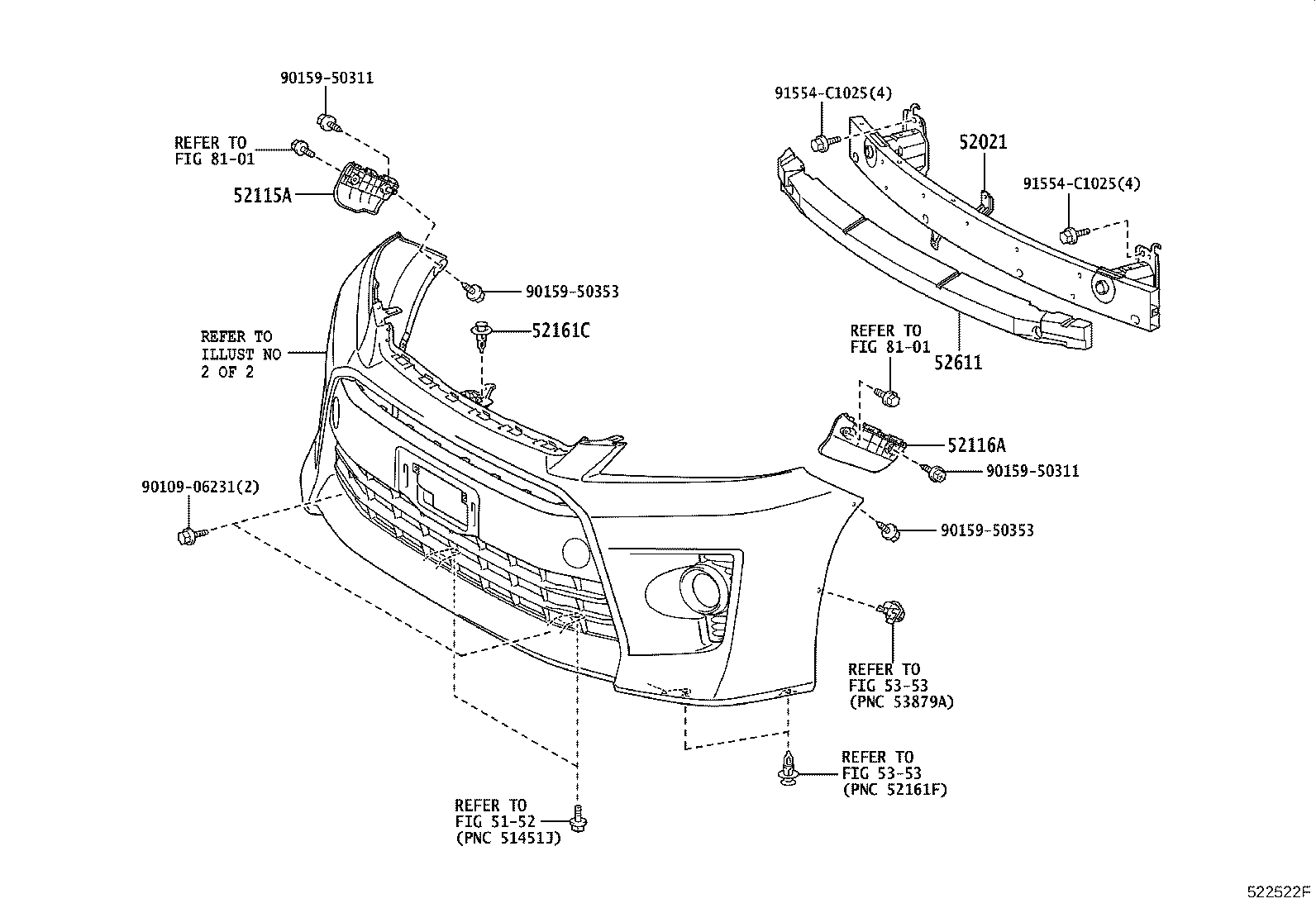

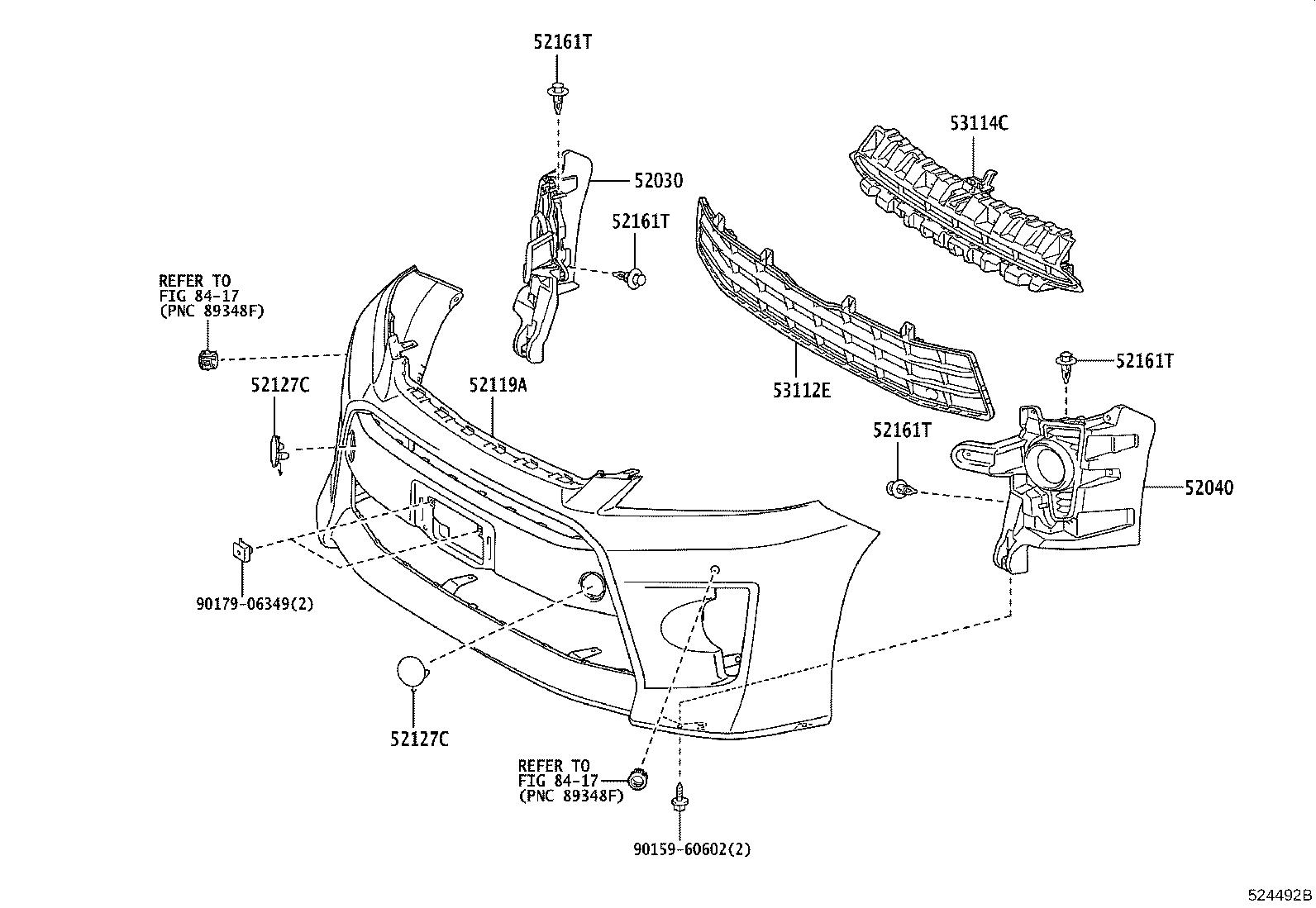

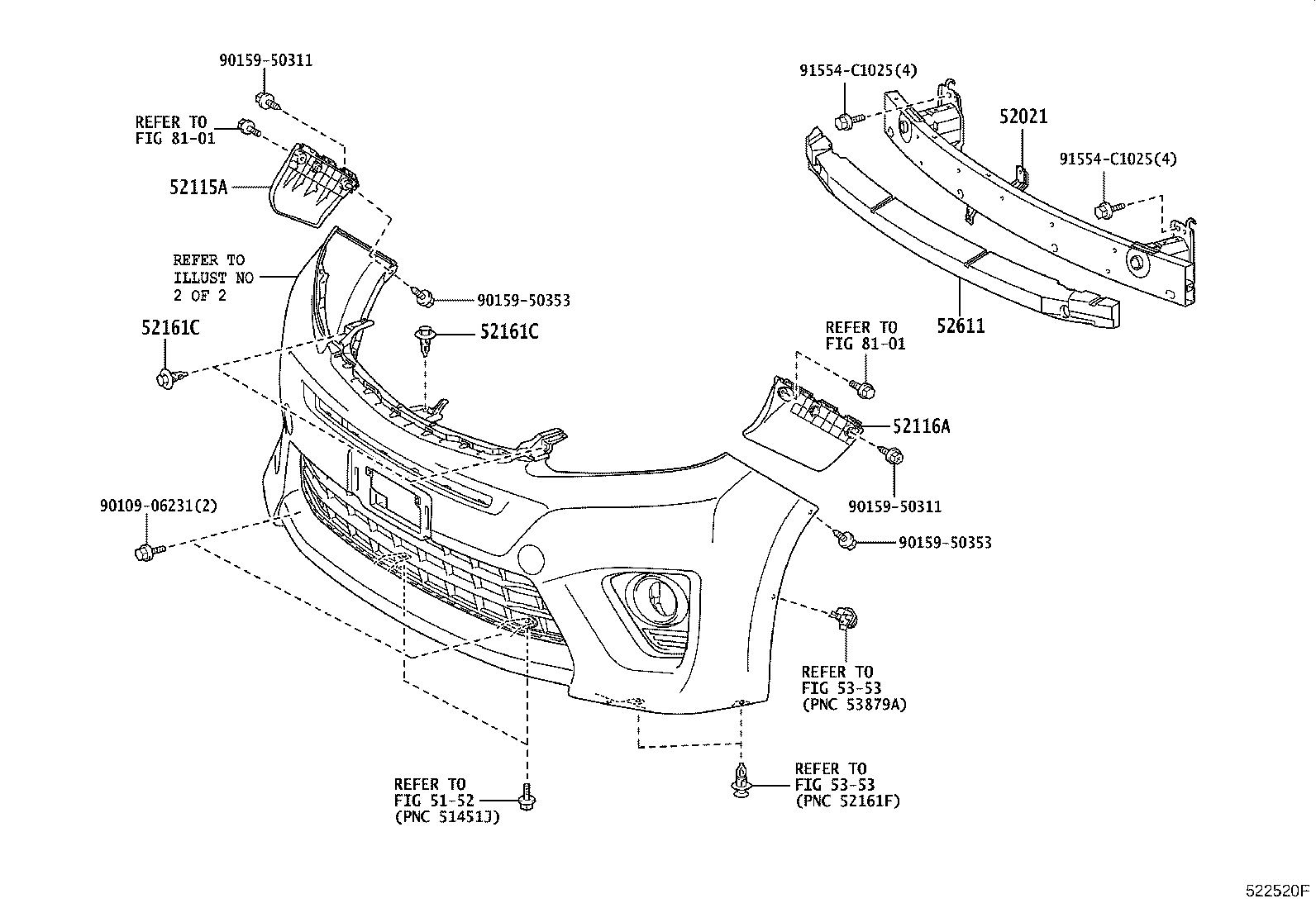

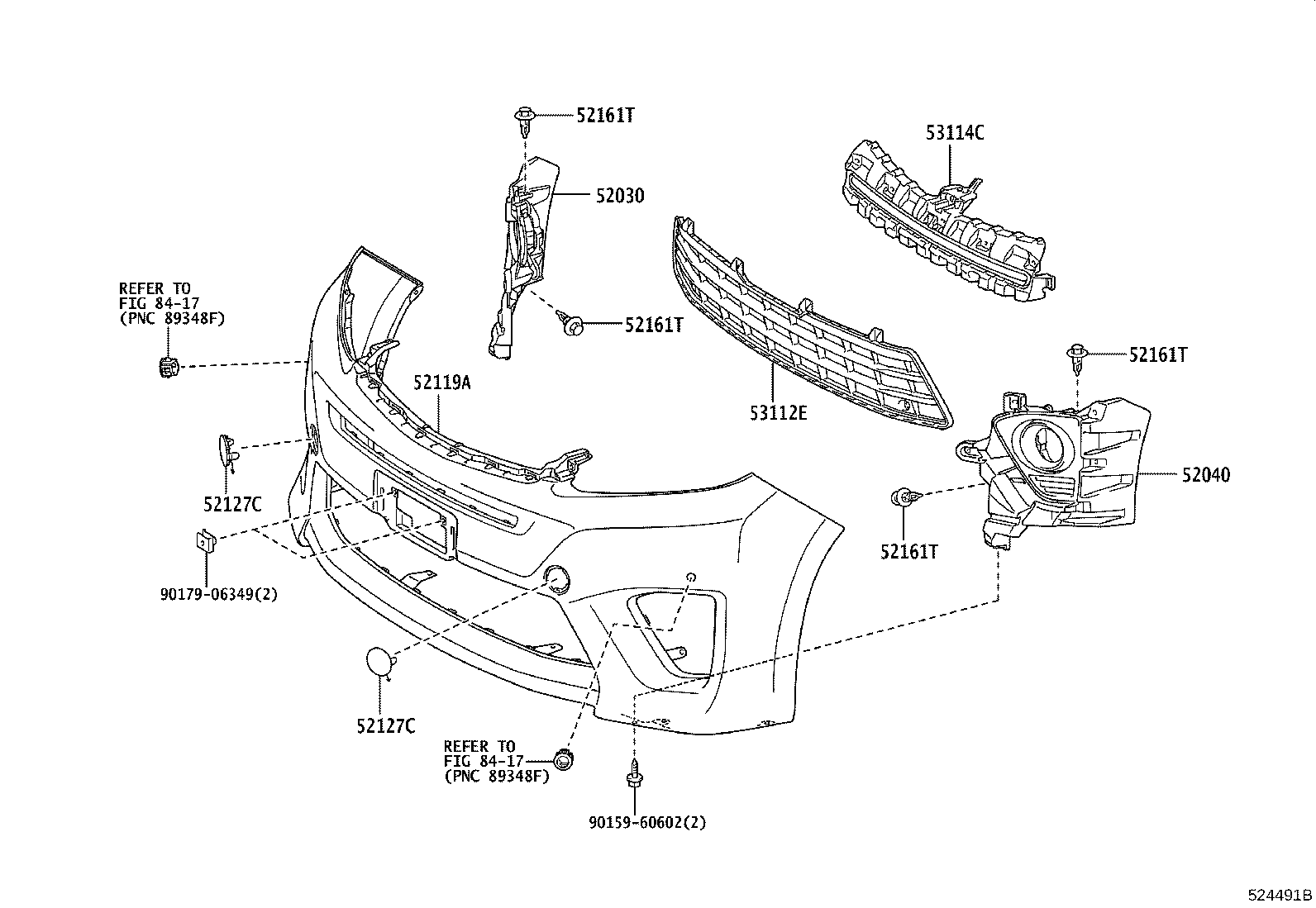

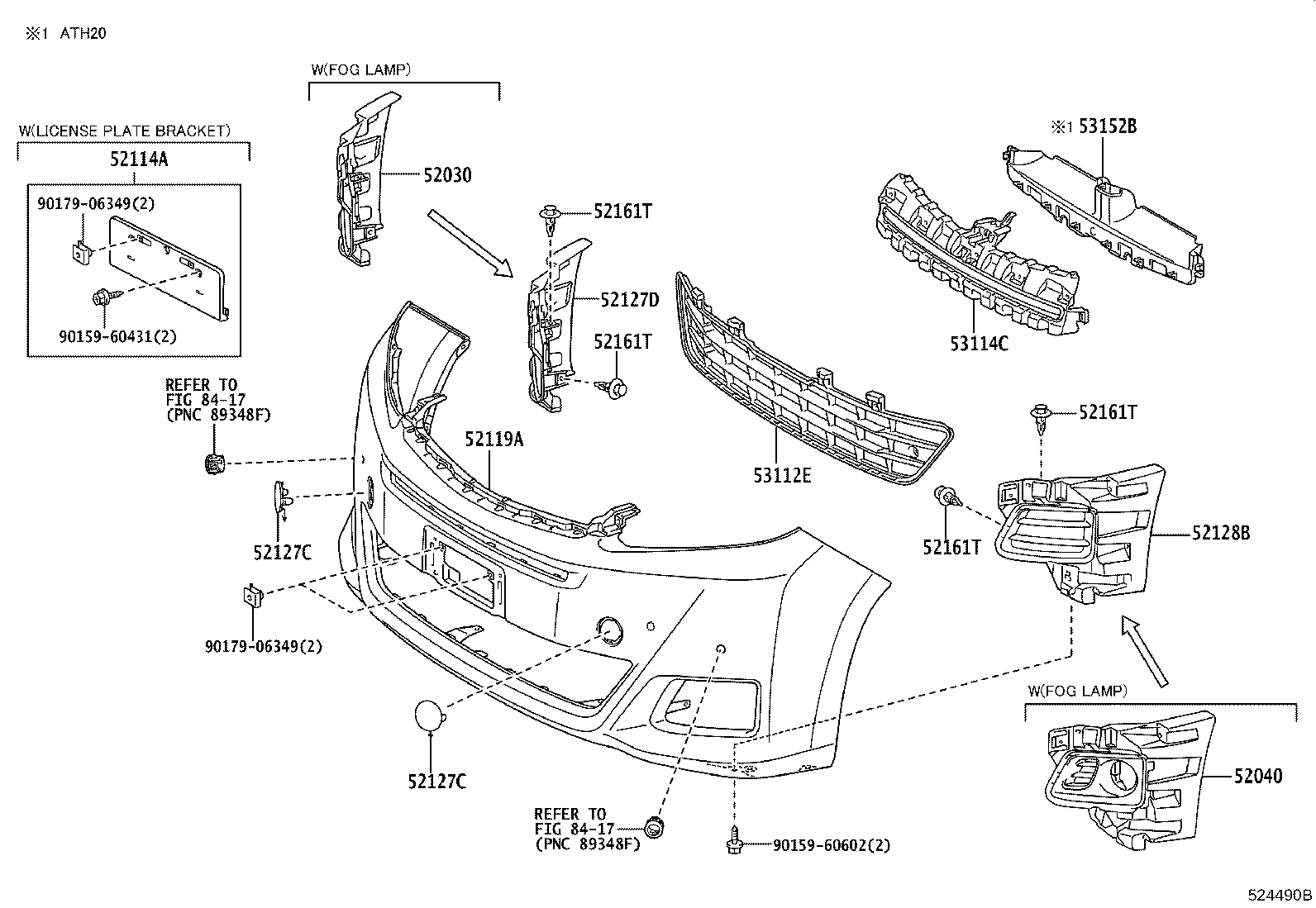

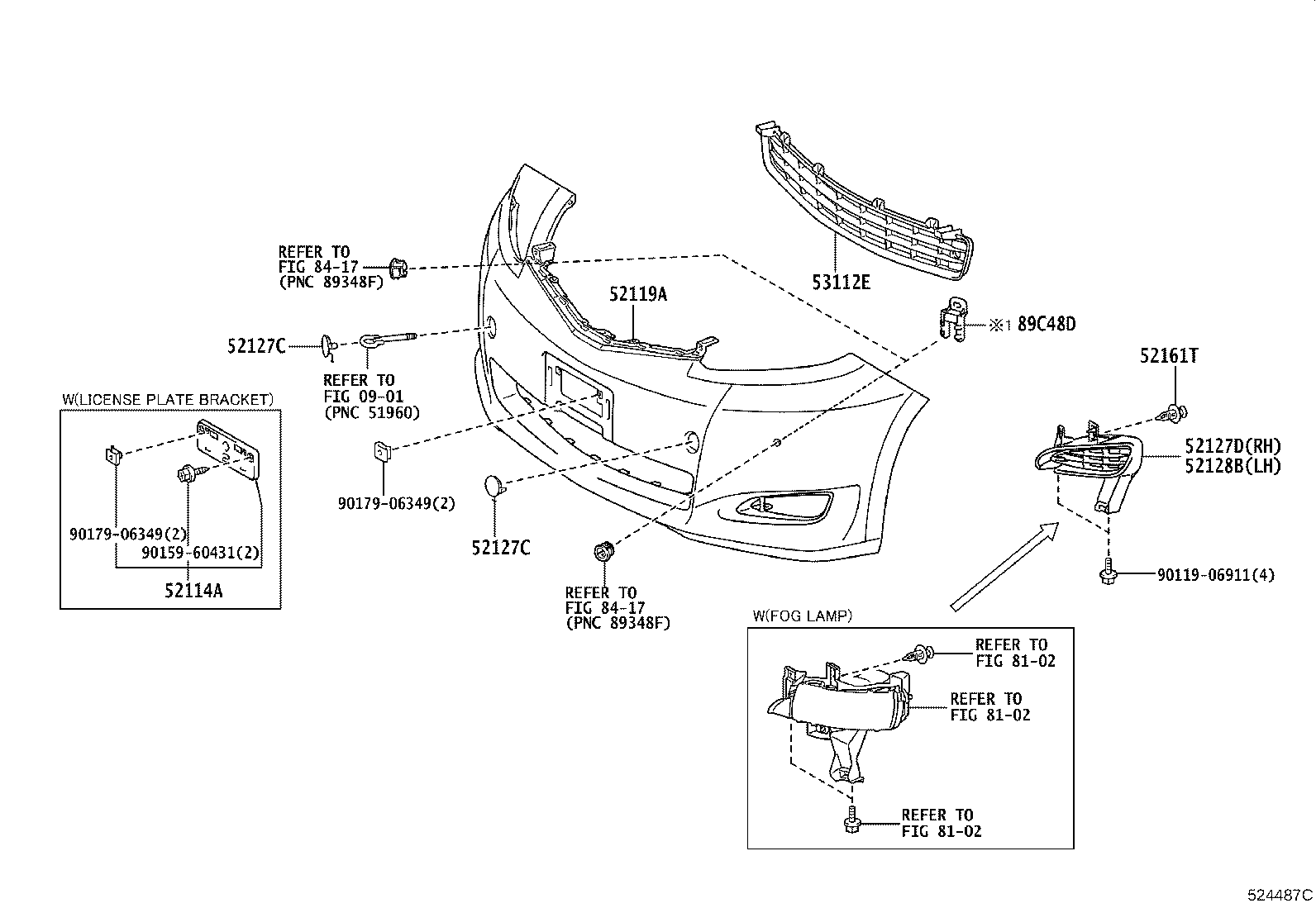

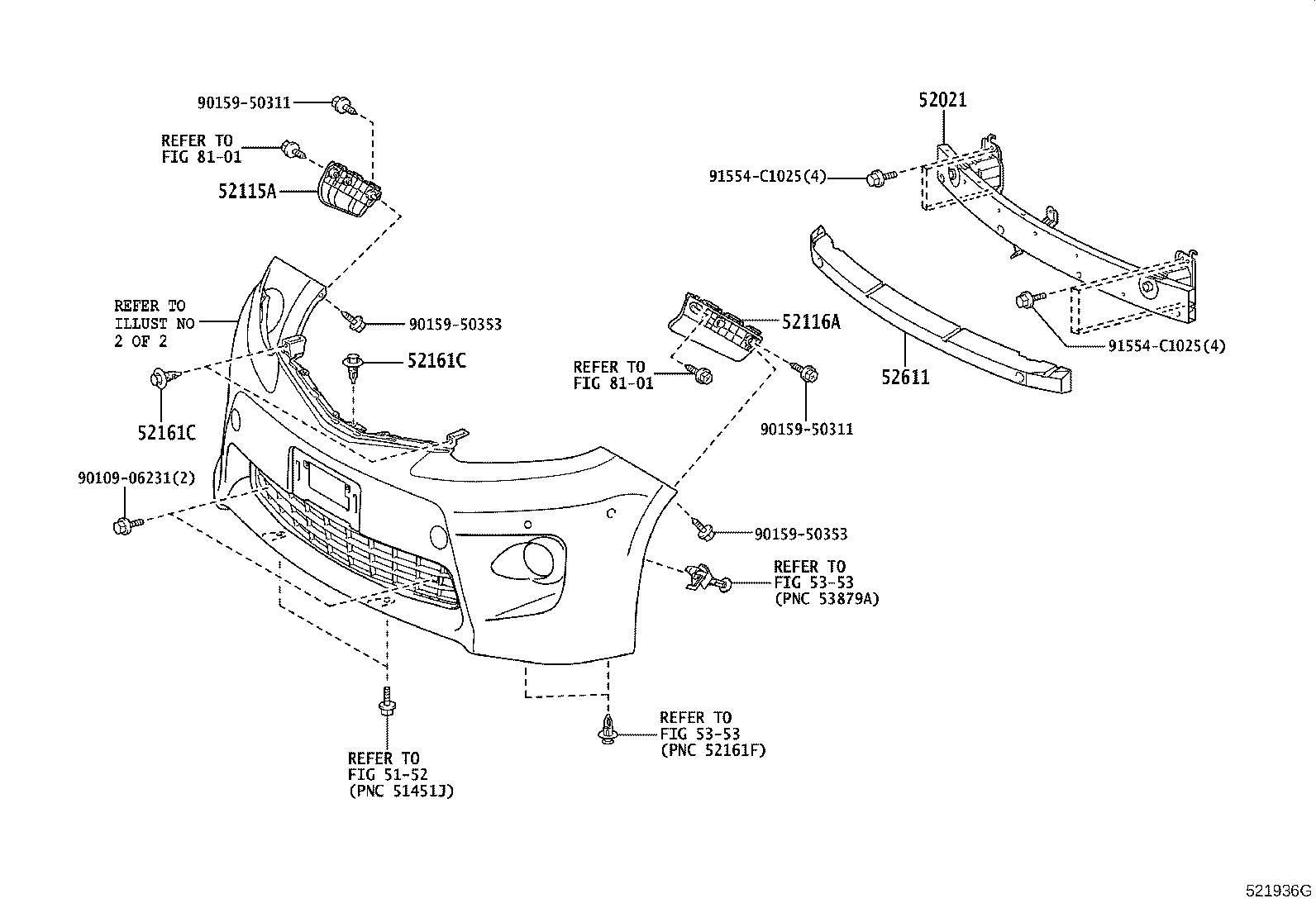

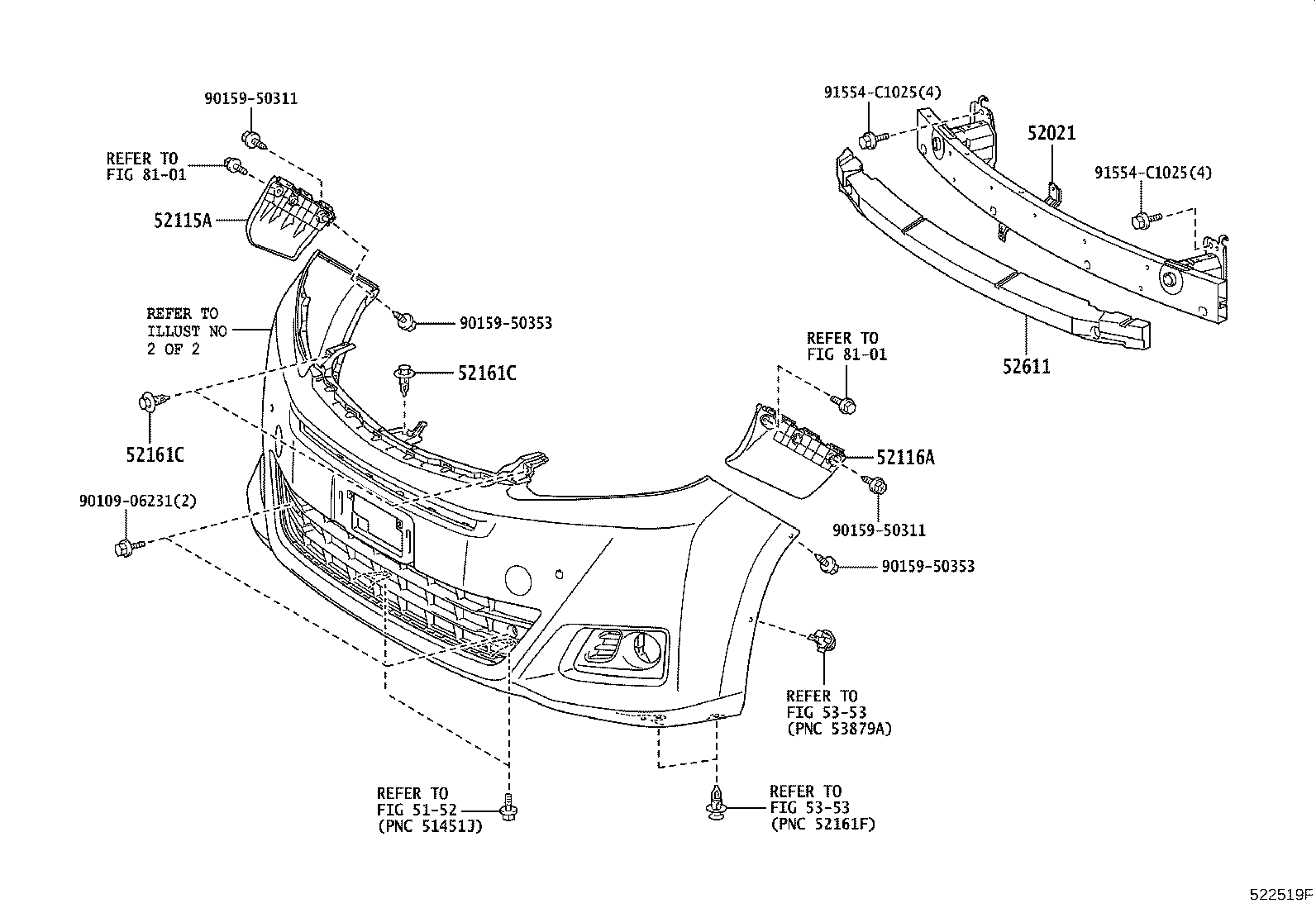

Figure 521935F 521935F 2008-04 → 2011-10 Figure 524487C 524487C 2008-04 → 2011-10 Figure 521936G 521936G 2008-04 → 2011-10 Figure 525466 525466 2008-04 → 2011-10 Figure 521922J 521922J 2010-08 → 2011-10 Figure 524489C 524489C 2010-08 → 2011-10 Figure 522519F 522519F 2011-10 → — Figure 524490B 524490B 2011-10 → — Figure 522520F 522520F 2011-10 → — Figure 524491B 524491B 2011-10 → — Figure 522522F 522522F 2011-10 → — Figure 524492B 524492B 2011-10 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52114A Bracket, Front Bumper Extension Mounting
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52161C Piece, Front Bumper
52161T Piece, Front Bumper
52611 Absorber, Front Bumper Energy
52711A Garnish, Front Bumper
53112E Grille, Radiator, Lower NO.1
53114C Grille, Radiator, Inner
53152B Guide, Radiator Grille Air
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
