Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 3 illustrations

Illustrations

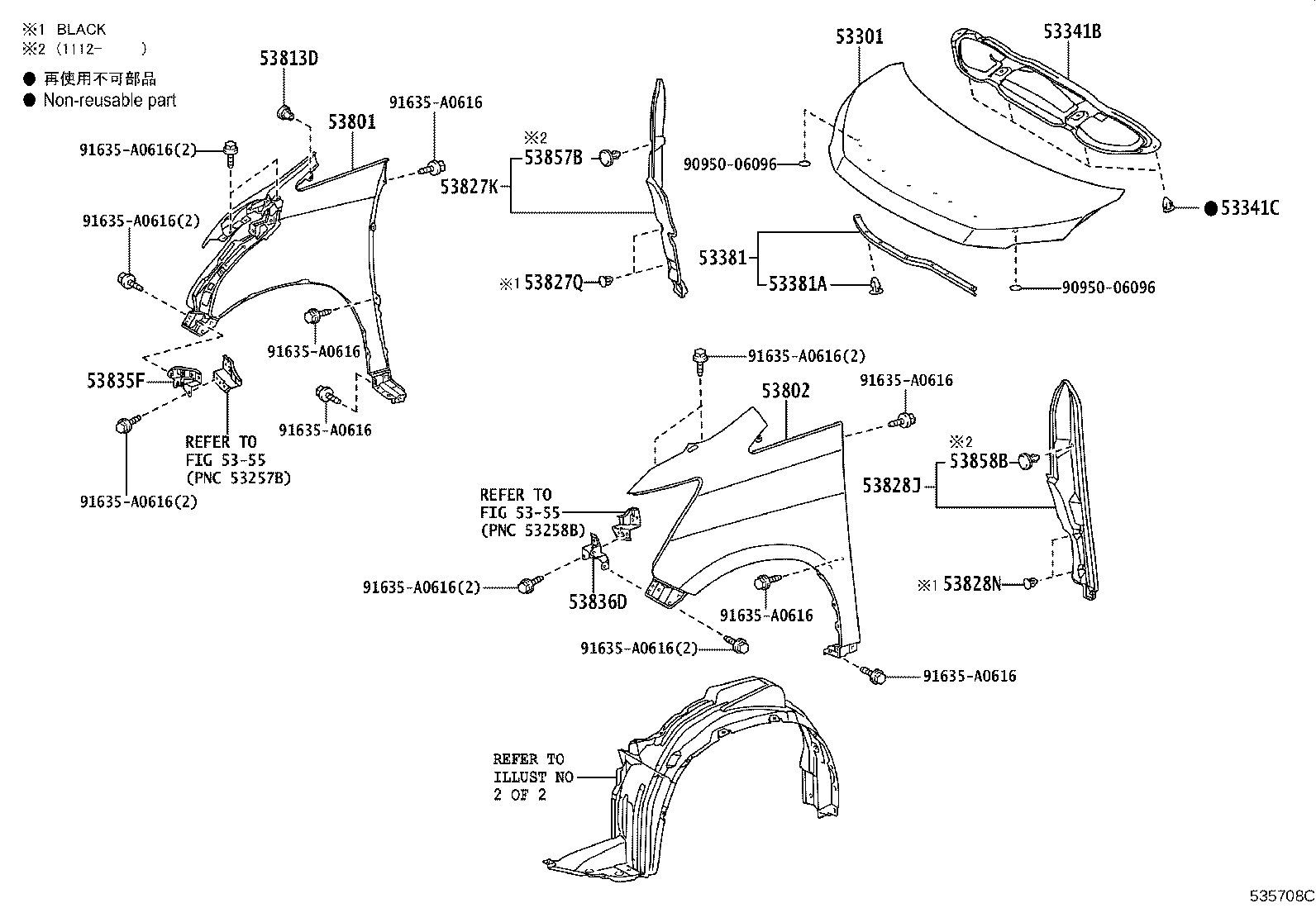

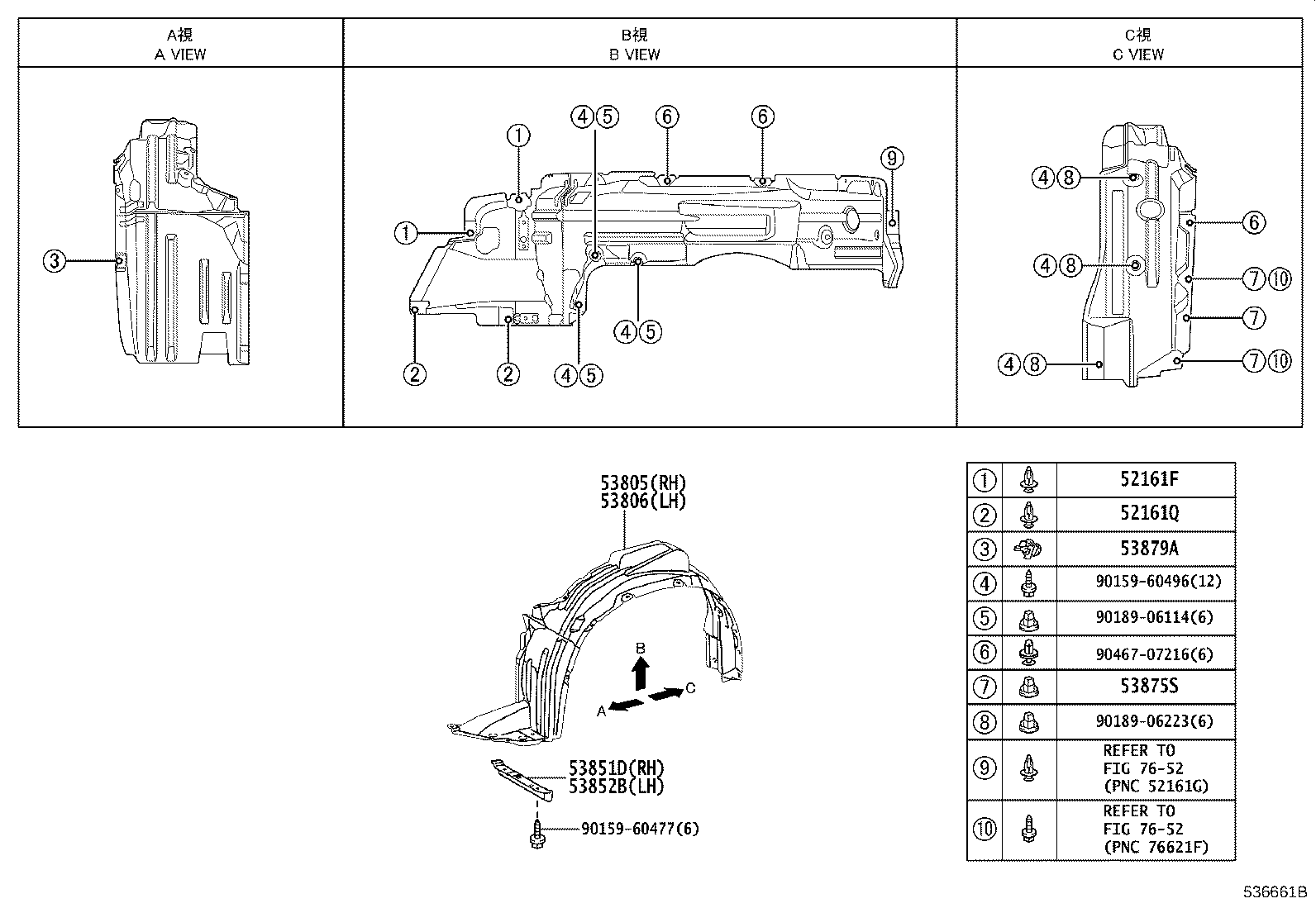

Figure 532784Q 532784Q 2008-04 → — Figure 535708C 535708C 2010-08 → — Figure 536661B 536661B 2008-04 → —

Part groups

PNCDescription
52161F Piece, Front Bumper
52161Q Piece, Front Bumper
53301 Hood Sub-assy
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53381 Seal, Hood TO Radiator Support
53381A Clip(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53813D Extension, Front Fender
53827K Protector, Front Fender Side Panel, RH
53827Q Clip, Front Fender Side Panel Protector, NO.1
53828J Protector, Front Fender Side Panel, LH
53828N Clip, Front Fender Side Panel Protector, NO.1
53835F Brace, Front Fender TO Extension, RH
53836D Brace, Front Fender TO Extension, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857B Retainer, Front Wheel Opening Extension, RH
53858B Retainer, Front Wheel Opening Extension, LH
53875S Grommet, NO.1
53879A Retainer, Front Fender Liner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
