Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

15 part groups · 3 illustrations

Illustrations

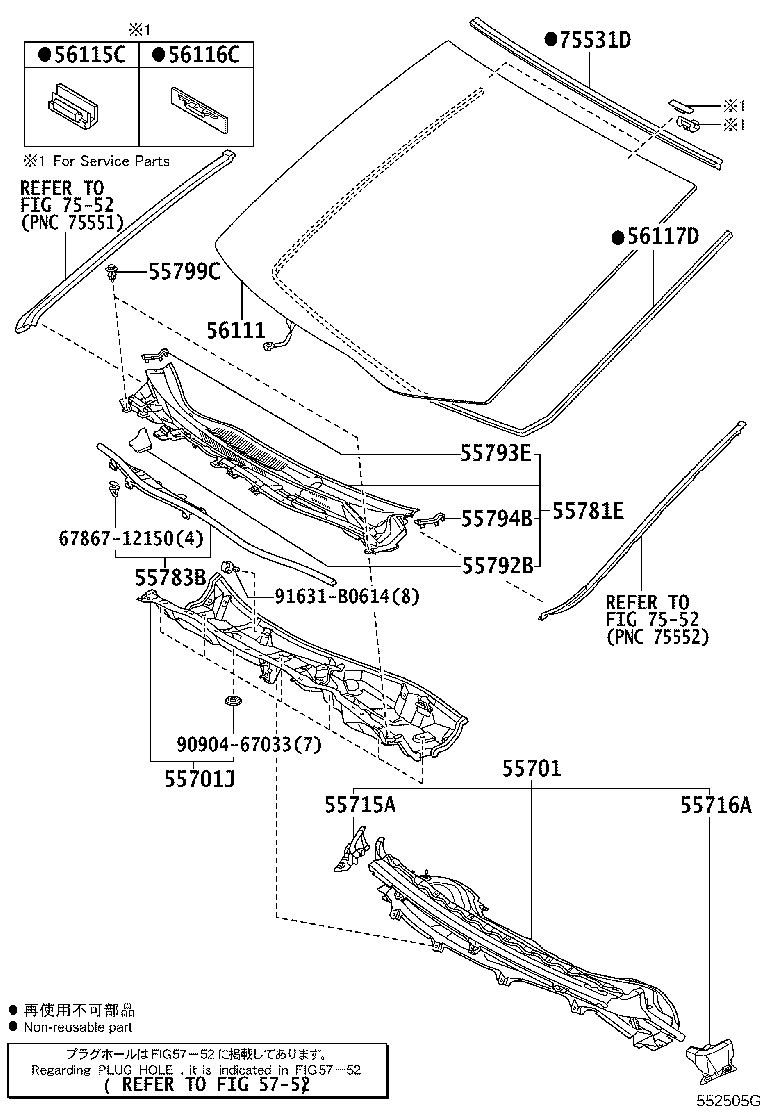

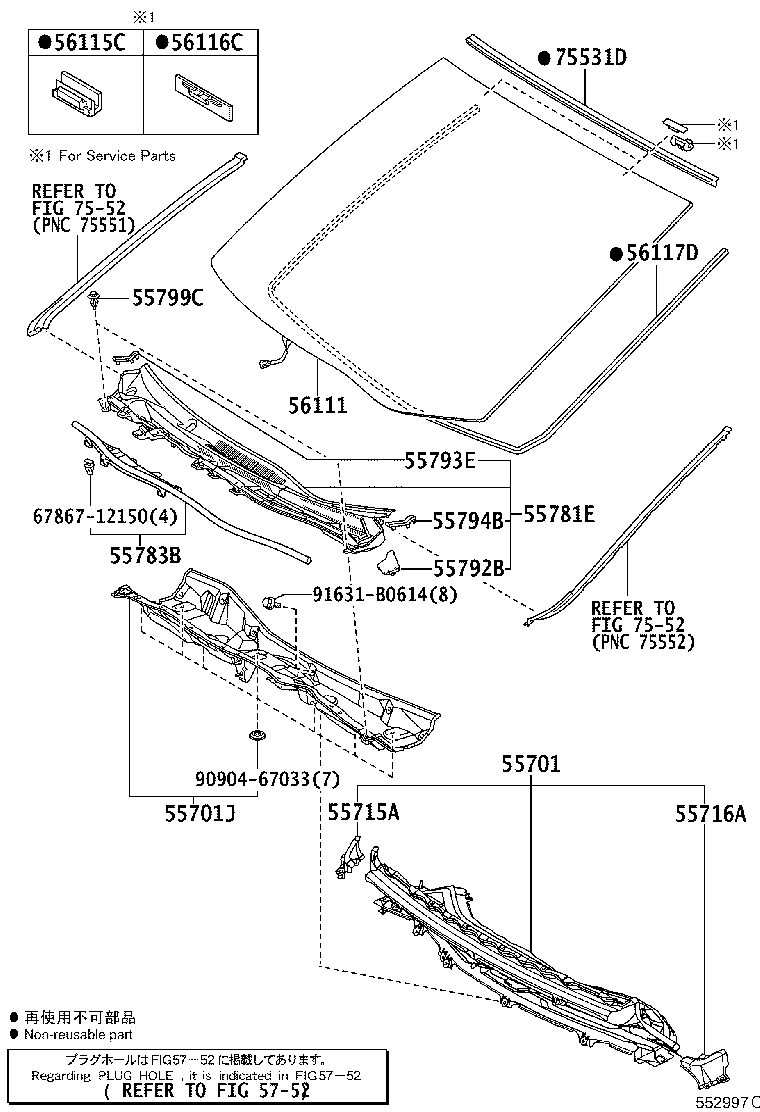

Figure 552996C 552996C 2008-04 → 2011-10 Figure 552997C 552997C 2011-10 → — Figure 552505G 552505G 2010-06 → —

Part groups

PNCDescription
55701 Panel Sub-assy, Cowl
55701J Panel Sub-assy, Cowl Top, Outer
55715A Brace, Cowl Top TO Apron, RH
55716A Brace, Cowl Top TO Apron, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783B Louver, Cowl Top Ventilator, Center NO.1
55792B Cover, Cowl Reinforcement, Upper LH
55793E Cover, Cowl Reinforcement, Upper NO.2 RH
55794B Cover, Cowl Reinforcement, Upper NO.2 LH
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117D Dam, Windshield Glass Adhesive
75531D Moulding, Windshield, Outside Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
