Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

Rear Floor Panel & Rear Floor Member

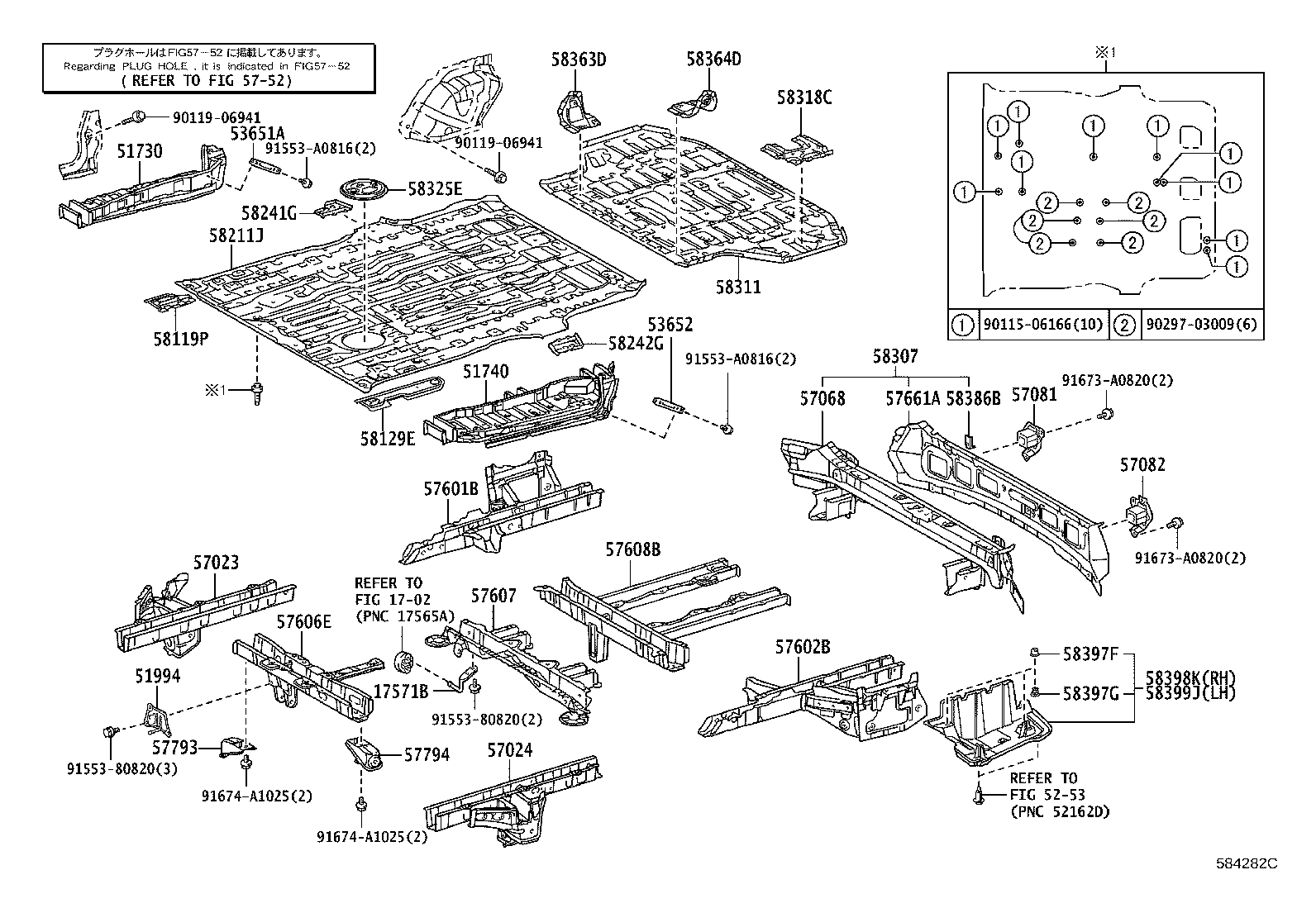

37 part groups · 2 illustrations

PNC	Description
17571B	Bracket, Exhaust Pipe Support
51730	Step Assy, Rear Floor, RH
51740	Step Assy, Rear Floor, LH
51994	Hanger, Exhaust Pipe, NO.4
52581H	Protector, Rear Bumper, RH
52582D	Protector, Rear Bumper, LH
53651A	Brace, Rear Suspension, Upper RH
53652	Brace, Rear Suspension, Upper LH
57023	Member Sub-assy, Rear Side, RH
57024	Member Sub-assy, Rear Side, LH
57068	Member Sub-assy, Rear Floor Rear Cross, Inner
57081	Bracket Sub-assy, Rear Bumper Mounting
57082	Bracket Sub-assy, Rear Bumper Arm Support, LH
57601B	Member Sub-assy, Rear Floor Side, Front RH
57602B	Member Sub-assy, Rear Floor Side, Front LH
57606E	Member Sub-assy, Rear Floor Cross, NO.2
57607	Crossmember Sub-assy, Rear Floor, NO.1
57608B	Member Sub-assy, Rear Floor Cross, NO.4
57661A	Panel, Rear Floor Rear Cross, Outer
57793	Bracket, Rear Suspension Arm, Rear RH NO.1
57794	Bracket, Rear Suspension Arm, Rear LH NO.1
58119P	Plate, Front Floor Side, RH
58129E	Plate, Front Floor Side, LH
58211J	Pan, Center Floor
58241G	Panel, Floor Side, RH
58242G	Panel, Floor Side, LH
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58318C	Bracket, Rear Floor Crossmember
58325E	Cover, Rear Floor Service Hole
58363D	Reinforcement, Rear Floor Panel, NO.2 RH
58364D	Reinforcement, Rear Floor Panel, NO.2 LH
58386B	Bracket, Rear Bumper Cover, NO.2
58397F	Clip, NO.1(FOR REAR UNDER COVER)
58397G	Clip, NO.2(FOR REAR UNDER COVER)
58398K	Cover, Floor Under, NO.1
58399J	Cover, Floor Under, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
