Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

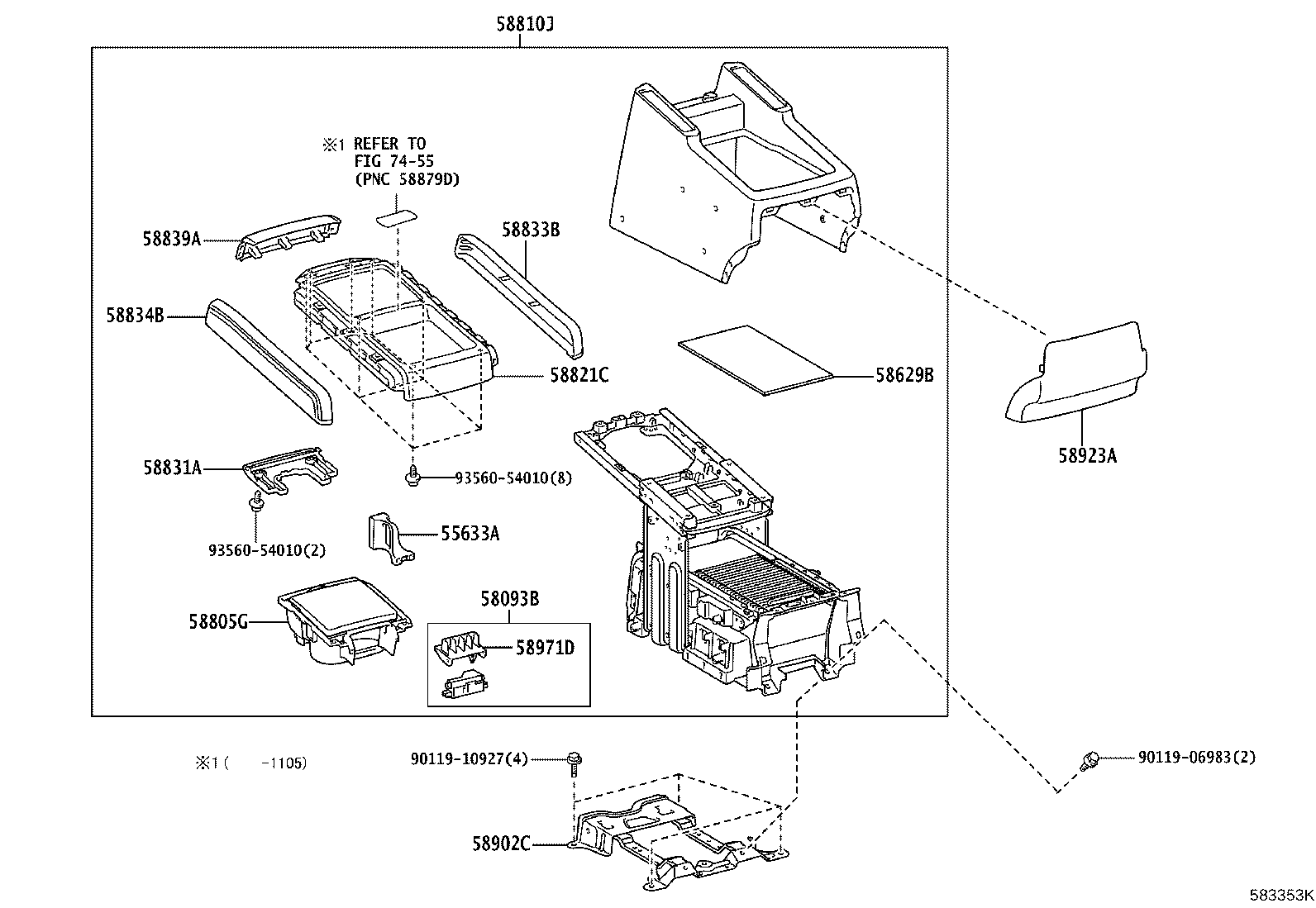

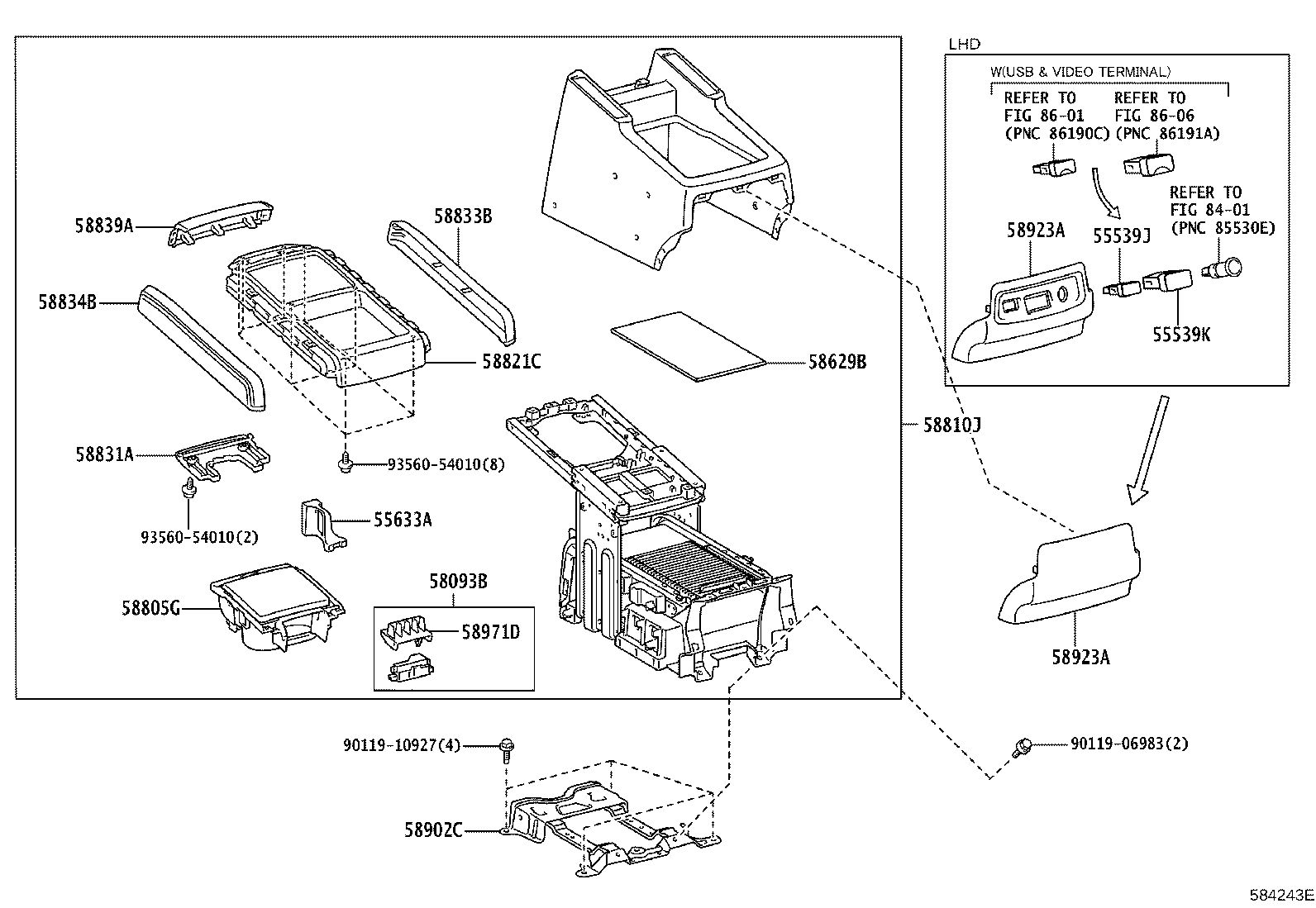

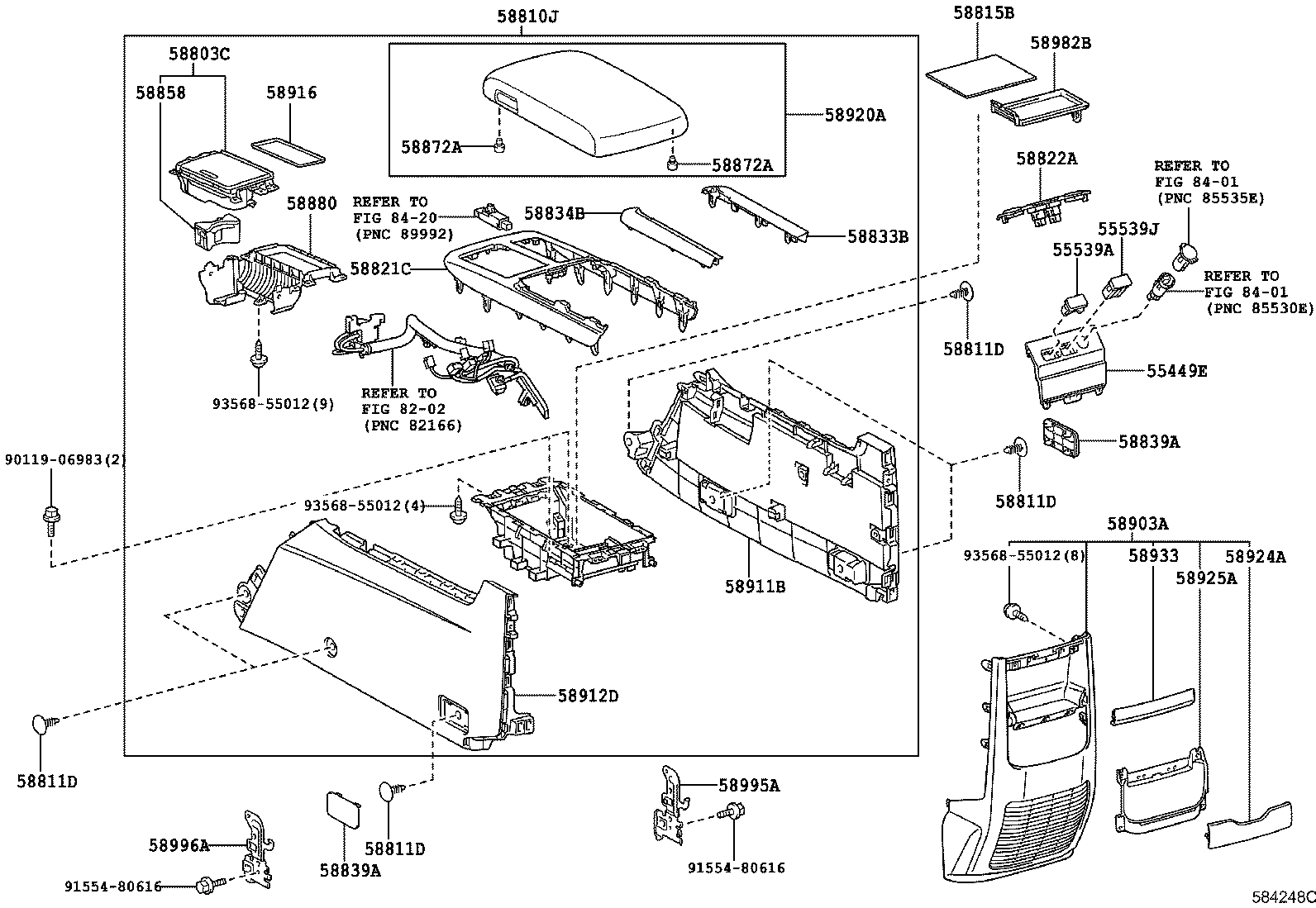

Console Box & Bracket

42 part groups · 6 illustrations

PNC	Description
55449E	Base, Switch
55539A	Cover, Spare Switch Hole
55539J	Cover, Spare Switch Hole
55539K	Cover, Spare Switch Hole
55633A	Support, Instrument Panel Cup Holder, NO.1
58093B	Lock Sub-assy, Box
58629B	Mat, Center Console
58803C	Box Sub-assy, Console Cup Holder
58804C	Insert Sub-assy, Console Box, Front
58805G	Holder Sub-assy, Console Box
58810J	Box Assy, Console
58811D	Clip(FOR CONSOLE BOX)
58815B	Carpet, Console Box
58821C	Panel, Console, Upper
58822A	Panel, Console, Upper Rear
58831A	Garnish, Console Upper Panel, Front
58833A	Cover, Console, Upper
58833B	Garnish, Console Upper Panel, NO.1
58834B	Garnish, Console Upper Panel, NO.2
58839A	Cover, Console Box Hole
58858	Bracket, Console Support, NO.1
58872A	Cushion, Console Box, NO.2
58880	Box Assy, Equipment Set
58902C	Bracket Sub-assy, Console Box Mounting
58903A	Panel Sub-assy, Console Rear End
58905	Door Sub-assy, Console Compartment
58907	Hinge Sub-assy, Console Compartment Door
58911B	Panel, Box, NO.1
58912D	Panel, Box, NO.2
58916	Mat, Box Bottom
58920A	Armrest Assy, Rear Console
58921A	Panel, Rear Console, Upper
58923A	Panel, Console Rear End
58924A	Panel, Console Rear End, NO.2
58925A	Pocket, Console Box, Rear
58933	Garnish, Console Rear End Panel
58959B	Cushion, Console Compartment Door
58971	Lock, Console Compartment Door
58971D	Lever, Console Compartment Door Lock
58982B	Retainer, Console Box, NO.3
58995A	Bracket, Console Box Mounting, NO.1
58996A	Bracket, Console Box Mounting, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
