Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

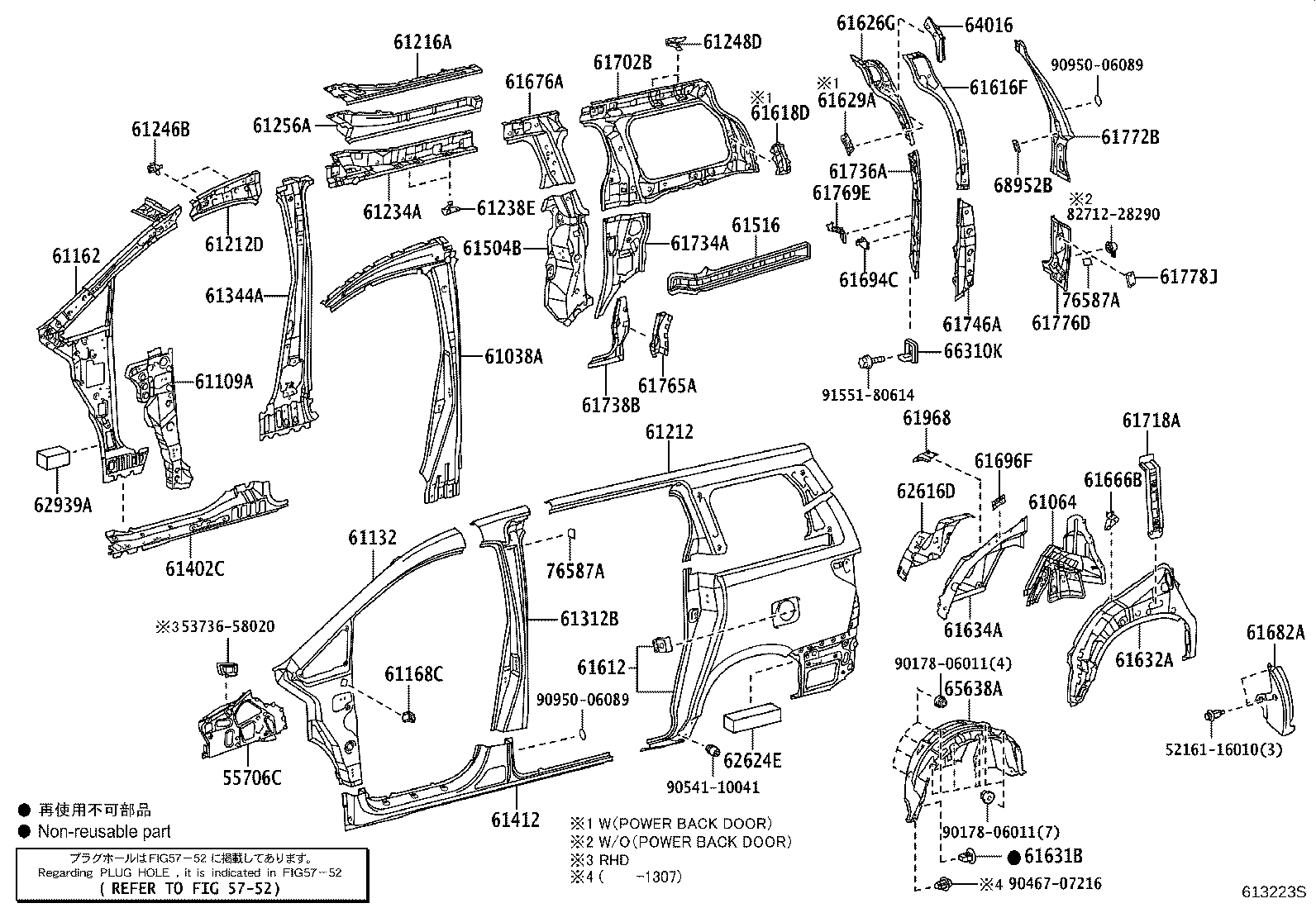

Side Member
101 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55705D | Panel Sub-assy, Cowl Top Side, RH, |
| 55706C | Panel Sub-assy, Cowl Top Side, LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61063 | Bracket, Sub-assy, Rear Shock Absorber, RH |
| 61064 | Bracket, Sub-assy, Rear Shock Absorber, LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61131 | Pillar, Front Body, Upper Outer RH |
| 61132 | Pillar, Front Body, Upper Outer LH |
| 61161 | Pillar, Front Body, Upper Inner RH |
| 61162 | Pillar, Front Body, Upper Inner LH |
| 61167E | Bracket, NO.6 Pillar Outer |
| 61168C | Bracket, NO.6 Pillar Outer |
| 61211 | Rail, Roof Side, Outer RH |
| 61211D | Rail, Roof Side, Front RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61212D | Rail, Roof Side, Front LH |
| 61215C | Rail, Roof Side, Outer Rear RH |
| 61216A | Rail, Roof Side, Outer Rear LH |
| 61233A | Rail, Roof Side, Inner NO.2 RH |
| 61234A | Rail, Roof Side, Inner NO.2 LH |
| 61237E | Bracket, Assist Grip, NO.1 |
| 61238E | Bracket, Assist Grip, NO.2 |
| 61245B | Bracket, Assist Grip, NO.3 RH |
| 61246B | Bracket, Assist Grip, NO.3 LH |
| 61247D | Bracket, Assist Grip, RH |
| 61248D | Bracket, Assist Grip, LH |
| 61255 | Plate, Roof Side Rail, Outer RH |
| 61256A | Plate, Roof Side Rail, Outer LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61343A | Pillar, Center Body, Inner RH |
| 61344A | Pillar, Center Body, Inner LH |
| 61401C | Panel Sub-assy, Rocker, Outer RH |
| 61402C | Panel Sub-assy, Rocker, Outer LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61503B | Reinforcement Sub-assy, Quarter Lock Pillar, RH |
| 61504B | Reinforcement Sub-assy, Quarter Lock Pillar, LH |
| 61515B | Extension, Quarter Lock Pillar, RH |
| 61516 | Extension, Quarter Lock Pillar, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61615G | Reinforcement, Rear Body Rear Side Panel, RH |
| 61616F | Reinforcement, Rear Body Rear Side Panel, LH |
| 61618D | Reinforcement, Rear Upper Side Panel, Upper |
| 61625G | Extension, Quarter Panel, Rear RH |
| 61626G | Extension, Quarter Panel, Rear LH |
| 61629A | Reinforcement, Quarter Panel, LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61631B | Grommet(FOR QUARTER WHEEL HOUSE) |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61665B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH |
| 61666B | Reinforce, Seat Belt Anchorage TO Quarter Wheel House, LH |
| 61675A | Reinforce, Seat Belt Anchor, NO.2 Upper RH |
| 61676A | Reinforce, Seat Belt Anchor, NO.2 Upper LH |
| 61681C | Extension, Rear Wheel Opening, RH |
| 61682A | Extension, Rear Wheel Opening, LH |
| 61693C | Retainer, Rear Seatback Set, RH |
| 61694C | Retainer, Rear Seatback Set, LH |
| 61695D | Bracket, Rear Wheel Opening, NO.3 |
| 61696F | Bracket, Rear Wheel Opening, NO.2 LH |
| 61701B | Panel Sub-assy, Roof Side, Inner Upper RH |
| 61702B | Panel Sub-assy, Roof Side, Inner Upper LH |
| 61717A | Reinforcement, Quarter Panel Extension, RH |
| 61718A | Reinforcement, Quarter Panel Extension, LH |
| 61733A | Panel, Roof Side, Inner Front RH |
| 61734A | Panel, Roof Side, Inner Front LH |
| 61735A | Panel, Roof Side, Inner Rear RH |
| 61736A | Panel, Roof Side, Inner Rear LH |
| 61737B | Panel, Roof Side, Inner Lower RH |
| 61738B | Panel, Roof Side, Inner Lower LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61764B | Reinforcement, Seat Belt Anchor, NO.2 RH |
| 61765A | Reinforcement, Seat Belt Anchor, NO.2 LH |
| 61768F | Reinforce, Belt Anchor TO Quarter, Inner Lower RH |
| 61769E | Reinforcement, Belt Anchor TO Quarter, Inner Lower LH |
| 61771B | Frame, Back Door Opening Upper Corner, RH |
| 61772B | Frame, Back Door Opening Upper Corner, LH |
| 61775C | Frame, Back Door Opening Side, RH |
| 61776D | Frame, Back Door Opening Side, LH |
| 61777D | Retainer, Back Door Side Stopper, RH |
| 61778J | Retainer, Back Door Side Stopper, LH |
| 61958 | Bracket, Rear Seat Leg, NO.1 RH |
| 61968 | Bracket, Rear Seat Leg, NO.1 LH |
| 62615E | Cover, Quarter Wheel House, Inner RH |
| 62616D | Cover, Quarter Wheel House, Inner LH |
| 62624E | Pad, Quarter Wheel House, Inner Rear LH |
| 62939A | Silencer, Quarter Vent |
| 64015 | Panel Sub-assy, Back Corner, Inner RH |
| 64016 | Panel Sub-assy, Back Corner, Inner LH |
| 65637B | Liner, Rear Wheel House, RH |
| 65638A | Liner, Rear Wheel House, LH |
| 66310K | Hook Assy, Rope |
| 68952A | Retainer, Back Door Stay |
| 68952B | Retainer, Back Door Stay |
| 76587A | Protector, Center Pillar Outer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
