Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01
Roof Panel & Back Panel

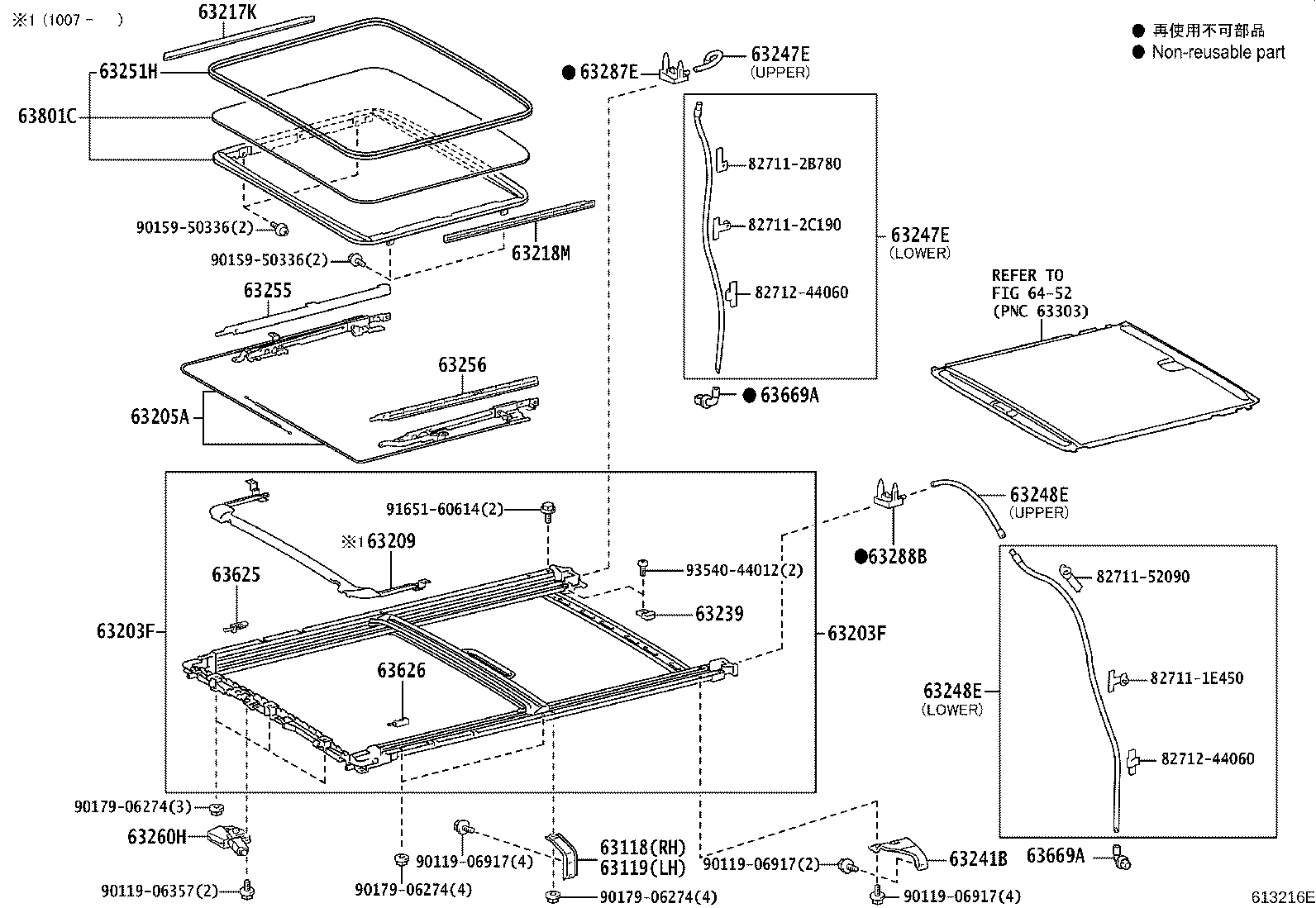

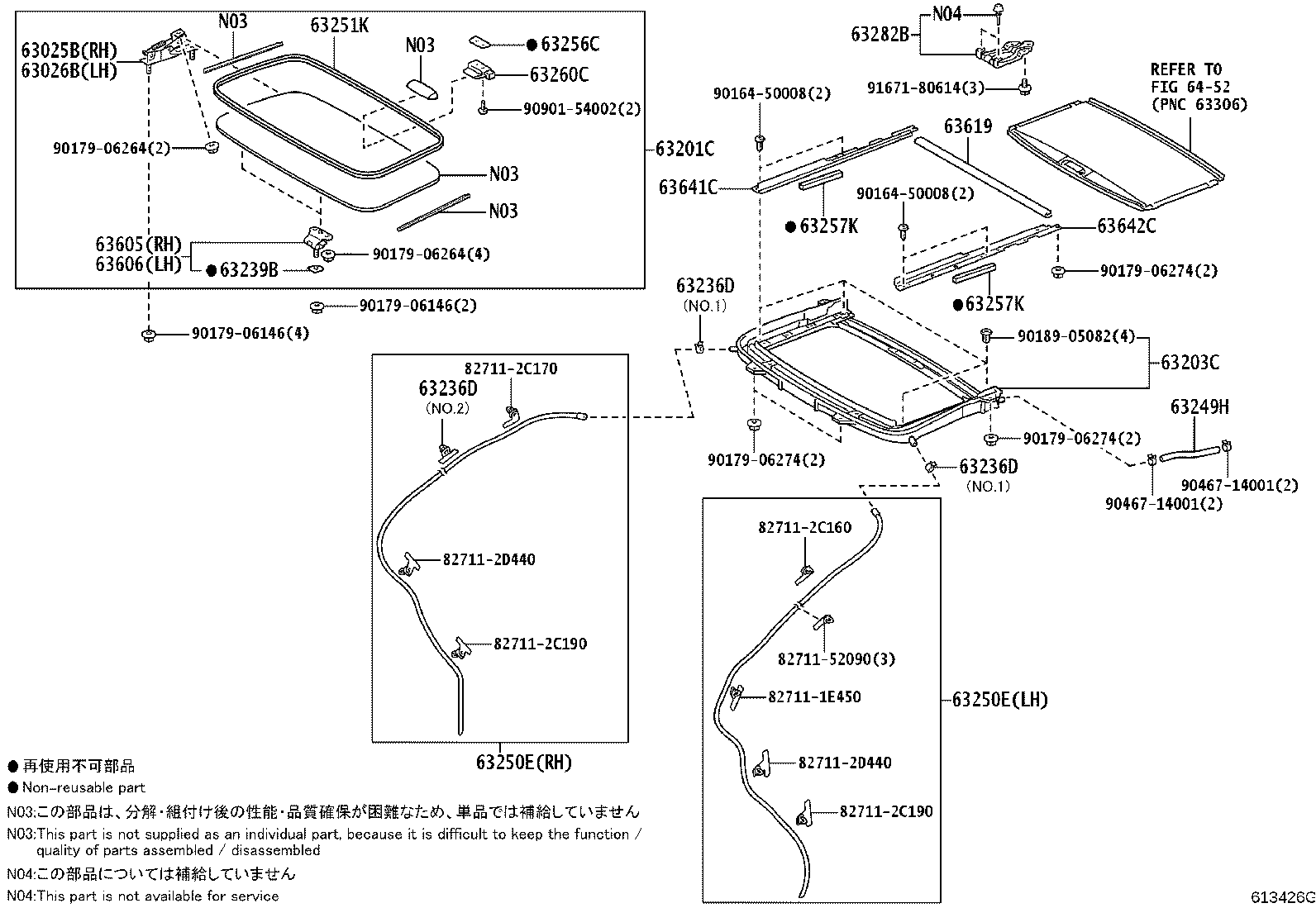

57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63025B | Link Sub-assy, Tilt Roof, RH |
| 63026B | Link Sub-assy, Tilt Roof, LH |
| 63071 | Frame Sub-assy, Back Door Opening, Upper |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63123A | Reinforcement, Roof Panel, Rear NO.1 |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63128 | Reinforcement, Roof Panel, NO.6 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63142 | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144B | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63149D | Reinforcement, Roof Panel, NO.8 |
| 63169B | Plate, Roof Panel Reinforcement, RH |
| 63177 | Reinforcement, Roof Panel, NO.9 |
| 63178A | Reinforcement, Roof Panel, NO.10 |
| 63179 | Plate, Roof Panel Reinforcement, LH |
| 63201C | Glass Sub-assy, Tilt Roof |
| 63203C | Housing Sub-assy, Tilt Roof |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63205A | Cable Sub-assy, Sliding Roof Drive |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63210E | Panel Assy, Tilt Roof |
| 63217K | Garnish, Sliding Roof Side, RH |
| 63218M | Garnish, Sliding Roof Side, LH |
| 63236D | Clamp, Sliding Roof Drain Hose |
| 63239 | Stopper, Sliding Roof Panel |
| 63239B | Pad, Tilt Roof Glass |
| 63241B | Bracket, Sliding Roof Housing, NO.1 |
| 63247E | Hose, Sliding Roof Drain, Rear RH |
| 63248E | Hose, Sliding Roof Drain, Rear LH |
| 63249H | Hose, Sliding Roof Drain |
| 63250E | Hose Assy, Tilt Roof Drain |
| 63251H | Weatherstrip, Sliding Roof |
| 63251K | Weatherstrip, Tilt Roof |
| 63255 | Cover, Sliding Roof Guide Rail, RH |
| 63256 | Cover, Sliding Roof Guide Rail, LH |
| 63256C | Seal, Tilt Roof Glass |
| 63257K | Seal, Tilt Roof Housing |
| 63260C | Handle Assy, Tilt Roof Lock |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63282B | Striker, Tilt Roof Lock |
| 63287E | Cap, Sliding Roof Housing Drain End, RH |
| 63288B | Cap, Sliding Roof Housing Drain End, LH |
| 63605 | Hinge Sub-assy, Tilt Roof, RH |
| 63606 | Hinge Sub-assy, Tilt Roof, LH |
| 63619 | Cover, Tilt Roof Panel |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63641C | Rail, Sunshade, NO.1 Front RH |
| 63642C | Rail, Sunshade, NO.1 Front LH |
| 63669A | Grommet, Sliding Roof Drain |
| 63801C | Glass Sub-assy, Rear Slide Roof |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
