Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

13 part groups · 10 illustrations

Illustrations

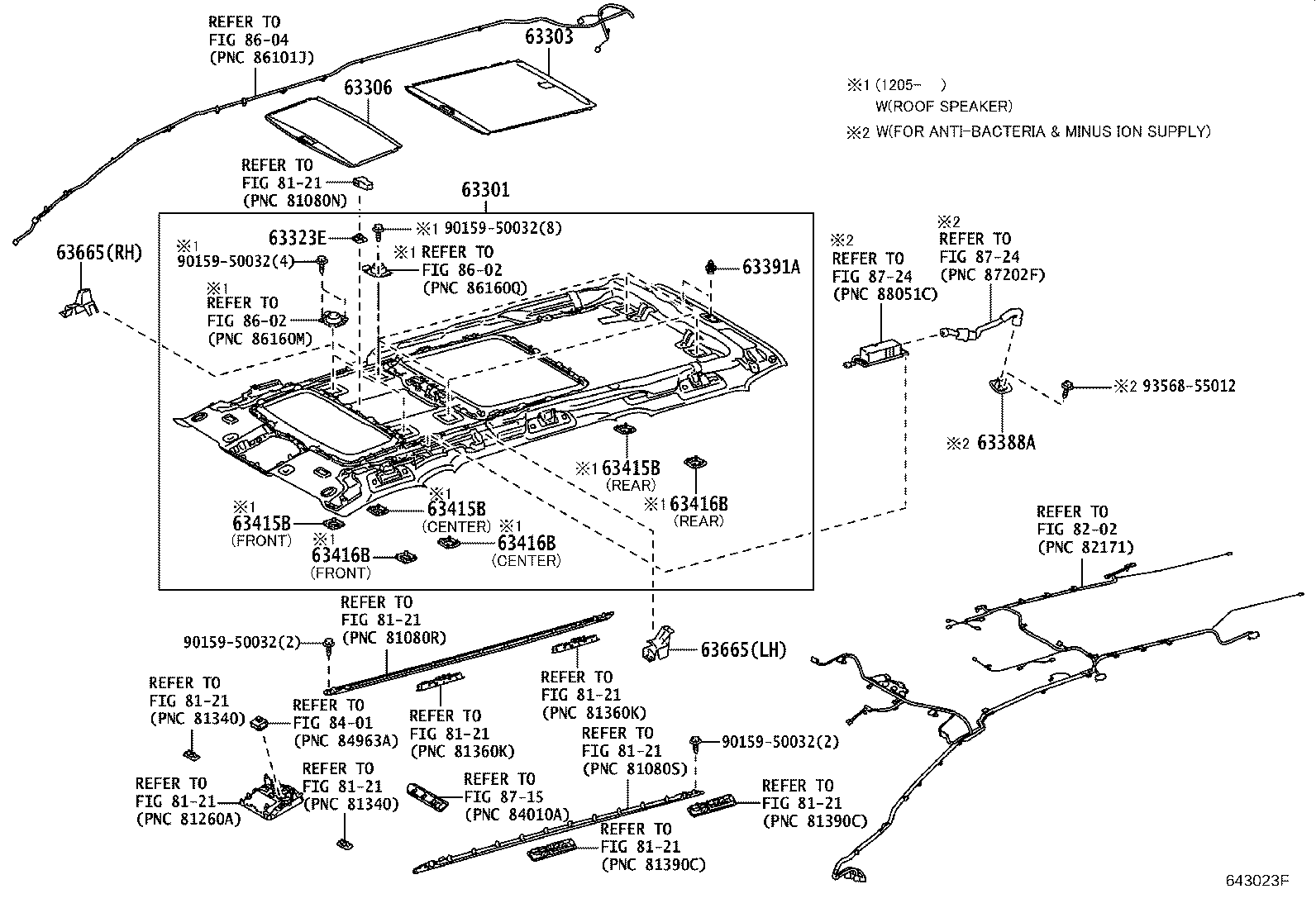

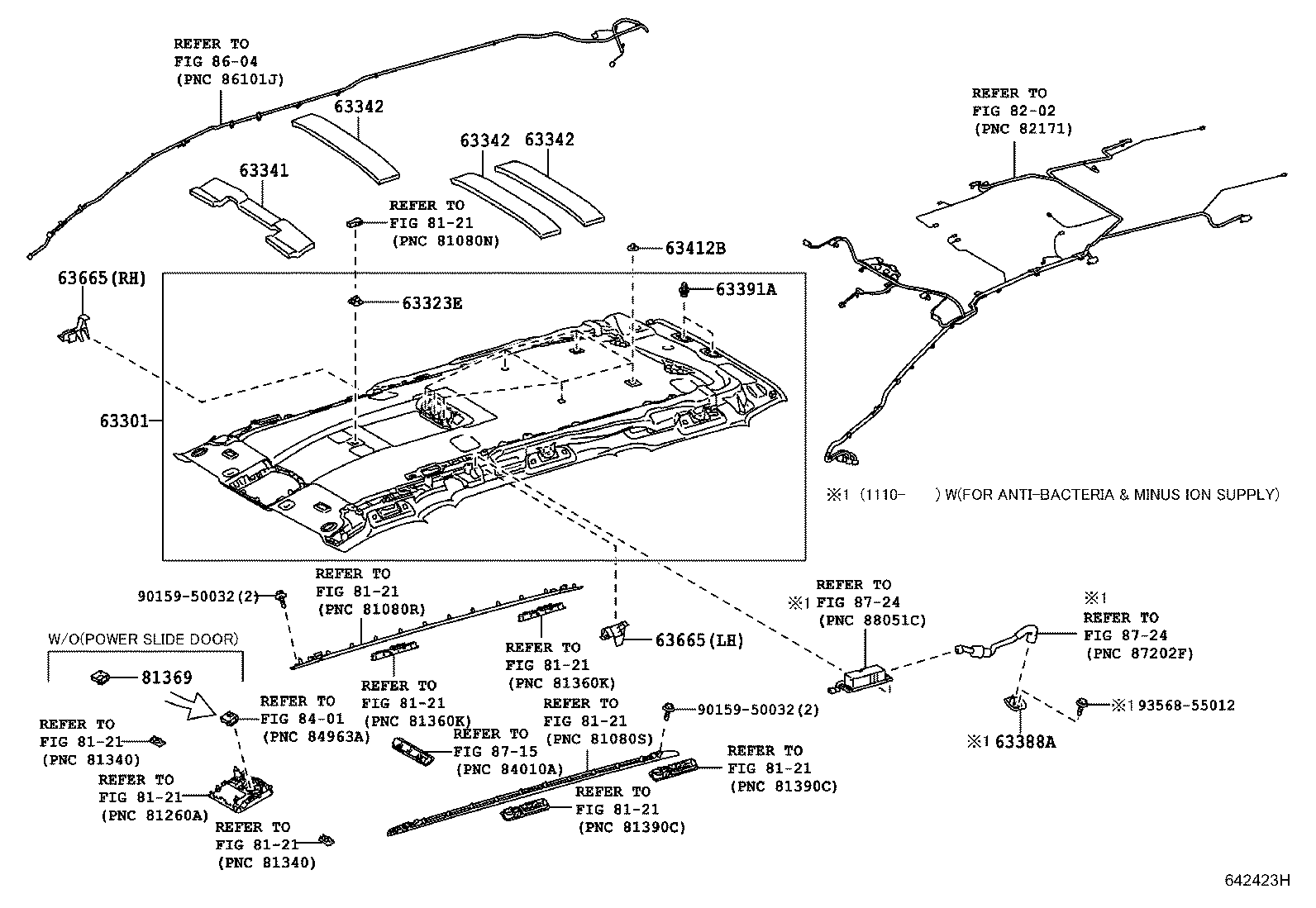

Figure 642310C 642310C 2008-04 → 2011-10 Figure 642310C 642310C 2009-06 → 2011-10 Figure 642423H 642423H 2008-10 → 2009-06 Figure 642423H 642423H 2009-06 → — Figure 642423H 642423H 2010-06 → — Figure 643023F 643023F 2011-10 → — Figure 643023F 643023F 2011-12 → — Figure 643023F 643023F 2012-01 → 2012-04 Figure 643023F 643023F 2012-05 → — Figure 643023F 643023F 2013-11 → —

Part groups

PNCDescription
63301 Trim Sub-assy, Roof Headlining
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63323E Case, Headlining Lamp
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63388A Cover, Roof Headlining Holder
63391A Clip(FOR ROOF HEADLINING TRIM)
63412B Retainer, Roof Console
63415B Grille, Roof Speaker, RH
63416B Grille, Roof Speaker, LH
63665 Spacer, Roof Headlining
81369 Cover, Spot Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
