Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

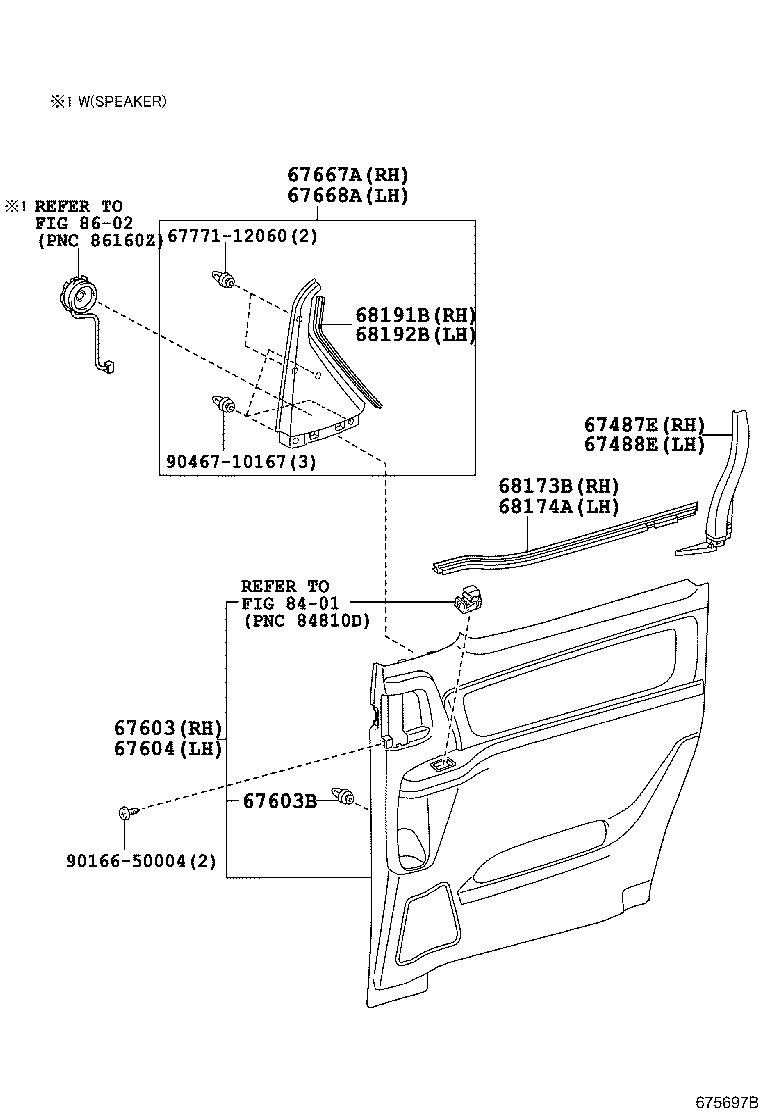

Rear Door Panel & Glass
49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58744E | Protector, Slide Door Panel, LH |
| 62345B | Weatherstrip, Slide Door, NO.3 RH |
| 62346B | Weatherstrip, Slide Door, NO.3 LH |
| 67003H | Door Sub-assy, Slide, RH |
| 67004H | Door Sub-assy, Slide, LH |
| 67113A | Panel, Slide Door, Outer RH |
| 67114A | Panel, Slide Door, Outer LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67435A | Guide, Rear Door Window, Front RH |
| 67436C | Guide, Rear Door Window, Front LH |
| 67487E | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488E | Garnish, Rear Door Rear Guide Bracket, LH |
| 67525C | Cover, Slide Door Panel, Lower RH |
| 67525D | Cover, Slide Door Panel, Lower LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67667A | Garnish, Slide Door Window, RH |
| 67668A | Garnish, Slide Door Window, LH |
| 67851A | Cover, Slide Door Service Hole, NO.1 |
| 67852A | Cover, Slide Door Service Hole, NO.2 |
| 67856F | Weatherstrip, Center Door, Rear RH |
| 67856G | Weatherstrip, Center Door, Rear LH |
| 67865D | Weatherstrip, Center Pillar Upper End, RH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867J | Clip, Door Weatherstrip, RH(FOR REAR DOOR) |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67869M | Clip, Door Weatherstrip |
| 67869N | Clip, Rear Door Weatherstrip, RH |
| 67869P | Clip, Rear Door Weatherstrip, LH |
| 67871E | Weatherstrip, Slide Door, NO.1 RH |
| 67872A | Weatherstrip, Slide Door, NO.1 LH |
| 67887D | Weatherstrip, Slide Door, NO.2 RH |
| 67888B | Weatherstrip, Slide Door, NO.2 LH |
| 67895C | Weatherstrip, Rear Door, NO.3 RH |
| 67896 | Weatherstrip, Rear Door, NO.3 LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68163H | Weatherstrip, Rear Door Glass, Outer RH |
| 68164A | Weatherstrip, Rear Door Glass, Outer LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68191B | Run, Rear Door Glass, NO.2 RH |
| 68192B | Run, Rear Door Glass, NO.2 LH |
| 84250D | Sensor Assy, Power Slide Door, RH |
| 84260J | Sensor Assy, Power Slide Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
