Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

115 part groups · 23 illustrations

Illustrations

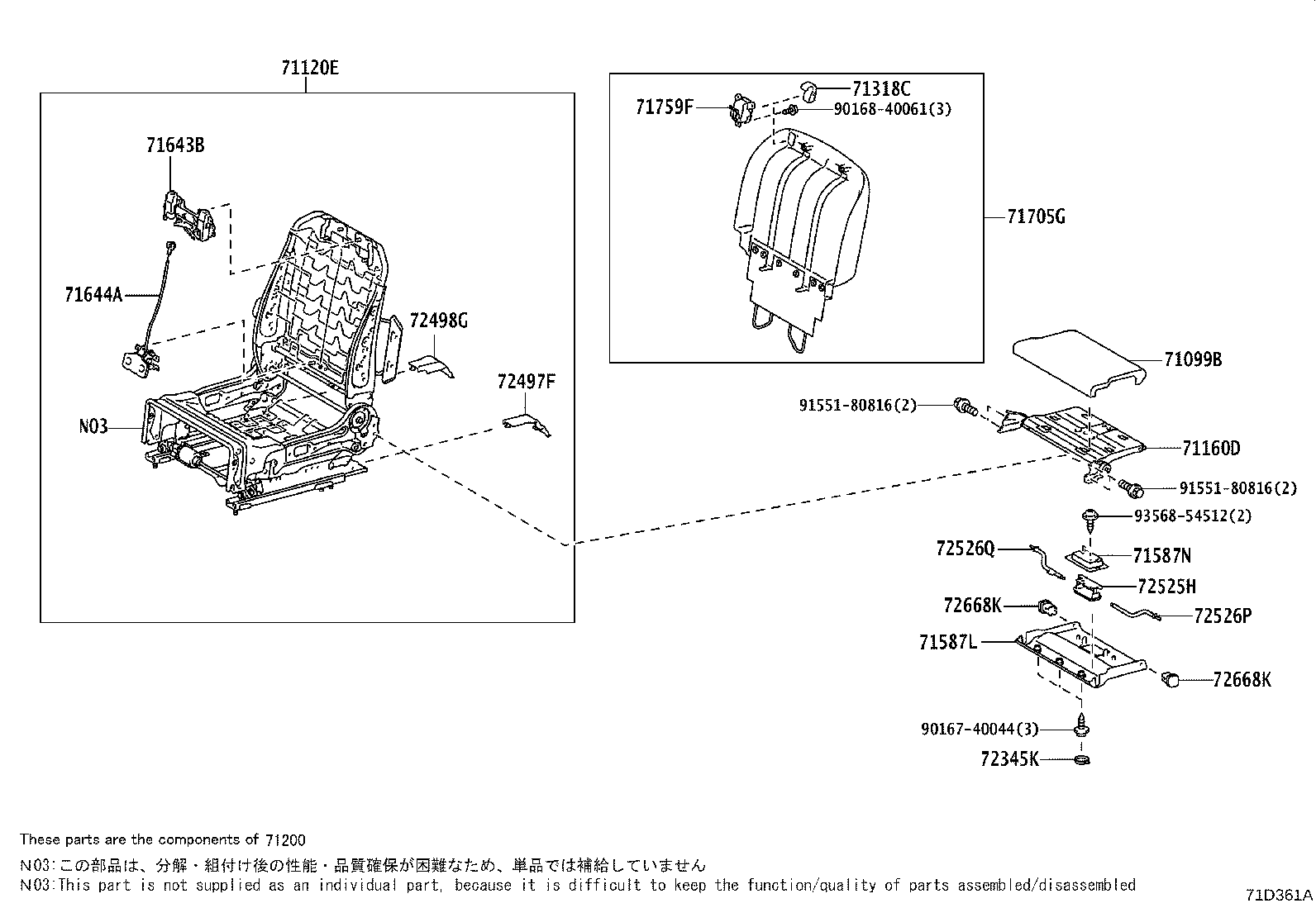

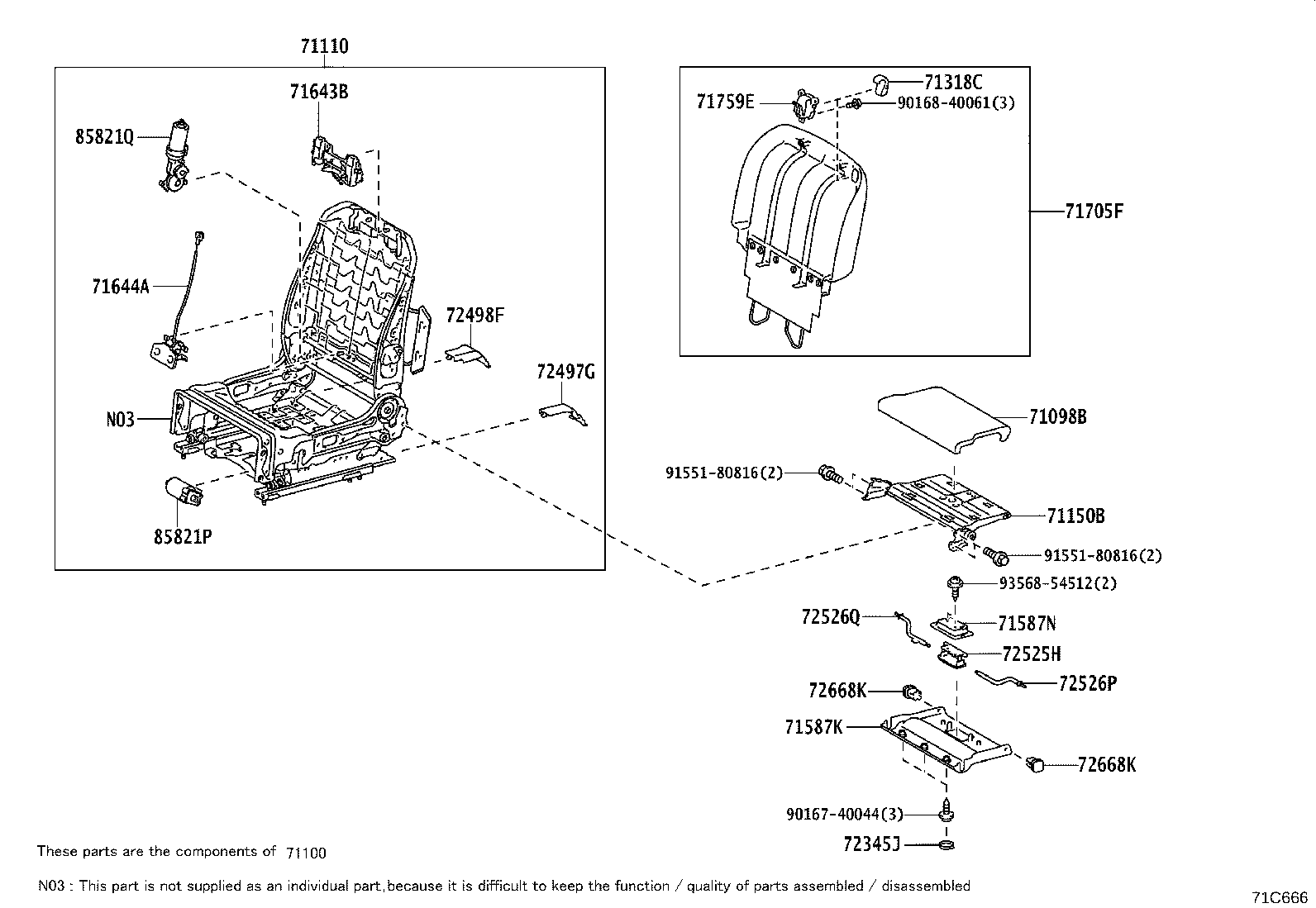

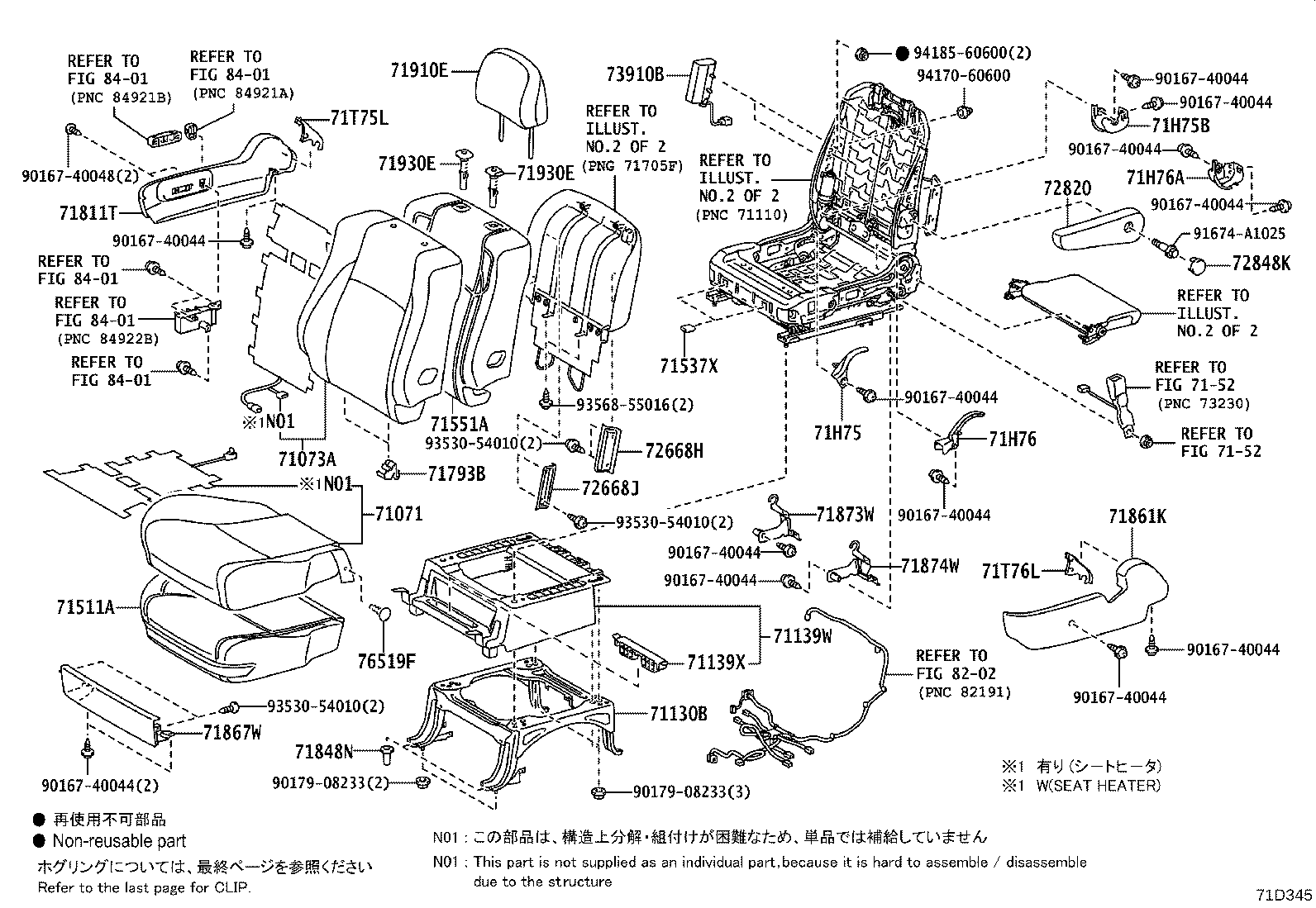

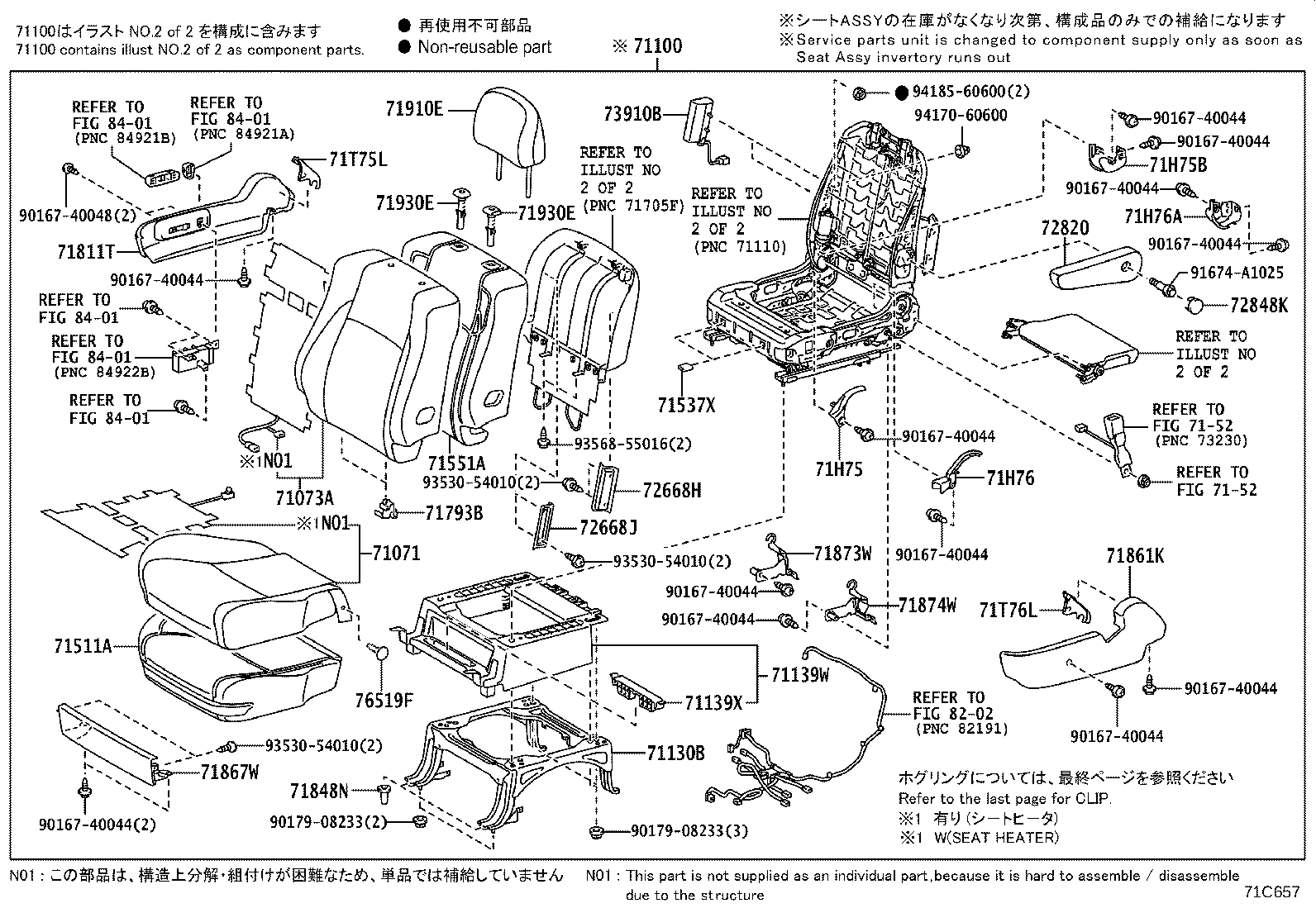

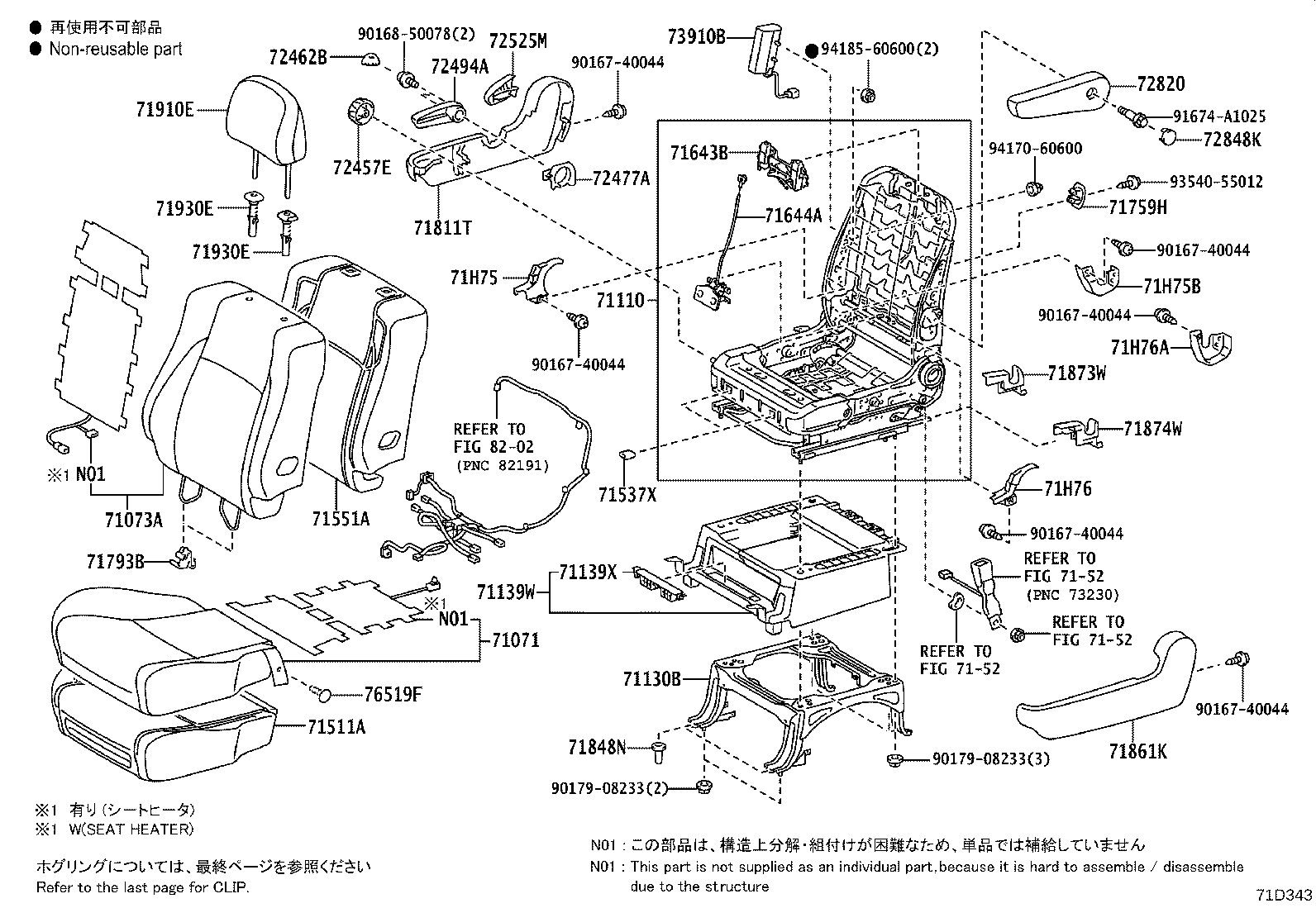

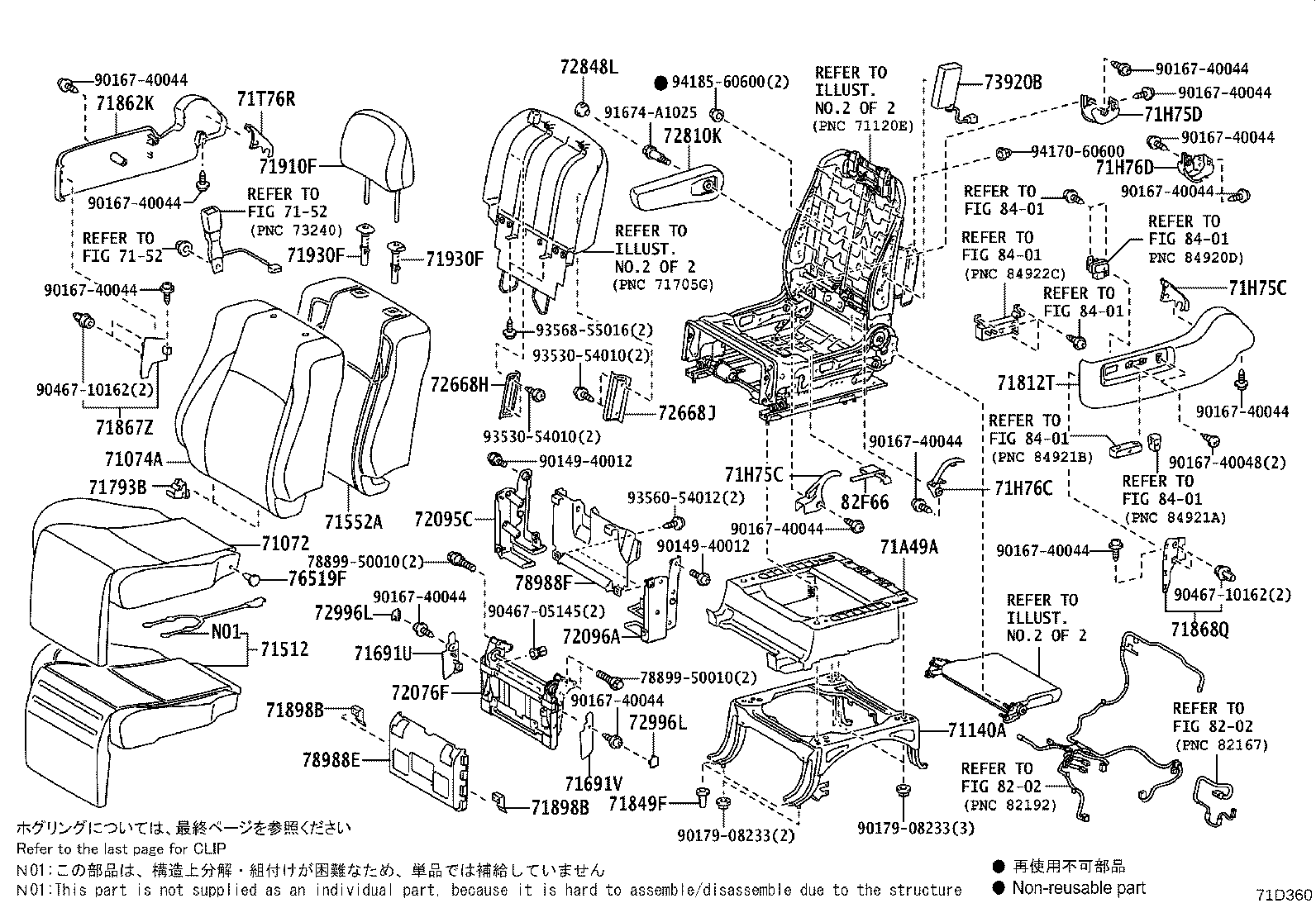

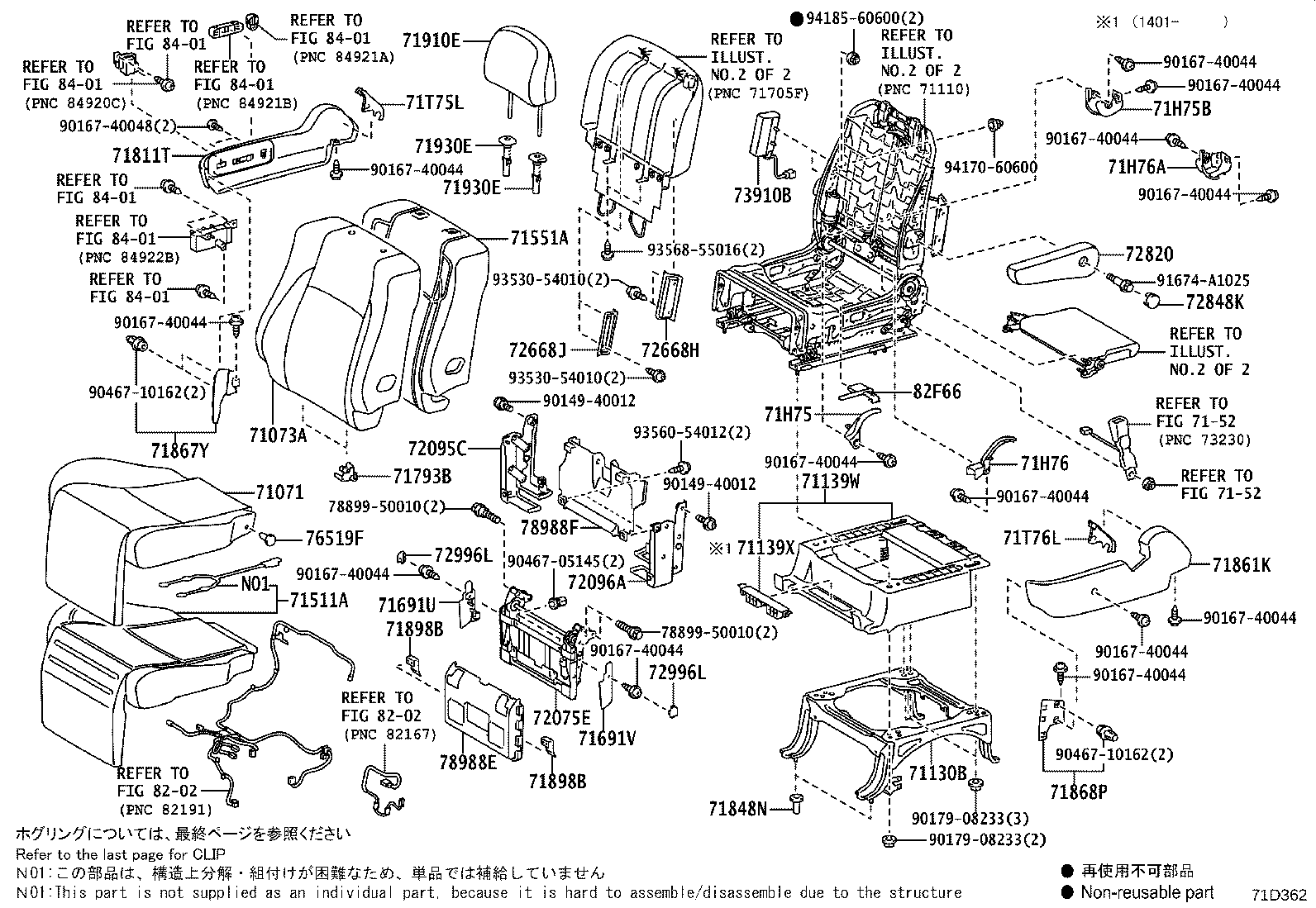

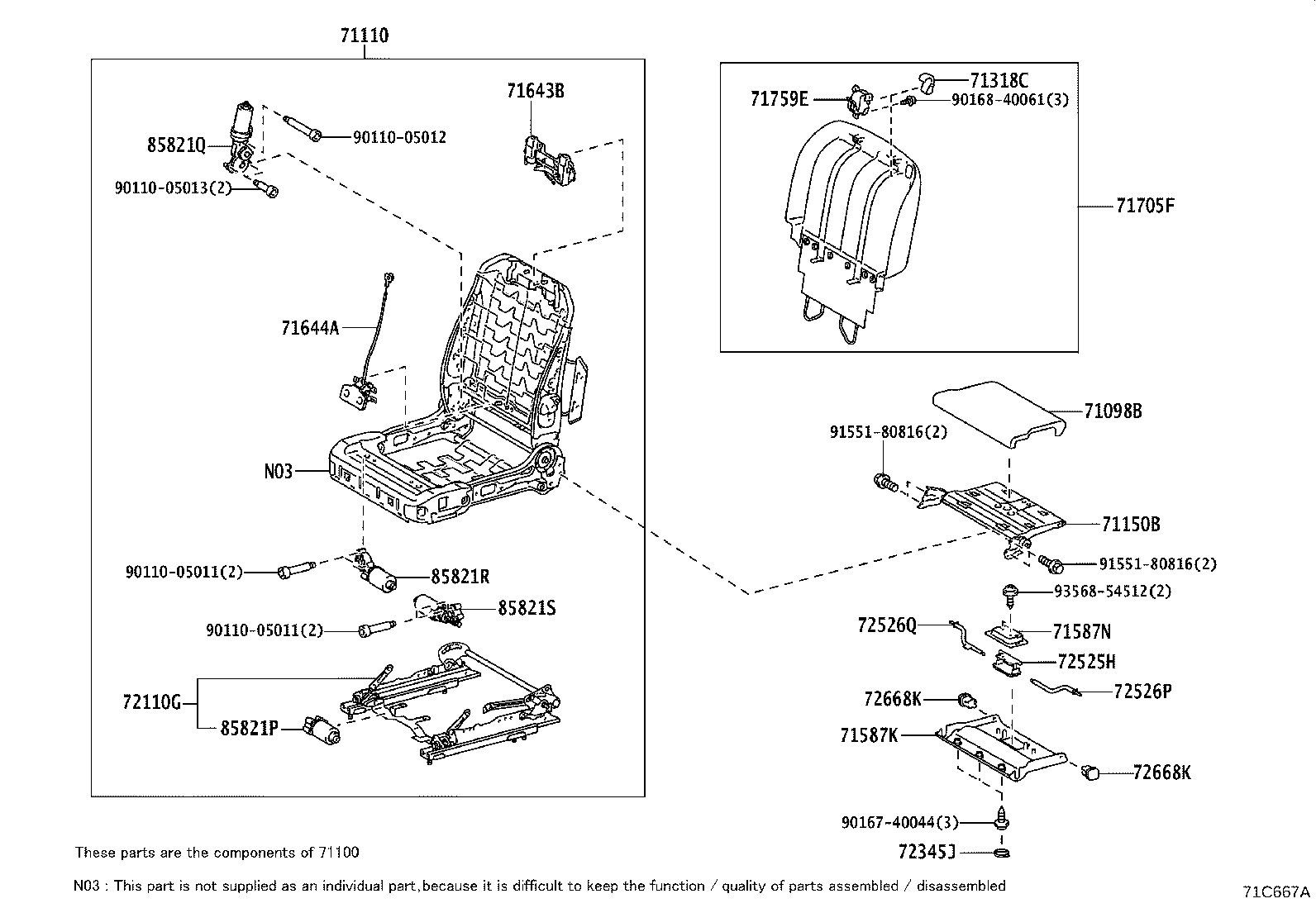

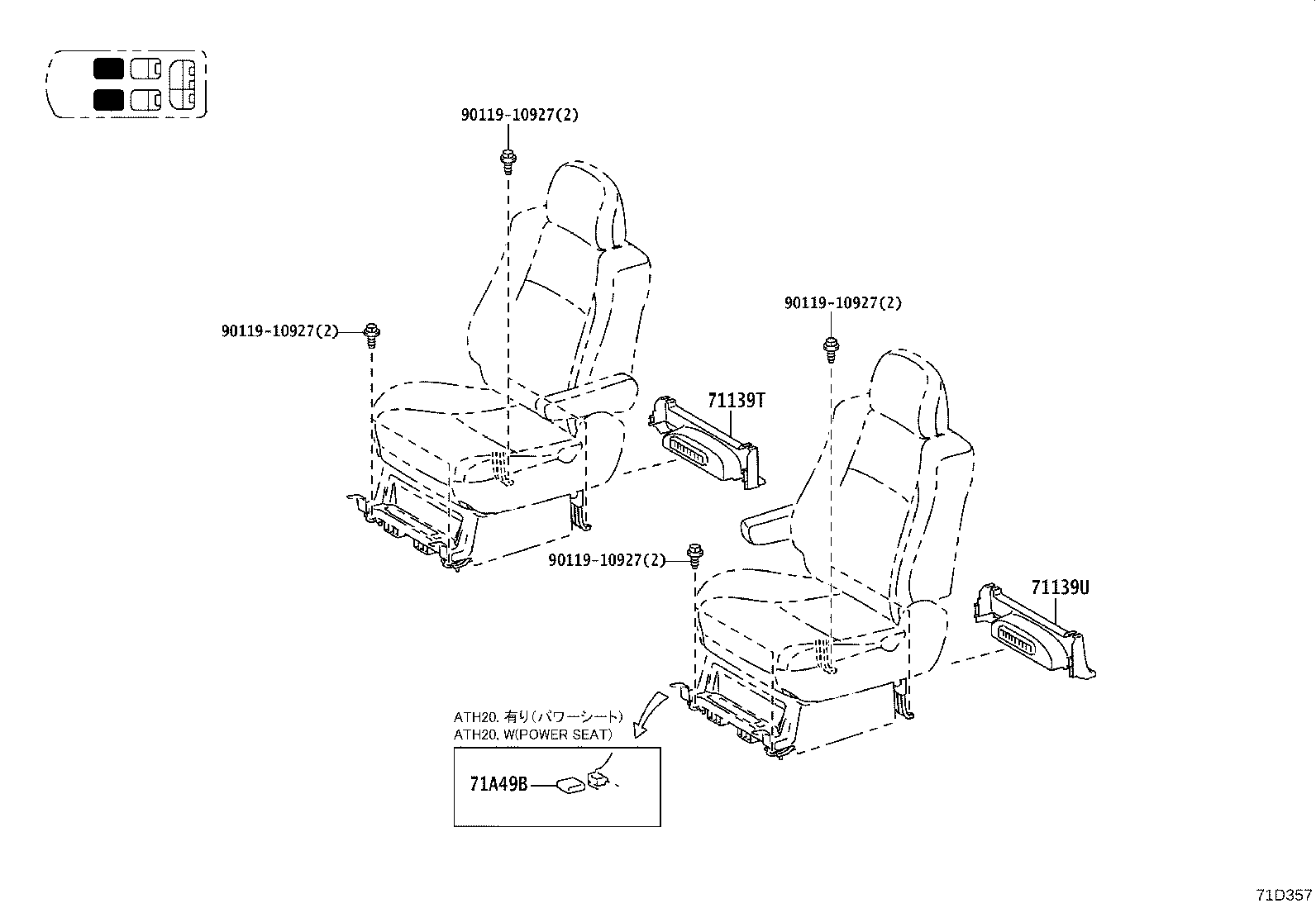

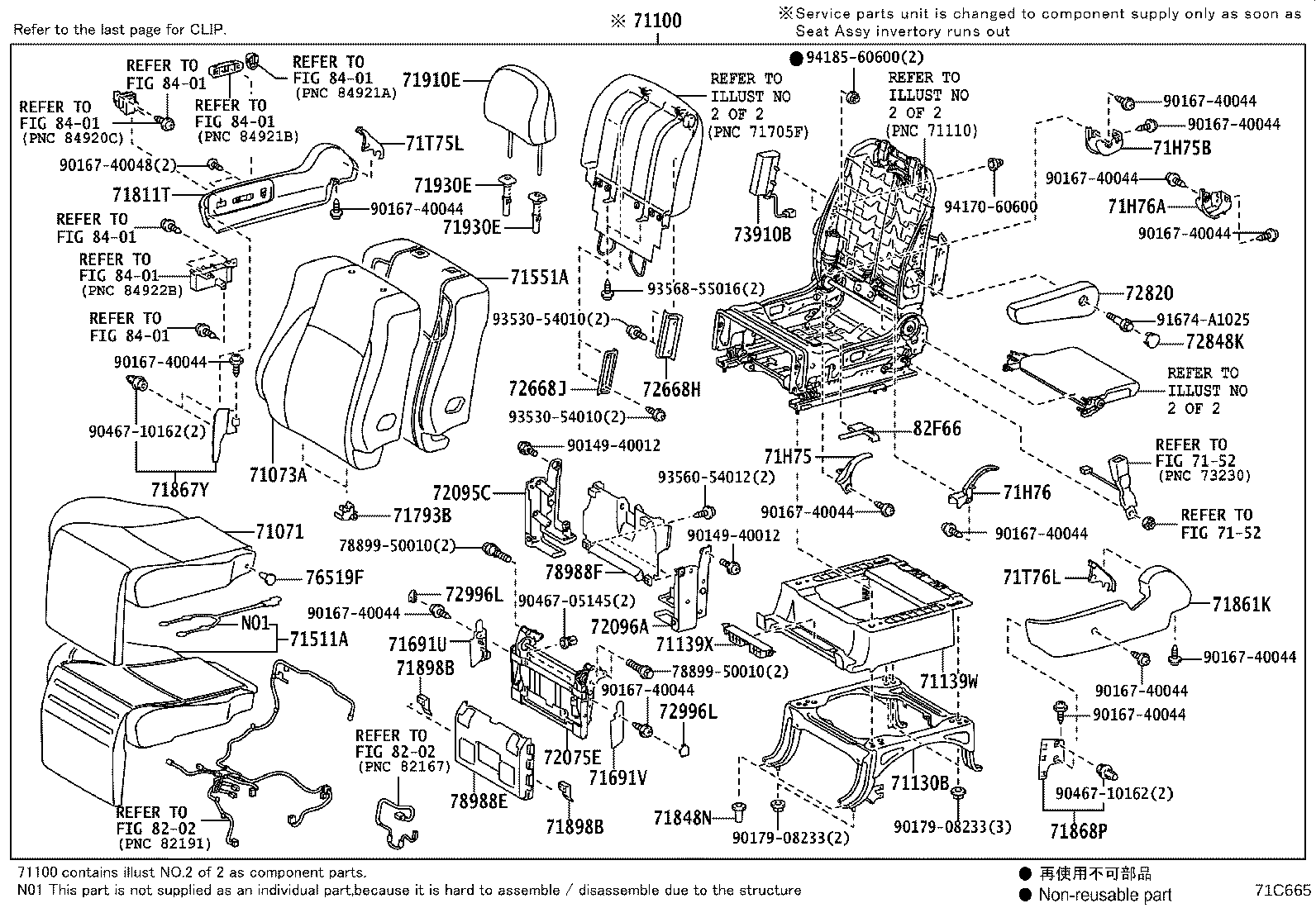

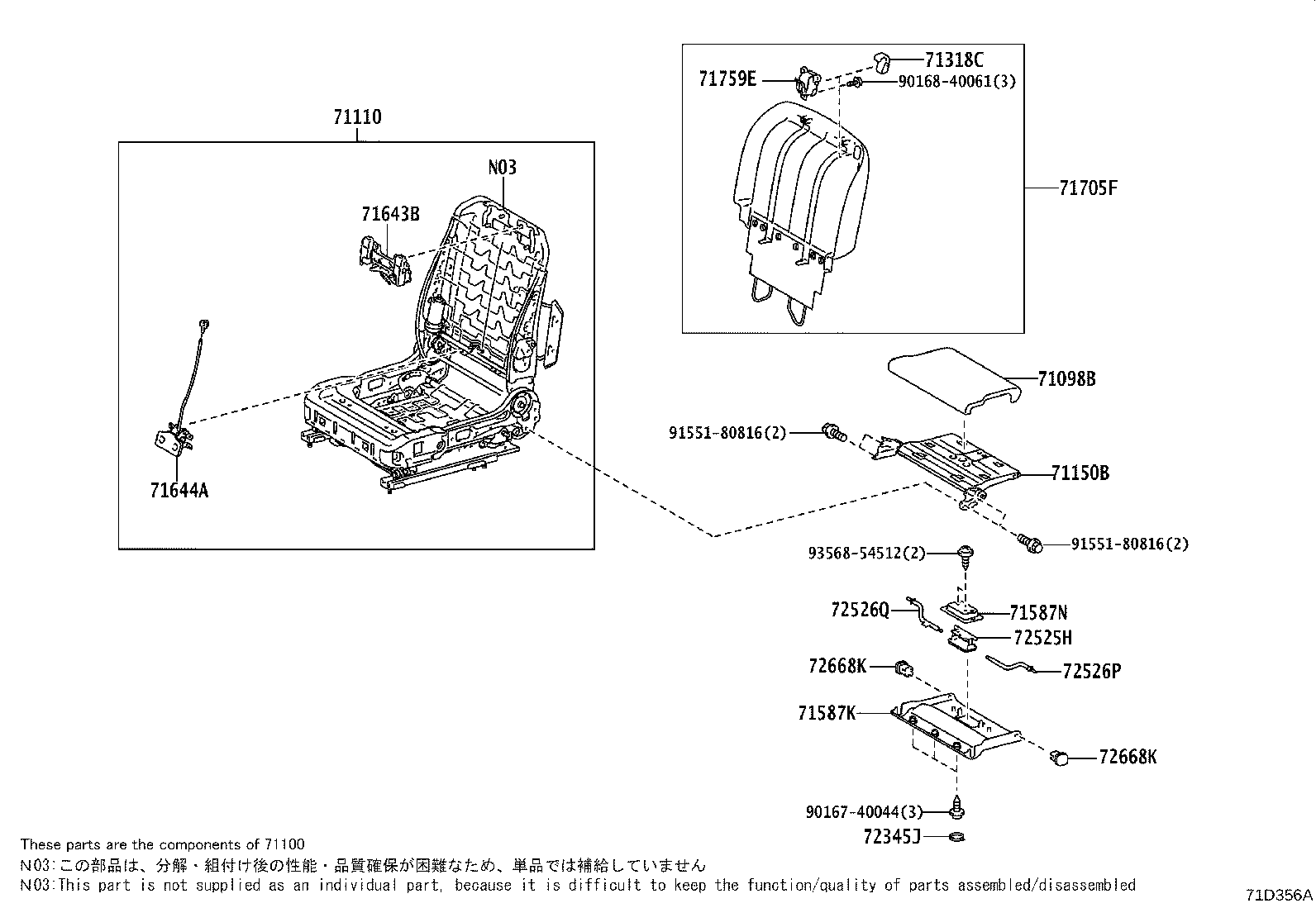

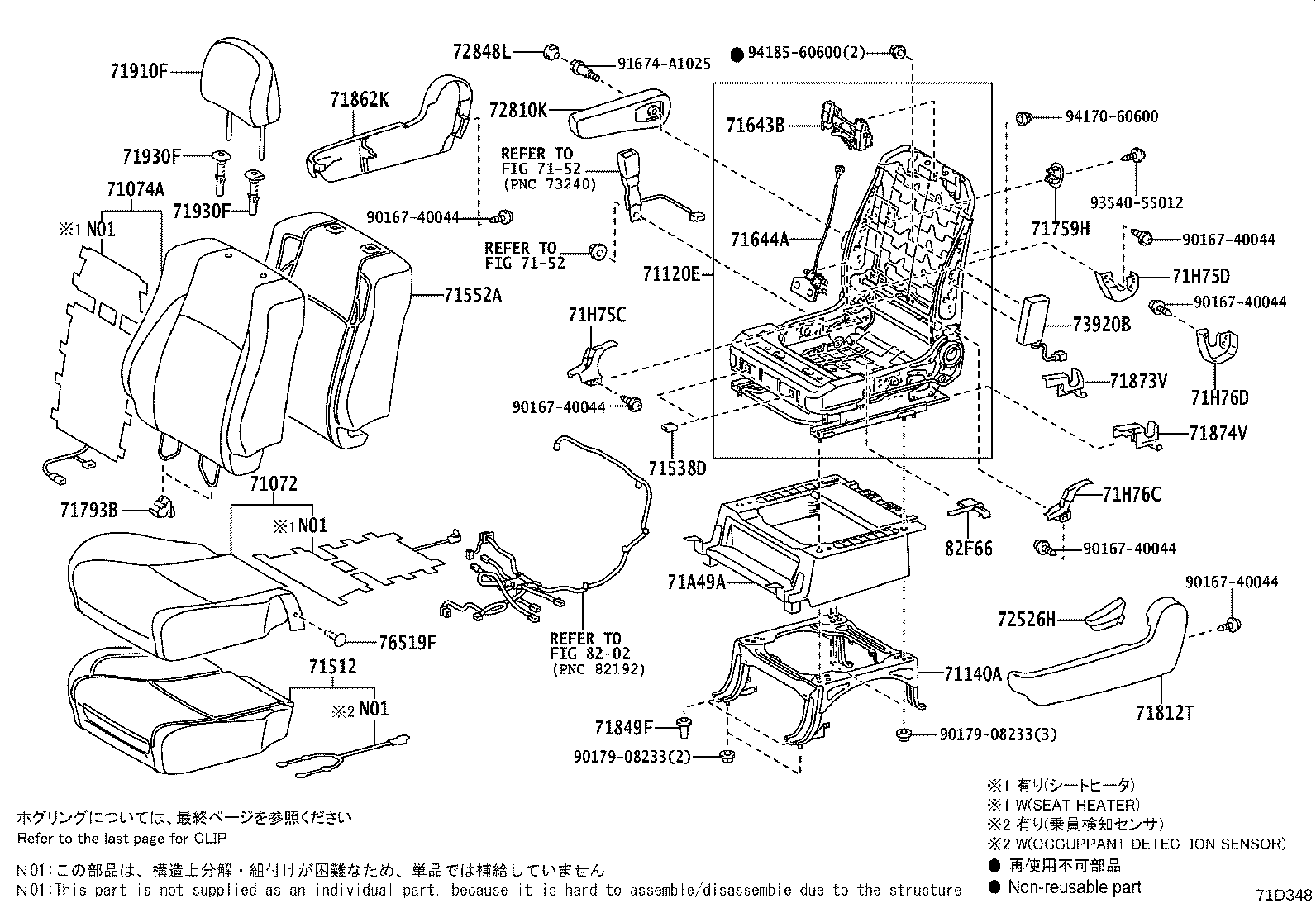

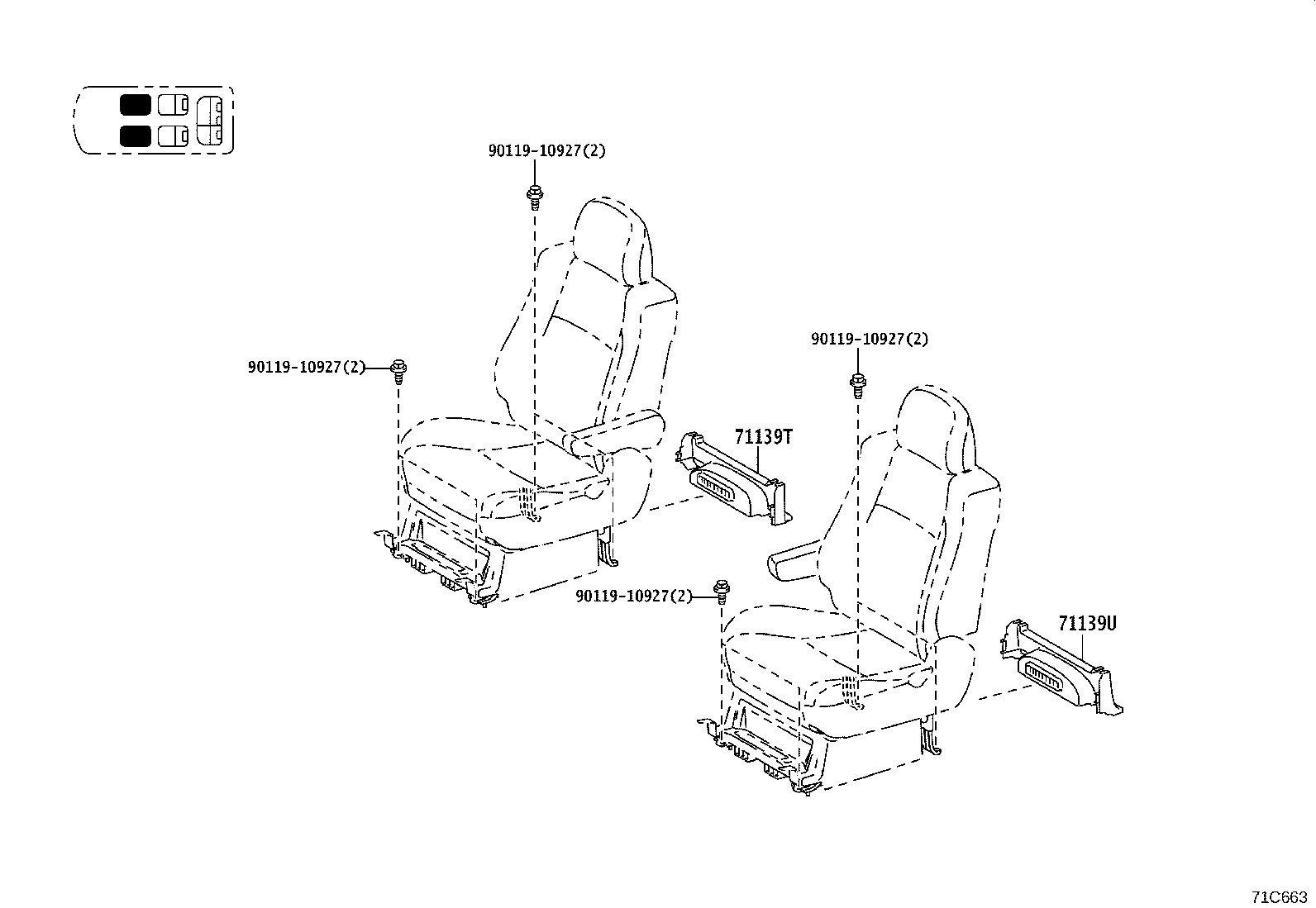

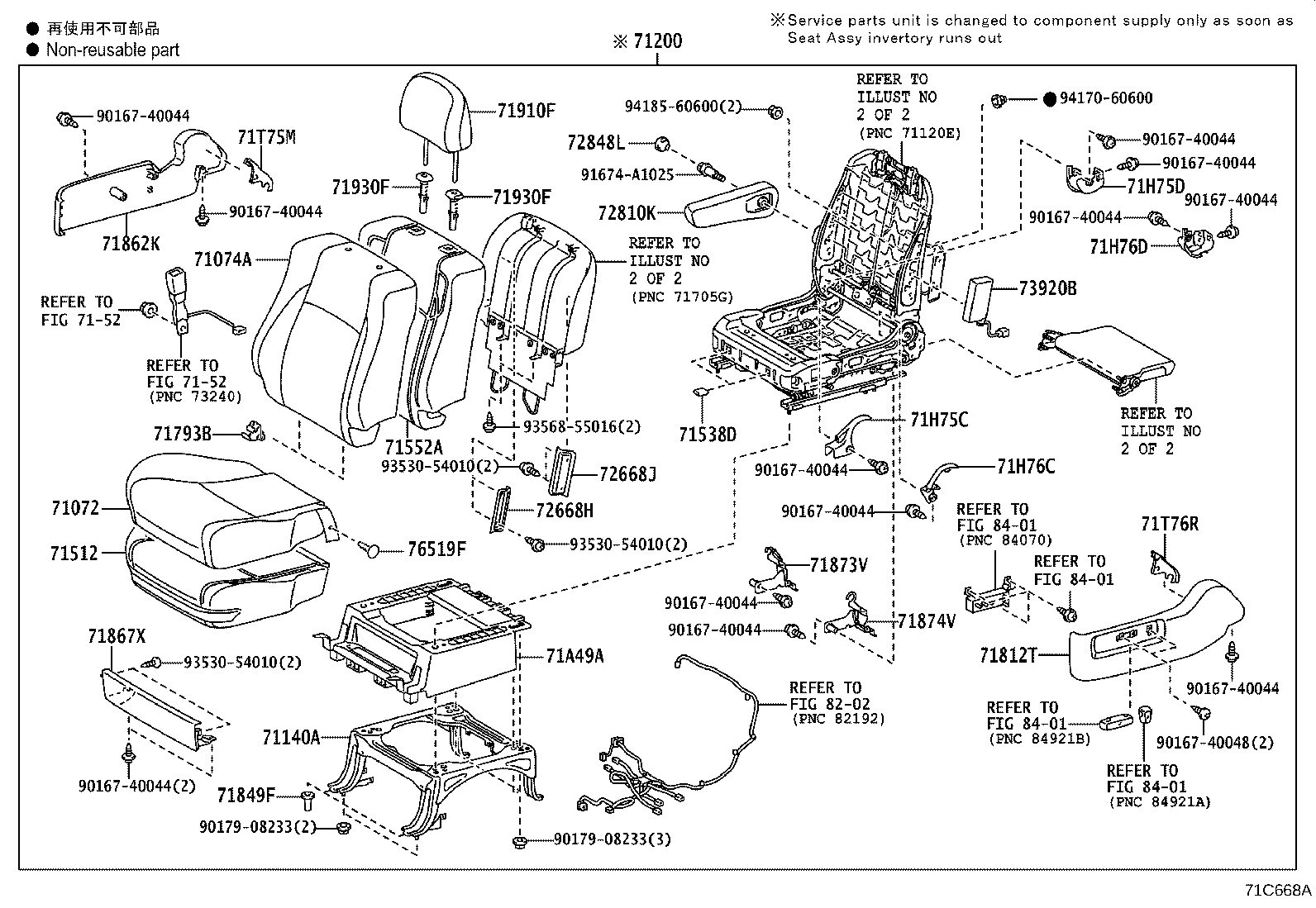

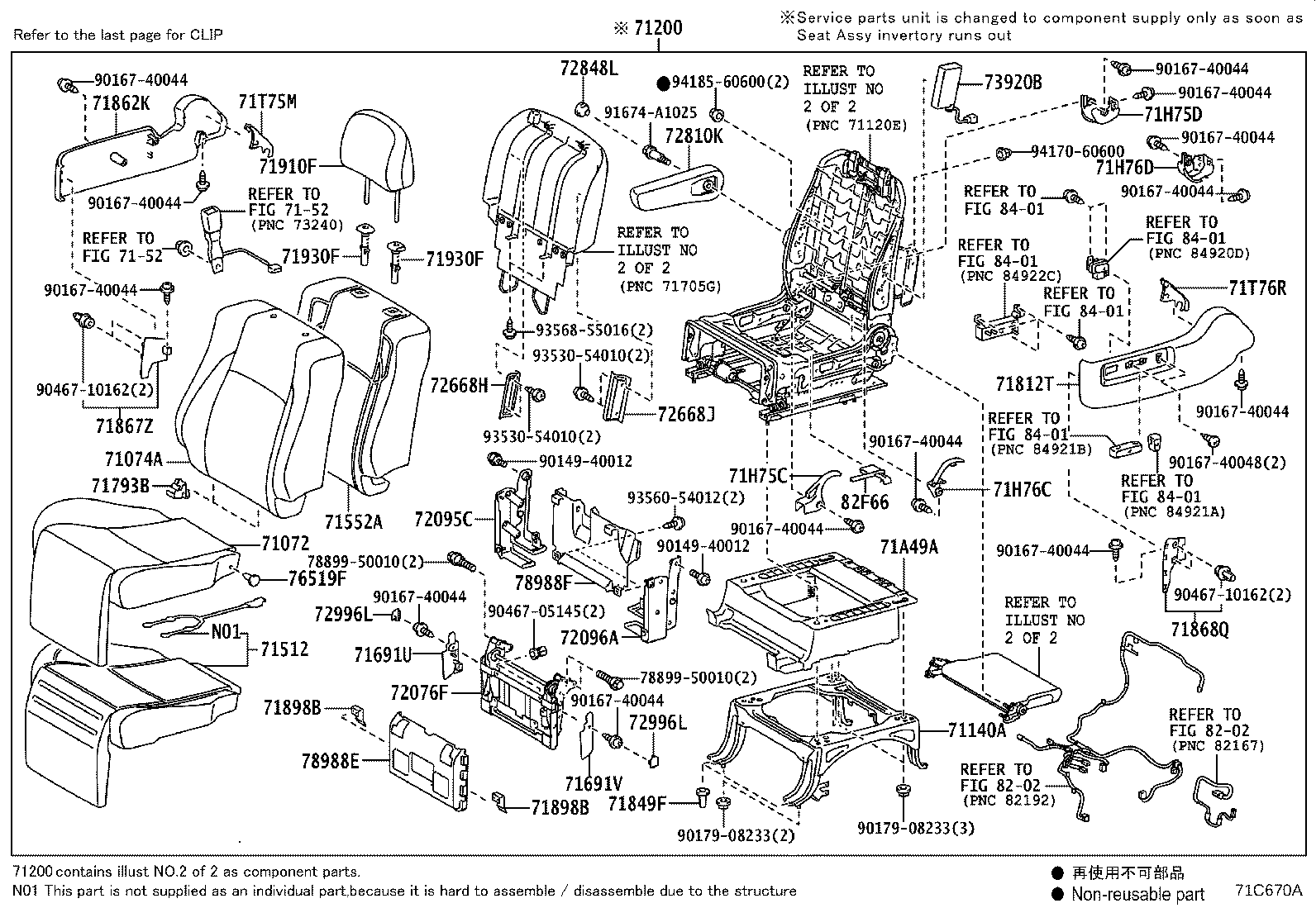

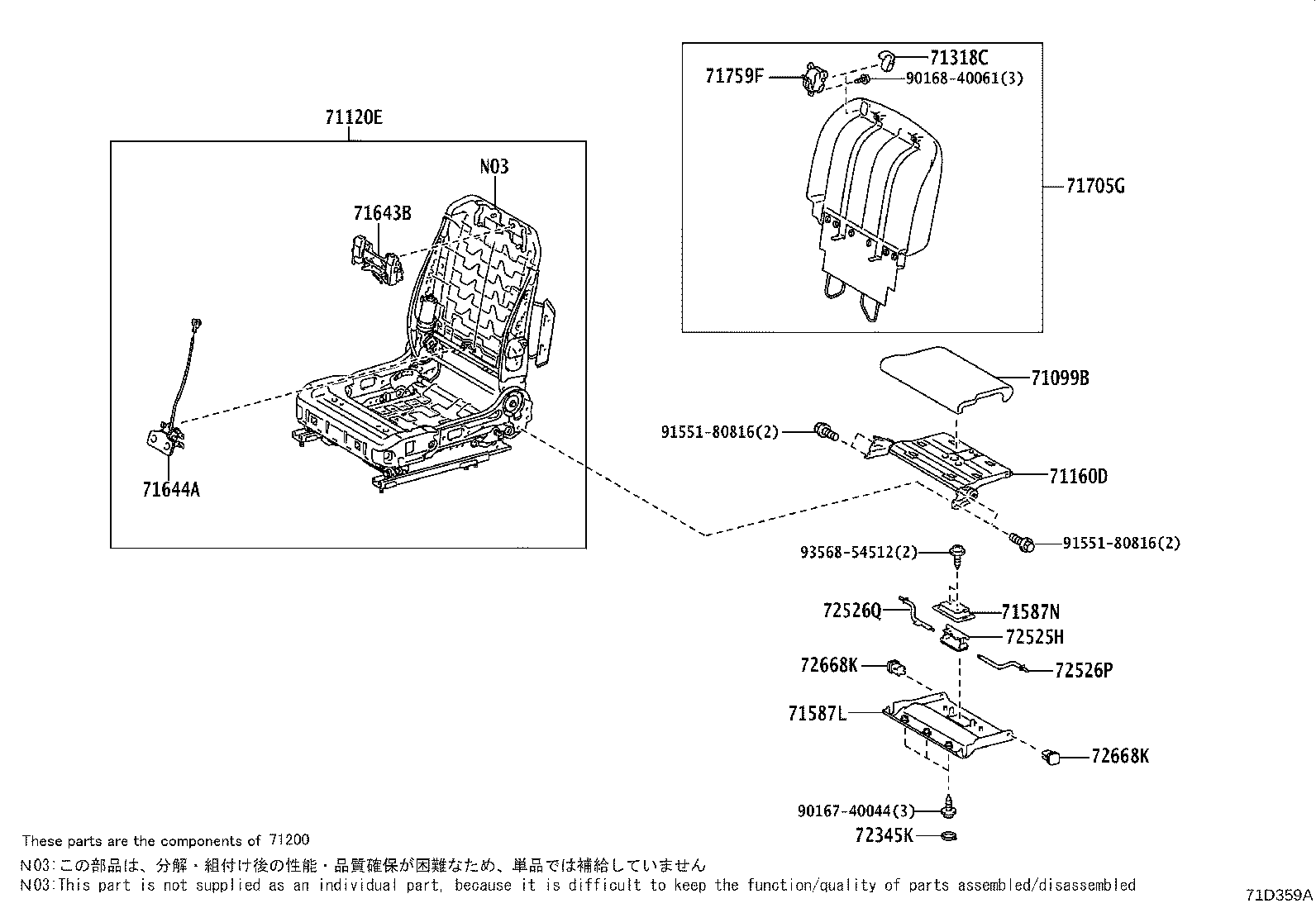

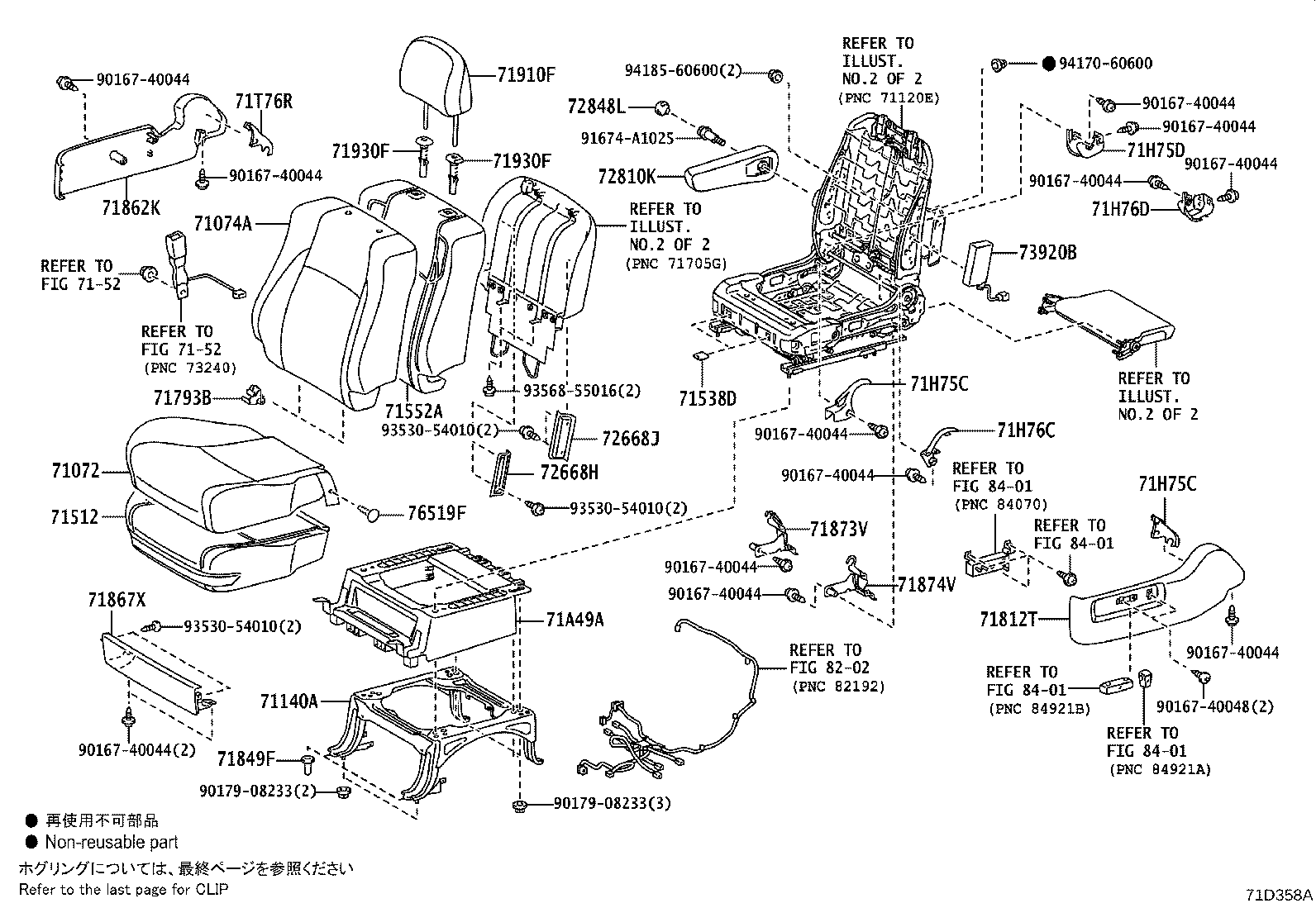

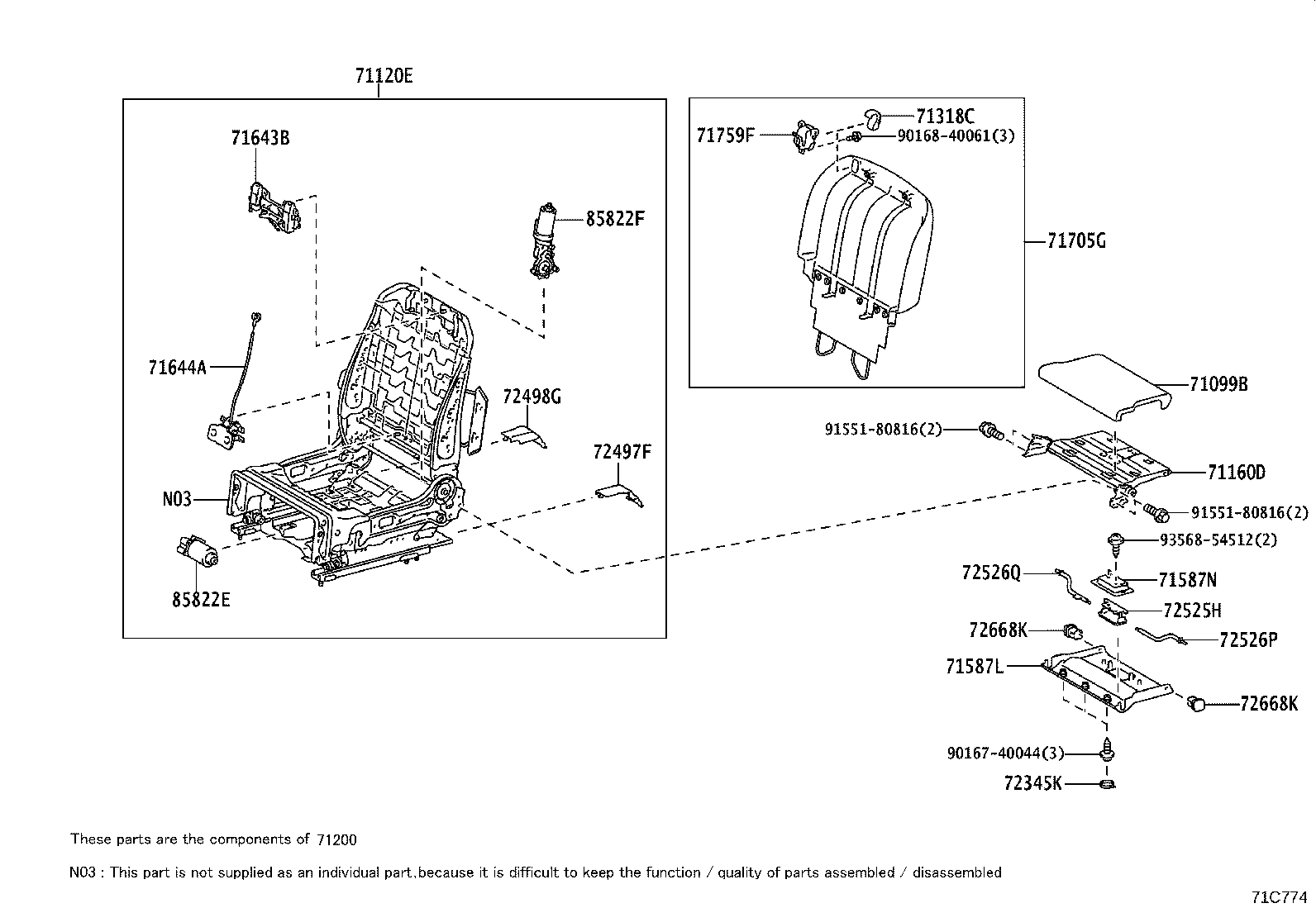

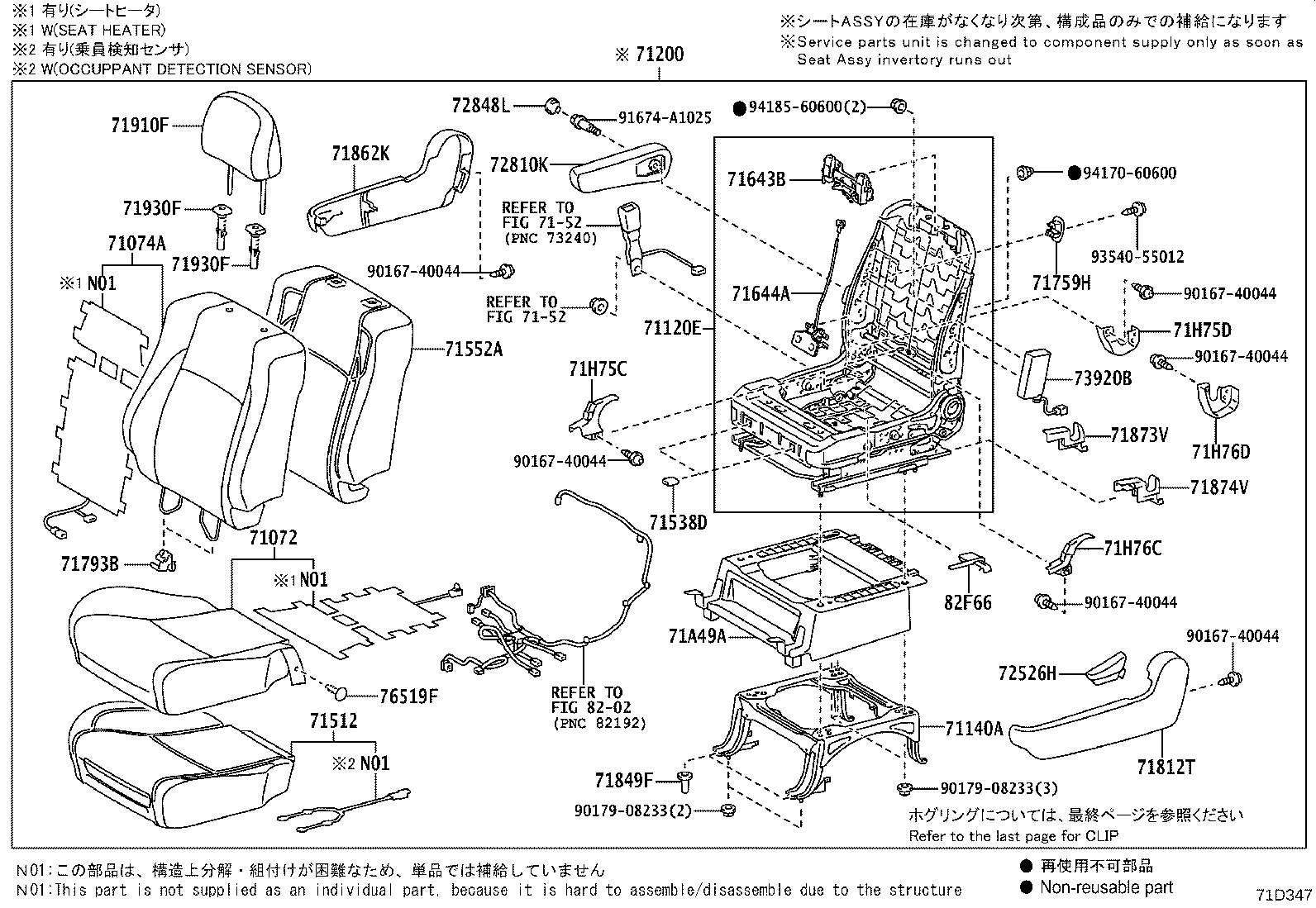

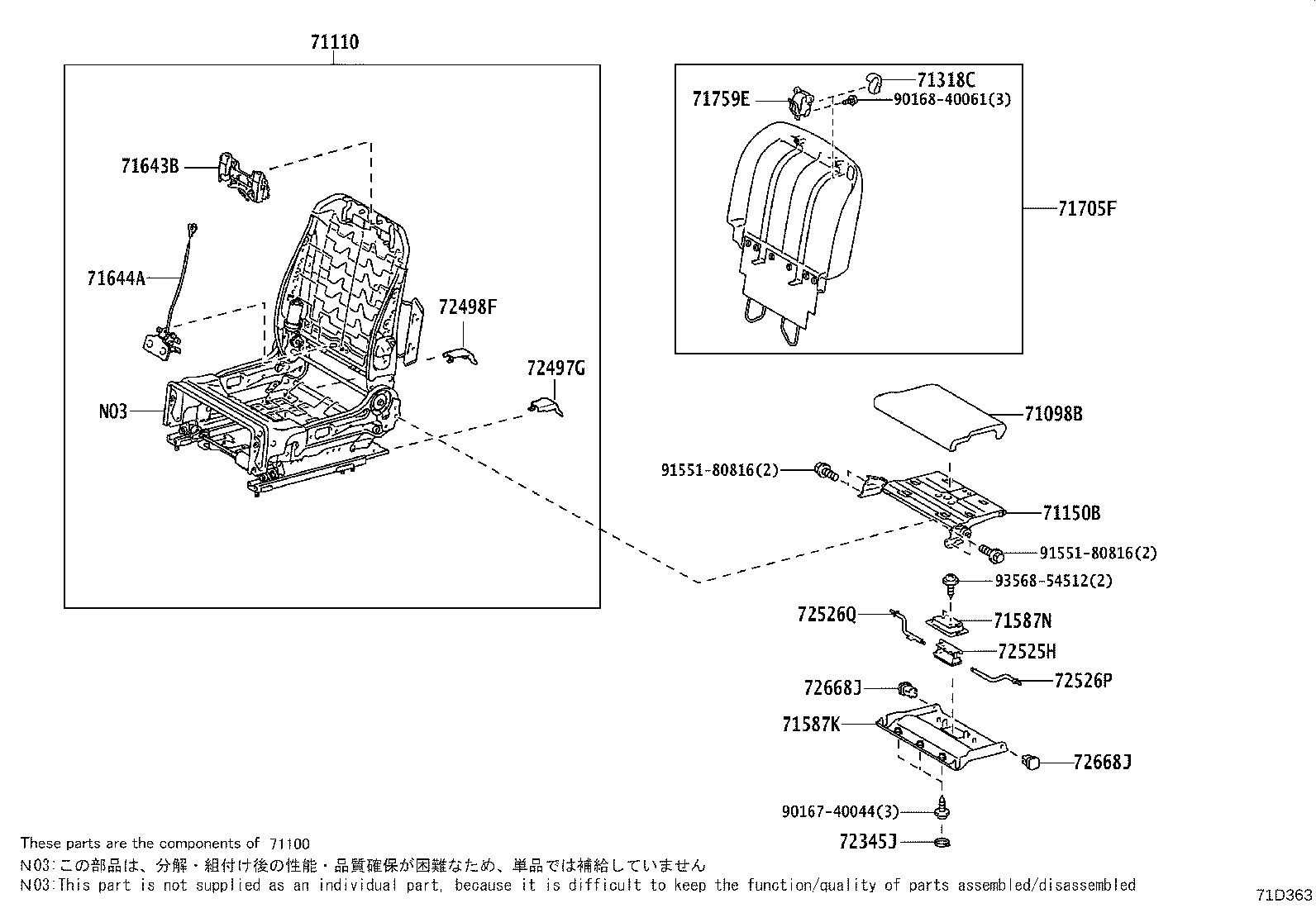

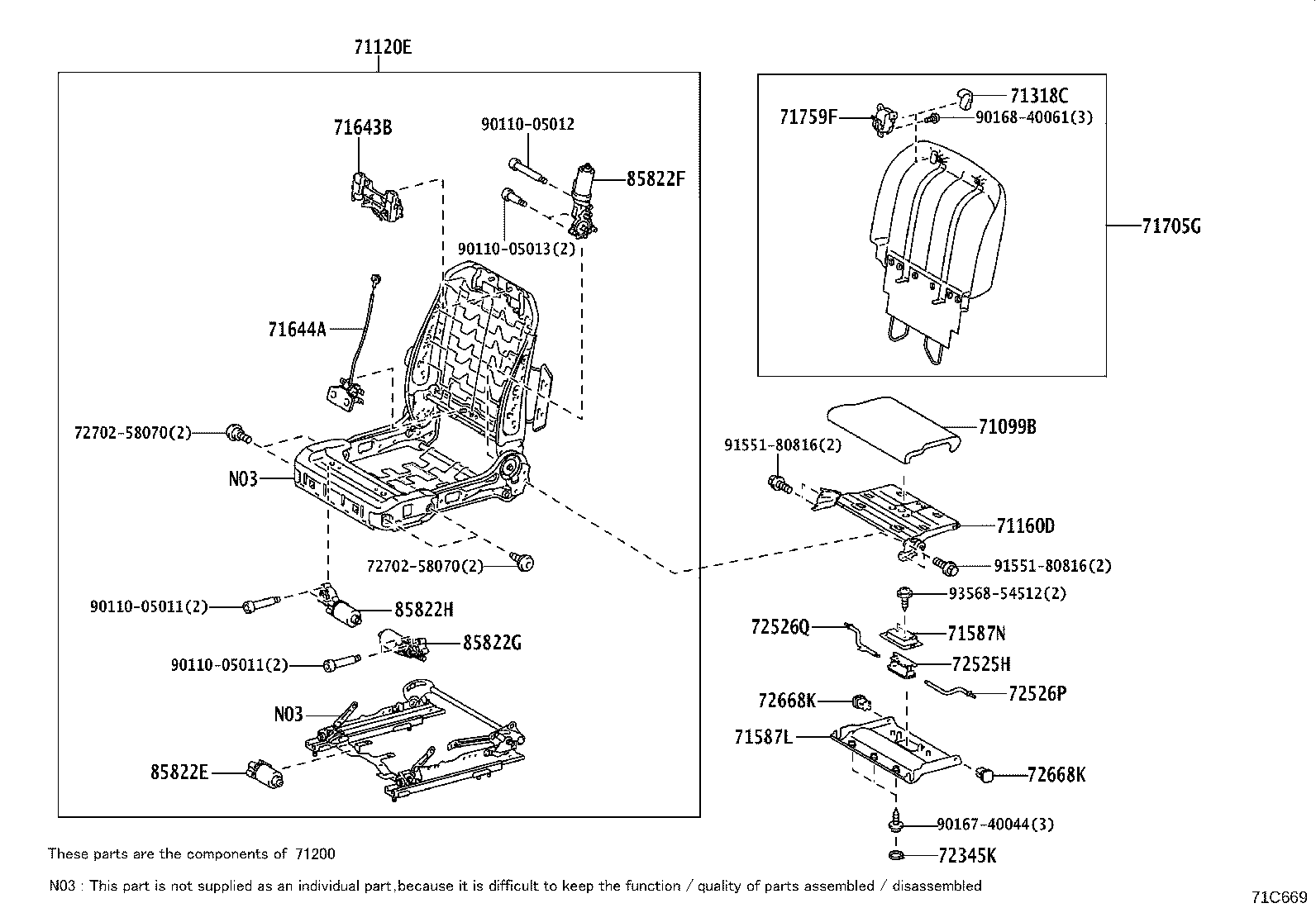

Figure 71C655 71C655 2008-10 → 2011-10 Figure 71C657 71C657 2008-04 → 2011-10 Figure 71C667A 71C667A 2008-04 → 2011-10 Figure 71C668A 71C668A 2010-06 → 2011-10 Figure 71C669 71C669 2010-06 → 2011-10 Figure 71D343 71D343 2011-10 → — Figure 71D345 71D345 2011-10 → — Figure 71D356A 71D356A 2011-10 → — Figure 71D358A 71D358A 2011-10 → — Figure 71D359A 71D359A 2011-10 → — Figure 71D347 71D347 2008-10 → 2011-10 Figure 71C670A 71C670A 2008-04 → 2011-10 Figure 71C774 71C774 2008-04 → 2011-10 Figure 71C665 71C665 2010-06 → 2011-10 Figure 71C666 71C666 2010-06 → 2011-10 Figure 71D348 71D348 2011-10 → — Figure 71D360 71D360 2011-10 → — Figure 71D361A 71D361A 2011-10 → — Figure 71D362 71D362 2011-01 → — Figure 71D363 71D363 2011-01 → — Figure 71C663 71C663 2008-04 → 2011-10 Figure 71D357 71D357 2011-10 → — Figure 718166B 718166B 2008-04 → —

Part groups

PNCDescription
71071 Cover Sub-assy, Front Seat Cushion, RH
71072 Cover Sub-assy, Front Seat Cushion, LH
71073A Cover Sub-assy, Front Seatback, RH
71074A Cover Sub-assy, Front Seatback, LH
71098B Cover Sub-assy, Front Seatback, Lower RH
71099B Cover Sub-assy, Front Seatback, Lower LH
71100 Seat Assy, Front RH
71110 Frame Assy, Front Seat W/Adjuster, RH
71120E Frame Assy, Front Seat W/Adjuster, LH
71130B Leg Assy, Front Seat, RH
71139T Cover, Front Seat Leg, Rear RH
71139U Cover, Front Seat Leg, Rear LH
71139W Cover, Front Seat Leg(FOR RH SEAT)
71139X Cover, Front Seat Leg NO.2
71140A Leg Assy, Front Seat, LH
71150B Frame Assy, Front Seatback, Lower RH
71160D Frame Assy, Front Seatback, Lower LH
71200 Seat Assy, Front LH
71318C Hook, Front Seatback Lock
71511A Pad, Front Seat Cushion, RH
71512 Pad, Front Seat Cushion, LH
71537X Protector, Front Seat Cushion Edge, RH(FOR RH SEAT)
71538D Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551A Pad, Front Seatback, RH
71552A Pad, Front Seatback, LH
71587K Protector, Front Seatback Edge, RH
71587L Protector, Front Seatback Edge, LH
71587N Protector, Front Seatback Edge, NO.2
71643B Unit, Active Headrest, Upr
71644A Unit, Active Headrest, Lwr
71691U Cover, Reclining Adjuster Arm, NO.1
71691V Cover, Reclining Adjuster Arm, NO.2
71705F Board Sub-assy, Front Seatback, RH
71705G Board Sub-assy, Front Seatback, LH
71759E Hook, Front Seatback, RH
71759F Hook, Front Seatback, LH
71759H Hook, Front Seatback
71793B Clip, Front Seatback Pocket
71811T Shield, Front Seat Cushion, RH
71812T Shield, Front Seat Cushion, LH
71848N Cap, Front Seat Adjuster Cover, RH NO.1
71849F Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861K Shield, Front Seat Cushion, Inner RH
71862K Shield, Front Seat Cushion, Inner LH
71867W Shield, Front Seat Cushion, Front RH
71867X Shield, Front Seat Cushion, Front LH
71867Y Shield, Front Seat Cushion, Inner NO.1 RH(FOR RH SEAT)
71867Z Shield, Front Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71868P Shield, Front Seat Cushion, Inner NO.1 LH(FOR RH SEAT)
71868Q Shield, Front Seat Cushion, Inner NO.1 LH(FOR LH SEAT)
71873V Shield, Front Seat Cushion, Lower RH
71873W Shield, Front Seat Cushion, Lower RH, Outer
71874V Shield, Front Seat Cushion, Lower LH, Outer
71874W Shield, Front Seat Cushion, Lower LH, Inner
71898B Hook, Front Seat Cover
71910E Headrest Assy, Front Seat, RH
71910F Headrest Assy, Front Seat, LH
71930E Support Assy, Front Seat Headrest, RH
71930F Support Assy, Front Seat Headrest, LH
71A49A Cover, Front Seat Leg(FOR LH SEAT)
71A49B Cover, Front Seat Leg, LH
71H75 Cover, Reclining Adjuster Inside, RH Outer(FOR RH SEAT)
71H75B Cover, Reclining Adjuster Inside, RH(FOR RH SEATBACK FRAME)
71H75C Cover, Reclining Adjuster Inside, RH(FOR LH SEAT)
71H75D Cover, Reclining Adjuster Inside, RH(FOR LH SEATBACK FRAME)
71H76 Cover, Reclining Adjuster Inside, LH(FOR RH SEAT)
71H76A Cover, Reclining Adjuster Inside, LH(FOR RH SEATBACK FRAME)
71H76C Cover, Reclining Adjuster Inside, LH Outer(FOR LH SEAT)
71H76D Cover, Reclining Adjuster Inside, LH(FOR LH SEATBACK FRAME)
71T75L Cover, Reclining Adjuster Outside, RH
71T75M Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71T76L Cover, Reclining Adjuster Inside, LH
71T76R Cover, Reclining Adjuster Outside, LH
72075E Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT)
72076F Arm Sub-assy, Reclining Adjuster, Lwr Inner LH
72095C Plate Sub-assy, Reclining Adjuster Arm, NO.1
72096A Plate Sub-assy, Reclining Adjuster Arm, NO.2
72110G Track Assy, Front Seat, Outer RH
72345J Cap, Seat Stand Frame, RH
72345K Cap, Seat Stand Frame, LH
72457E Knob, Vertical Seat Adjuster, RH
72462B Cover, Vertical Adjuster RH
72477A Spacer, Vertical Adjuster
72494A Handle, Front Seat Vertical Adjuster, RH
72497F Cover, Vertical Adjuster Bracket, Outer
72497G Cover, Vertical Adjuster Bracket, Inner
72498F Cover, Vertical Adjuster Bracket, Outer
72498G Cover, Vertical Adjuster Bracket, Inner
72525H Handle, Front Seatback Lock
72525M Handle, Reclining Adjuster Release, RH
72526H Handle, Reclining Adjuster Release, LH
72526P Handle, Reclining Adjuster Release, LH NO.1
72526Q Handle, Reclining Adjuster Release, LH NO.2
72668H Bezel, Front Seatback Lock, Lower NO.1
72668J Bezel, Front Seatback Lock, Lower NO.2
72668K Bezel, Front Seatback Lock, Lower NO.3
72810K Armrest Assy, Front Seat, RH(FOR LH SEAT)
72820 Armrest Assy, Front Seat, LH(FOR RH SEAT)
72848K Cap, Seat Armrest, NO.1(FOR RH SEAT)
72848L Cap, Seat Armrest, NO.1(FOR LH SEAT)
72996L Cap, Reclining Adjuster Arm Cover
73910B Airbag Assy, Front Seat, RH
73920B Airbag Assy, Front Seat, LH
76519F Clip, Front Seat Cushion Cover
78988E Cover, Front Seat Footrest, NO.1
78988F Cover, Front Seat Footrest, NO.2
82F66 Holder, Connector
85821P Motor Assy, Power Seat Slide, RH
85821Q Motor Assy, Power Seat Reclining, RH
85821R Motor Assy, Power Seat Tilt, RH
85821S Motor Assy, Power Seat Lifter, RH
85822E Motor Assy, Power Seat Slide, LH
85822F Motor Assy, Power Seat Reclining, LH
85822G Motor Assy, Power Seat Tilt, LH
85822H Motor Assy, Power Seat Lifter, LH
