Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

316 part groups · 26 illustrations

Illustrations

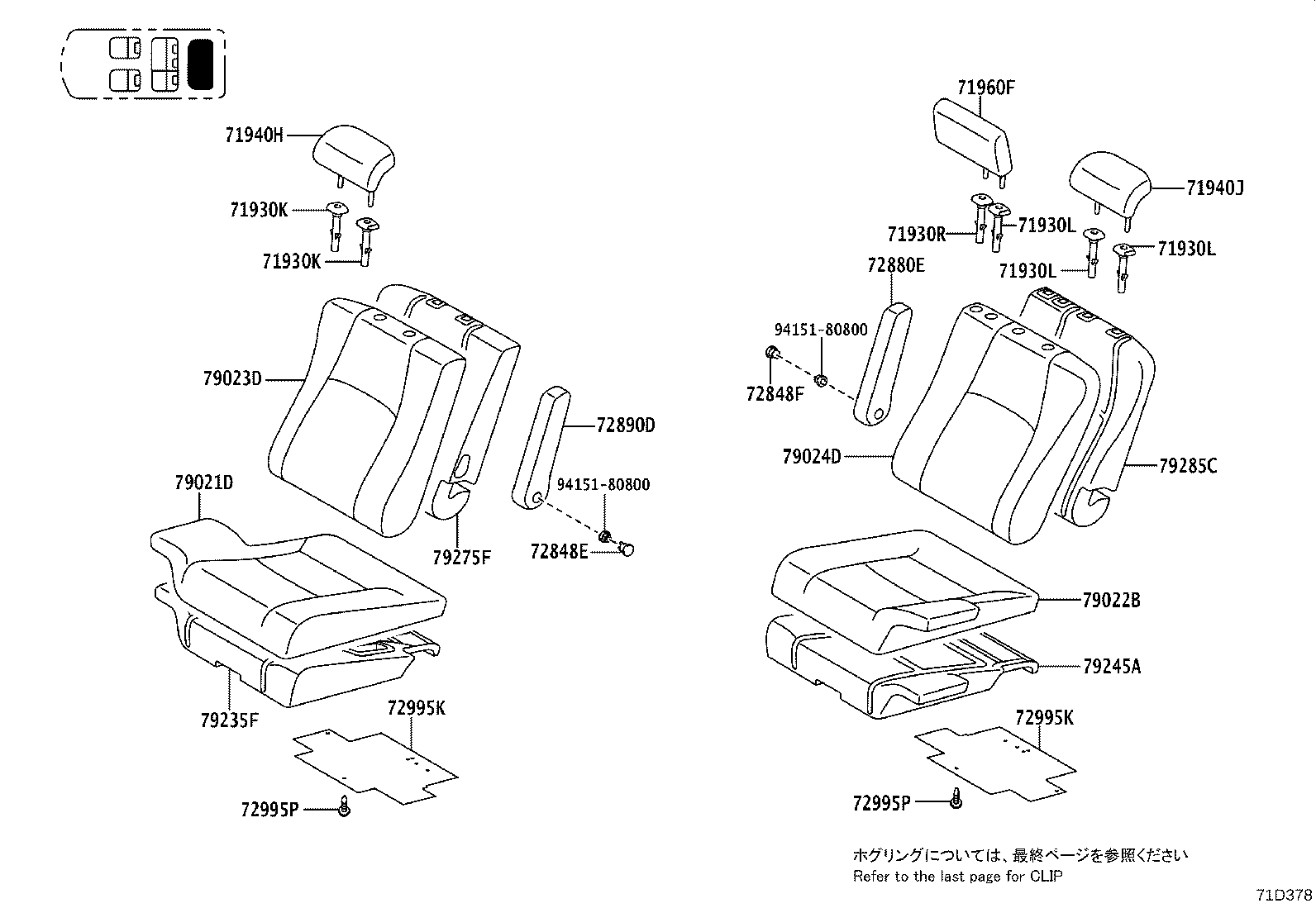

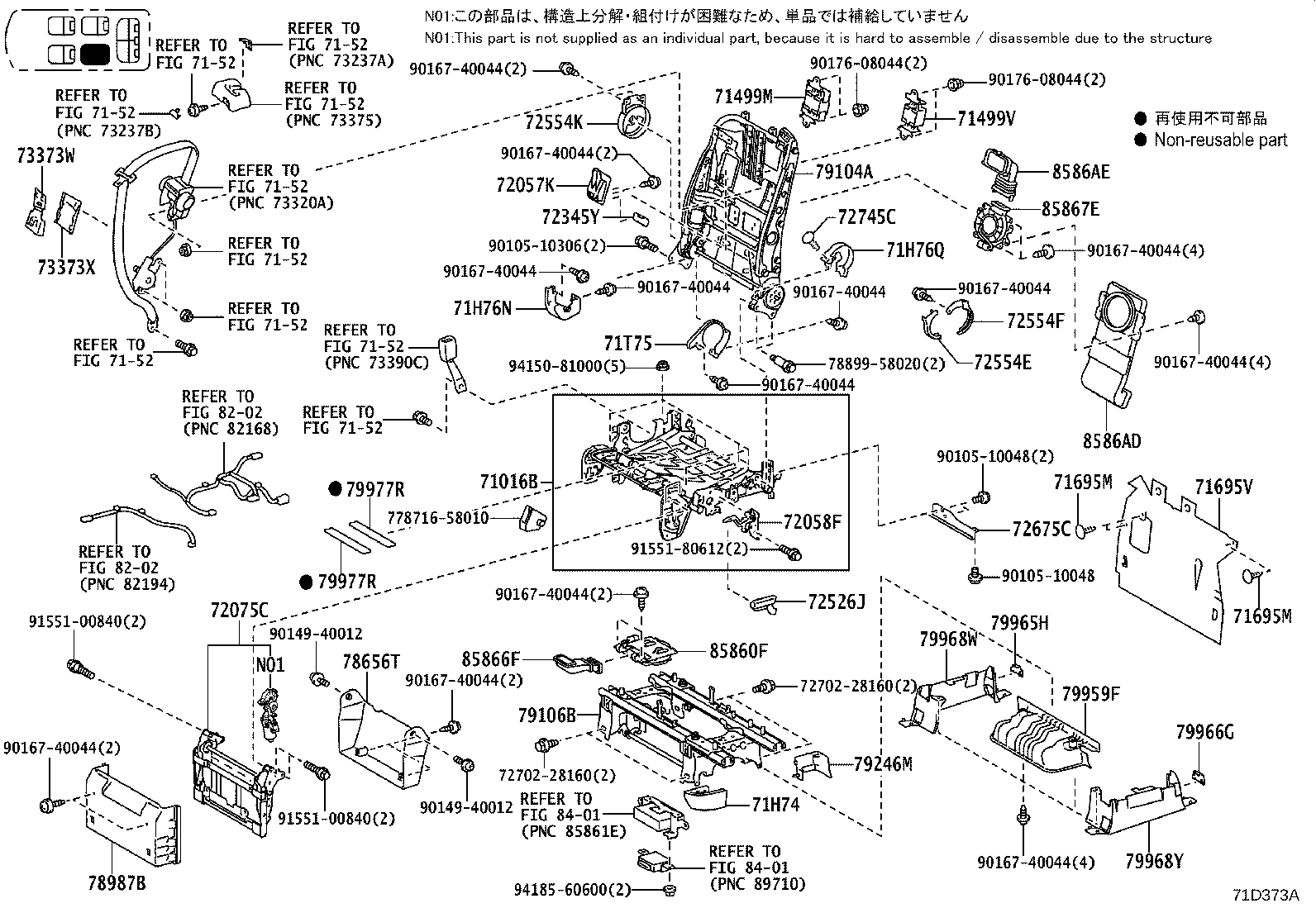

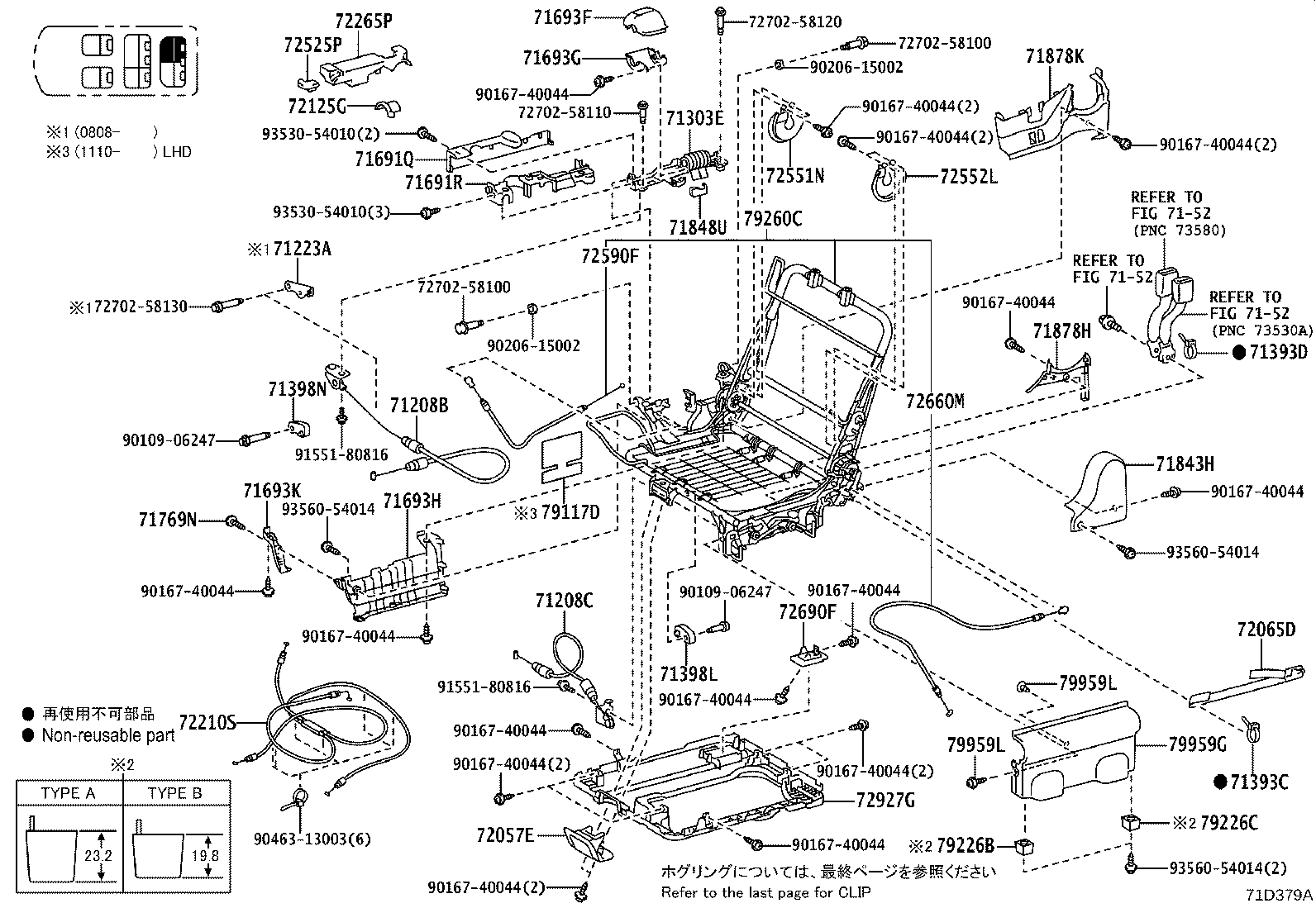

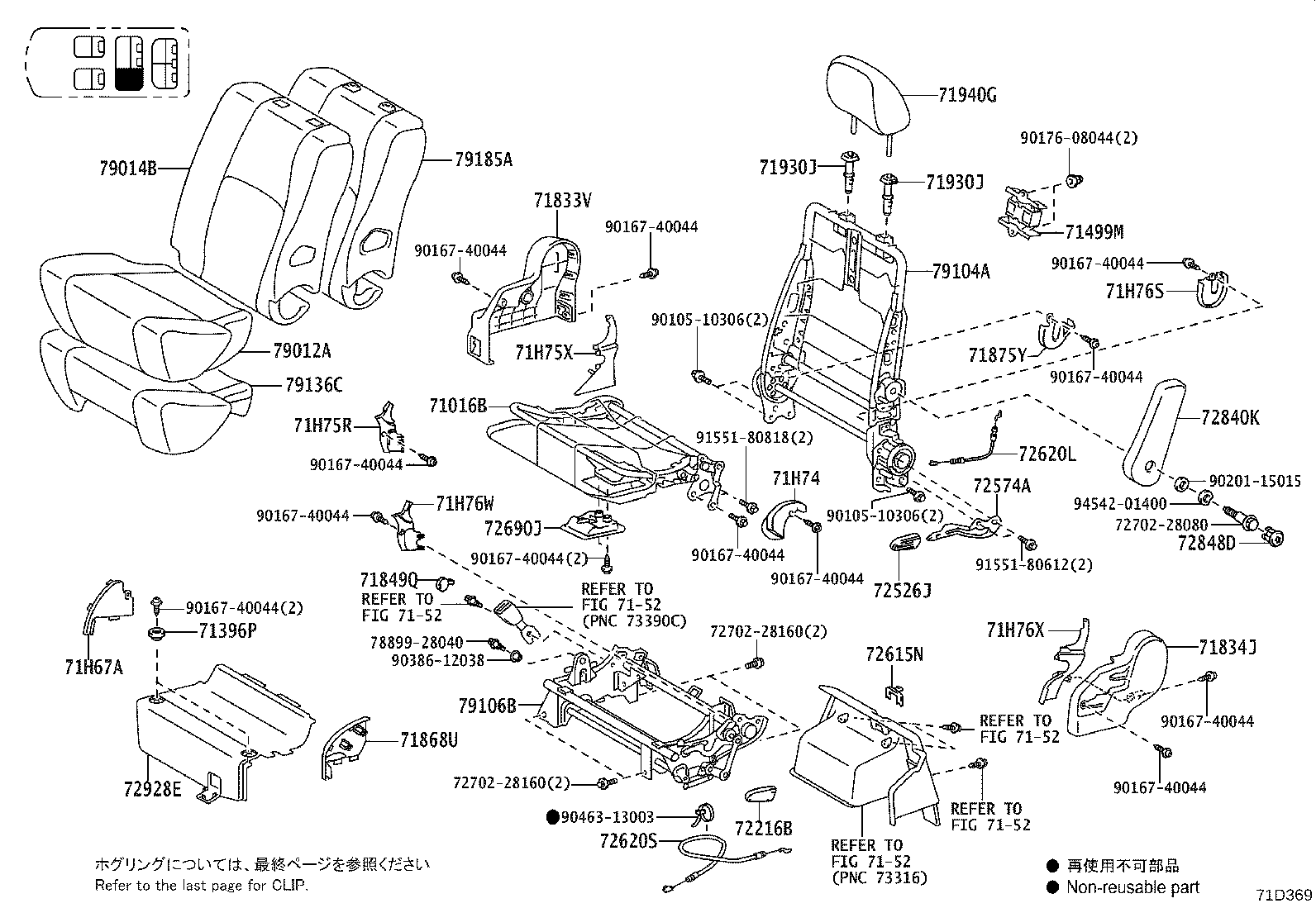

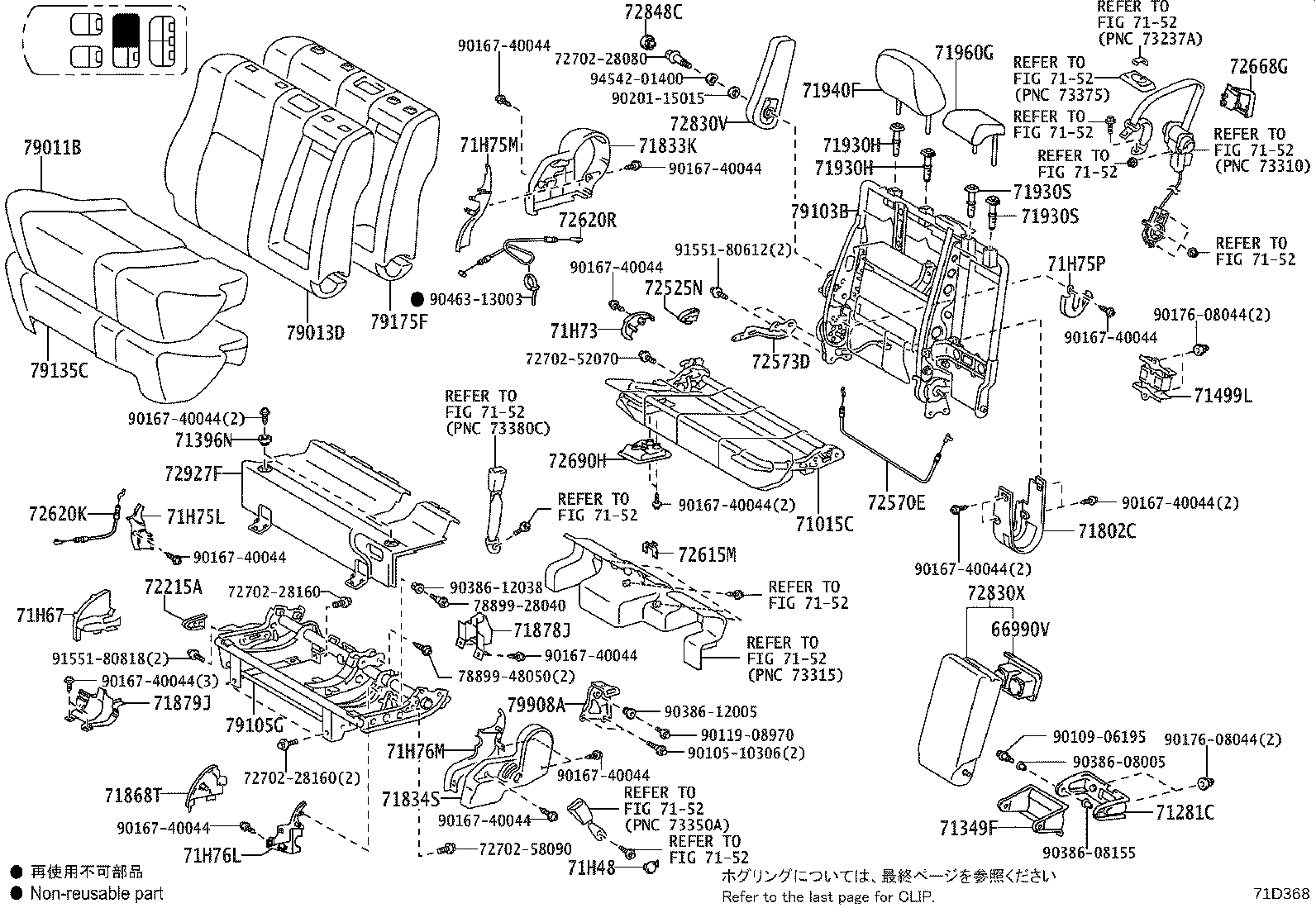

71D383B 2008-04 → 2010-08

71D383B 2009-06 → —

71D383B 2010-06 → 2012-09

71D383B 2010-08 → —

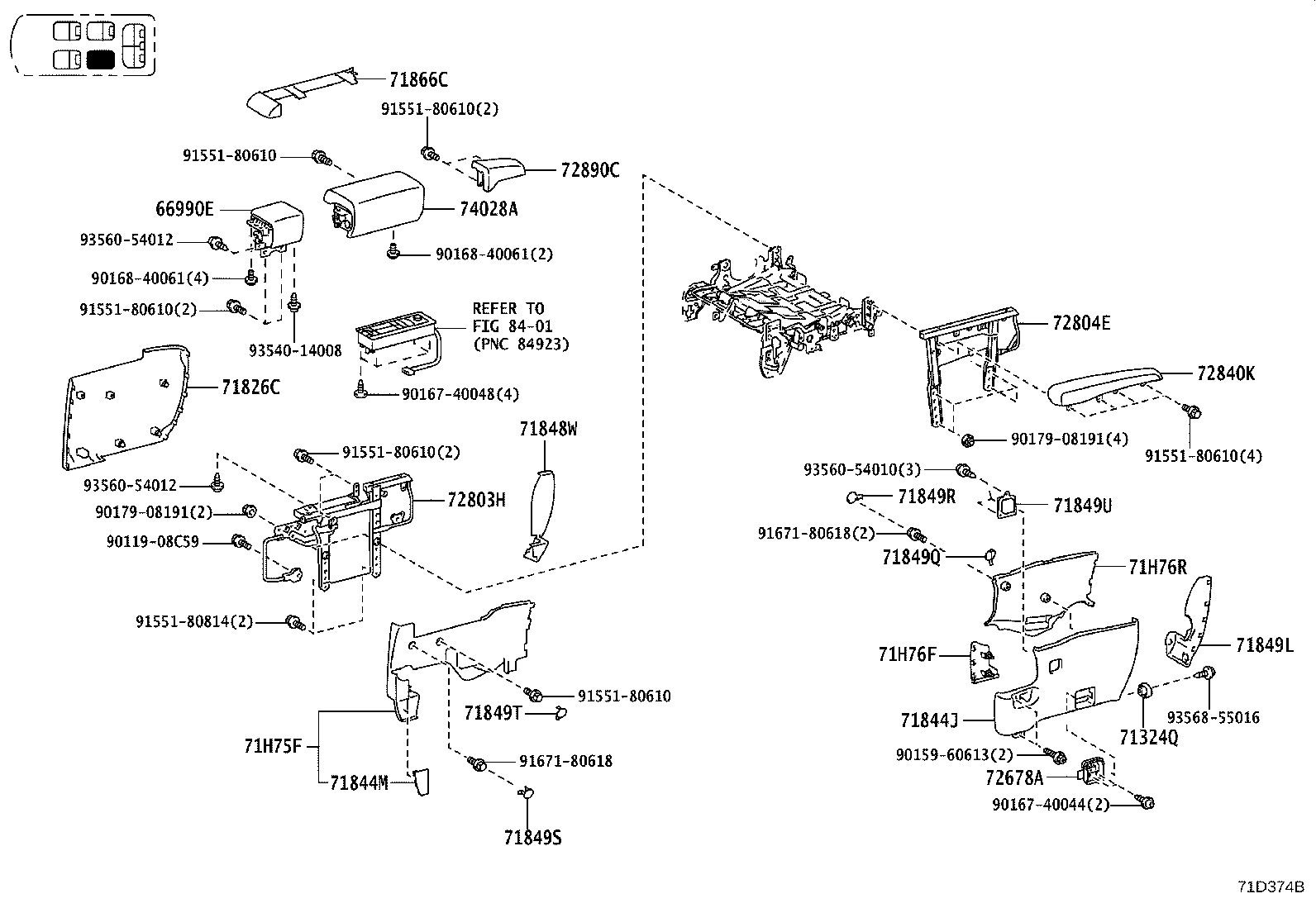

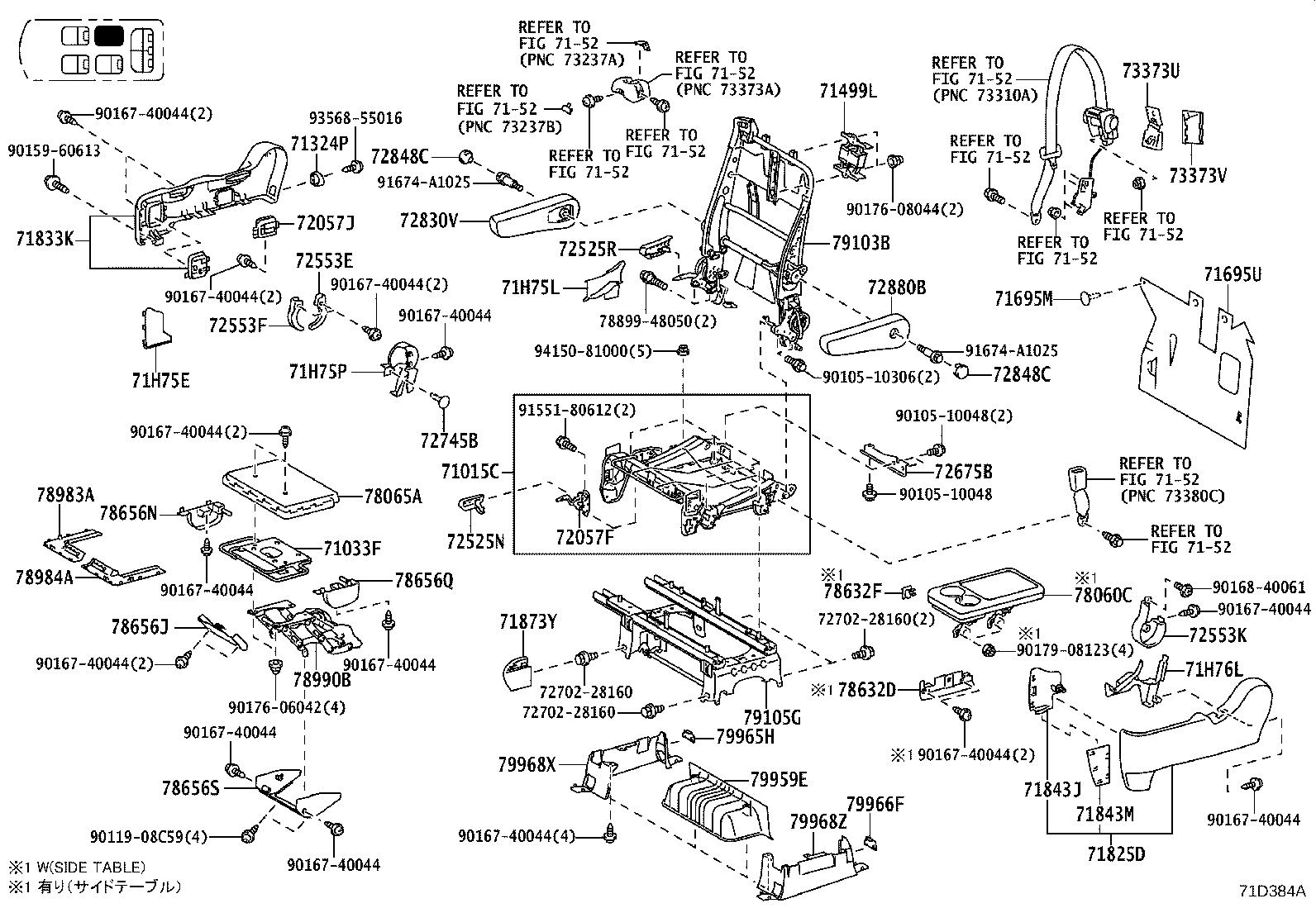

71D384A 2008-04 → 2010-08

71D384A 2009-06 → —

71D384A 2010-06 → 2012-09

71D384A 2010-08 → —

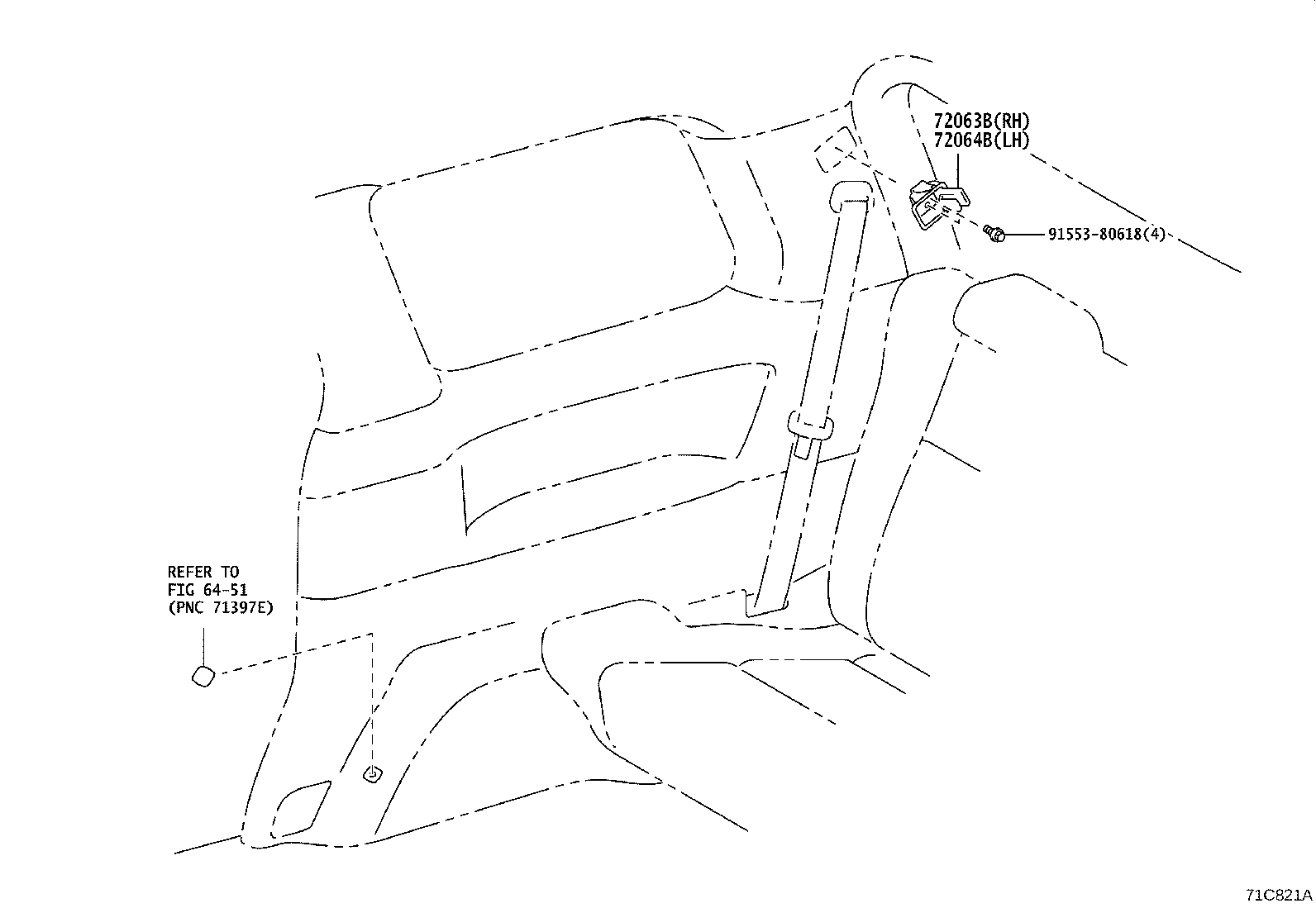

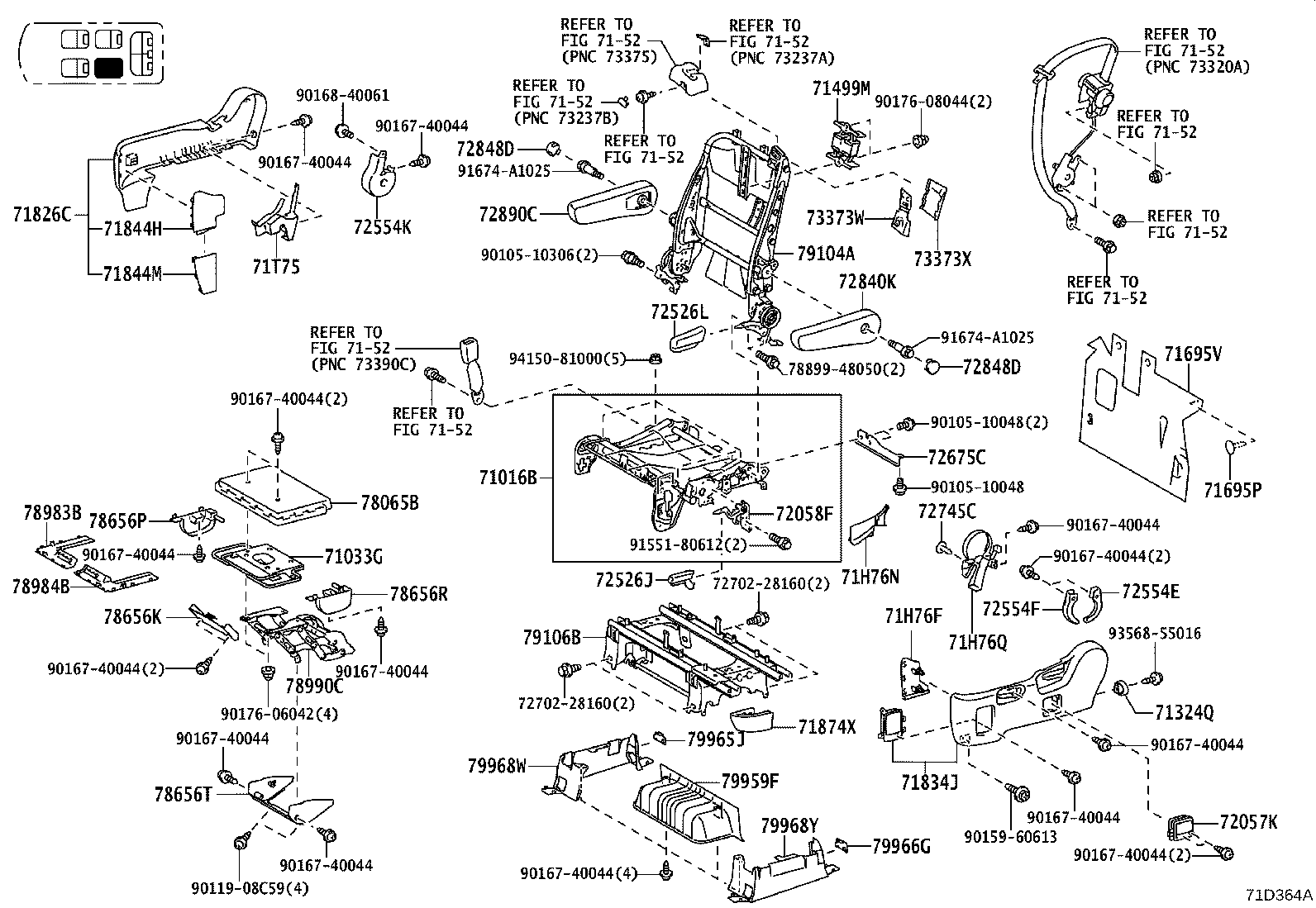

71D364A 2008-04 → 2010-08

71D364A 2009-06 → —

71D364A 2010-06 → 2012-09

71D364A 2010-08 → —

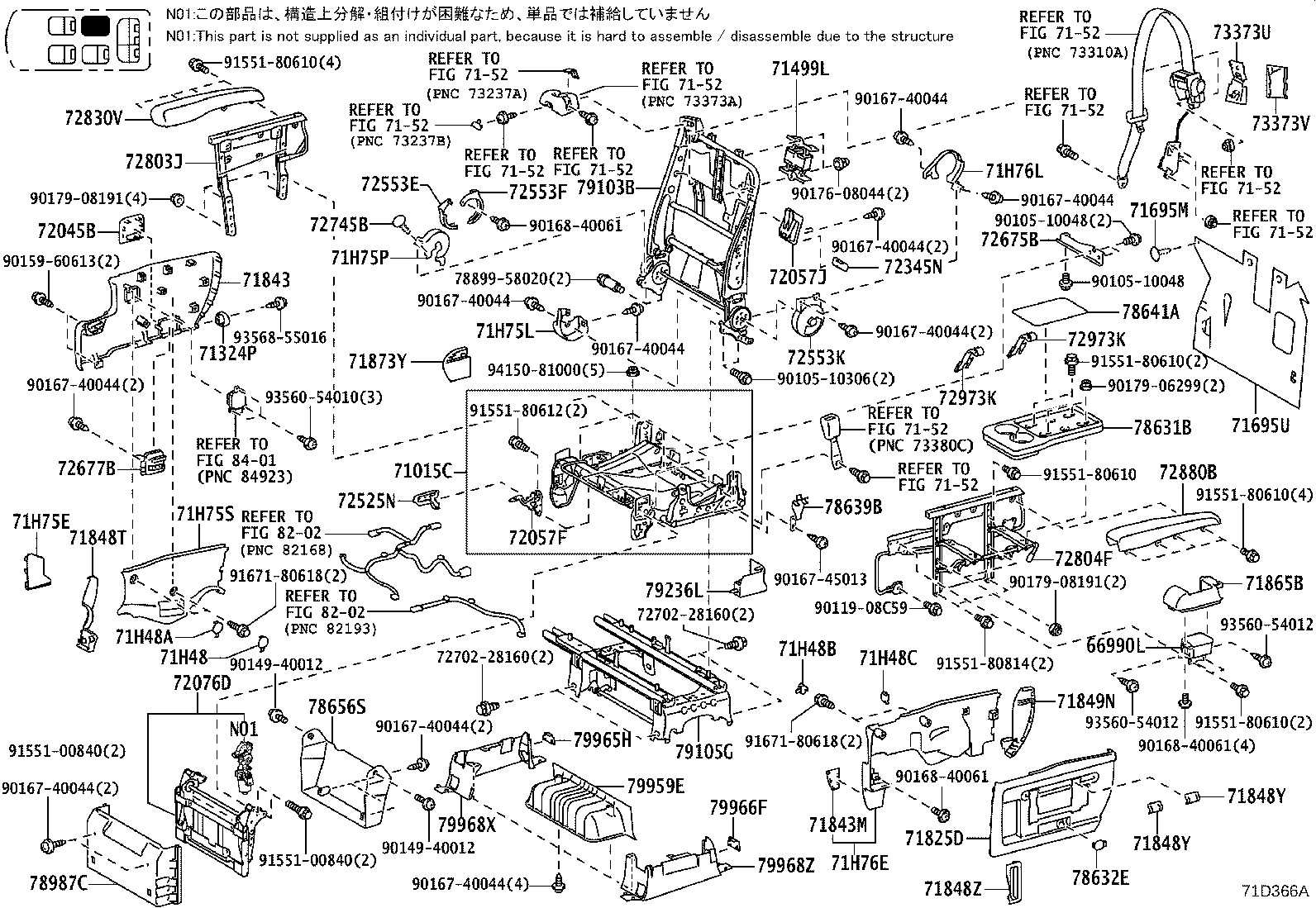

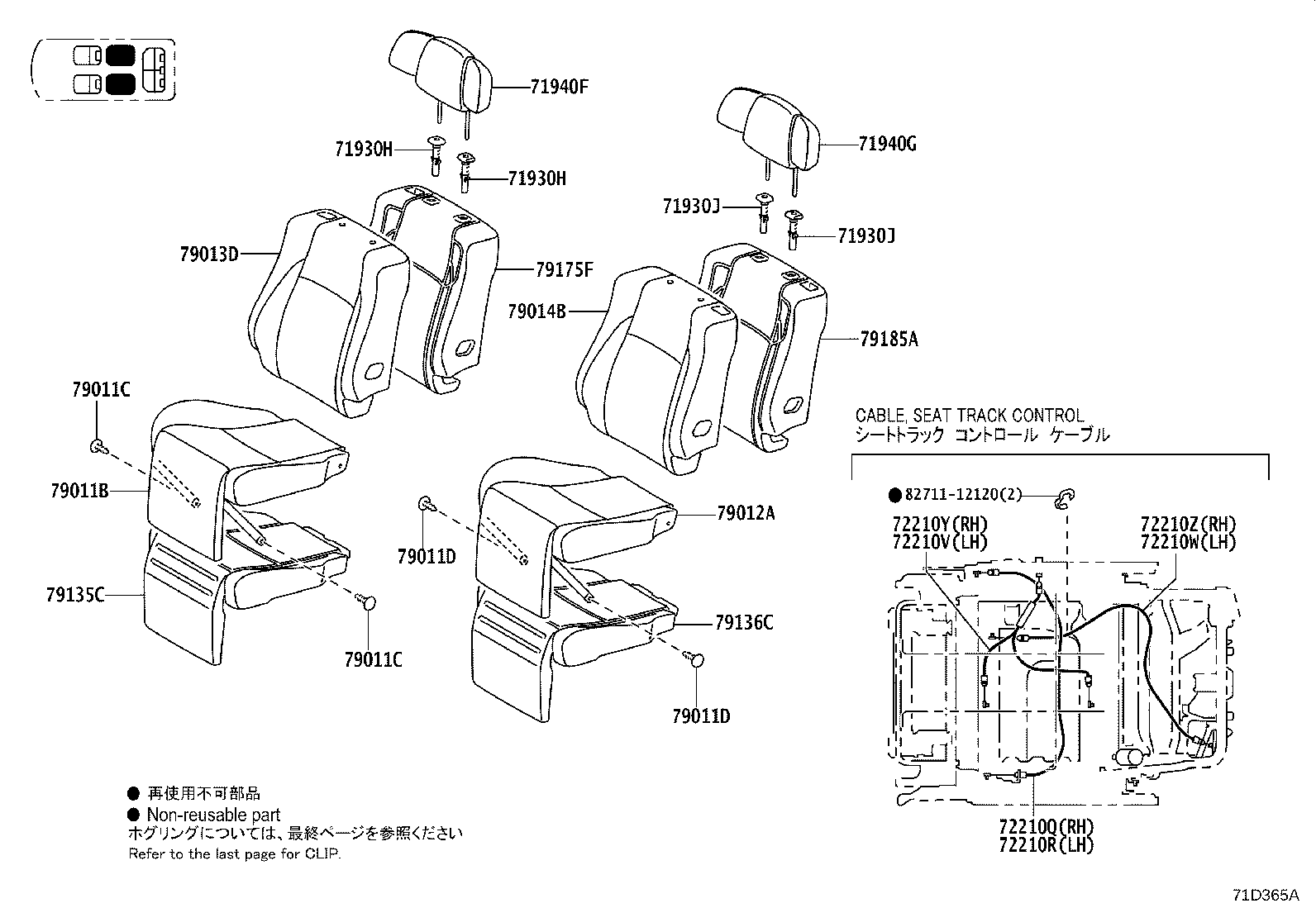

71D365A 2008-04 → —

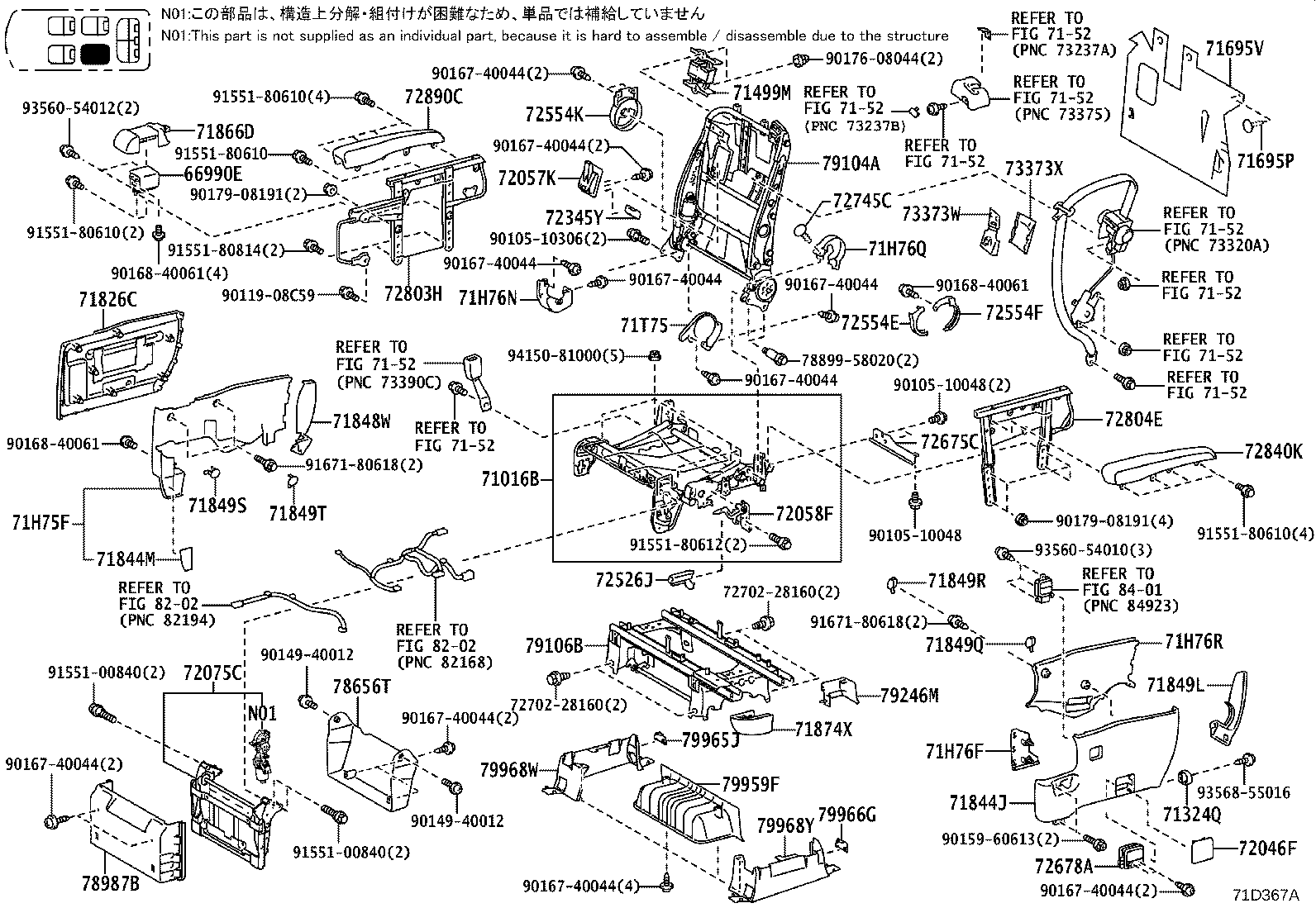

71D366A 2008-04 → 2012-09

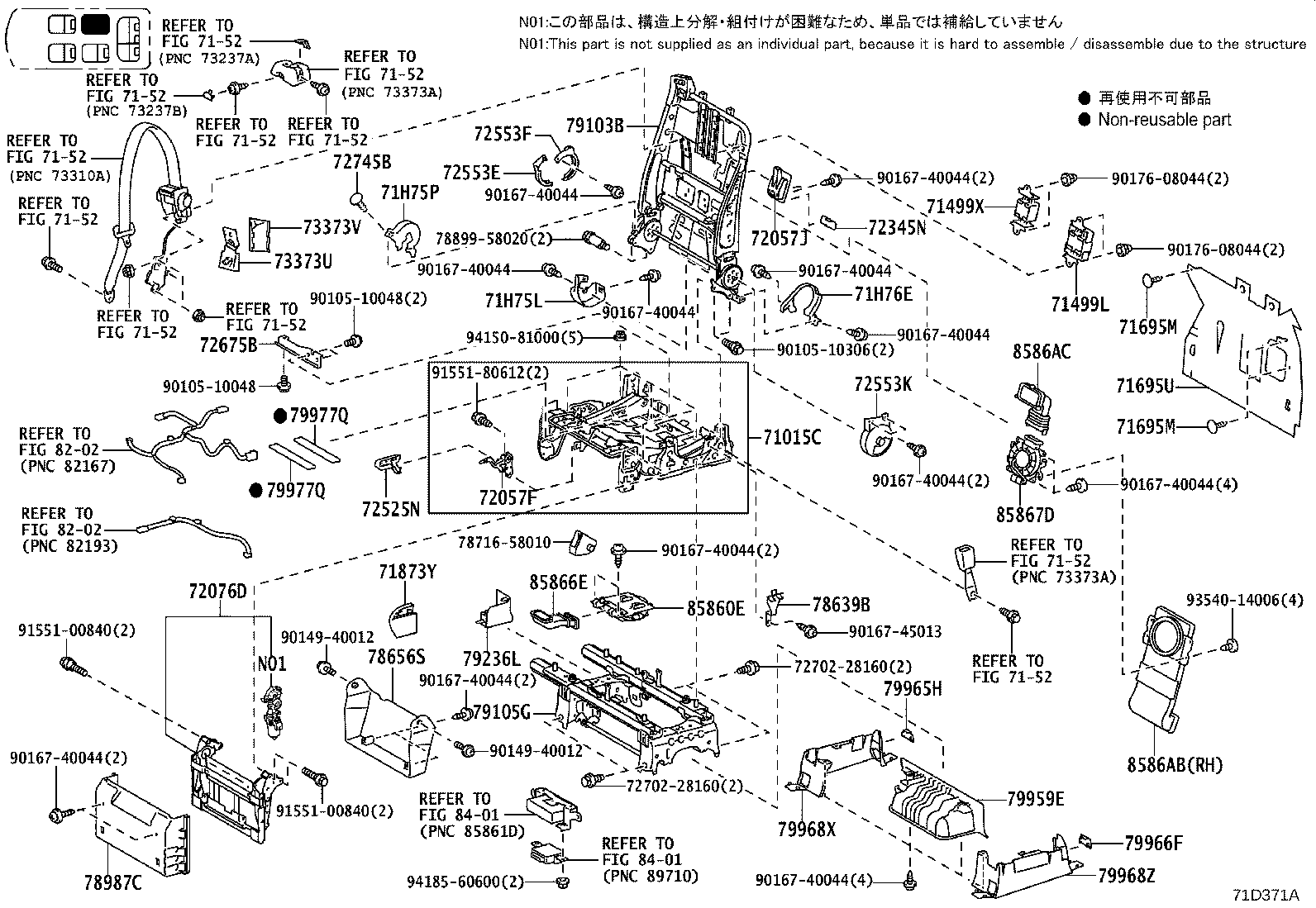

71D371A 2012-09 → —

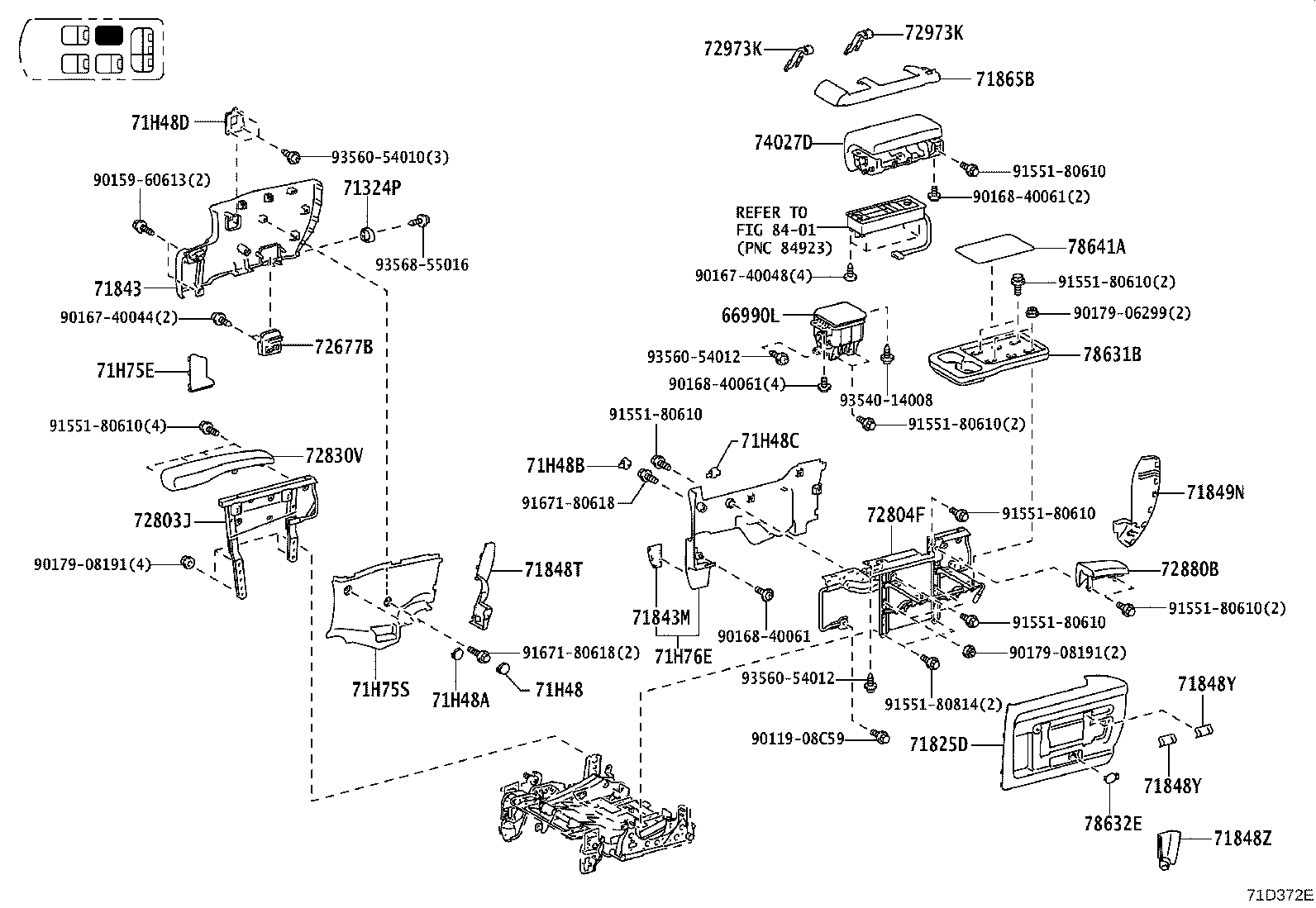

71D372A 2012-09 → —

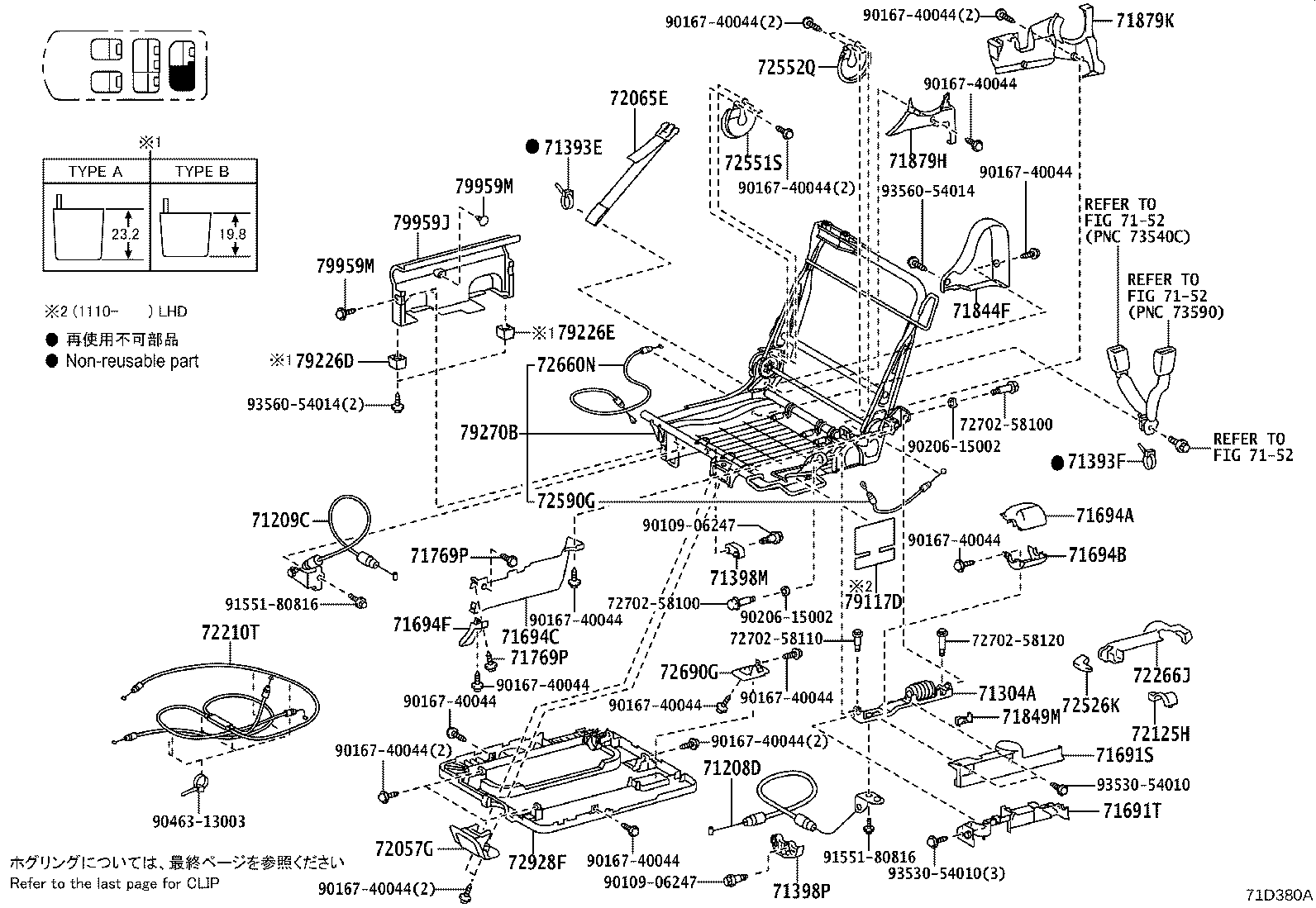

71D367A 2008-04 → 2012-09

Part groups

PNC	Description
66990E	Holder Assy, Rear NO.1 Seat Cup, LH
66990L	Holder Assy, Rear NO.1 Seat Cup, RH
66990V	Holder Assy, Cup
71015C	Frame Sub-assy, NO.1 Seat Cushion, RH
71016B	Frame Sub-assy, NO.1 Seat Cushion, LH
71033F	Leg Sub-assy, Rear Seat Cushion, RH
71033G	Leg Sub-assy, Rear Seat Cushion, LH
71208B	Wire Sub-assy, NO.2 Seat Cushion, RH NO.1
71208C	Wire Sub-assy, NO.2 Seat Cushion, RH NO.2
71208D	Wire Sub-assy, NO.2 Seat Cushion, LH NO.1
71209C	Wire Sub-assy, NO.2 Seat Cushion, LH NO.2
71223A	Bracket, NO.2 Seat Cushion Side, RH
71281C	Hinge, NO.1 Seat Center Armrest
71303E	Hinge Sub-assy, Rear NO.2 Seat, RH
71304A	Hinge Sub-assy, Rear NO.2 Seat, LH
71324P	Cushion, NO.1 Seat, RH
71324Q	Cushion, NO.1 Seat, LH
71349F	Cover, NO.1 Seatback Hinge, RH
71393C	Band, NO.2 Seat Cushion, RH NO.1
71393D	Band, NO.2 Seat Cushion, RH NO.2
71393E	Band, NO.2 Seat Cushion, LH NO.1
71393F	Band, NO.2 Seat Cushion, LH NO.2
71396N	Cushion, NO.1 Seat Support, Rear(FOR RH SEAT)
71396P	Cushion, NO.1 Seat Support, Rear(FOR LH SEAT)
71398L	Guide, NO.2 Seat Cushion Support, RH
71398M	Guide, NO.2 Seat Cushion Support, LH
71398N	Guide, NO.2 Seat Cushion Support, RH NO.2
71398P	Guide, NO.2 Seat Cushion Support, LH NO.2
71499L	Damper, NO.1 Seatback Spring, RH
71499M	Damper, NO.1 Seatback Spring, LH
71499V	Damper, NO.1 Seatback Spring, LH NO.2
71499X	Damper, NO.1 Seatback Spring, RH NO.2
71691Q	Cover, Rear NO.2 Seat Lock, Upper NO.1 RH
71691R	Cover, Rear NO.2 Seat Lock, Upper NO.2 RH
71691S	Cover, Rear NO.2 Seat Lock, Upper NO.1 LH
71691T	Cover, Rear NO.2 Seat Lock, Upper NO.2 LH
71693F	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.1
71693G	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.2
71693H	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.3
71693K	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71694A	Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.1
71694B	Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.2
71694C	Cover, Rear NO.2 Seat Cushion Hinge, Lower LH NO.3
71694F	Cover, Rear NO.2 Seat Cushion Hinge, Lower RH NO.4
71695M	Clip, Rear NO.1 Seat Protector, NO.1 RH
71695P	Clip, Rear NO.1 Seat Protector, NO.1 LH
71695U	Protector, NO.1 Seatback Stay(FOR RH SEAT)
71695V	Protector, NO.1 Seatback Stay(FOR LH SEAT)
71769N	Clip, Rear Seat Cover, RH
71769P	Clip, Rear Seat Cover, LH
71802C	Cover Sub-assy, Reclining Adjuster, LH
71825D	Moulding, Rear NO.1 Seat Cushion, RH
71826C	Moulding, Rear Seat Cushion, LH
71833K	Cover, NO.1 Seat Reclining, NO.1 RH Outer
71833V	Cover, NO.1 Seat Reclining, NO.2 RH
71834J	Cover, NO.1 Seat Reclining, NO.1 LH Outer
71834S	Cover, Rear Seat Reclining, NO.1 LH
71843	Cover, Rear Seat Reclining, NO.2 RH
71843H	Cover, NO.2 Seat Reclining, NO.2 RH Inner
71843J	Cover, Rear NO.1 Seat Reclining, NO.2 RH
71843M	Cover, Rear Seat Reclining, NO.2 RH
71844F	Cover, NO.2 Seat Reclining, NO.2 LH Inner
71844H	Cover, Rear Seat Reclining, NO.2 LH
71844J	Cover, Rear NO.1 Seat Reclining, NO.2 LH
71844M	Cover, Rear Seat Reclining, NO.2 LH
71848T	Cap, NO.1 Seat Adjuster Cover, RH
71848U	Cap, NO.2 Seat Adjuster Cover, RH
71848W	Cap, NO.1 Seat Adjuster Cover, RH(FOR LH SEAT)
71848Y	Cap, Seat Adjuster Cover, RH NO.1(FOR RH SEAT)
71848Z	Cap, Seat Adjuster Cover, RH NO.2(FOR RH SEAT)
71849L	Cap, NO.1 Seat Adjuster Cover, LH
71849M	Cap, NO.2 Seat Adjuster Cover, LH
71849N	Cap, NO.1 Seat Adjuster Cover, LH(FOR RH SEAT)
71849Q	Cap, Seat Adjuster Cover, LH NO.1
71849R	Cap, Seat Adjuster Cover, LH NO.2
71849S	Cap, Seat Adjuster Cover, LH NO.3
71849T	Cap, Seat Adjuster Cover, LH NO.4
71849U	Cap, Seat Adjuster Cover, LH NO.5
71865B	Bezel, Rear NO.1 Seat Cover, NO.1(FOR RH SEAT)
71866C	Bezel, Rear Seat Cover, NO.2
71866D	Bezel, Rear NO.1 Seat Cover, NO.2(FOR LH SEAT)
71868T	Shield, Rear Seat Cushion, Inner NO.1 LH
71868U	Shield, Rear Seat Cushion, Inner NO.1 LH (FOR LH SEAT)
71873Y	Shield, Rear Seat Cushion, Lower
71874X	Shield, Rear Seat Cushion, Lower LH
71875Y	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEATBACK)
71878H	Cover, Rear Seat Reclining, Inner RH
71878J	Cover, Rear NO.1 Seat Reclining, Inner RH
71878K	Cover, Rear NO.2 Seat Reclining, Inner RH
71879H	Cover, Rear Seat Reclining, Inner LH
71879J	Cover, Rear NO.1 Seat Reclining, Inner LH
71879K	Cover, Rear NO.2 Seat Reclining, Inner LH
71930H	Support Assy, NO.1 Seat Headrest, RH
71930J	Support Assy, NO.1 Seat Headrest, LH
71930K	Support Assy, NO.2 Seat Headrest, RH
71930L	Support Assy, NO.2 Seat Headrest, LH
71930R	Support Assy, Rear NO.2 Seat Headrest, Center
71930S	Support Assy, Rear NO.1 Seat Headrest, Center
71940F	Headrest Assy, NO.1 Seat, RH
71940G	Headrest Assy, NO.1 Seat, LH
71940H	Headrest Assy, NO.2 Seat, RH
71940J	Headrest Assy, NO.2 Seat, LH
71960F	Headrest Assy, Rear NO.2 Seat, Center
71960G	Headrest Assy, Rear NO.1 Seat, Center
71H48	Cap, Seat Adjuster Cover, RH NO.1
71H48A	Cap, Seat Adjuster Cover, RH NO.2
71H48B	Cap, Seat Adjuster Cover, RH NO.3
71H48C	Cap, Seat Adjuster Cover, RH NO.4
71H48D	Cap, Seat Adjuster Cover, RH NO.5
71H67	Shield, Rear Seat Cushion, Inner NO.1 RH
71H67A	Shield, NO.1 Seat Cushion, Inner NO.1 RH(FOR LH SEAT)
71H73	Shield, Rear Seat Cushion, Lower RH
71H74	Shield, Rear Seat Cushion, Lower LH
71H75E	Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 RH SEAT)
71H75F	Cover, Reclining Adjuster Inside, RH(FOR REAR NO.1 LH SEAT)
71H75L	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71H75M	Cover, Reclining Adjuster Inside, RH NO.2(FOR RH SEAT)
71H75P	Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEATBACK)
71H75R	Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71H75S	Cover, Reclining Adjuster Inside, RH NO.4(FOR RH SEAT)
71H75X	Cover, Reclining Adjuster Inside, RH NO.2(FOR LH SEAT)
71H76E	Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 RH SEAT)
71H76F	Cover, Reclining Adjuster Inside, LH(FOR REAR NO.1 LH SEAT)
71H76L	Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71H76M	Cover, Reclining Adjuster Inside, LH NO.2(FOR RH SEAT)
71H76N	Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71H76Q	Cover, Reclining Adjuster Inside, LH NO.3(FOR LH SEAT)
71H76R	Cover, Reclining Adjuster Inside, LH NO.4(FOR LH SEAT)
71H76S	Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEATBACK)
71H76W	Cover, Reclining Adjuster Inside, LH NO.5(FOR LH SEAT)
71H76X	Cover, Reclining Adjuster Inside, LH NO.6(FOR LH SEAT)
71T75	Cover, Reclining Adjuster Inside, RH
72045B	Cover Sub-assy, NO.1 Seat Track, Outer RH
72046F	Cover Sub-assy, NO.1 Seat Track, Outer LH NO.1(FOR LH SEAT)
72057E	Lever Sub-assy, Rear Seat Lock Control, RH NO.1
72057F	Lever Sub-assy, Rear Seat Lock Control, RH NO.2
72057G	Lever Sub-assy, Rear Seat Lock Control, LH NO.1
72057J	Lever Sub-assy, Rear Seat Lock Control(FOR RH SEAT)
72057K	Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058F	Lever Sub-assy, NO.1 Seat Lock Control, LH
72063B	Hook Sub-assy, Rear Seat, RH
72064B	Hook Sub-assy, Rear Seat, LH
72065D	Hook Sub-assy, Rear NO.2 Seat Cushion Lock, RH
72065E	Hook Sub-assy, Rear NO.2 Seat Cushion Lock, LH
72075C	Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR LH SEAT)
72076D	Arm Sub-assy, Reclining Adjuster, Lower Inner(FOR RH SEAT)
72125G	Cover, Seat Track Lock Plate, NO.1
72125H	Cover, Seat Track Lock Plate, NO.2
72210Q	Cable Assy, NO.1 Seat Slide, RH
72210R	Cable Assy, NO.1 Seat Slide, LH
72210S	Cable Assy, NO.2 Seat Slide, RH
72210T	Cable Assy, NO.2 Seat Slide, LH
72210V	Cable Assy, NO.1 Seat Track Control, LH NO.1
72210W	Cable Assy, NO.1 Seat Track Control, LH NO.2
72210Y	Cable Assy, NO.1 Seat Track Control, RH NO.1
72210Z	Cable Assy, NO.1 Seat Track Control, RH NO.2
72215A	Lever, NO.1 Seat Track Handle Control, RH
72216B	Lever, NO.1 Seat Track Handle Control, LH
72265P	Cover, Seat Track Upper Rail, RH
72266J	Cover, Seat Track Upper Rail, LH
72345N	Cap, Seat Stand Frame, RH NO.1
72345Y	Cap, NO.1 Seat Stand Frame, NO.1(FOR LH SEAT)
72525N	Handle, NO.1 Seat Reclining Adjuster Release, RH
72525P	Handle, NO.2 Seat Reclining Adjuster Release, RH
72525R	Handle, Reclining Adjuster Release, RH
72526J	Handle, NO.1 Seat Reclining Adjuster Release, LH
72526K	Handle, NO.2 Seat Reclining Adjuster Release, LH
72526L	Handle, Reclining Adjuster Release, LH
72551N	Cover, Reclining Hinge, RH NO.2(FOR RH SEAT)
72551S	Cover, Reclining Hinge, RH NO.2(FOR LH SEAT)
72552L	Cover, Reclining Hinge, LH NO.2(FOR RH SEAT)
72552Q	Cover, Reclining Hinge, LH NO.2(FOR LH SEAT)
72553E	Protector, Reclining Cover, RH NO.1
72553F	Protector, Reclining Cover, RH NO.2
72553K	Protector, Reclining Cover, RH NO.3
72554E	Protector, Reclining Cover, LH NO.1
72554F	Protector, Reclining Cover, LH NO.2
72554K	Protector, Reclining Cover, LH NO.3
72570E	Cable Assy, NO.1 Seat Reclining Adjusting, RH
72570F	Cable Assy, NO.1 Seat Reclining Adjusting, LH
72573D	Lever, NO.1 Seat Reclining Control, RH
72574A	Lever, Reclining Control, LH
72590F	Cable Assy, Reclining Remote Control, RH
72590G	Cable Assy, Reclining Remote Control, LH
72615M	Cover, NO.1 Seatback Lock Striker(FOR RH SEAT)
72615N	Cover, NO.1 Seatback Lock Striker(FOR LH SEAT)
72620K	Cable Assy, NO.1 Seat Walk-in, RH
72620L	Cable Assy, NO.1 Seat Walk-in, LH
72620R	Cable Assy, Rear NO.1 Seat Lock(FOR RH SEAT)
72620S	Cable Assy, Rear NO.1 Seat Lock(FOR LH SEAT)
72660M	Cable Assy, Rear NO.2 Seat Cushion Lock, RH
72660N	Cable Assy, Rear NO.2 Seat Cushion Lock, LH
72668G	Bezel, NO.1 Seatback Lock, Lower(FOR RH SEAT)
72675B	Hook, NO.1 Seat Lock(FOR RH SEAT)
72675C	Hook, NO.1 Seat Lock(FOR LH SEAT)
72677B	Base, Rear Seatback Lock Control Lever, RH
72678A	Base, Rear Seatback Lock Control Lever, LH
72690F	Lever Assy, NO.2 Seat Cushion Lock Release, RH
72690G	Lever Assy, NO.2 Seat Cushion Lock Release, LH
72690H	Lever Assy, NO.1 Seat Cushion Lock Release, RH
72690J	Lever Assy, NO.1 Seat Cushion Lock Release, LH
72745B	Pin, Rear Seat Reclining Hinge(FOR RH SEAT)
72745C	Pin, Rear Seat Reclining Hinge(FOR LH SEAT)
72803H	Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR LH SEAT)
72803J	Frame Sub-assy, Rear NO.1 Seat Armrest, RH(FOR RH SEAT)
72804E	Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR LH SEAT)
72804F	Frame Sub-assy, Rear NO.1 Seat Armrest, LH(FOR RH SEAT)
72830V	Armrest Assy, Rear NO.1 Seat, RH
72830X	Armrest Assy, Rear Seat, Center
72840K	Armrest Assy, Rear NO.1 Seat, LH
72848C	Cap, NO.1 Seat Armrest, NO.1 RH
72848D	Cap, NO.1 Seat Armrest, NO.1 LH
72848E	Cap, NO.2 Seat Armrest, NO.1 RH
72848F	Cap, NO.2 Seat Armrest, NO.1 LH
72880B	Armrest Assy, NO.1 Seat, C RH(FOR RH SEAT)
72880E	Armrest Assy, NO.2 Seat, C RH(FOR LH SEAT)
72890C	Armrest Assy, NO.1 Seat, C LH(FOR LH SEAT)
72890D	Armrest Assy, NO.2 Seat, C LH(FOR RH SEAT)
72927F	Cover, Rear Seat Cushion Under, RH
72927G	Cover, Rear NO.2 Seat Cushion Under, RH
72928E	Cover, Rear Seat Cushion Under, LH
72928F	Cover, Rear NO.2 Seat Cushion Under, LH
72973K	Cover, Rear Seat Turn Table, RH
72995K	Cover, Rear NO.2 Seat Cushion
72995P	Clip, Rear Seat Cushion Cover
73373U	Cover, NO.1 Seat Shoulder Belt, RH NO.1
73373V	Cover, NO.1 Seat Shoulder Belt, RH NO.2
73373W	Cover, NO.1 Seat Shoulder Belt, LH NO.2
73373X	Cover, NO.1 Seat Shoulder Belt, LH NO.1
74027D	Base Sub-assy, Rear Armrest, Lower RH
74028A	Base Sub-assy, Rear Armrest, Lower LH
78060C	Table Assy, NO.1 Seat Side
78065A	Cover Sub-assy, Rear Seat Legrest, RH
78065B	Cover Sub-assy, Rear Seat Legrest, LH
78608C	Cable Sub-assy, Legrest Lock Control(FOR RH SEAT)
78608D	Cable Sub-assy, Legrest Lock Control(FOR LH SEAT)
78631B	Table, Rear Seat Side
78632D	Cover, Rear Seat Side Table, NO.1
78632E	Cover, Rear Seat Side Table, NO.2
78632F	Clip, Rear Seat Side Table Cover
78639B	Clip, Rear Seat Side Table
78641A	Board, Rear NO.1 Seat Side Table
78656J	Cover, Rear Seat Legrest, RH
78656K	Cover, Rear Seat Legrest, LH
78656N	Cover, Rear Seat Legrest, RH NO.2
78656P	Cover, Rear Seat Legrest, LH NO.2
78656Q	Cover, NO.1 Seat Legrest, RH NO.3
78656R	Cover, NO.1 Seat Legrest, LH NO.3
78656S	Cover, NO.1 Seat Legrest(FOR RH SEAT)
78656T	Cover, NO.1 Seat Legrest(FOR LH SEAT)
78983A	Board, Rear Seat Footrest, RH(FOR RH SEAT)
78983B	Board, Rear Seat Footrest, RH(FOR LH SEAT)
78984A	Board, Rear Seat Footrest, LH(FOR RH SEAT)
78984B	Board, Rear Seat Footrest, LH(FOR LH SEAT)
78987B	Cover, Rear NO.1 Seat Footrest, NO.1 LH
78987C	Cover, Rear NO.1 Seat Footrest, NO.1 RH
78990B	Adjuster Assy, NO.1 Seat Footrest(FOR RH SEAT)
78990C	Adjuster Assy, NO.1 Seat Footrest(FOR LH SEAT)
79011B	Cover Sub-assy, NO.1 Seat Cushion, RH
79011C	Clip, NO.1 Seat Cushion Cover, RH
79011D	Clip, NO.1 Seat Cushion Cover, LH
79012A	Cover Sub-assy, NO.1 Seat Cushion, LH
79013D	Cover Sub-assy, NO.1 Seatback, RH
79014B	Cover Sub-assy, NO.1 Seatback, LH
79021D	Cover Sub-assy, NO.2 Seat Cushion, RH
79022B	Cover Sub-assy, NO.2 Seat Cushion, LH
79023D	Cover Sub-assy, NO.2 Seatback, RH
79024D	Cover Sub-assy, NO.2 Seatback, LH
79103B	Frame Sub-assy, NO.1 Seatback, RH
79104A	Frame Sub-assy, NO.1 Seatback, LH
79105G	Leg Sub-assy, NO.1 Seat, RH
79106B	Leg Sub-assy, NO.1 Seat, LH
79117D	Carpet, NO.1 Seat Cushion
79135C	Pad, NO.1 Seat Cushion, RH
79136C	Pad, NO.1 Seat Cushion, LH
79175F	Pad, NO.1 Seatback, RH
79185A	Pad, NO.1 Seatback, LH
79226B	Stopper, NO.2 Seat Cushion, RH Front
79226C	Stopper, NO.2 Seat Cushion, RH Rear
79226D	Stopper, NO.2 Seat Cushion, LH Front
79226E	Stopper, NO.2 Seat Cushion, LH Rear
79235F	Pad, NO.2 Seat Cushion, RH
79236L	Cover, Rear Seat Leg, RH
79245A	Pad, NO.2 Seat Cushion, LH
79246M	Cover, Rear Seat Leg, LH
79260C	Spring Assy, NO.2 Seat Cushion, RH
79270B	Spring Assy, NO.2 Seat Cushion, LH
79275F	Pad, NO.2 Seatback, RH
79285C	Pad, NO.2 Seatback, LH
79908A	Plate Sub-assy, Seat Hinge, LH
79959E	Cover, NO.1 Seat Leg, RH
79959F	Cover, NO.1 Seat Leg, LH
79959G	Cover, NO.2 Seat Leg, RH NO.1
79959J	Cover, NO.2 Seat Leg, LH NO.1
79959L	Clip, NO.2 Seat Leg Cover, RH
79959M	Clip, NO.2 Seat Leg Cover, LH
79965H	Cover, NO.1 Seat Leg Side, NO.2(FOR RH SEAT)
79965J	Cover, NO.1 Seat Leg Side, NO.2(FOR LH SEAT)
79966F	Cover, NO.1 Seat Leg Side, NO.3(FOR RH SEAT)
79966G	Cover, NO.1 Seat Leg Side, NO.3(FOR LH SEAT)
79968W	Cover, Rear NO.1 Seat Leg Side, NO.5(FOR LH SEAT)
79968X	Cover, Rear NO.1 Seat Leg Side, NO.5(FOR RH SEAT)
79968Y	Cover, Rear NO.2 Seat Leg Side, NO.5(FOR LH SEAT)
79968Z	Cover, Rear NO.2 Seat Leg Side, NO.5(FOR RH SEAT)
79977Q	Felt, Seat Cushion, RH
79977R	Felt, Seat Cushion, LH
85860E	Blower Assy, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85860F	Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85866E	Duct, NO.1 Seat Cushion Climate Control(FOR RH SEAT)
85866F	Duct, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85867D	Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867E	Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
8586AB	Duct, NO.1 Seatback Climate Control, NO.1(FOR RH SEAT)
8586AC	Duct, NO.1 Seatback Climate Control, NO.2(FOR RH SEAT)
8586AD	Duct, NO.1 Seatback Climate Control, NO.1(FOR LH SEAT)
8586AE	Duct, NO.1 Seatback Climate Control, NO.2(FOR LH SEAT)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
