Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Rail

22 part groups · 6 illustrations

Illustrations

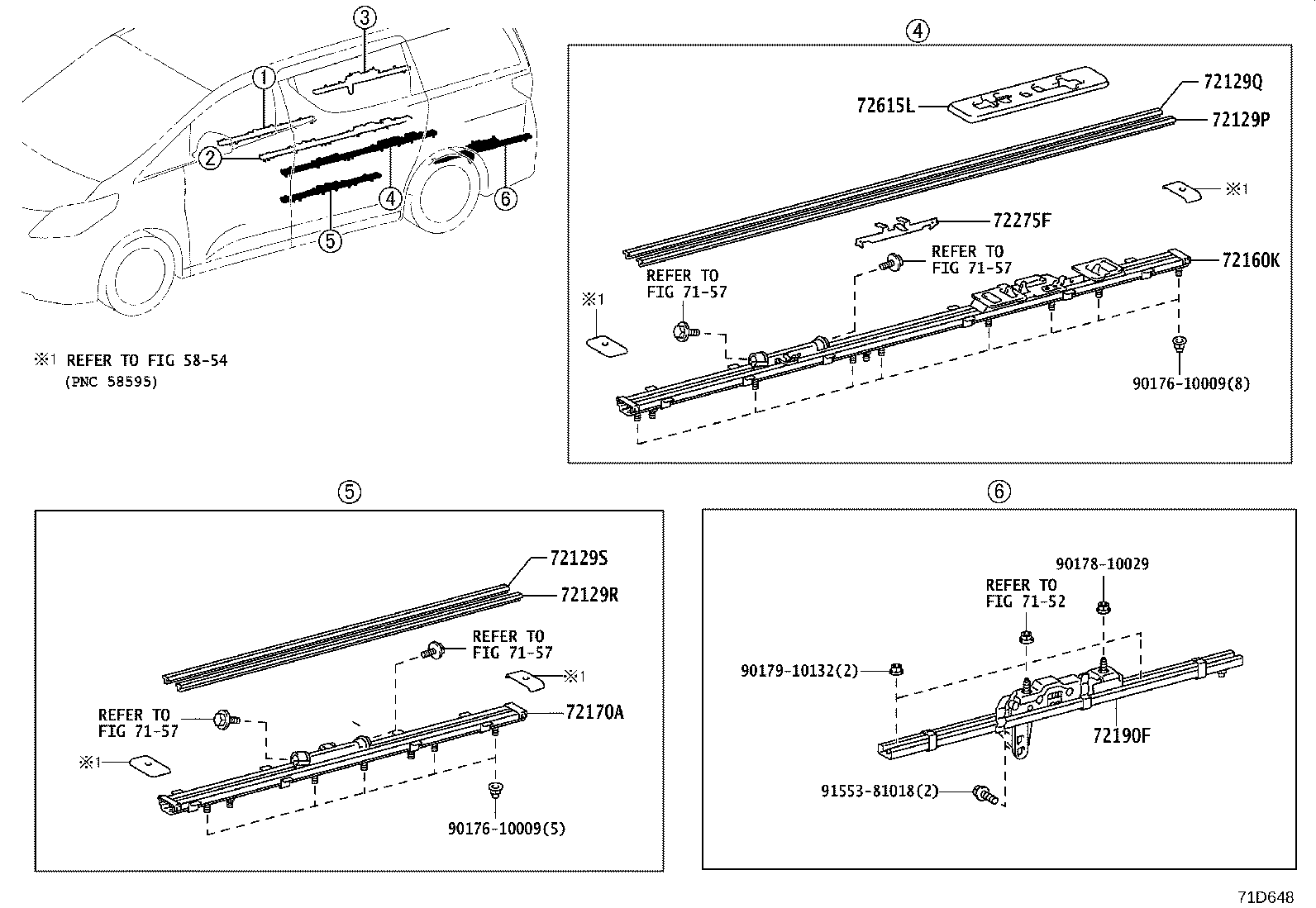

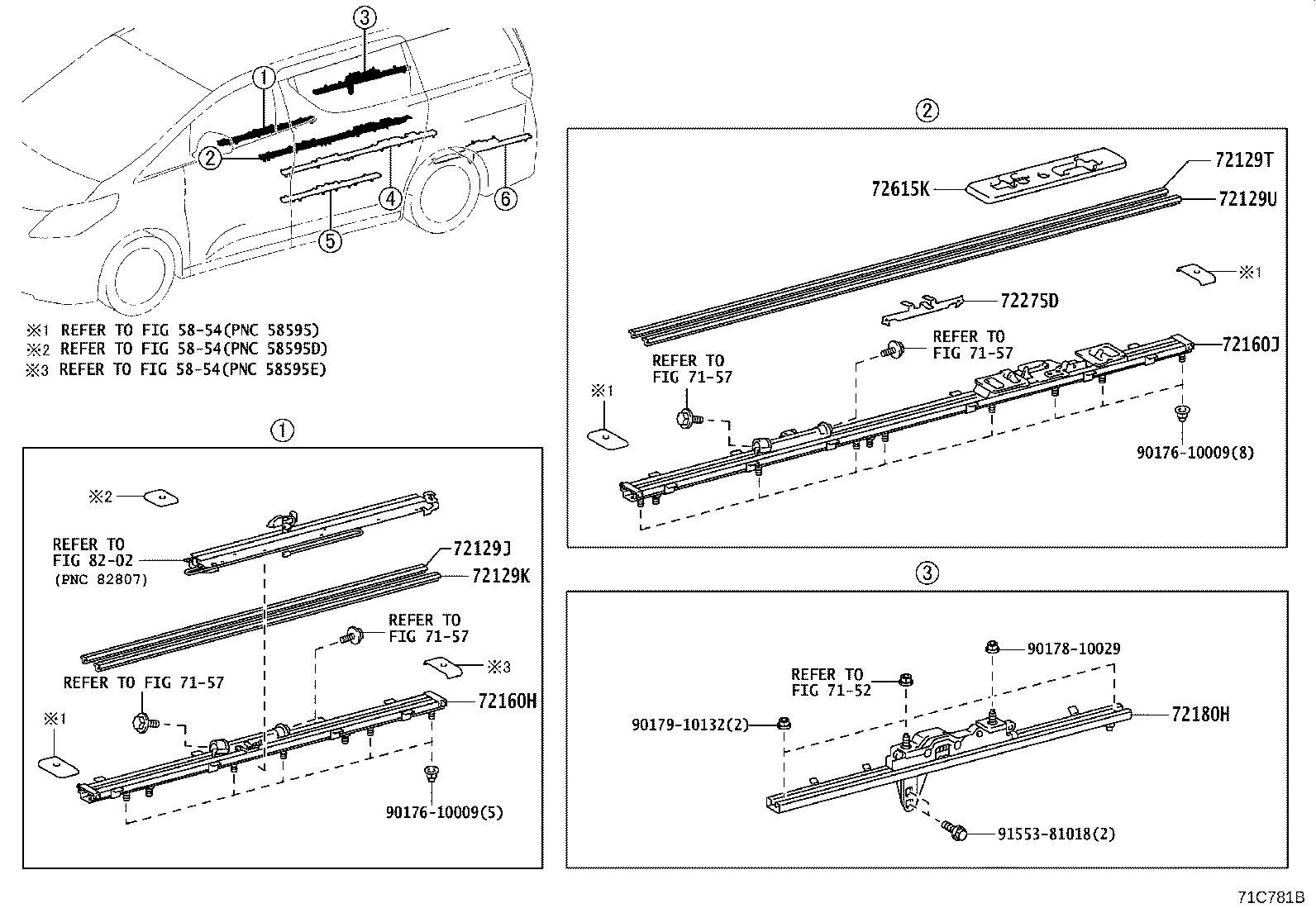

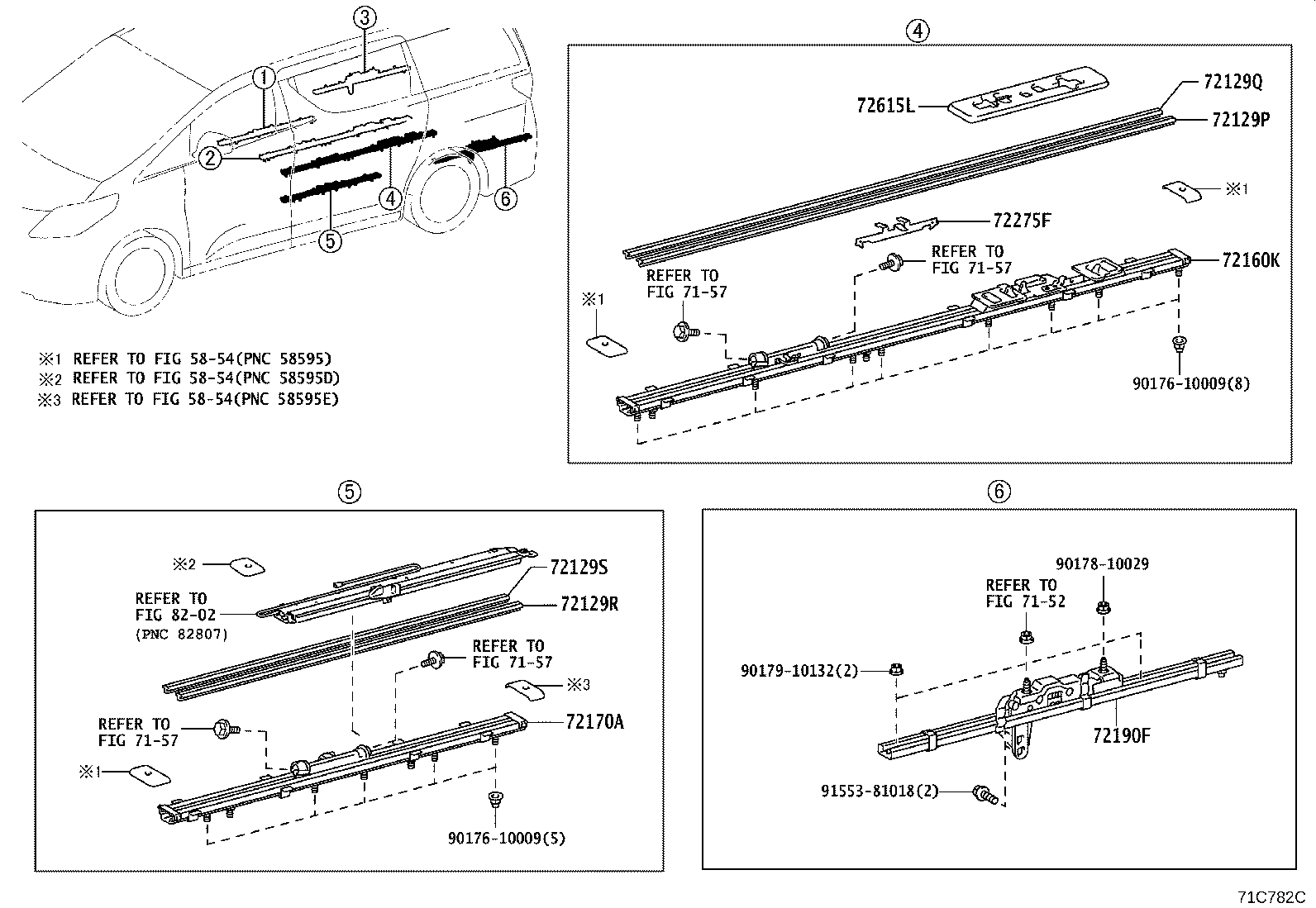

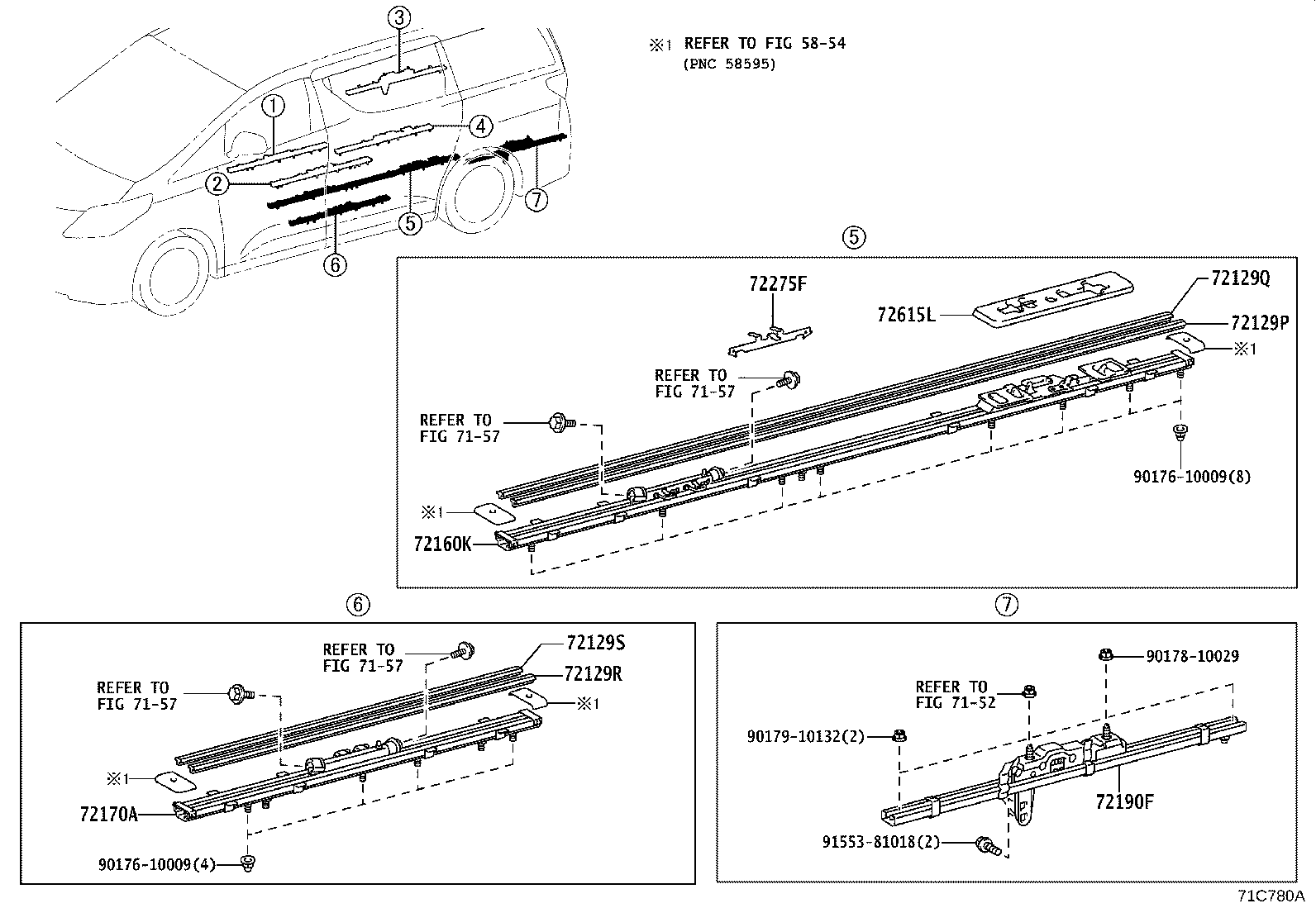

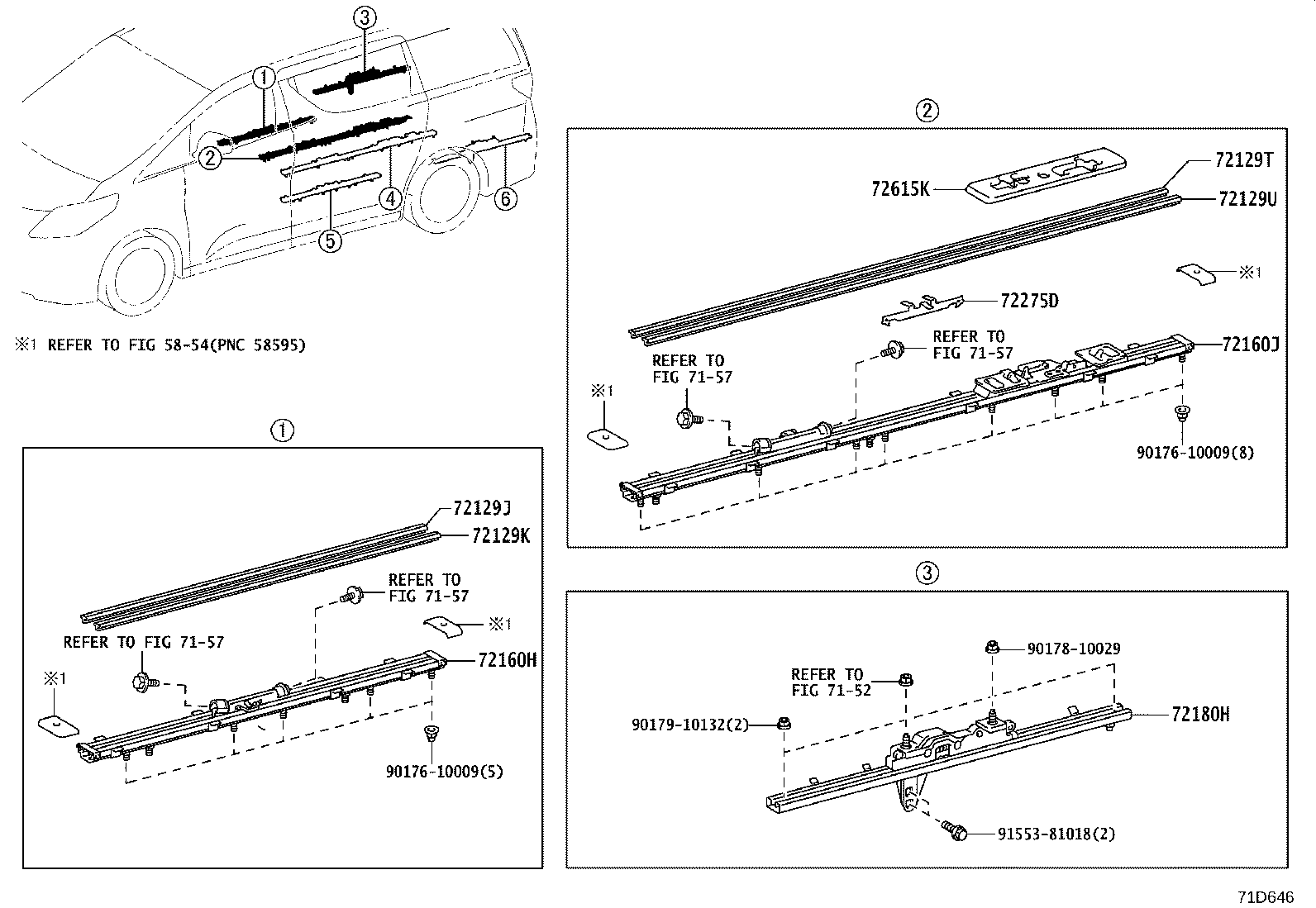

Figure 71C779A 71C779A 2008-04 → — Figure 71C780A 71C780A 2008-04 → — Figure 71D646 71D646 2008-04 → — Figure 71C781B 71C781B 2008-04 → — Figure 71D648 71D648 2008-04 → — Figure 71C782C 71C782C 2008-04 → —

Part groups

PNCDescription
72129J Protector, Seat Track Lower Rail, RH Outer NO.1
72129K Protector, Seat Track Lower Rail, RH Outer NO.2
72129M Protector, Seat Track Lower Rail, RH Inner Rear NO.1
72129N Protector, Seat Track Lower Rail, RH Inner Rear NO.2
72129P Protector, Seat Track Lower Rail, LH Inner NO.1
72129Q Protector, Seat Track Lower Rail, LH Inner NO.2
72129R Protector, Seat Track Lower Rail, LH Outer NO.1
72129S Protector, Seat Track Lower Rail, LH Outer NO.2
72129T Protector, Seat Track Lower Rail, RH Inner NO.1
72129U Protector, Seat Track Lower Rail, RH Inner NO.2
72160H Track Assy, Rear Seat, Outer RH
72160J Track Assy, Rear RH Seat, Inner NO.1
72160K Track Assy, Rear LH Seat, Inner NO.1
72170A Track Assy, Rear Seat, Outer LH
72180F Track Assy, Rear Seat, Inner RH
72180G Track Assy, Rear Seat, Inner RH Rear
72180H Track Assy, Rear RH Seat, Outer NO.2
72190F Track Assy, Rear LH Seat, Outer NO.2
72275D Stopper, Rear Seat Track Slide, RH NO.1
72275F Stopper, Rear Seat Track Slide, LH NO.1
72615K Cover, Rear Seat Lock Striker, RH
72615L Cover, Rear Seat Lock Striker, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
