Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 2 illustrations

Illustrations

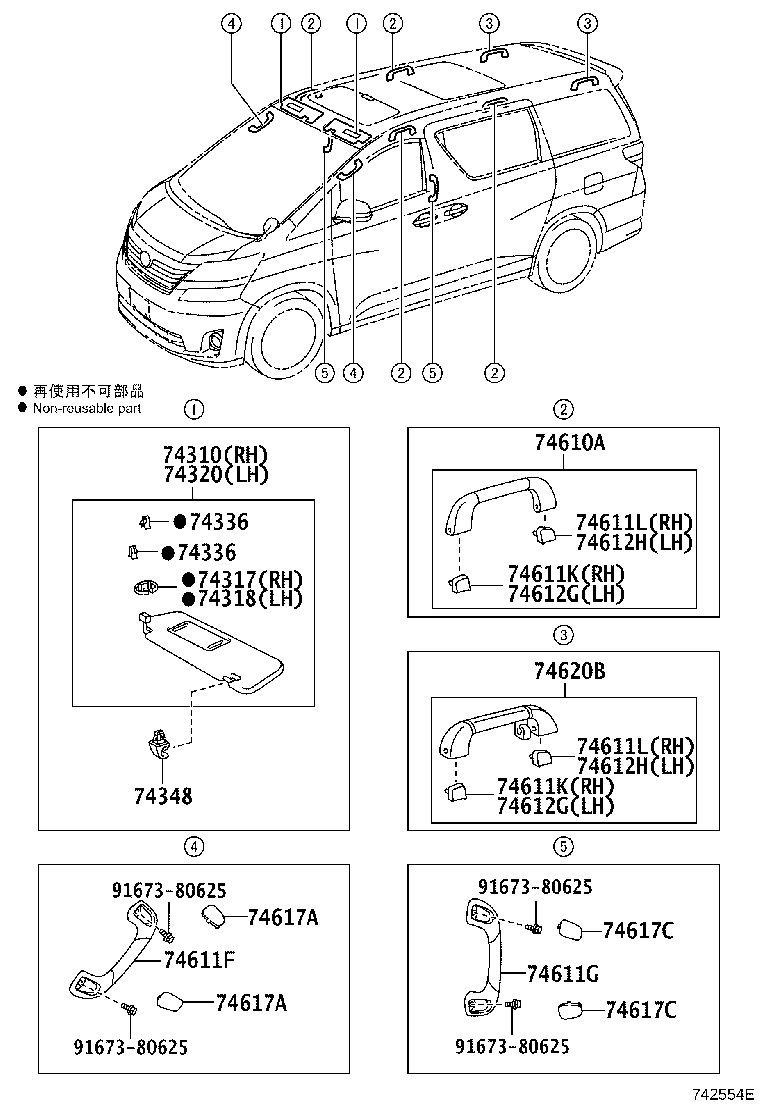

Figure 742553B 742553B 2008-04 → — Figure 742554E 742554E 2008-04 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74310 Visor Assy, RH
74317 Cover, Visor Bracket, RH
74318 Cover, Visor Bracket, LH
74320 Visor Assy, LH
74336 Clip, Visor Arm Set
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74611F Grip, Assist, NO.1
74611G Grip, Assist, NO.2
74611K Cover, Assist Grip, RH Front Side
74611L Cover, Assist Grip, RH Rear Side
74612G Cover, Assist Grip, LH Front Side
74612H Cover, Assist Grip, LH Rear Side
74617A Plug, Assist Grip
74617C Plug, Assist Grip
74620B Grip Assy, Assist, Rear
74812C Cover, Door Pull Handle
74813B Handle, Front Door Pull, RH
74814C Handle, Front Door Pull, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
