Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

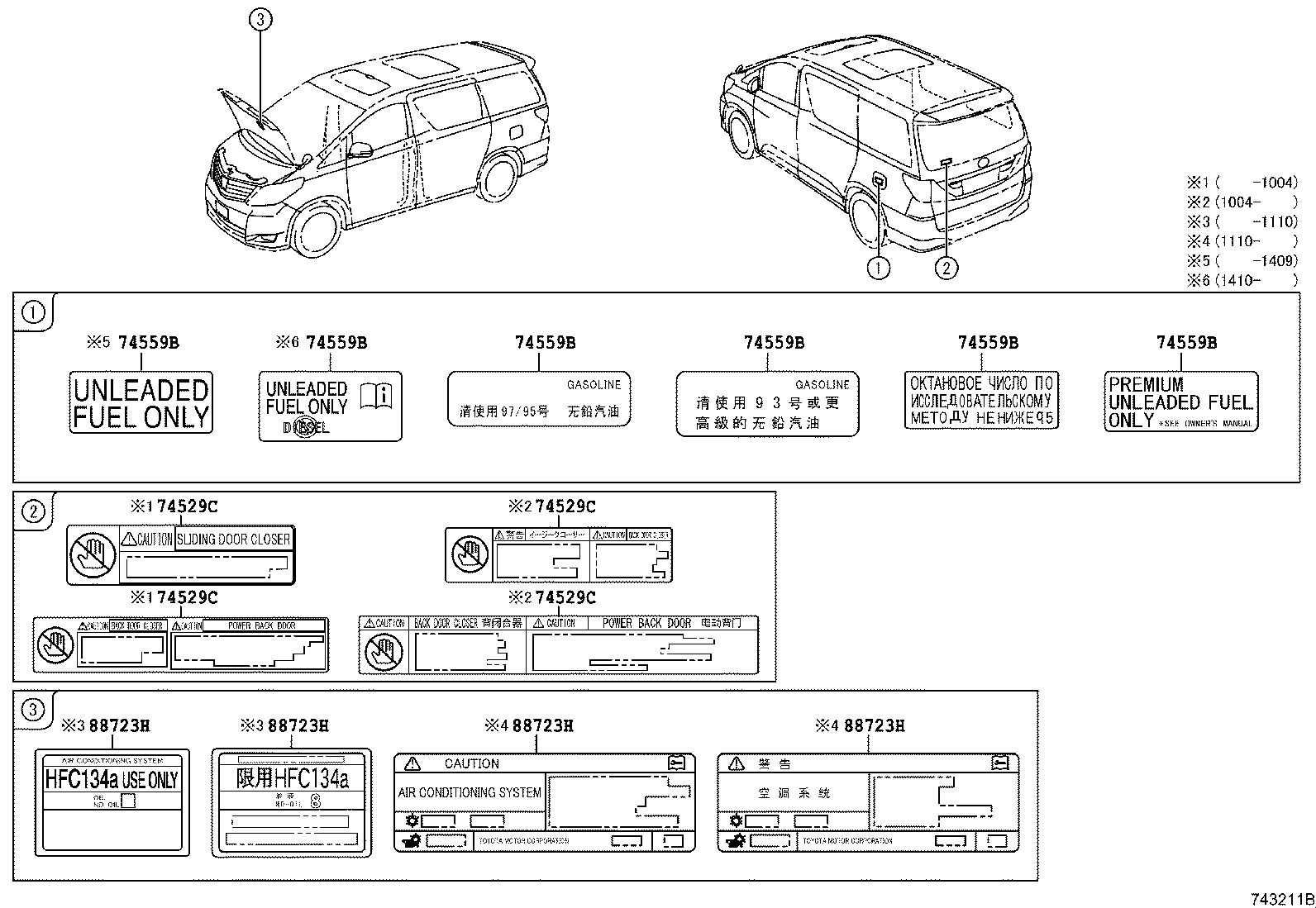

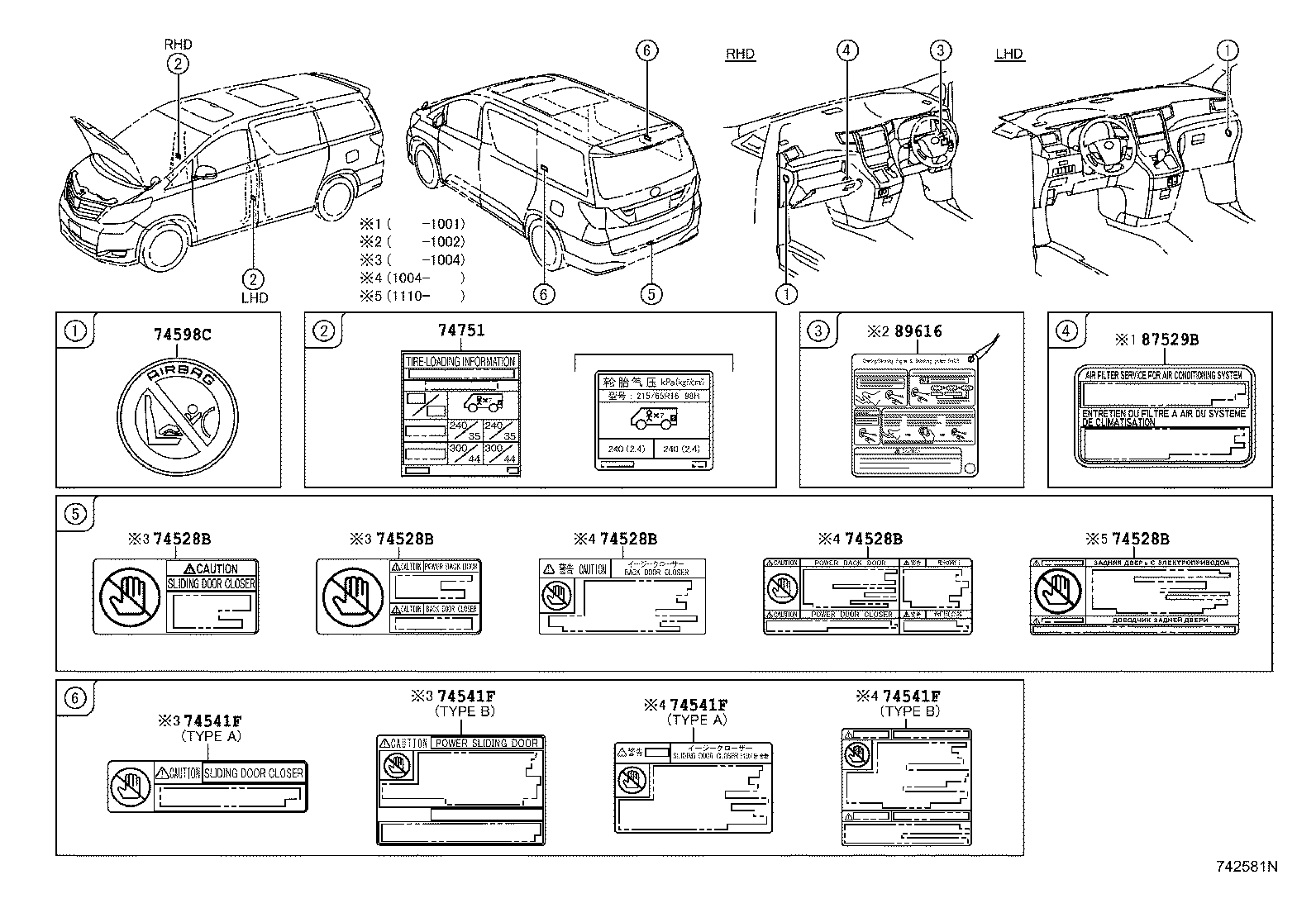

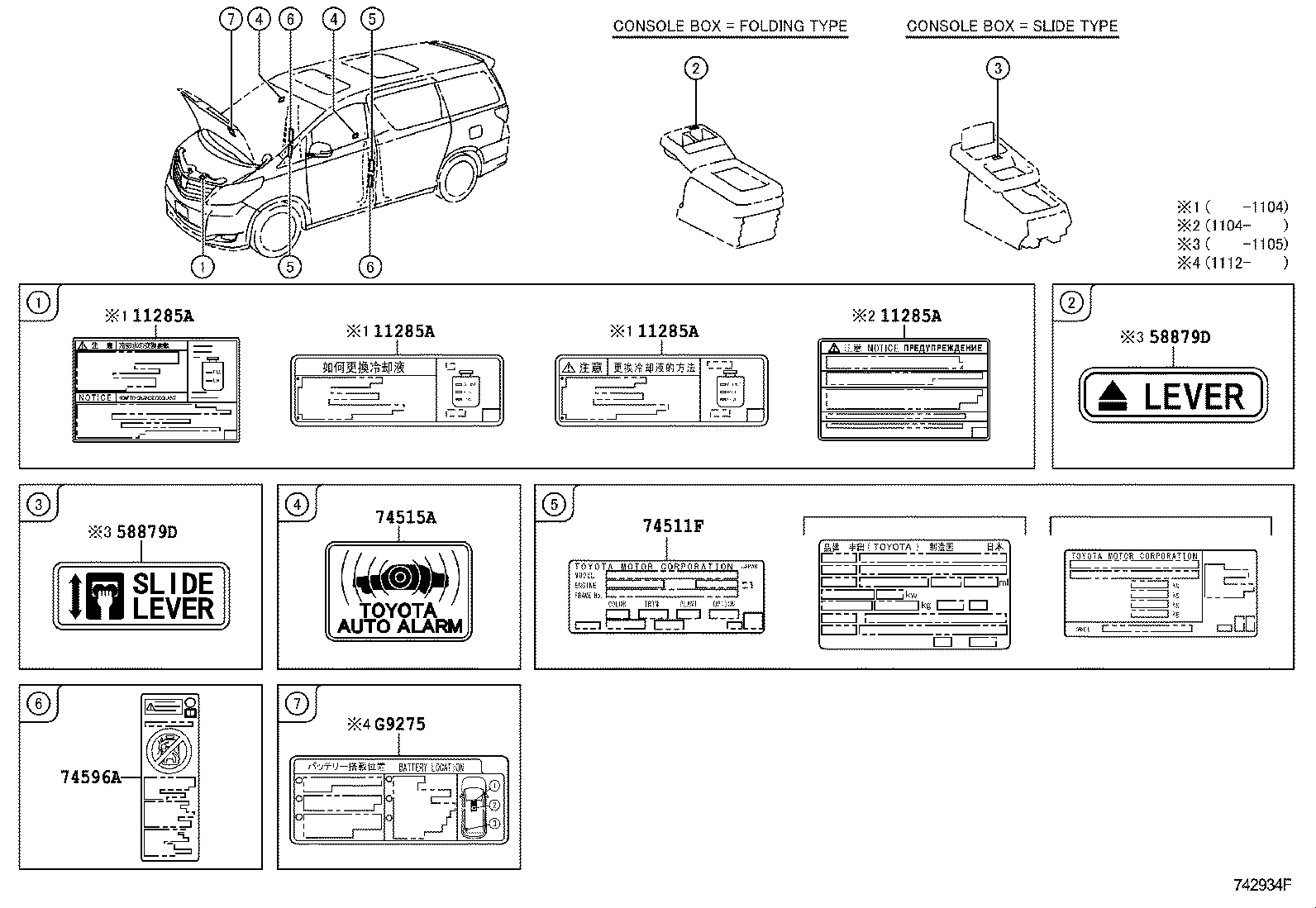

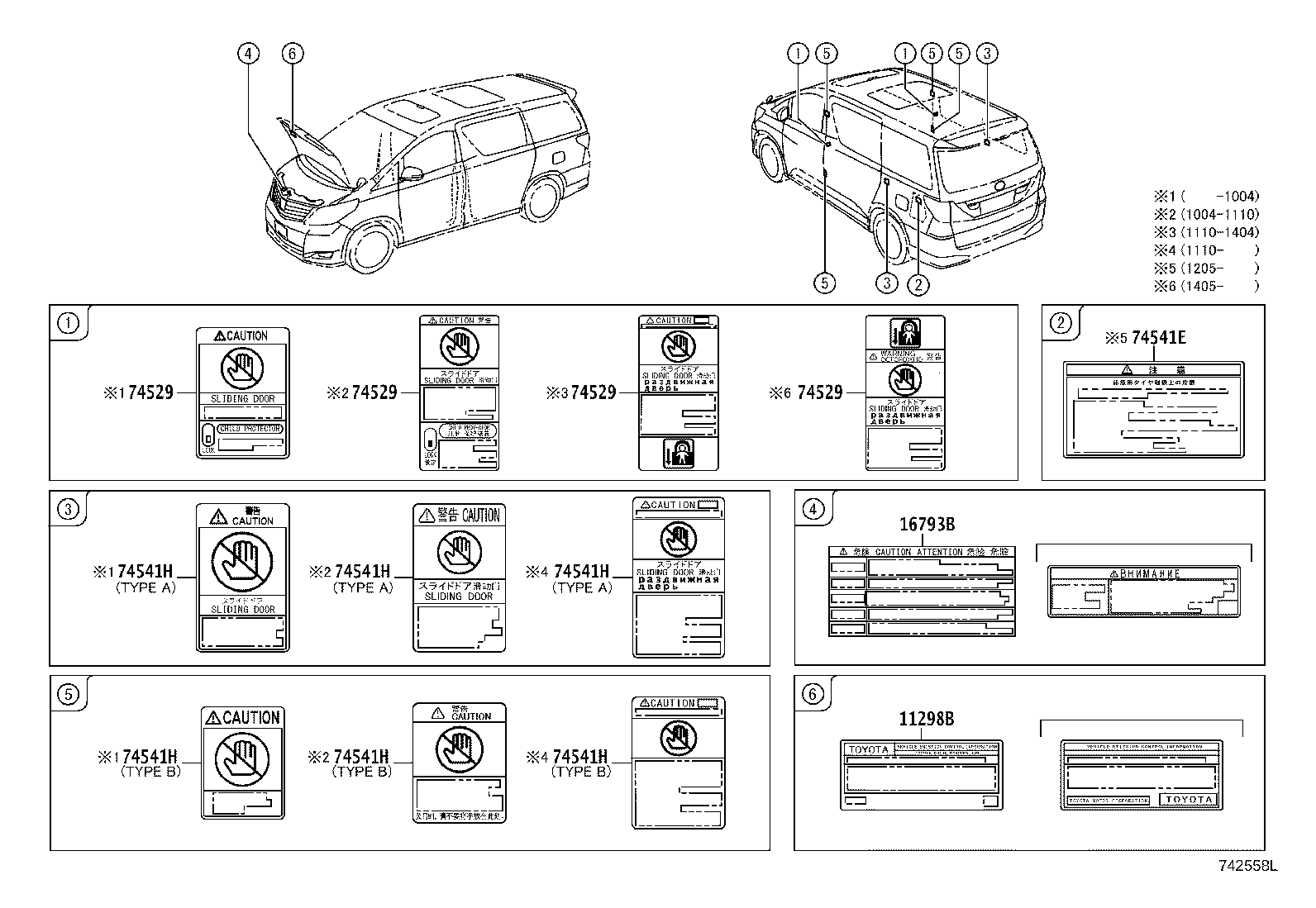

Caution Plate
22 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11293D | Label, Engine Caution |
| 11298B | Label, Emission Control Information |
| 16793B | Label, Cooling Fan Information |
| 47288 | Label, Brake Fluid Notice |
| 58879D | Label, Console Door Lock Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74528B | Label, Back Door Caution |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74529C | Plate, Back Door Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74541F | Label, Slide Door Glass Caution |
| 74541H | Plate, Body Caution |
| 74559B | Label, Fuel Information |
| 74596A | Label, Side Airbag Caution |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723H | Label, Cooler Service Caution |
| 89616 | Label, Push Start Information |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
