Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

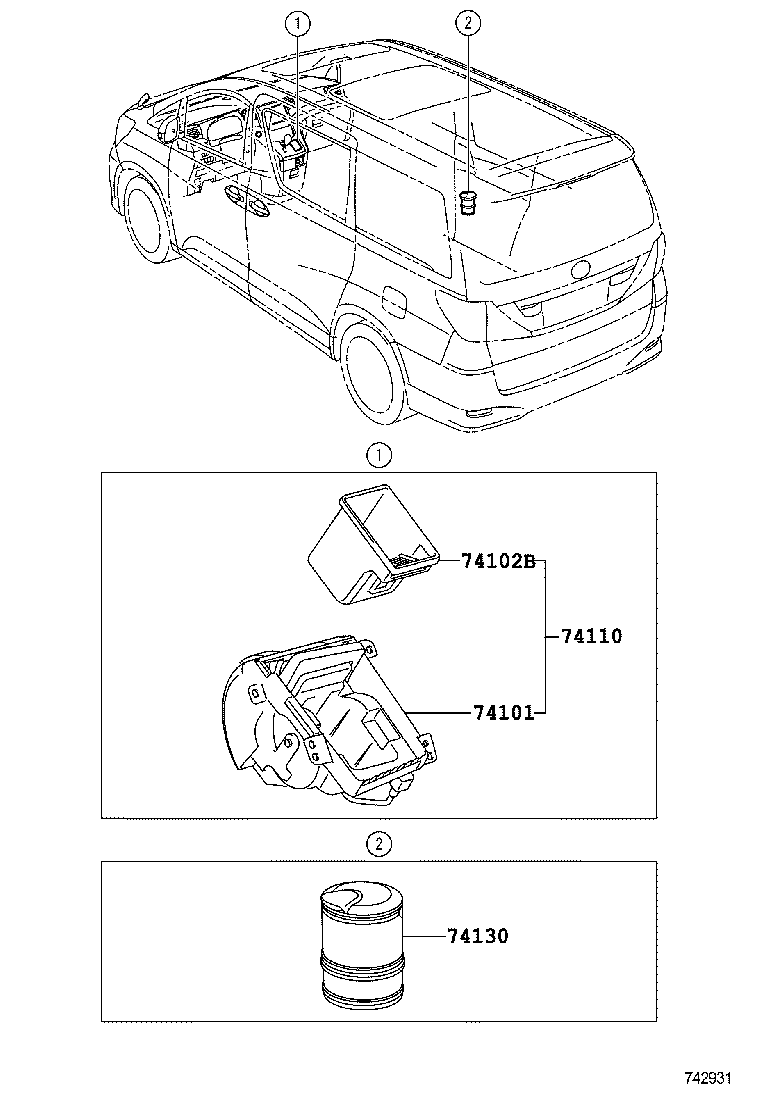

Ash Receptacle

4 part groups · 2 illustrations

PNC	Description
74101	Receptacle Sub-assy, Front Ash
74102B	Box Sub-assy, Front Ash Receptacle
74110	Receptacle Assy, Instrument Panel Ash
74130	Receptacle Assy, Rear Ash

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
