Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

20 part groups · 2 illustrations

Illustrations

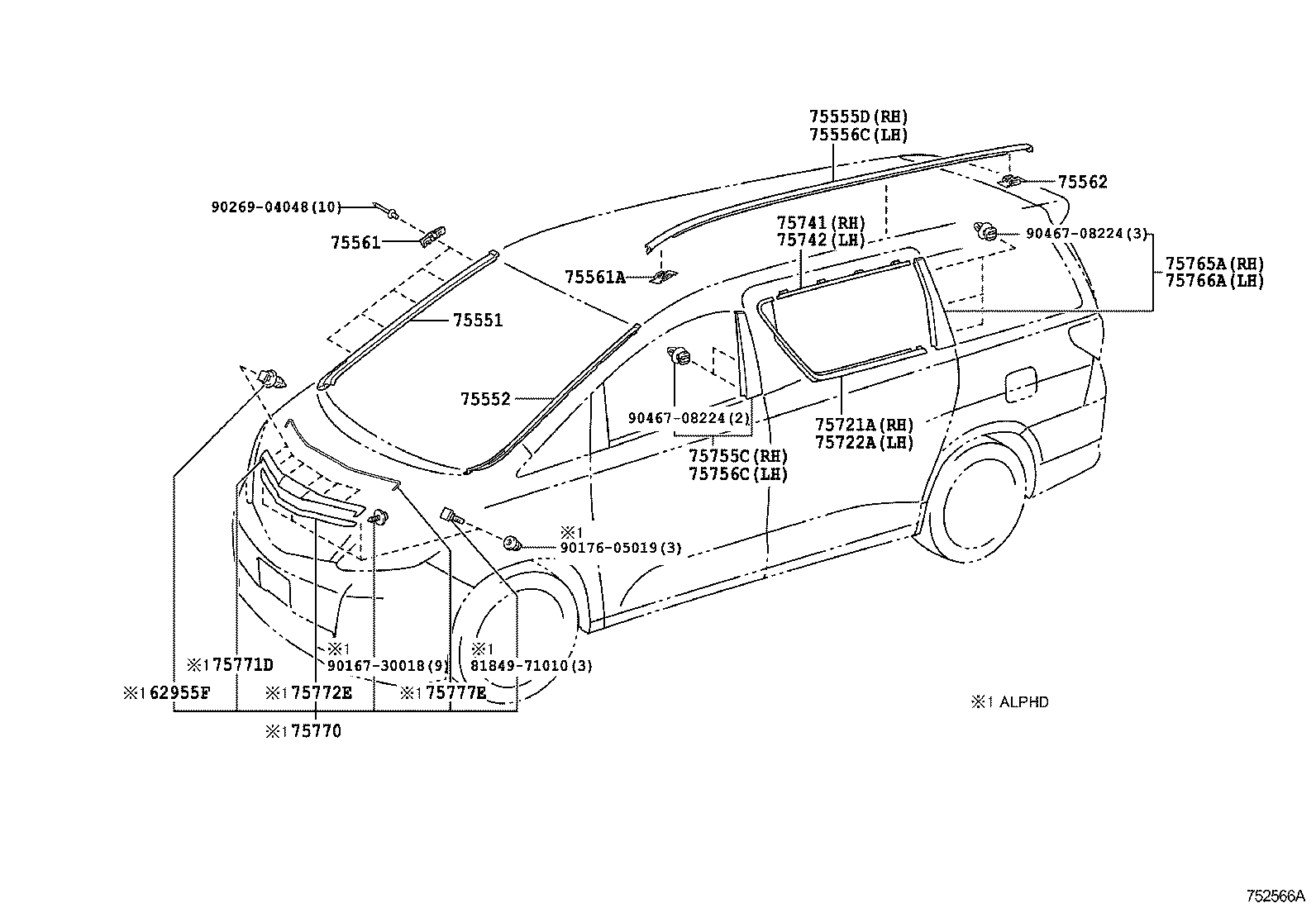

Figure 752055H 752055H 2008-04 → 2011-10 Figure 752566A 752566A 2011-10 → —

Part groups

PNCDescription
62955F Retainer, Quarter Vent Louver
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75561A Clip, Roof Drip Side Finish Moulding
75562 Clip, Roof Drip Side Finish Moulding, NO.2
75721A Moulding, Rear Door Belt, RH
75722A Moulding, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75765A Moulding, Rear Door Window Frame, Rear RH
75766A Moulding, Rear Door Window Frame, Rear LH
75770 Moulding Assy, Hood, Front
75771D Moulding, Front Panel, Upper
75772E Moulding, Front Panel, Lower
75777E Pad, Hood Front Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
