Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

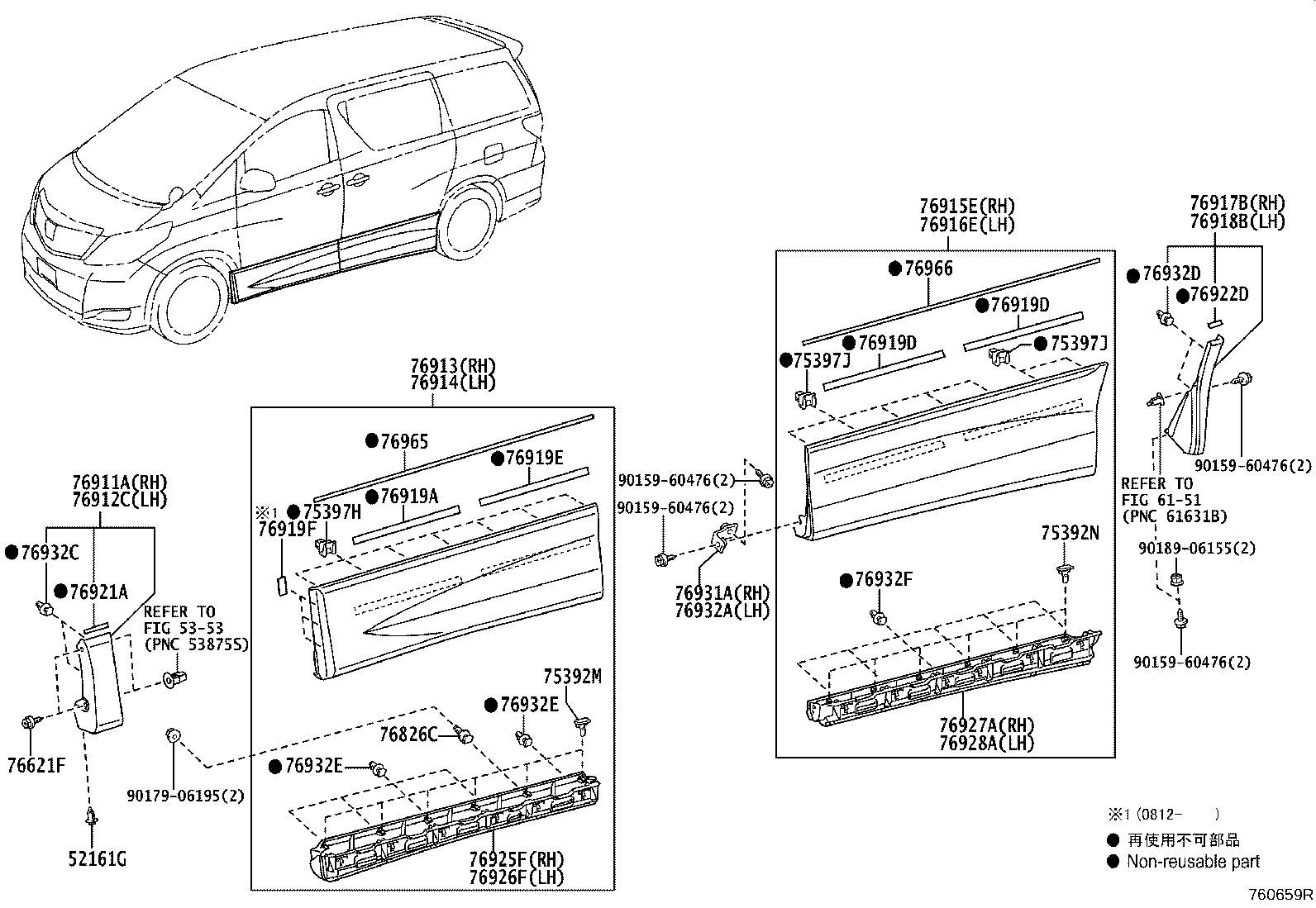

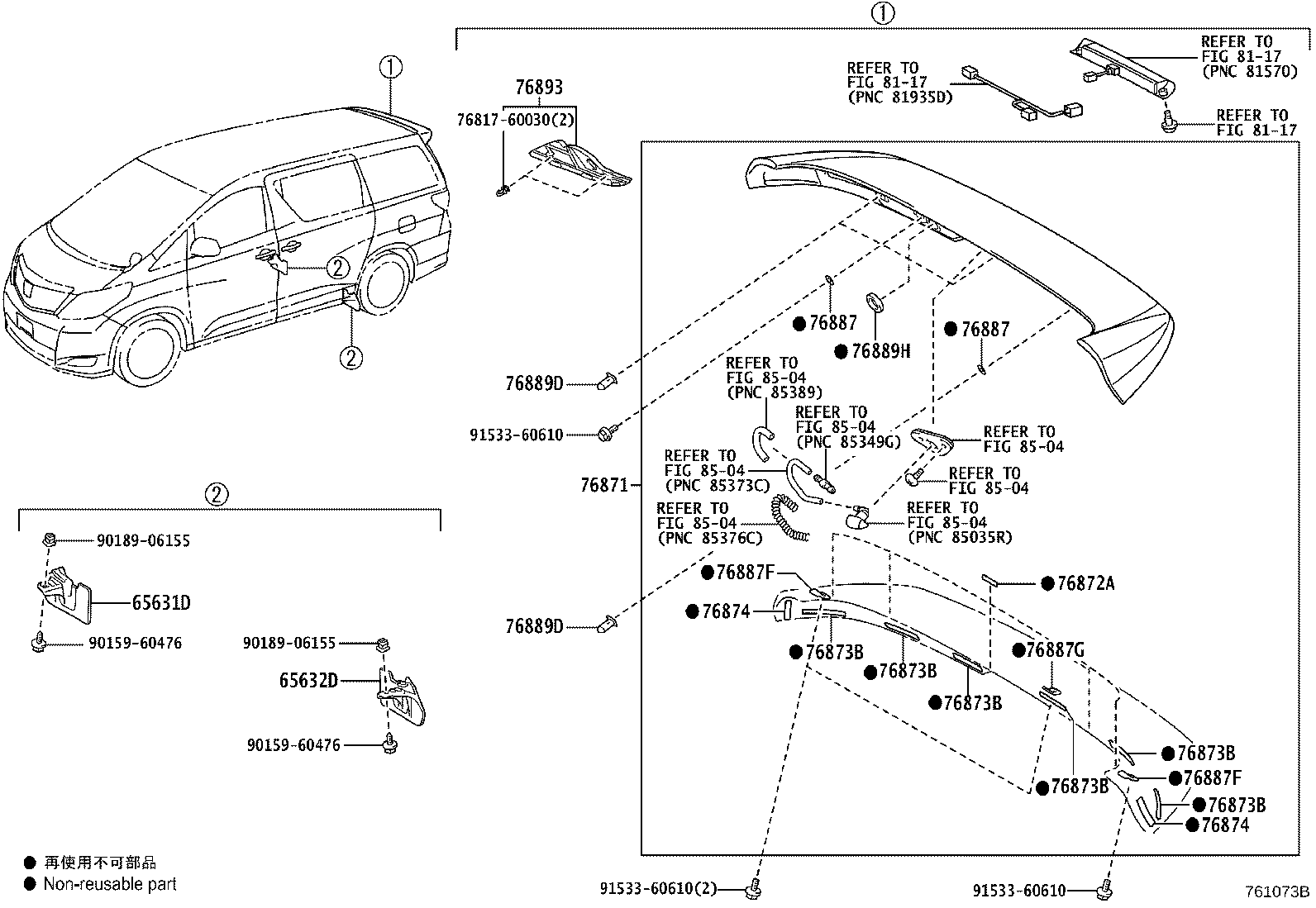

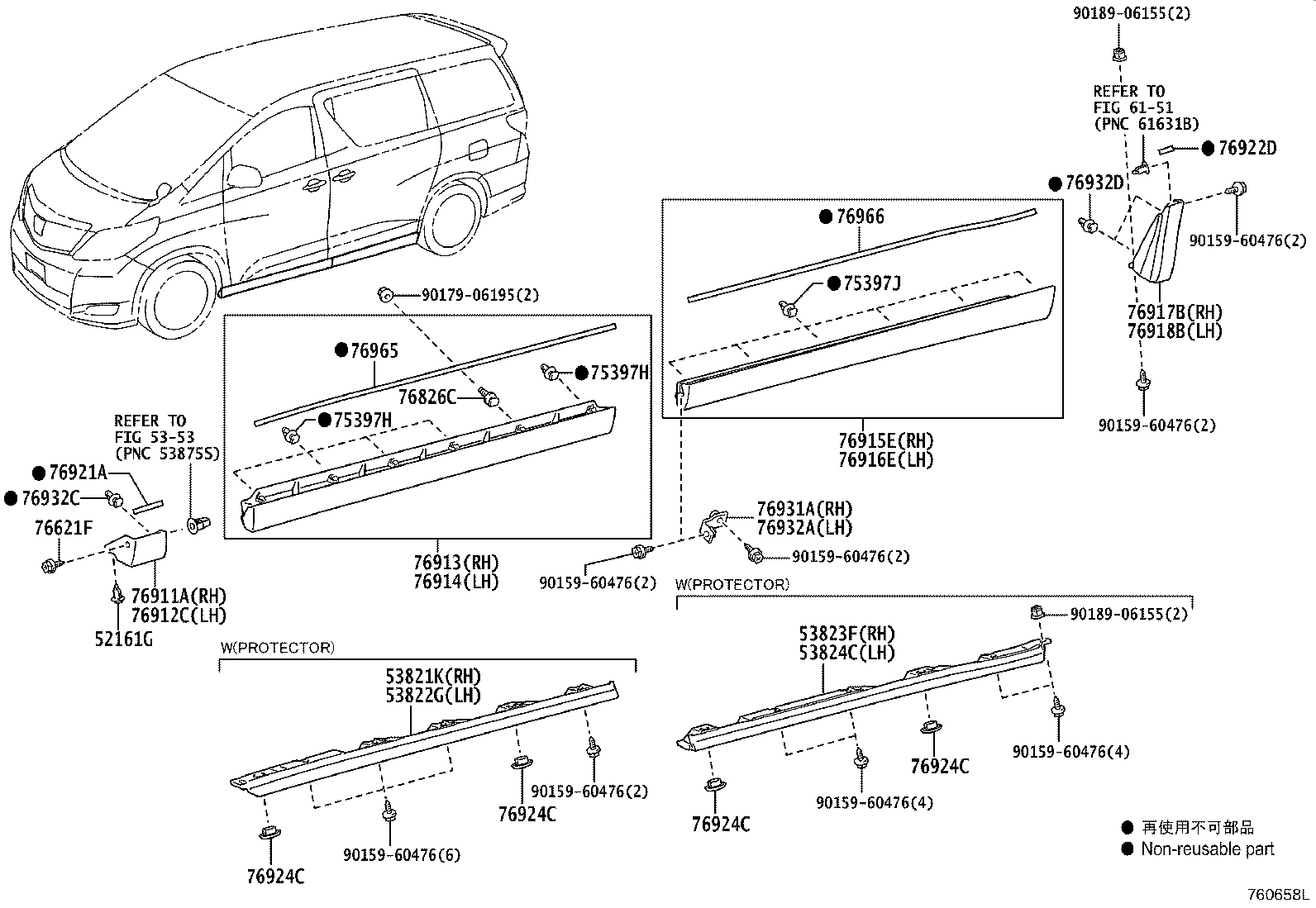

Spoiler & Side Mudguard
50 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161G | Piece, Rear Bumper |
| 53821K | Protector, Front Side Panel, NO.1 RH |
| 53822G | Protector, Front Side Panel, NO.1 LH |
| 53823F | Protector, Front Side Panel, NO.2 RH |
| 53824C | Protector, Front Side Panel, NO.2 LH |
| 65631D | Plate, Rear Wheel House, Front RH |
| 65632D | Plate, Rear Wheel House, Front LH |
| 75392M | Retainer, Front Door Mudguard |
| 75392N | Retainer, Slide Door Mudguard |
| 75397H | Clip, Front Door Mudguard |
| 75397J | Clip, Slide Door Mudguard |
| 76621F | Screw, NO.1 |
| 76826C | Retainer, Front Door Mudguard |
| 76871 | Spoiler, Rear |
| 76872A | Protector, Rear Spoiler, NO.1 |
| 76873B | Protector, Rear Spoiler, NO.2 |
| 76874 | Protector, Rear Spoiler, NO.3 |
| 76887 | Seal, Rear Spoiler |
| 76887F | Seal, Rear Spoiler, NO.2 |
| 76887G | Seal, Rear Spoiler, NO.3 |
| 76889D | Clip, Rear Spoiler, NO.2 |
| 76889H | Seal, Rear Spoiler, NO.1 |
| 76893 | Cover, Rear Spoiler, NO.1 |
| 76911A | Mudguard, Fender Panel, RH |
| 76912C | Mudguard, Fender Panel, LH |
| 76913 | Mudguard, Front Door, RH |
| 76914 | Mudguard, Front Door, LH |
| 76915E | Mudguard, Slide Door, RH |
| 76916E | Mudguard, Slide Door, LH |
| 76917B | Mudguard, Quarter Panel, RH |
| 76918B | Mudguard, Quarter Panel, LH |
| 76919A | Pad, Side Mudguard |
| 76919D | Pad, Side Mudguard |
| 76919E | Pad, Side Mudguard |
| 76919F | Pad, Side Mudguard |
| 76921A | Protector, Side Mudguard, NO.1 |
| 76922D | Protector, Side Mudguard, NO.2 |
| 76924C | Retainer, Side Mudguard, NO.2 |
| 76925F | Protector, Side Mudguard, RH |
| 76926F | Protector, Side Mudguard, LH |
| 76927A | Protector, Side Mudguard, Rear RH |
| 76928A | Protector, Side Mudguard, Rear LH |
| 76931A | Bracket, Side Mudguard, NO.1 RH |
| 76932A | Bracket, Side Mudguard, NO.1 LH |
| 76932C | Retainer, Fender Panel Mudguard |
| 76932D | Retainer, Quarter Panel Mudguard |
| 76932E | Retainer, Front Door Mudguard |
| 76932F | Retainer, Slide Door Mudguard |
| 76965 | Protector, Front Door Lower Mudguard |
| 76966 | Protector, Slide Door Lower Mudguard |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
