Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

28 part groups · 7 illustrations

Illustrations

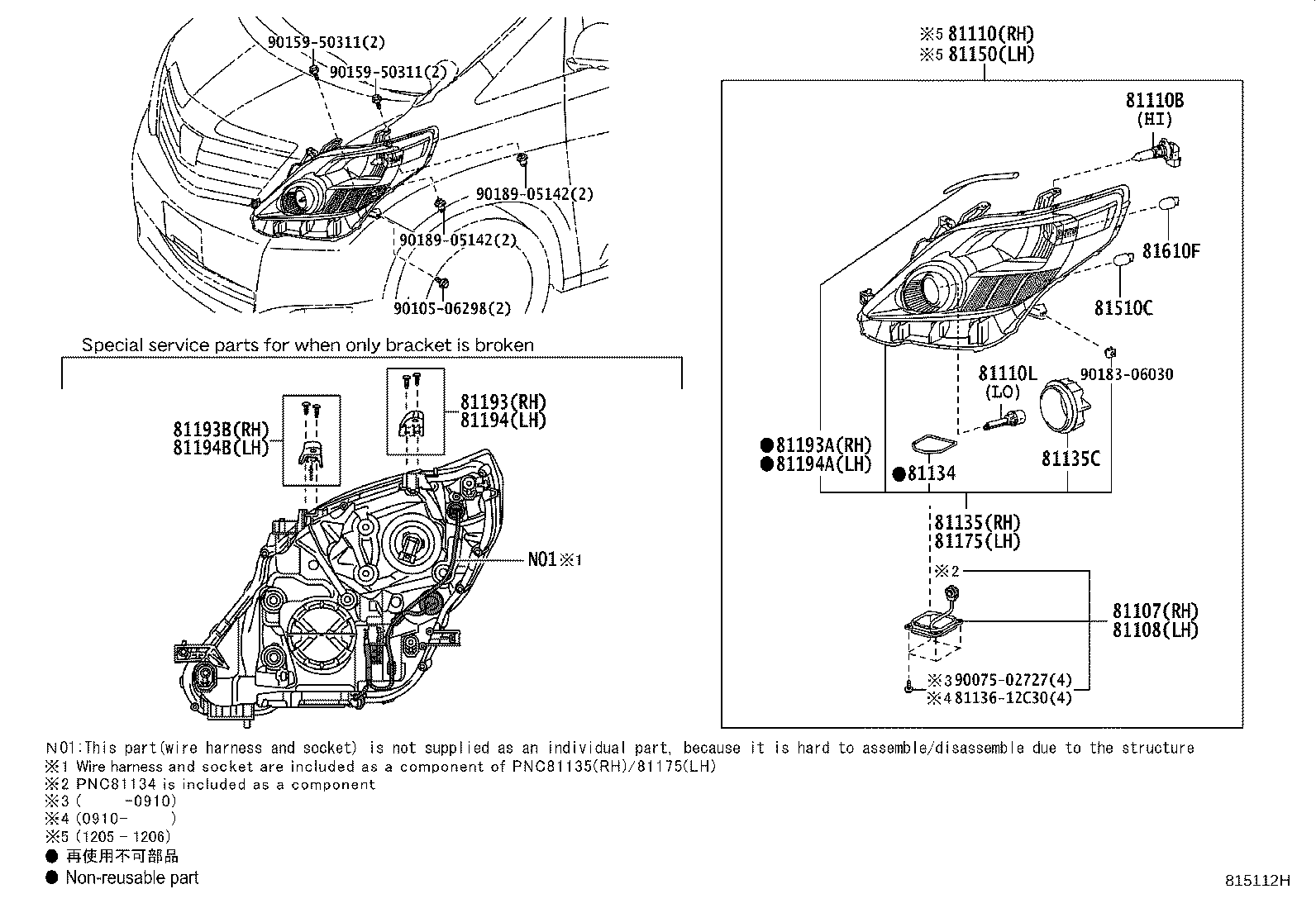

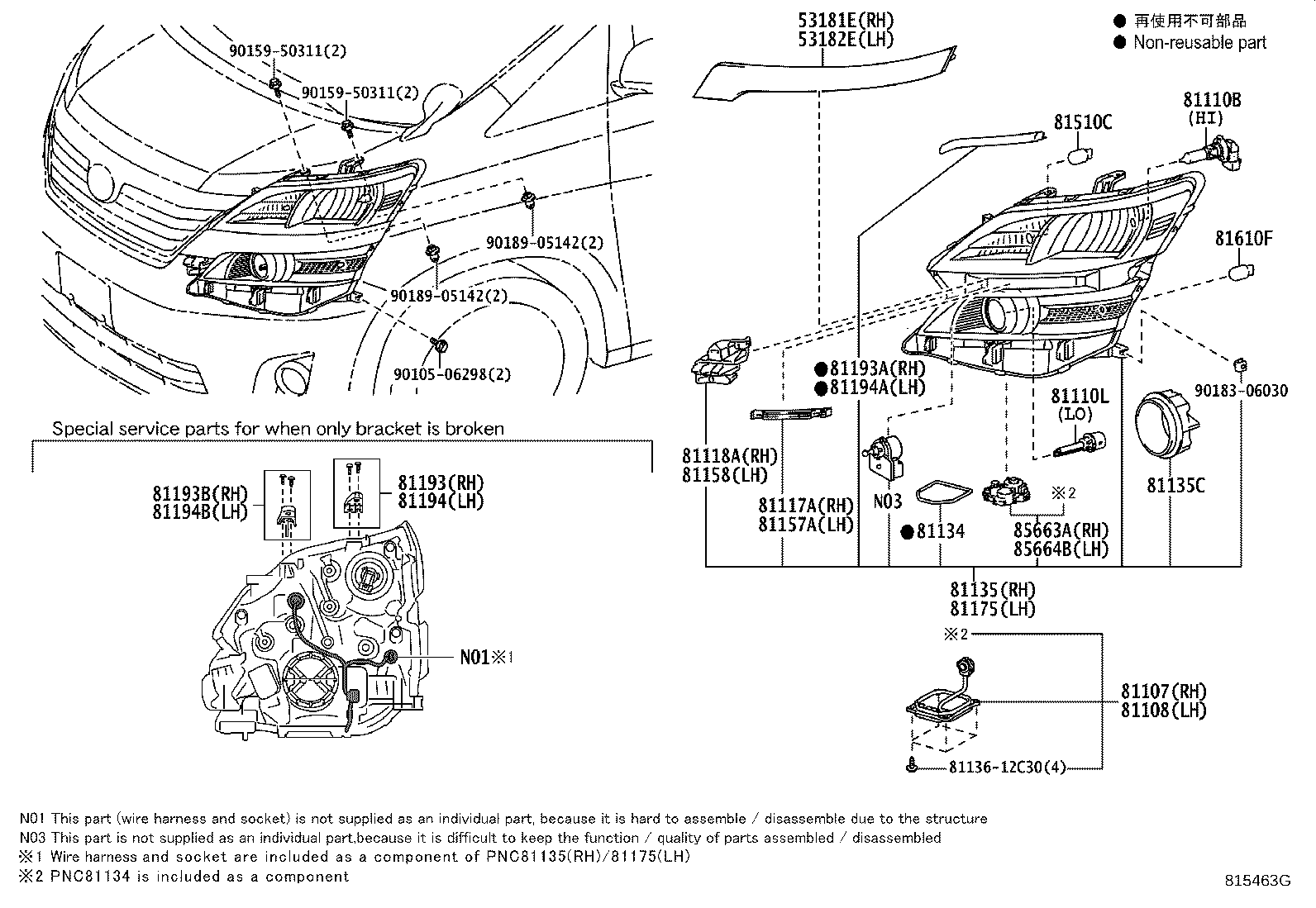

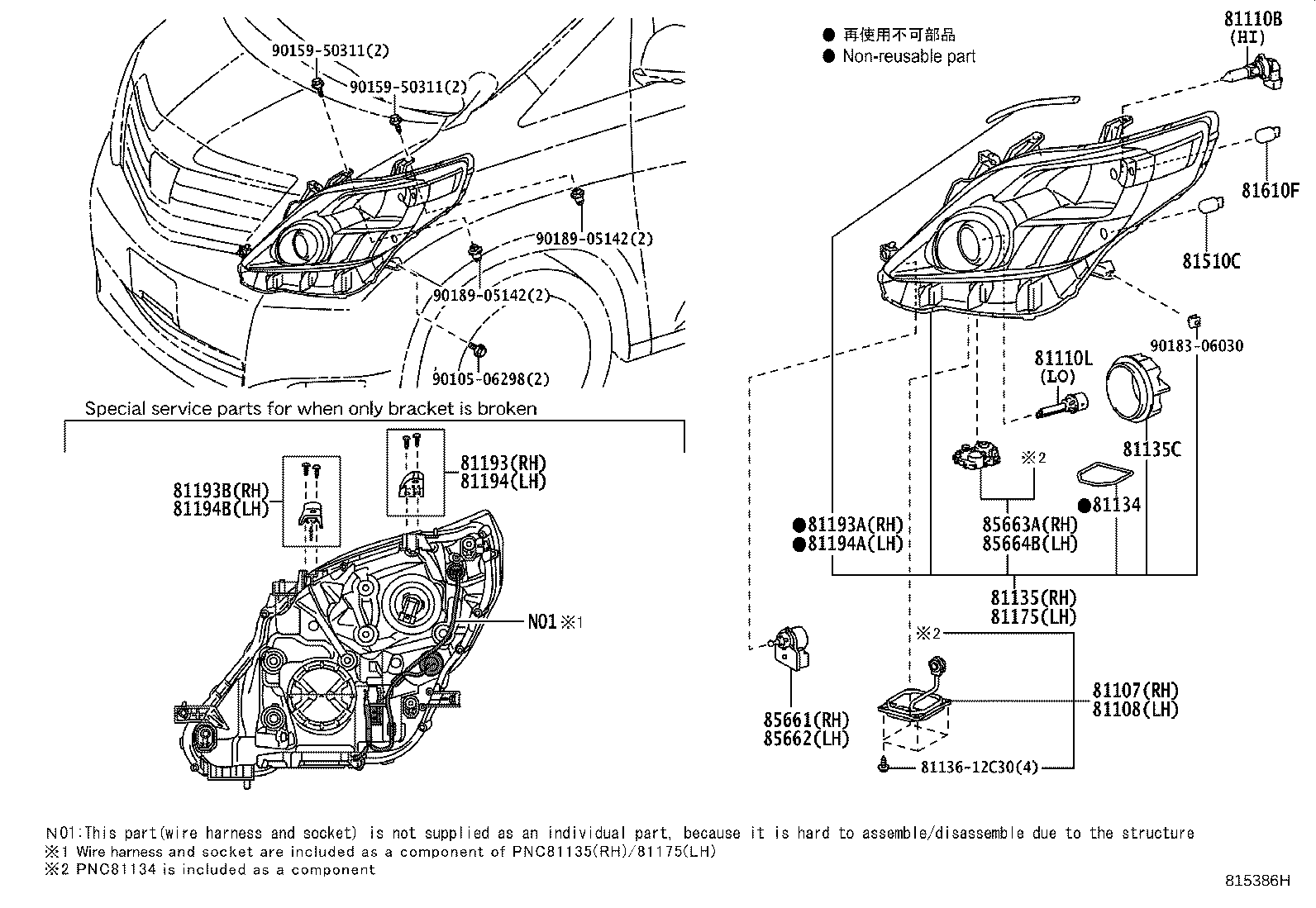

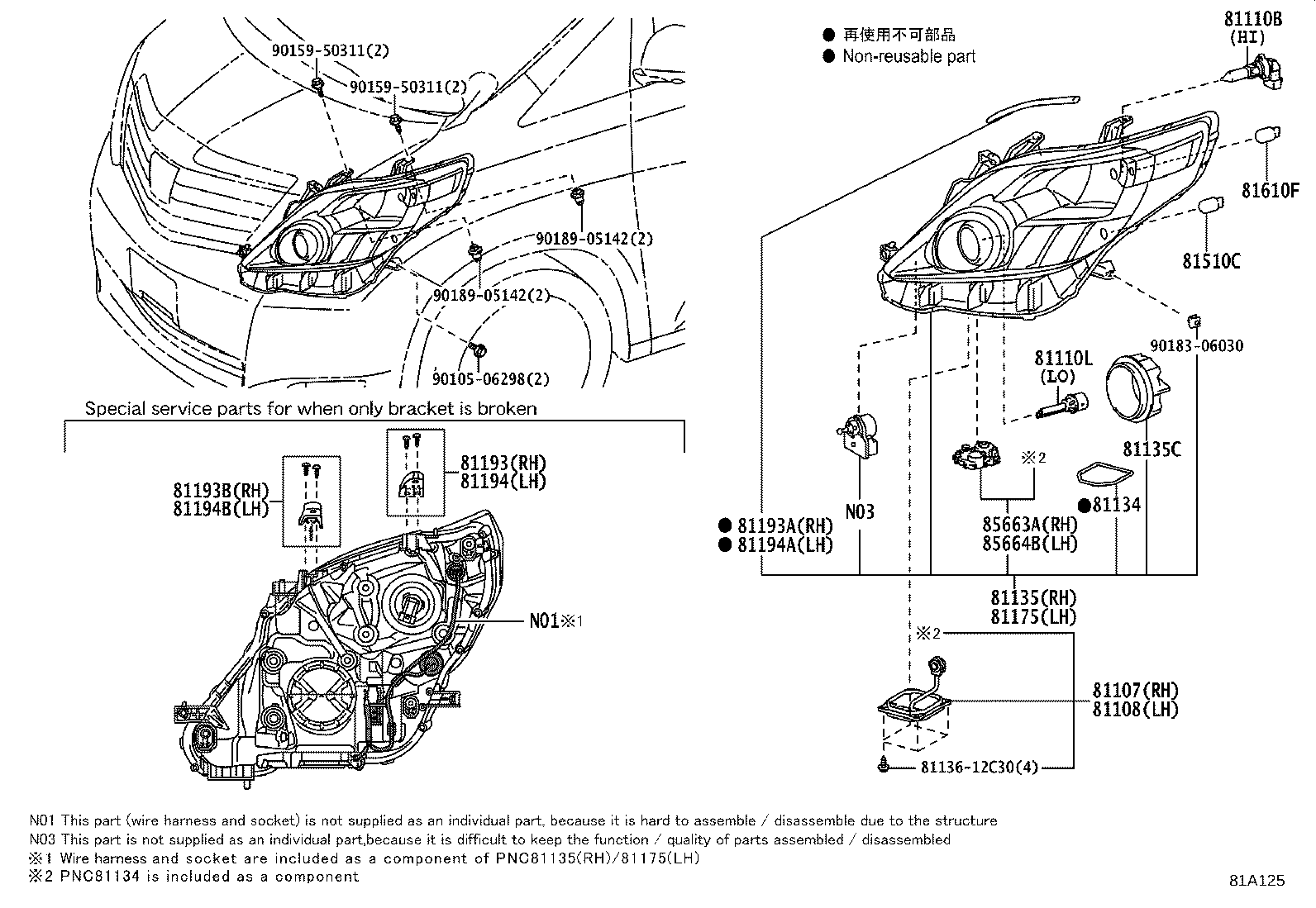

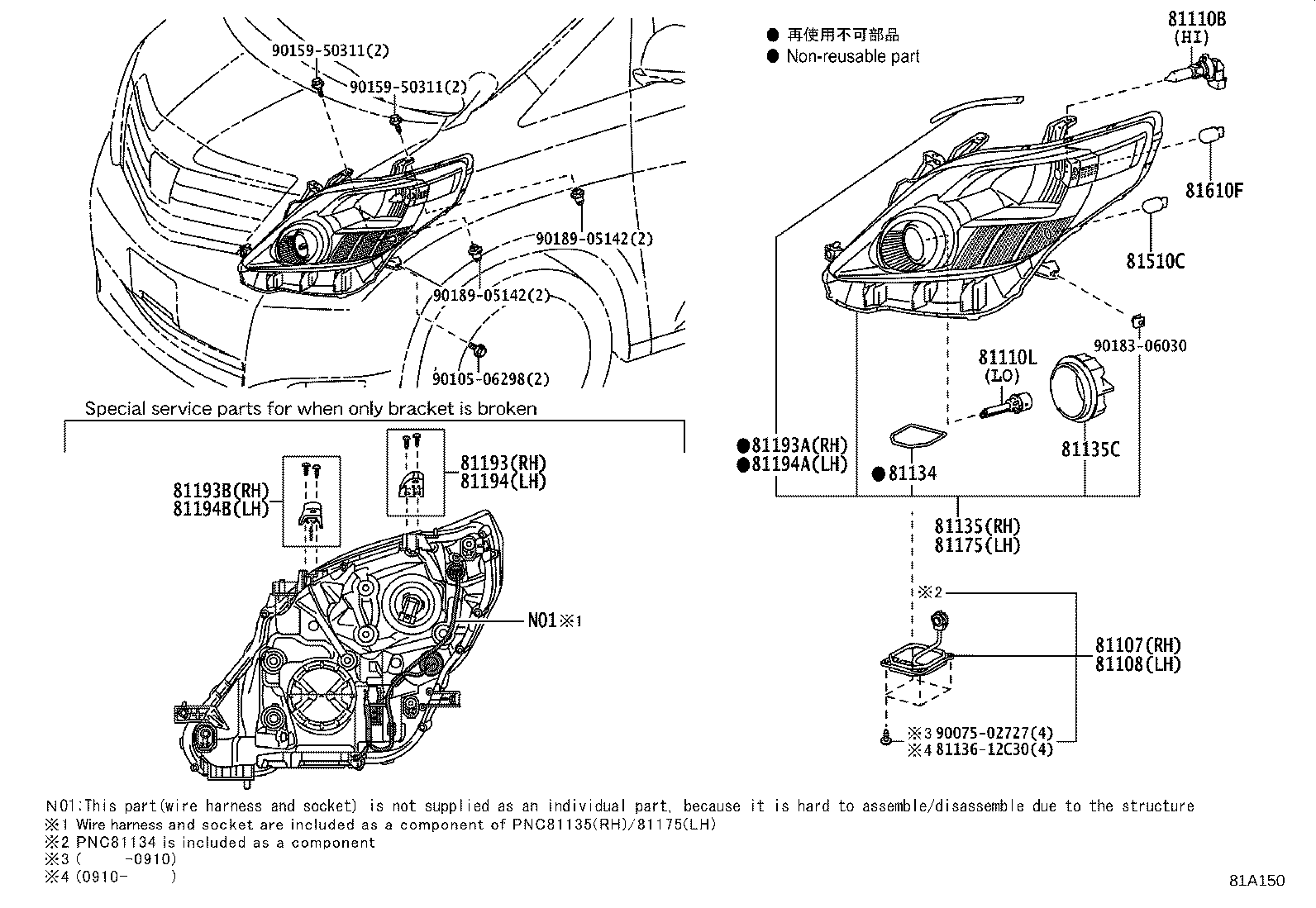

Figure 814626K 814626K 2008-04 → — Figure 814626K 814626K 2011-10 → — Figure 815112H 815112H 2009-06 → — Figure 81A150 81A150 2009-06 → — Figure 815386H 815386H 2010-06 → 2011-10 Figure 81A125 81A125 2011-10 → — Figure 815463G 815463G 2010-08 → —

Part groups

PNCDescription
53181E Cover, Headlamp, RH
53182E Cover, Headlamp, LH
81107 Computer Sub-assy, Headlamp Light Control, RH
81108 Computer Sub-assy, Headlamp Light Control, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110L Bulb, Discharge Headlamp
81117A Bracket, Headlamp, RH
81118A Bracket, Headlamp, RH
81134 Gasket, Headlamp
81135 Unit Assy, Headlamp, RH
81135C Cover, Headlamp Back, NO.1
81150 Headlamp Assy, LH
81157A Bracket, Headlamp, LH
81158 Bracket, Headlamp, LH
81175 Unit Assy, Headlamp, LH
81193 Retainer, Headlamp Protector, Upper RH
81193A Protector, Headlamp, RH
81193B Retainer, Headlamp Protector, Upper RH NO.2
81194 Retainer, Headlamp Protector, Upper LH
81194A Protector, Headlamp, LH
81194B Retainer, Headlamp Protector, Upper LH NO.2
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81610F Bulb(FOR CLEARANCE LAMP)
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
85663A Motor, Headlamp Swivel, RH
85664B Motor, Headlamp Swivel, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
