Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

12 part groups · 5 illustrations

Illustrations

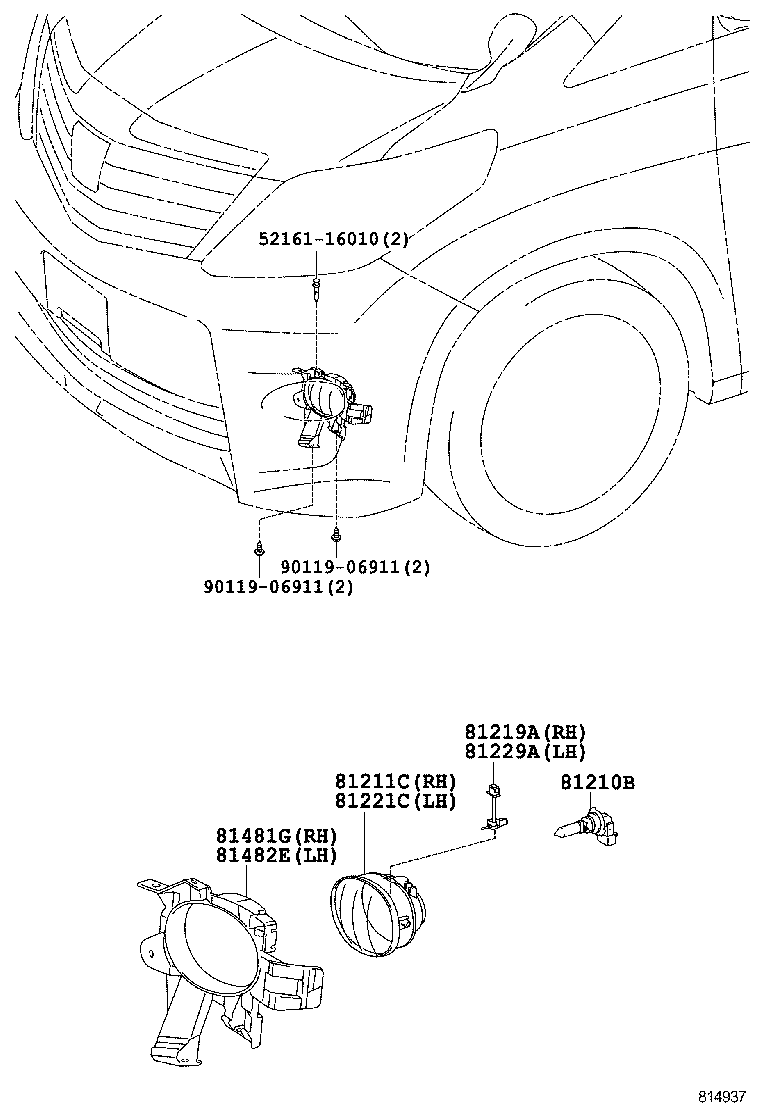

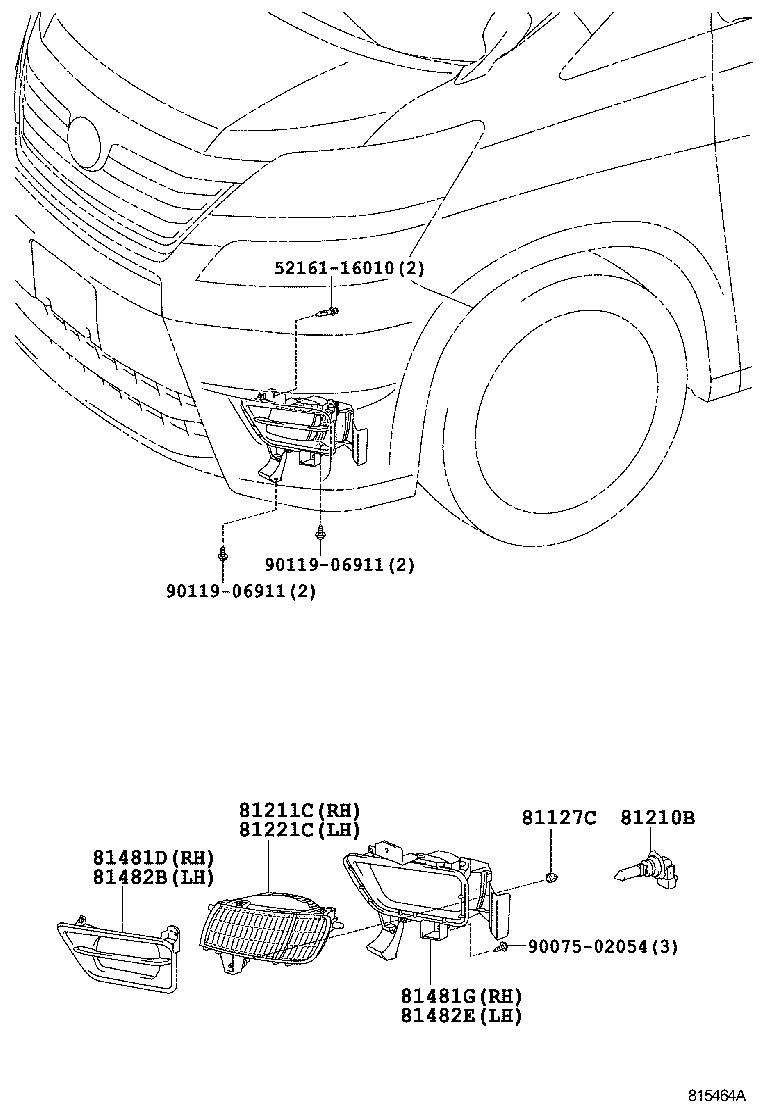

Figure 814713B 814713B 2008-04 → 2011-10 Figure 814937 814937 2008-04 → 2010-08 Figure 814937 814937 2008-04 → 2011-10 Figure 815464A 815464A 2010-08 → 2011-10 Figure 815857A 815857A 2011-10 → —

Part groups

PNCDescription
81127C Bearing Fog Lamp
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481D Cover, Fog Lamp, RH
81481G Bracket, Fog Lamp, RH
81482B Cover, Fog Lamp, LH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
