Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

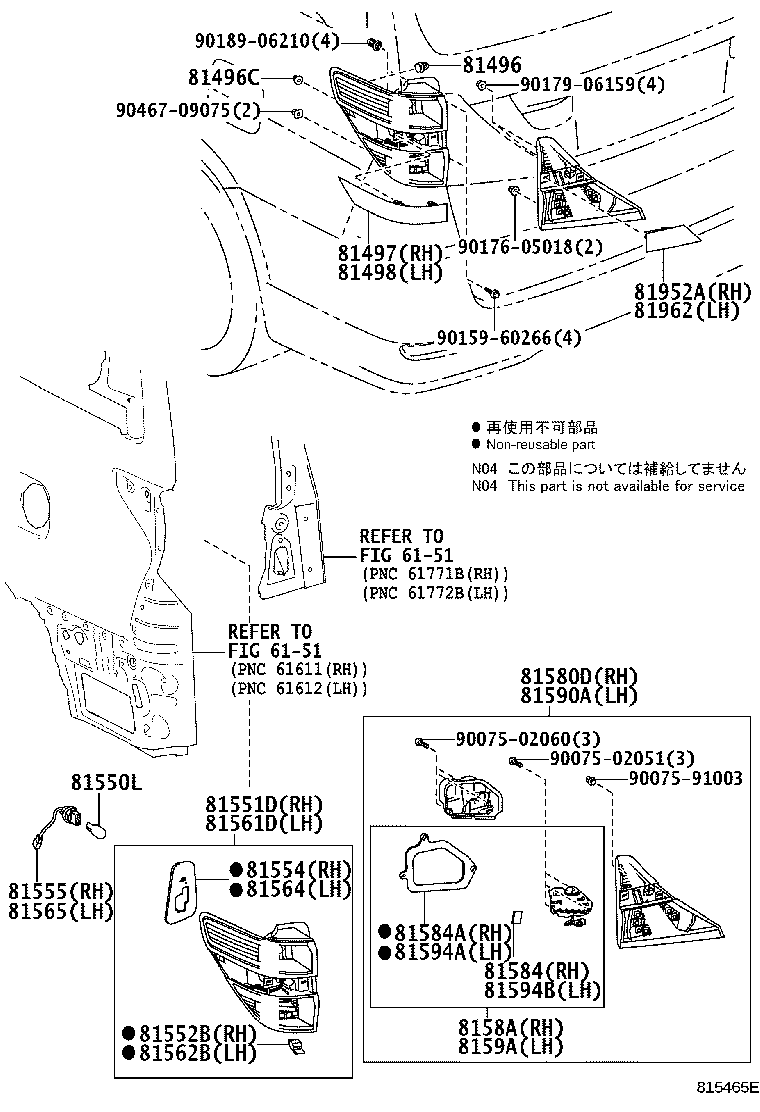

Rear Combination Lamp
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81496 | Guide, Rear Combination Lamp |
| 81496C | Guide, Rear Combination Lamp, NO.2 |
| 81497 | Cover, Rear Combination Lamp, RH |
| 81498 | Cover, Rear Combination Lamp, LH |
| 81550F | Bulb, Taillamp |
| 81550L | Bulb, Rear Turn Signal Lamp |
| 81551D | Lens & Body, Rear Combination Lamp, RH |
| 81552B | Packing, Rear Combination Lamp Body, RH |
| 81554 | Gasket, Rear Combination Lamp Body, RH |
| 81555 | Socket & Wire Sub-assy, Rear Combination Lamp, RH |
| 81557F | Cover, Rear Combination Lamp Back, RH |
| 81558K | Cover, Rear Combination Lamp Back, LH |
| 81561D | Lens & Body, Rear Combination Lamp, LH |
| 81562B | Packing, Rear Combination Lamp Body, LH |
| 81564 | Gasket, Rear Combination Lamp Body, LH |
| 81565 | Socket & Wire Sub-assy, Rear Combination Lamp, LH |
| 81580B | Bulb (FOR REAR LAMP) |
| 81580D | Lamp Assy, Rear, RH |
| 81581C | Lens And Body, Rear Lamp, RH |
| 81584 | Packing, Rear Lamp RH |
| 81584A | Gasket, Rear Lamp RH |
| 81585 | Socket & Wire, Rear Lamp |
| 8158A | Led, Rear Lamp |
| 81590A | Lamp Assy, Rear, LH |
| 81591B | Lens And Body, Rear Lamp, LH |
| 81594A | Gasket, Rear Lamp LH |
| 81594B | Packing, Rear Lamp LH |
| 8159A | Led, Rear Lamp, LH |
| 81952A | Cover, Rear Lamp, RH |
| 81962 | Cover, Rear Lamp, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
