Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01
Interior Lamp
26 part groups · 4 illustrations

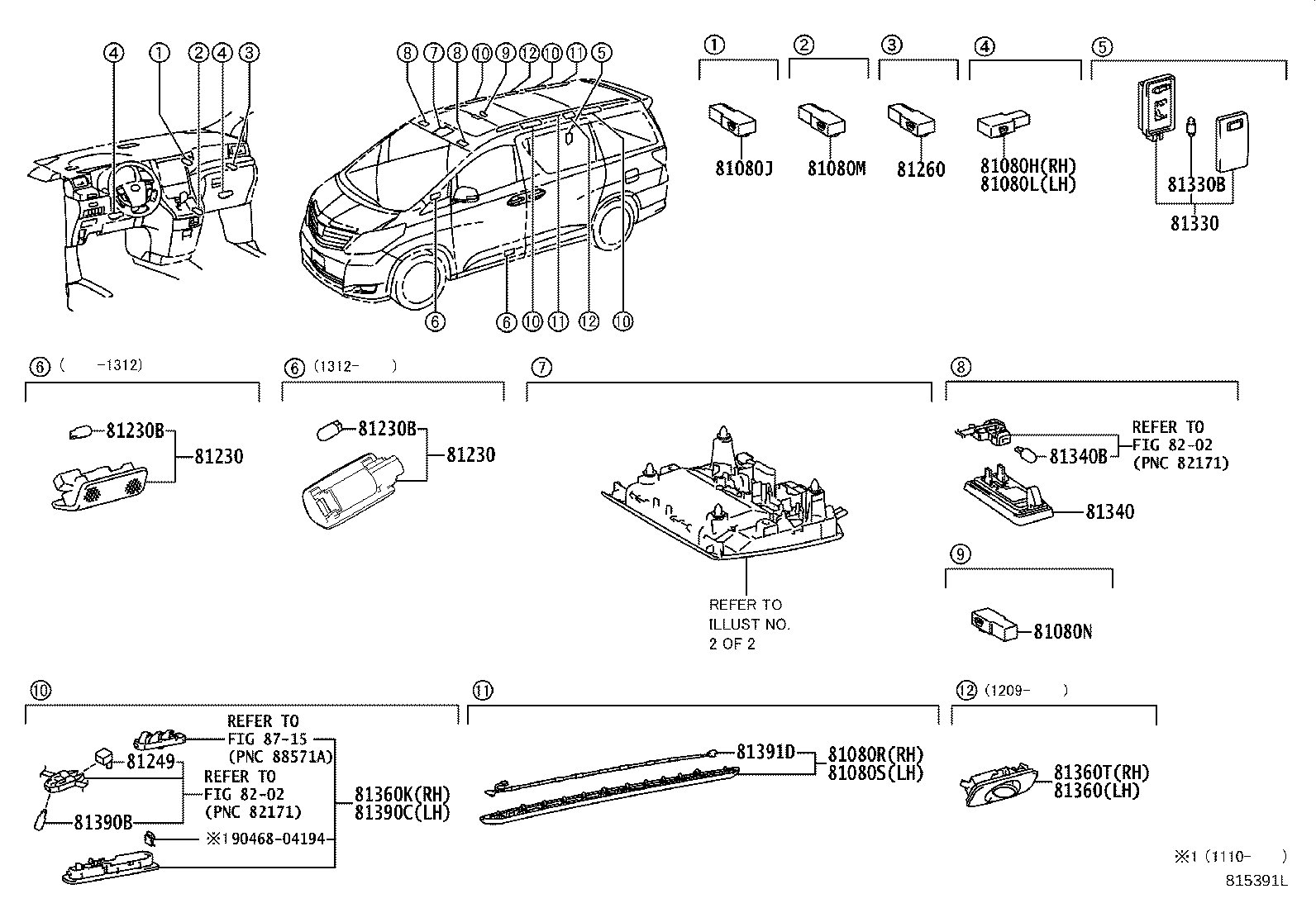

Part groups
| PNC | Description |
|---|---|
| 81080H | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81080L | Lamp Assy, Interior Illumination, NO.1 LH |
| 81080M | Lamp Assy, Interior Illumination, NO.1 |
| 81080N | Lamp Assy, Interior Illumination, NO.1 |
| 81080R | Lamp Assy, Interior Illumination, NO.1 RH |
| 81080S | Lamp Assy, Interior Illumination, NO.1 LH |
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81249 | Switch, Room Lamp |
| 81260 | Lamp Assy, Glove Box |

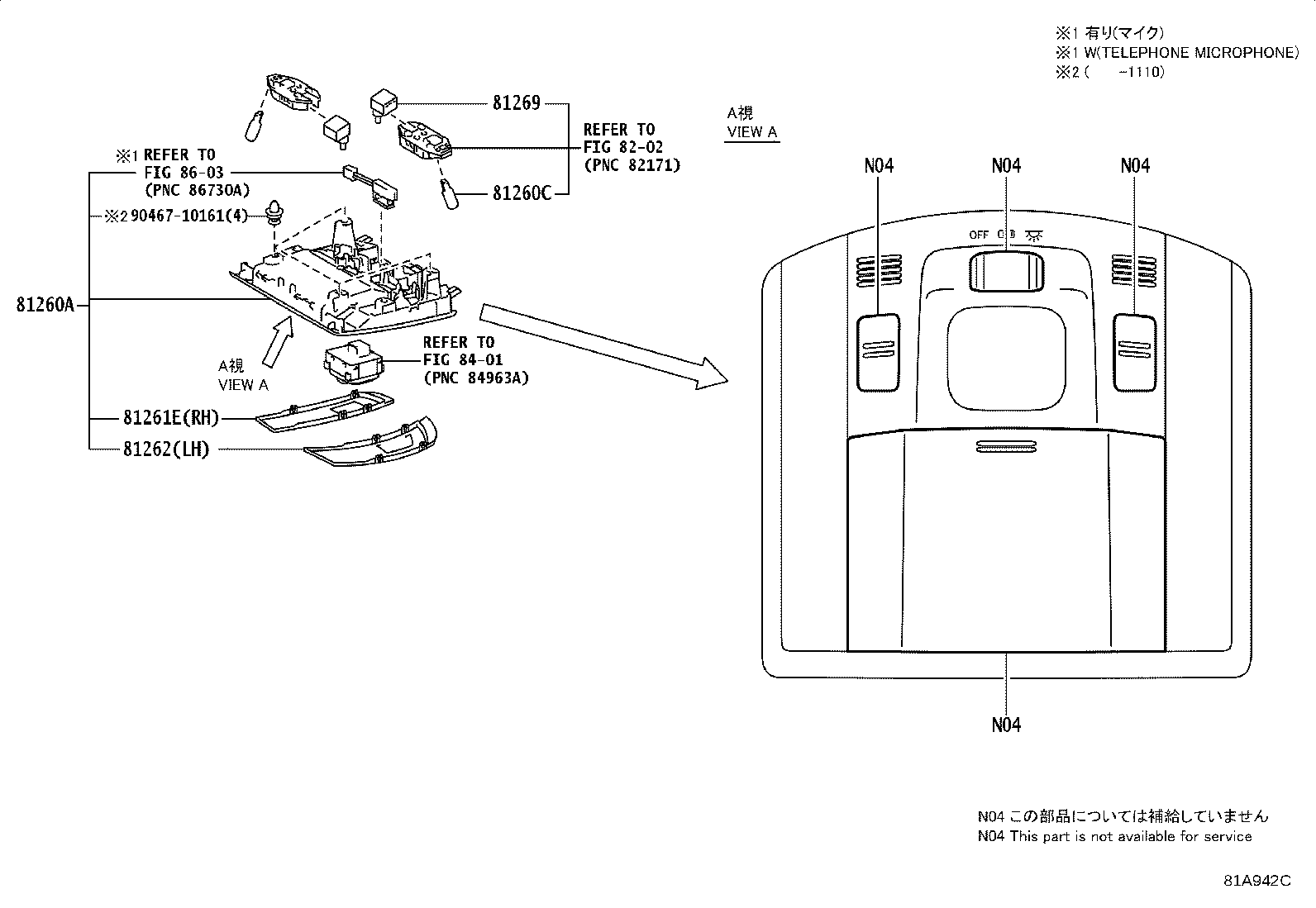

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81261E | Lens, Map Lamp |
| 81262 | Lens, Map Lamp |
| 81269 | Switch, Map Lamp |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
| 81360 | Lamp Assy, Step OR Spot |
| 81360K | Lamp Assy, Spot, RH |
| 81360T | Lamp Assy, Spot |
| 81390B | Bulb, Spot Lamp |
| 81390C | Lamp Assy, Spot, LH |
| 81391D | Holder, Lamp Bulb |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
