Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

84 part groups · 33 illustrations

Illustrations

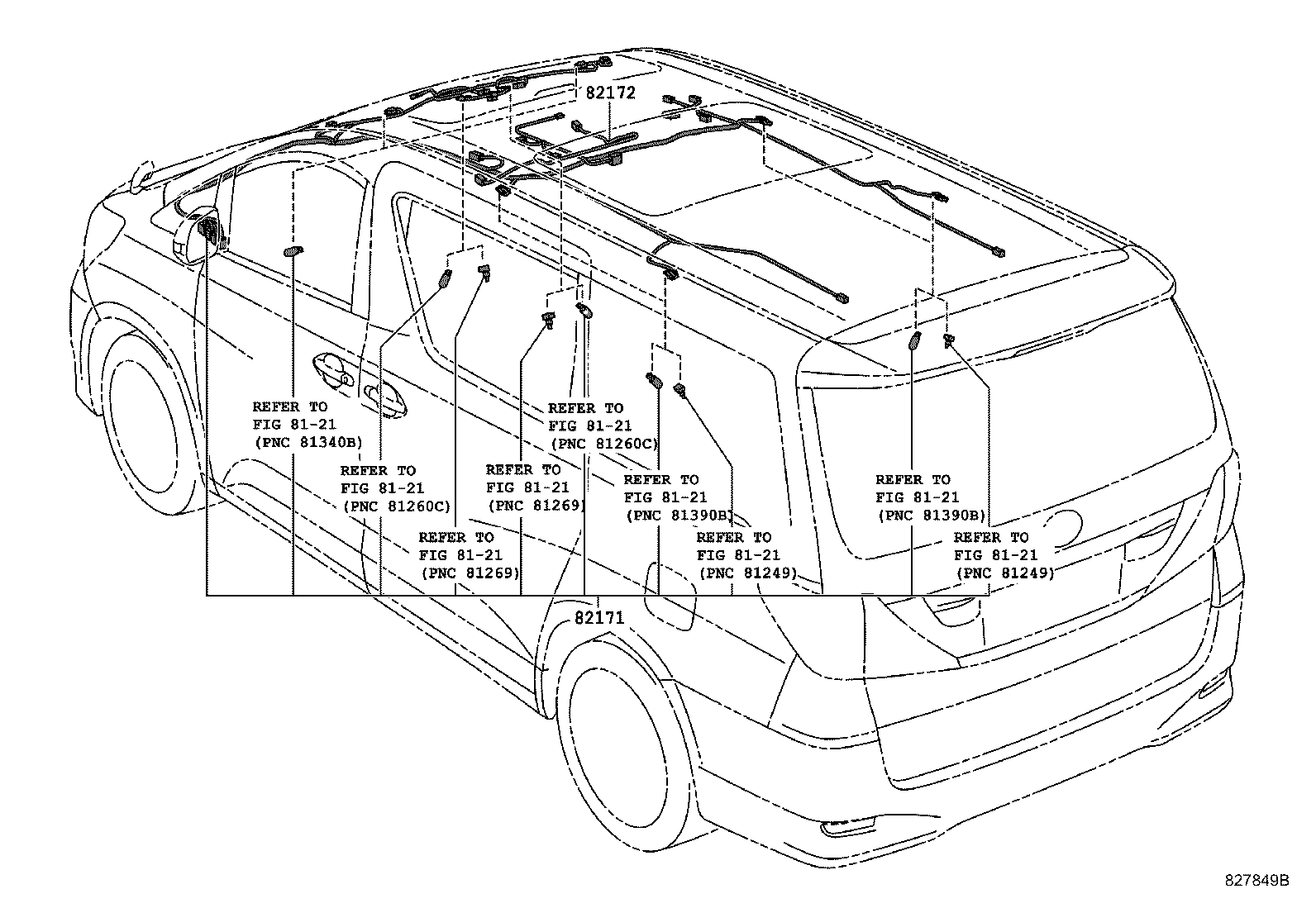

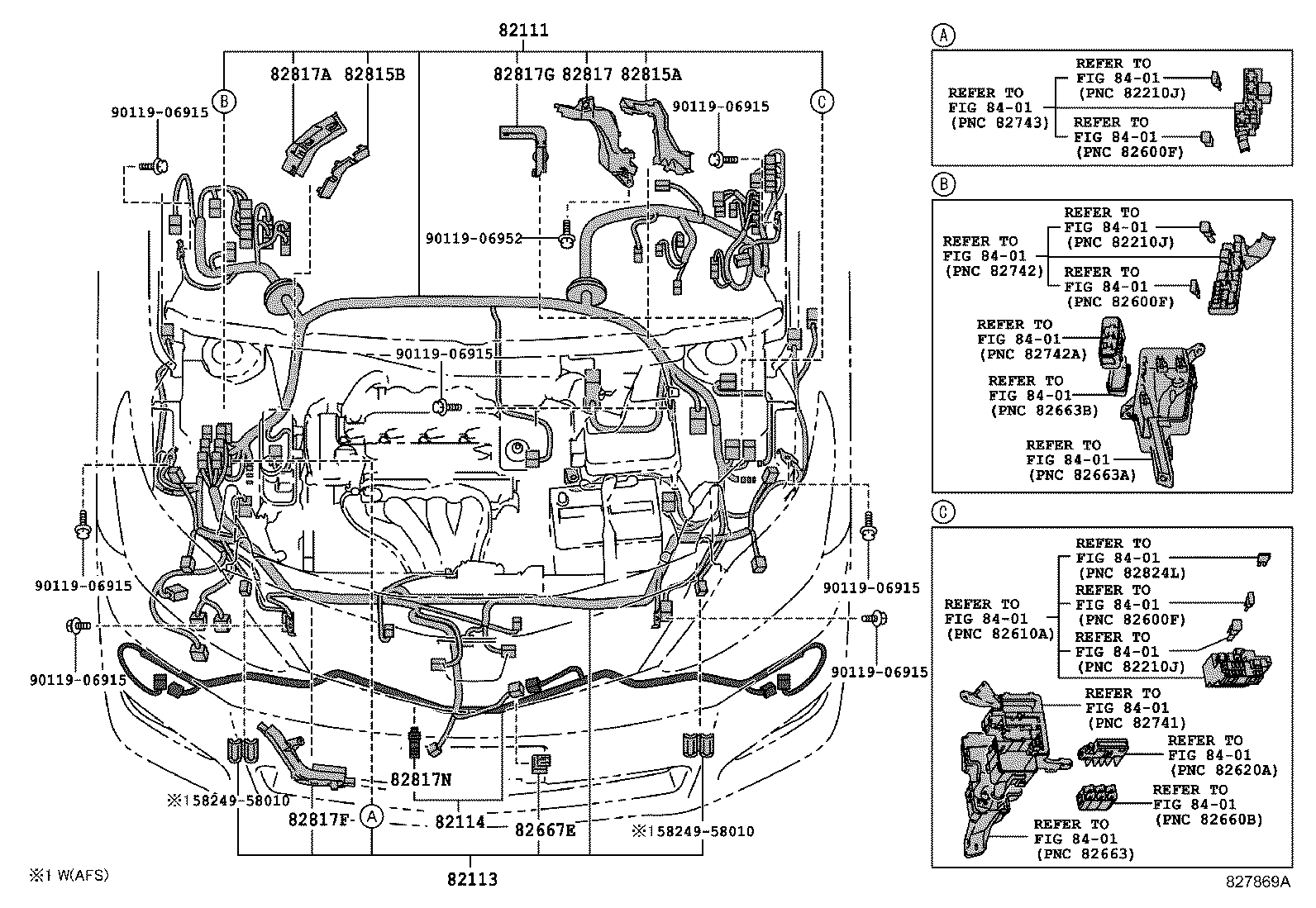

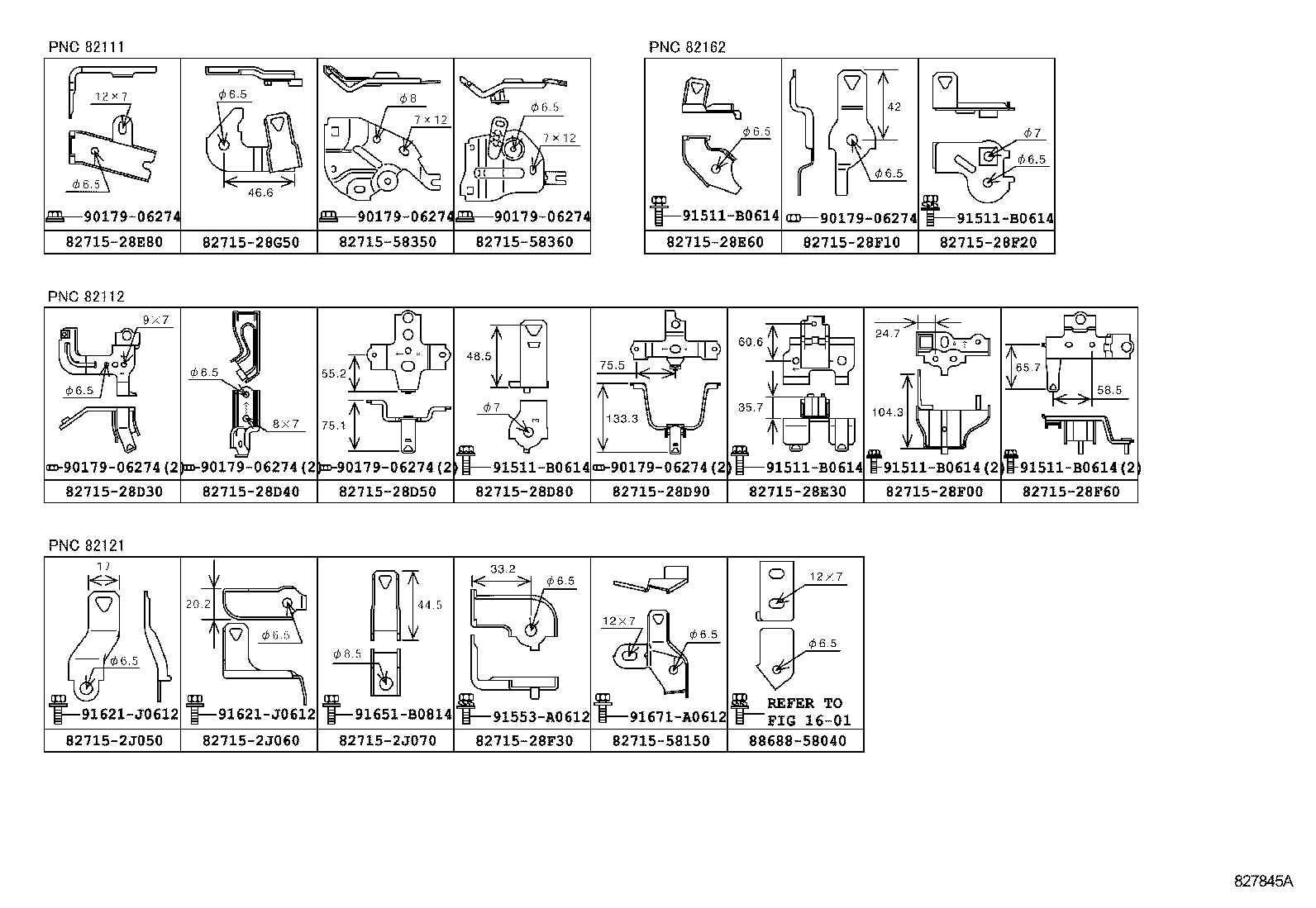

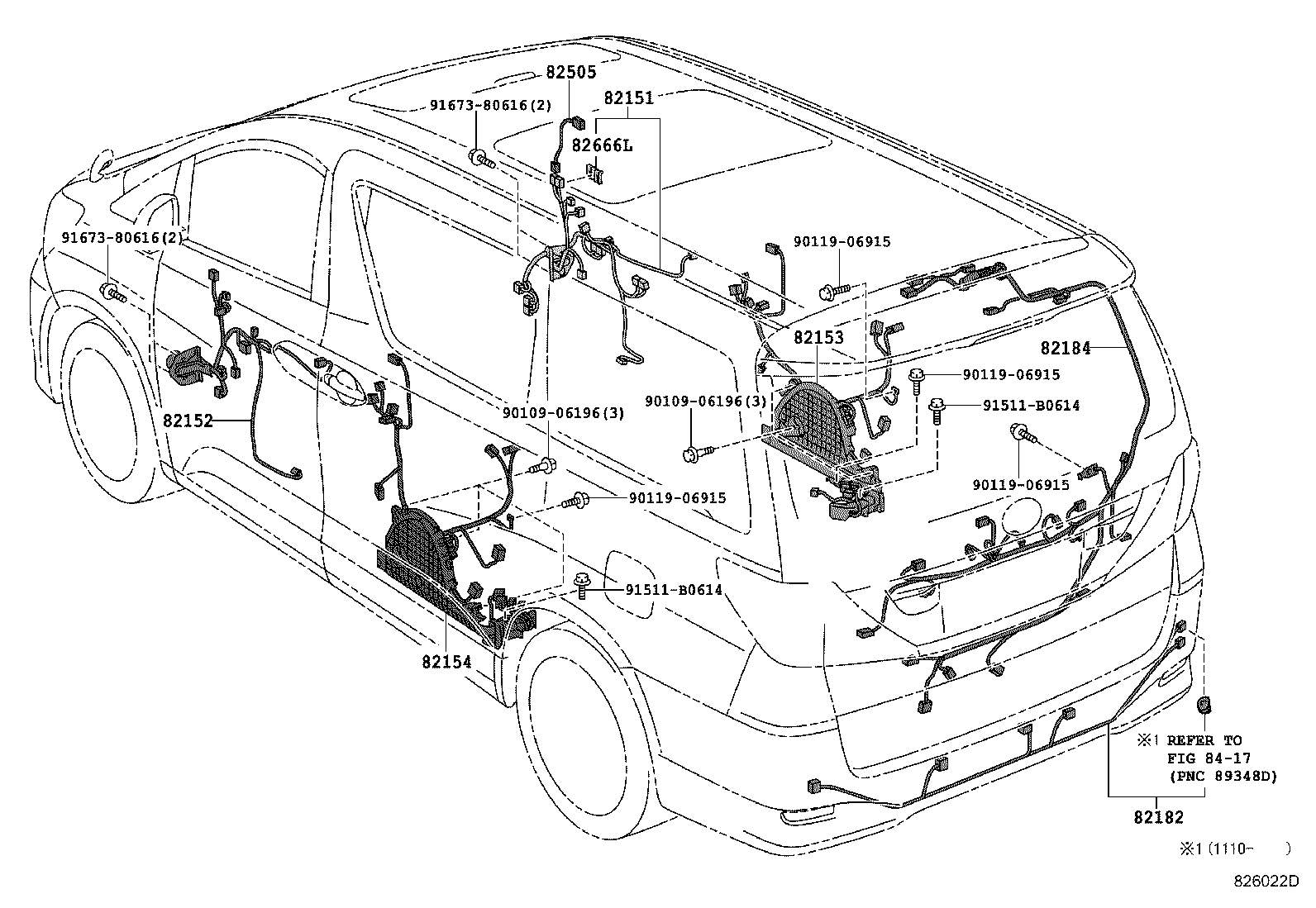

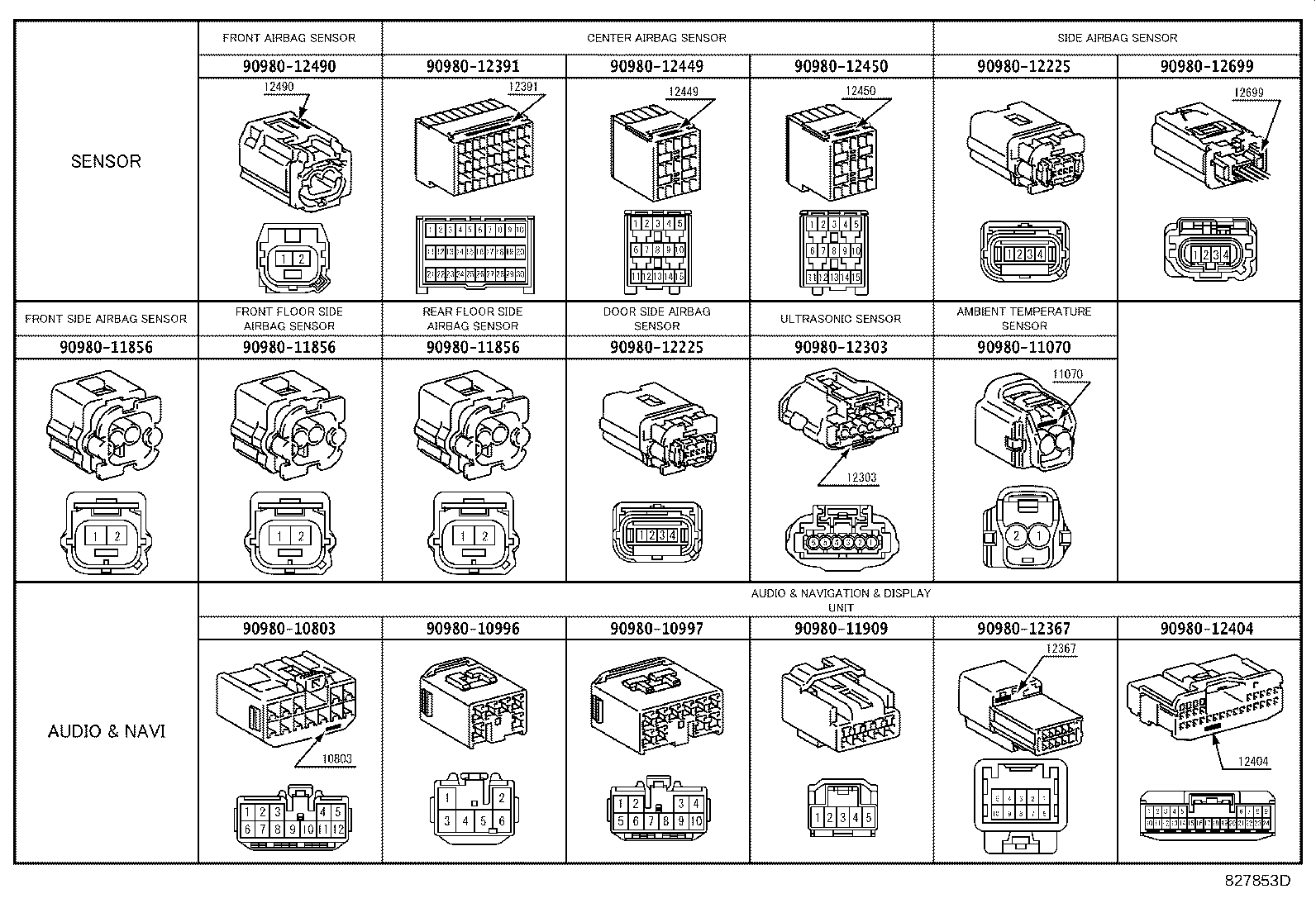

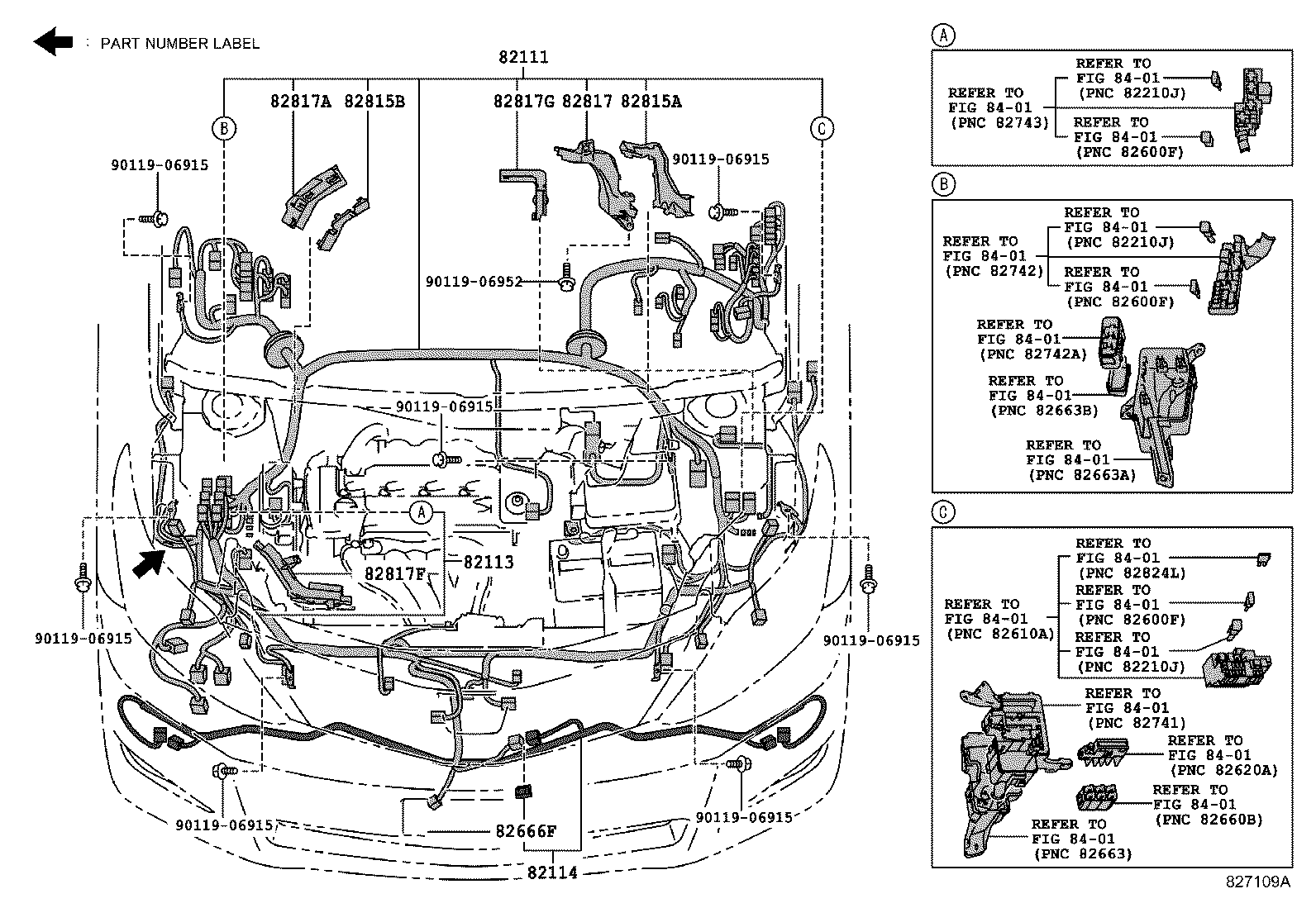

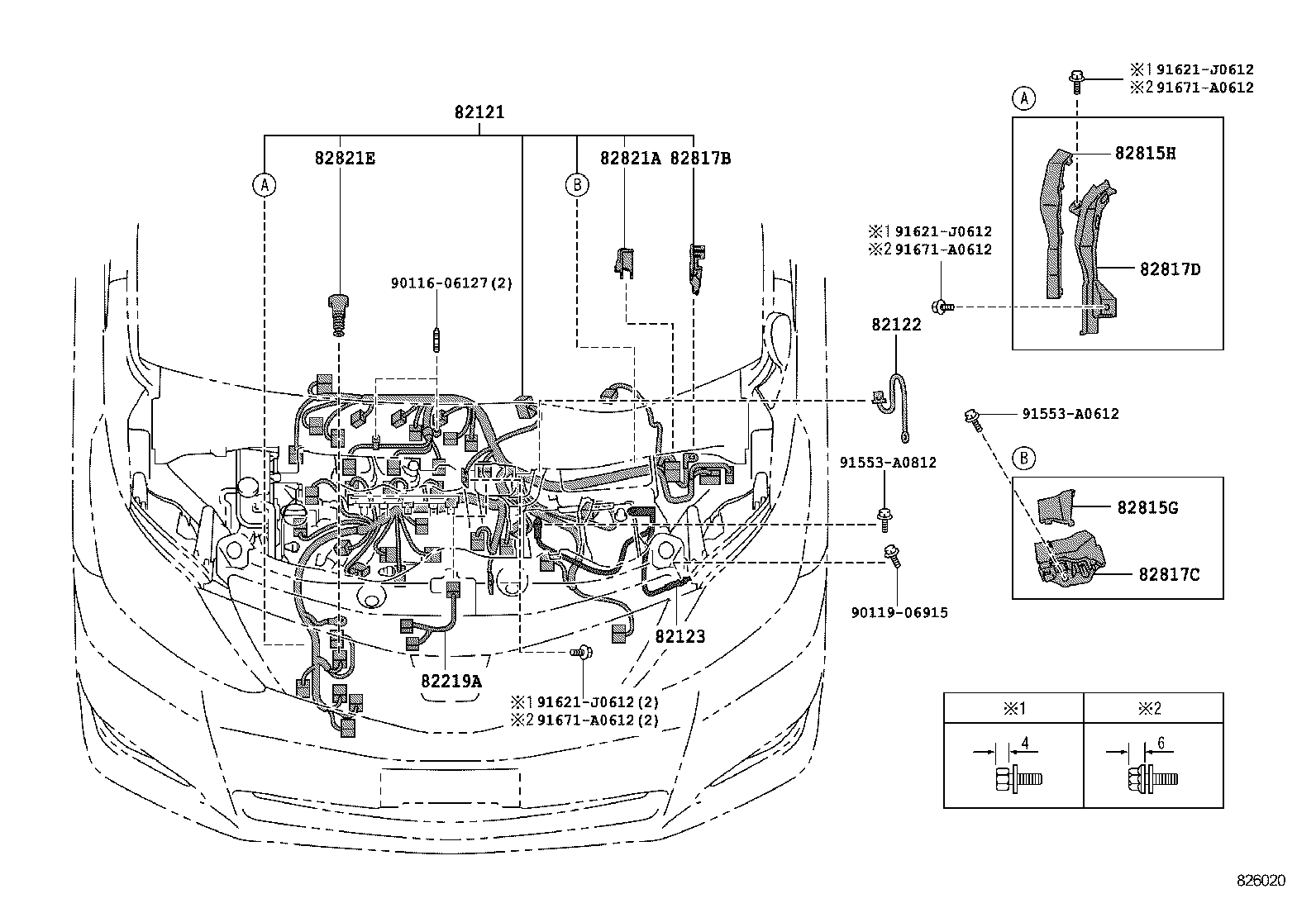

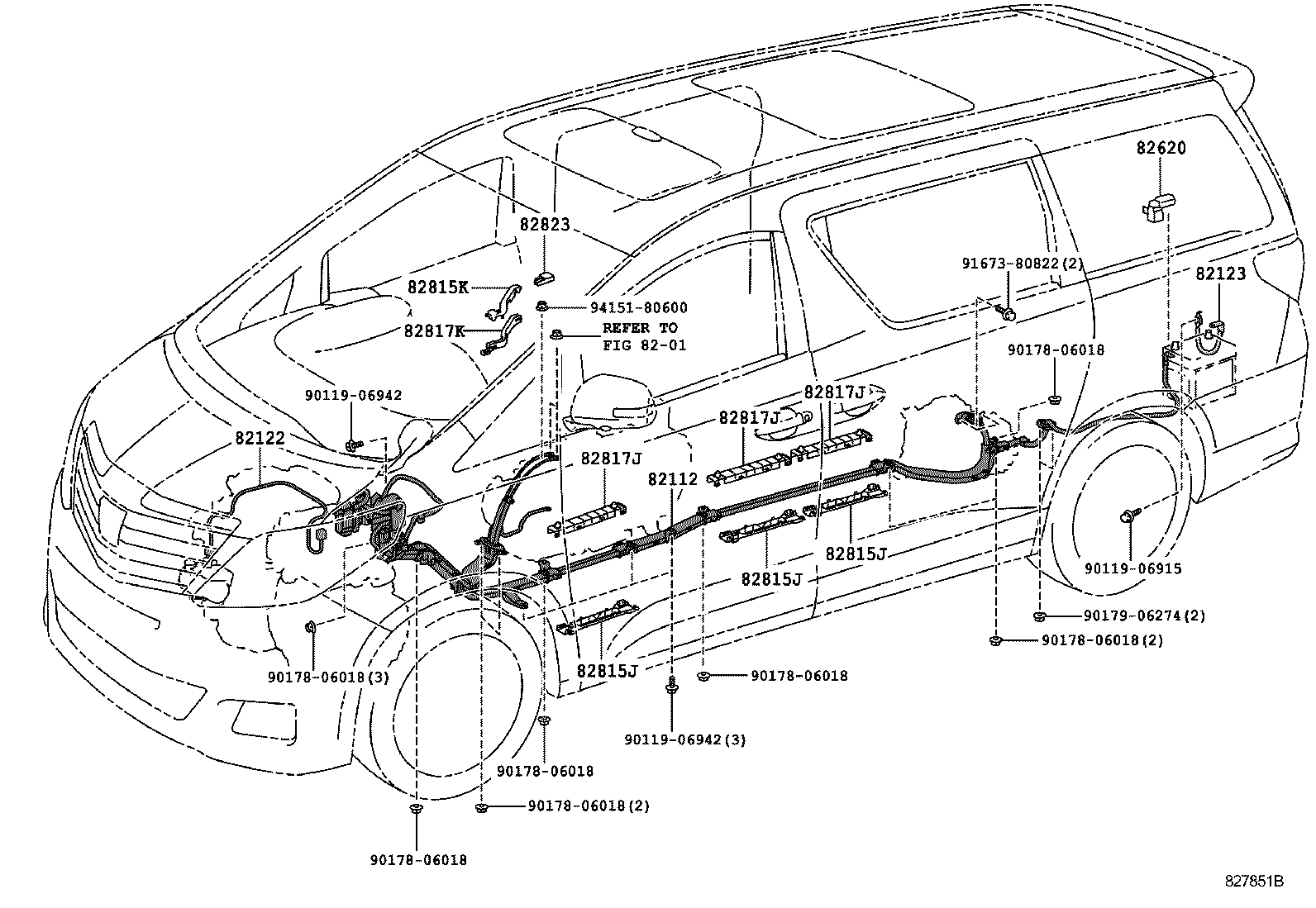

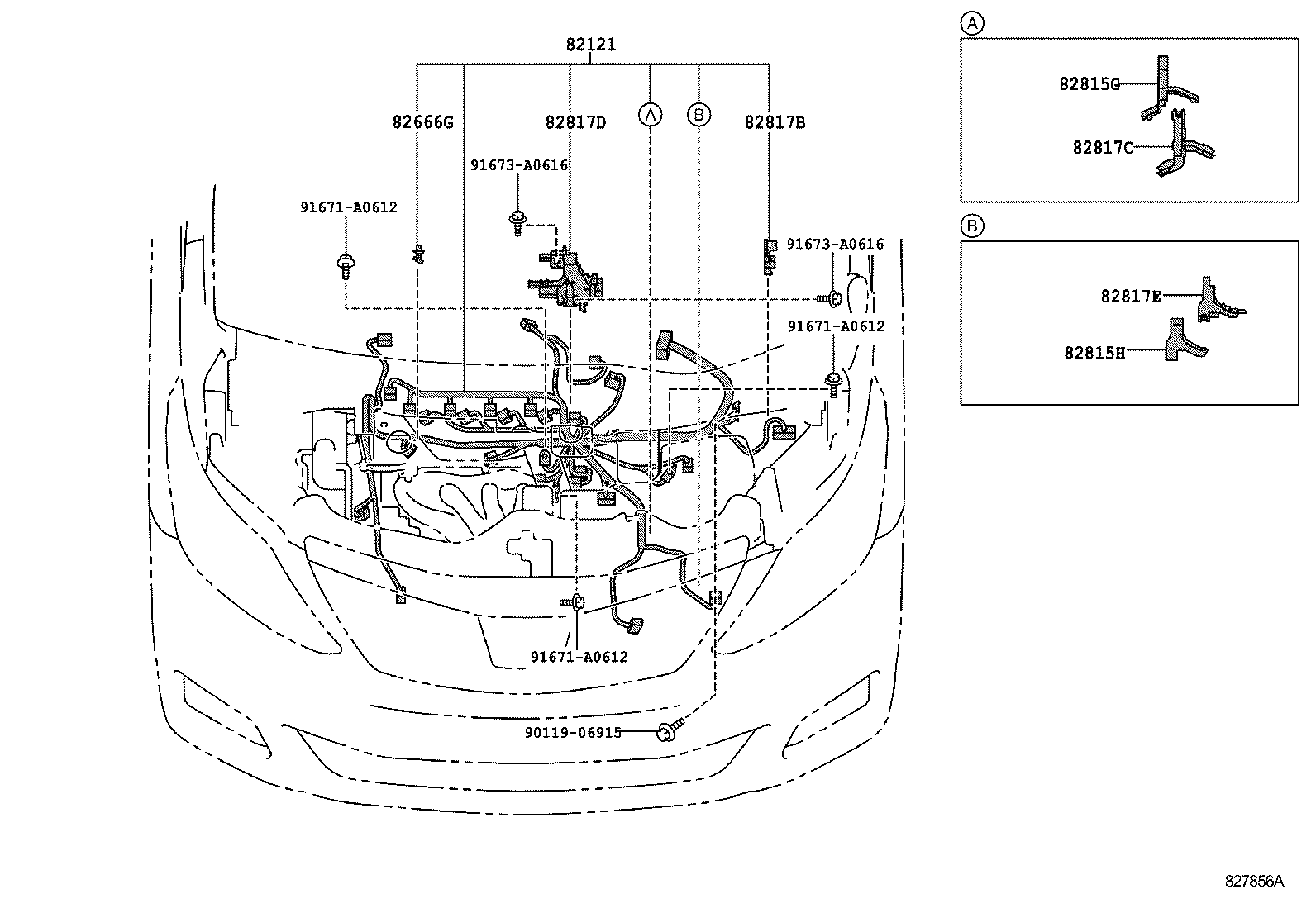

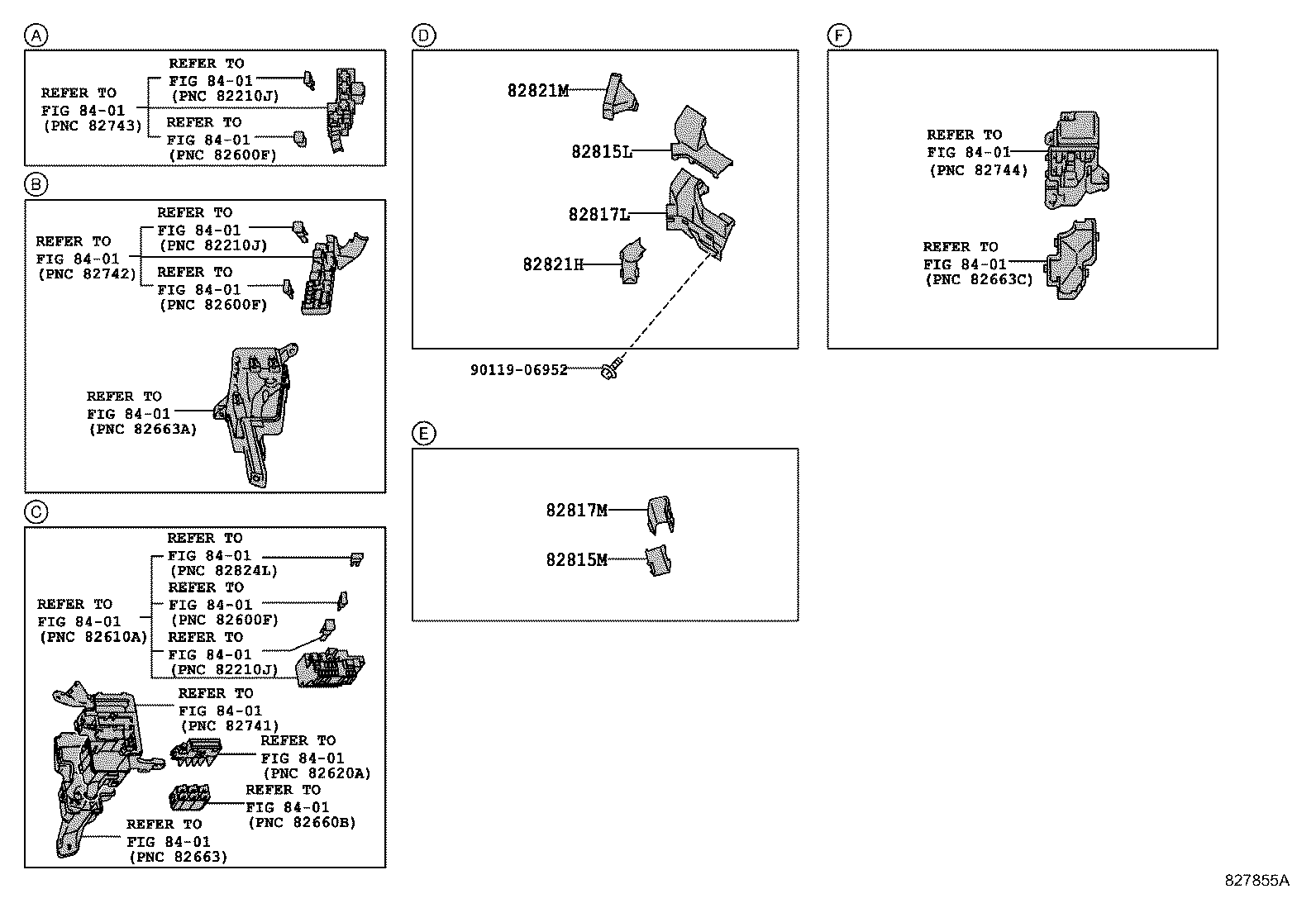

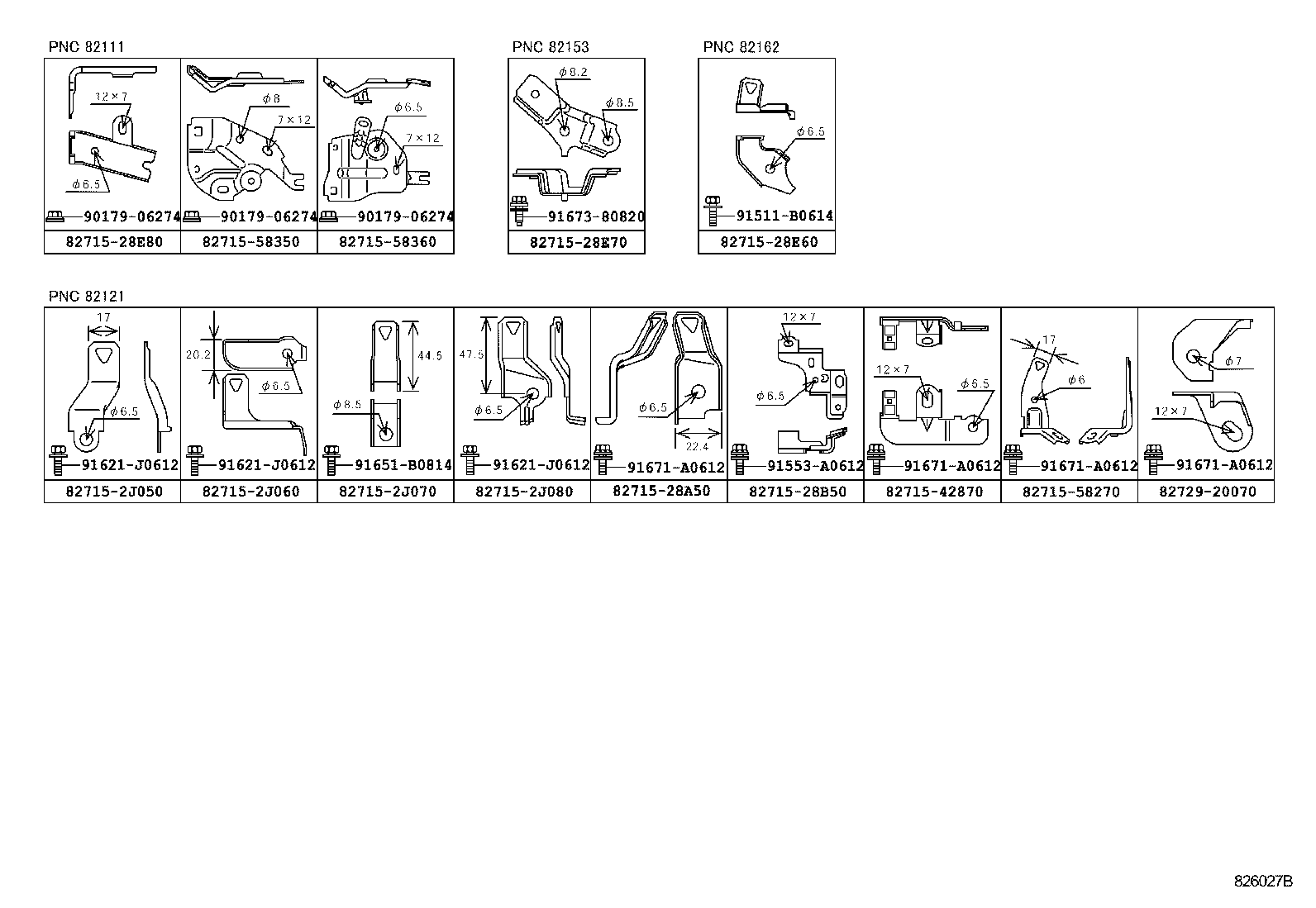

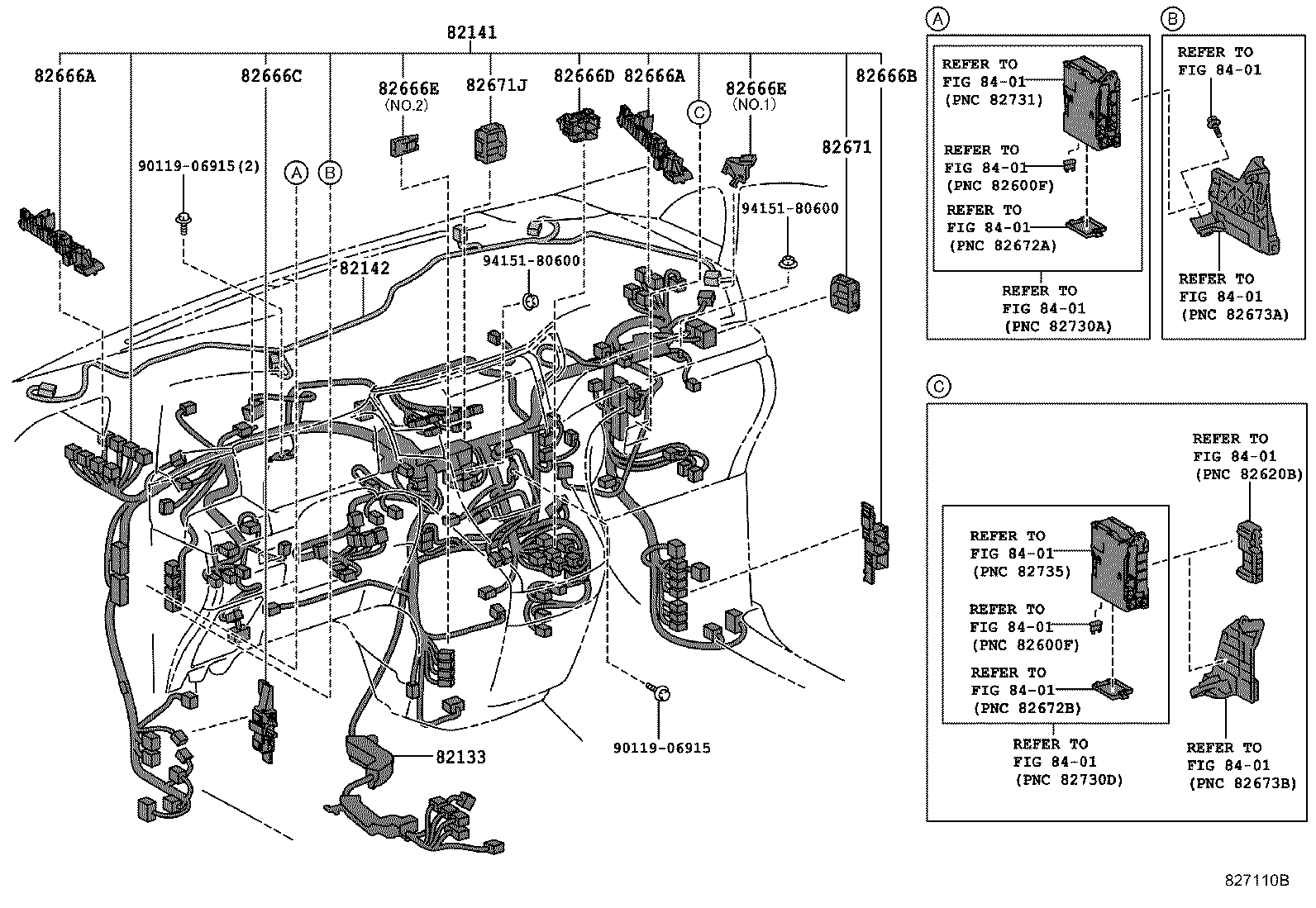

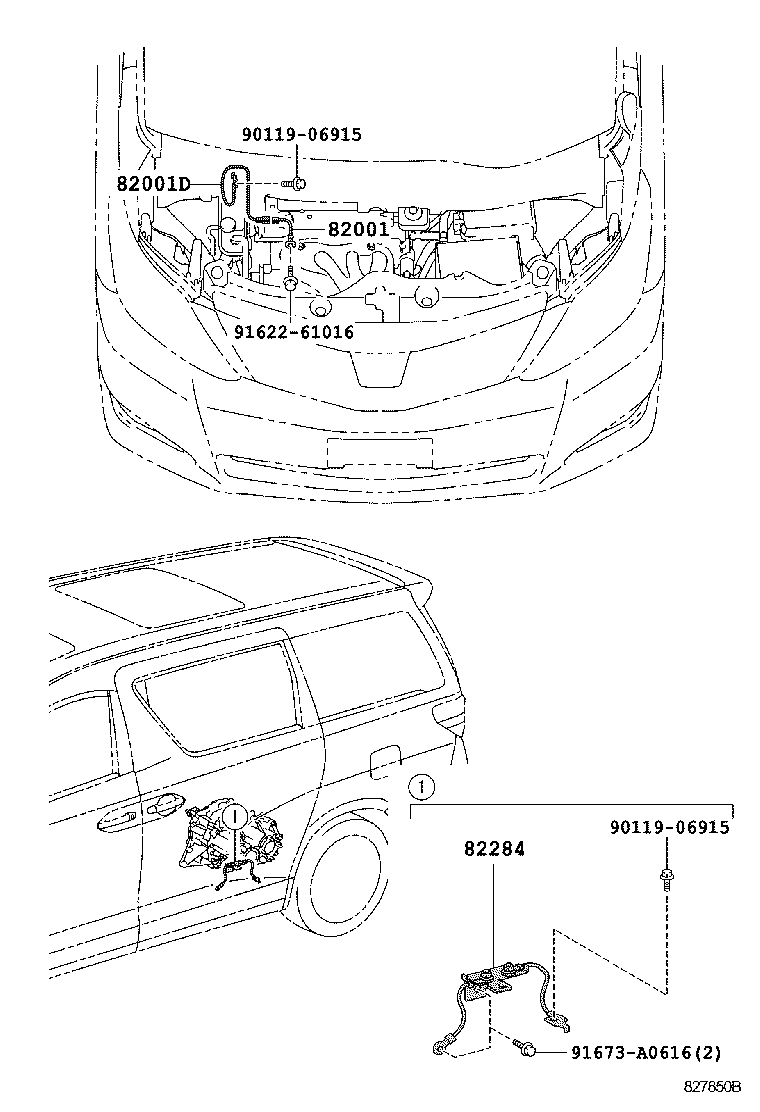

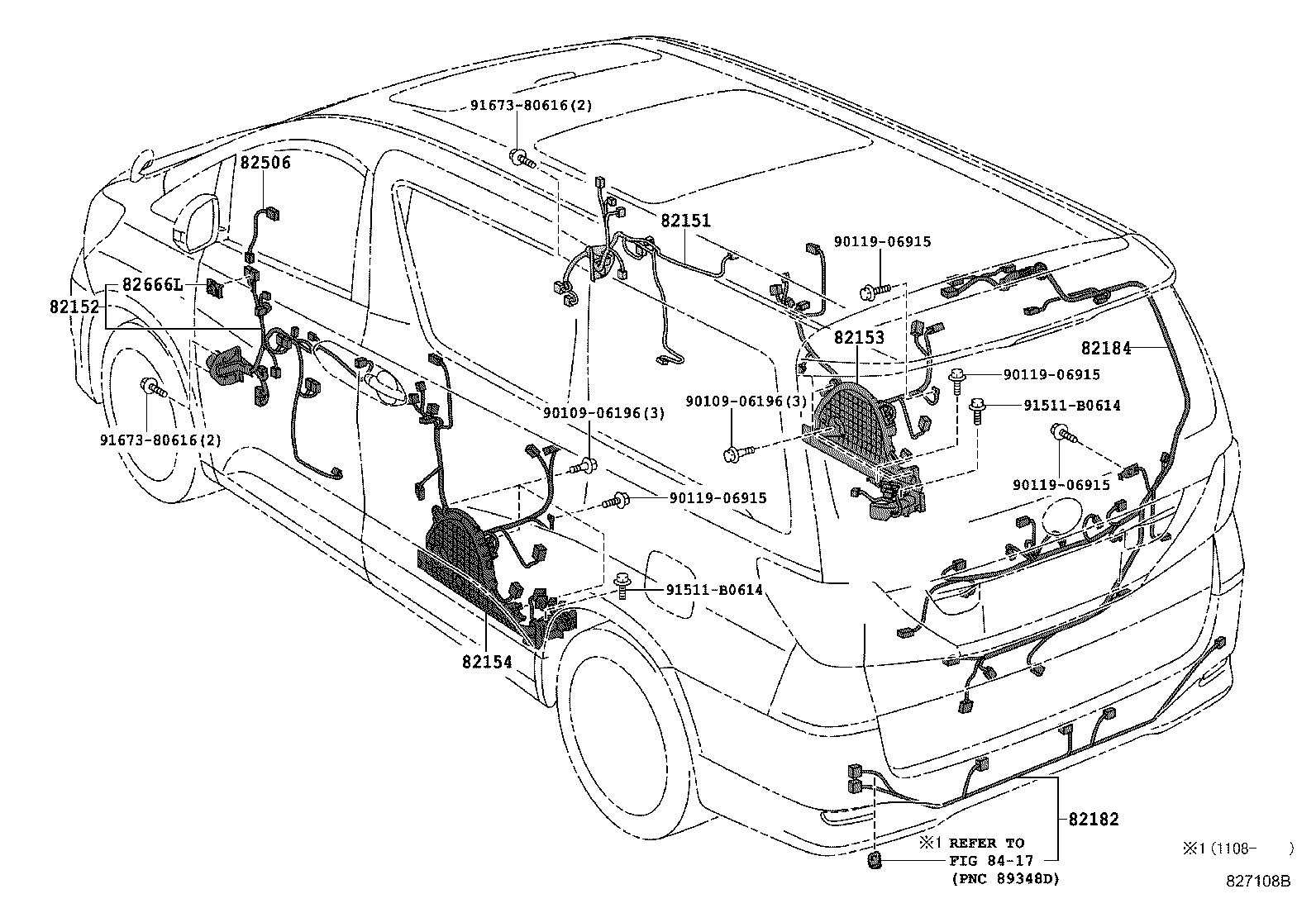

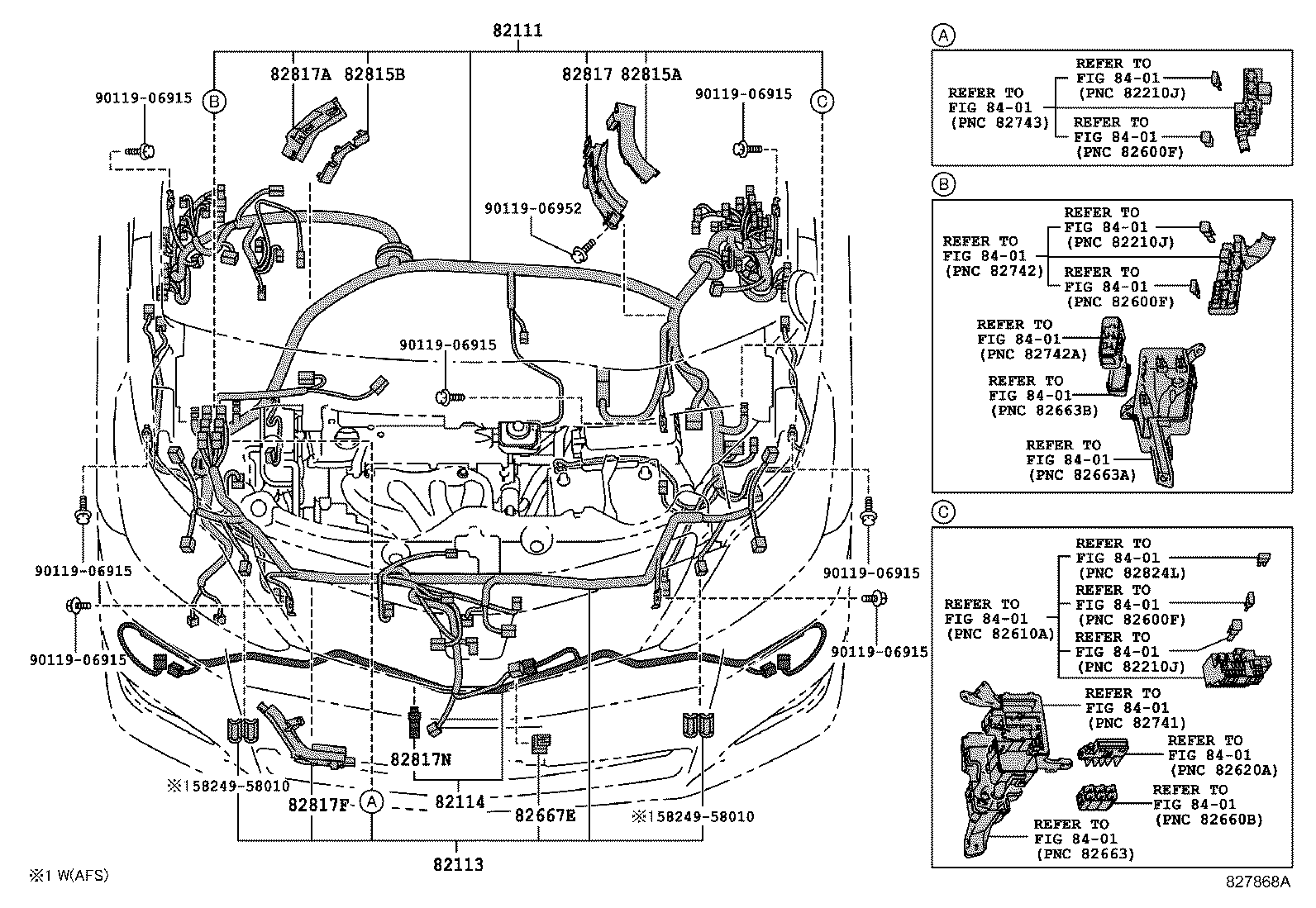

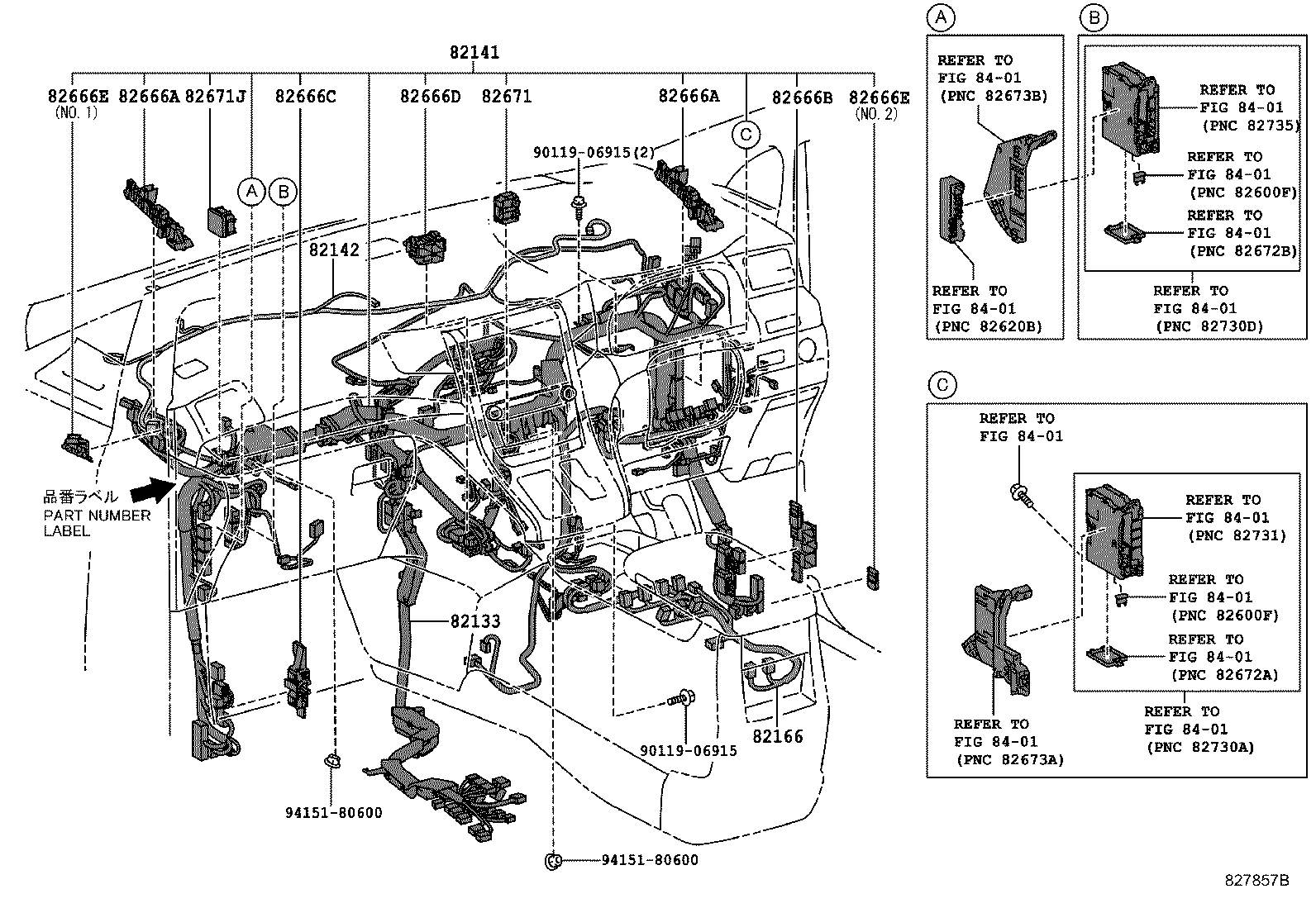

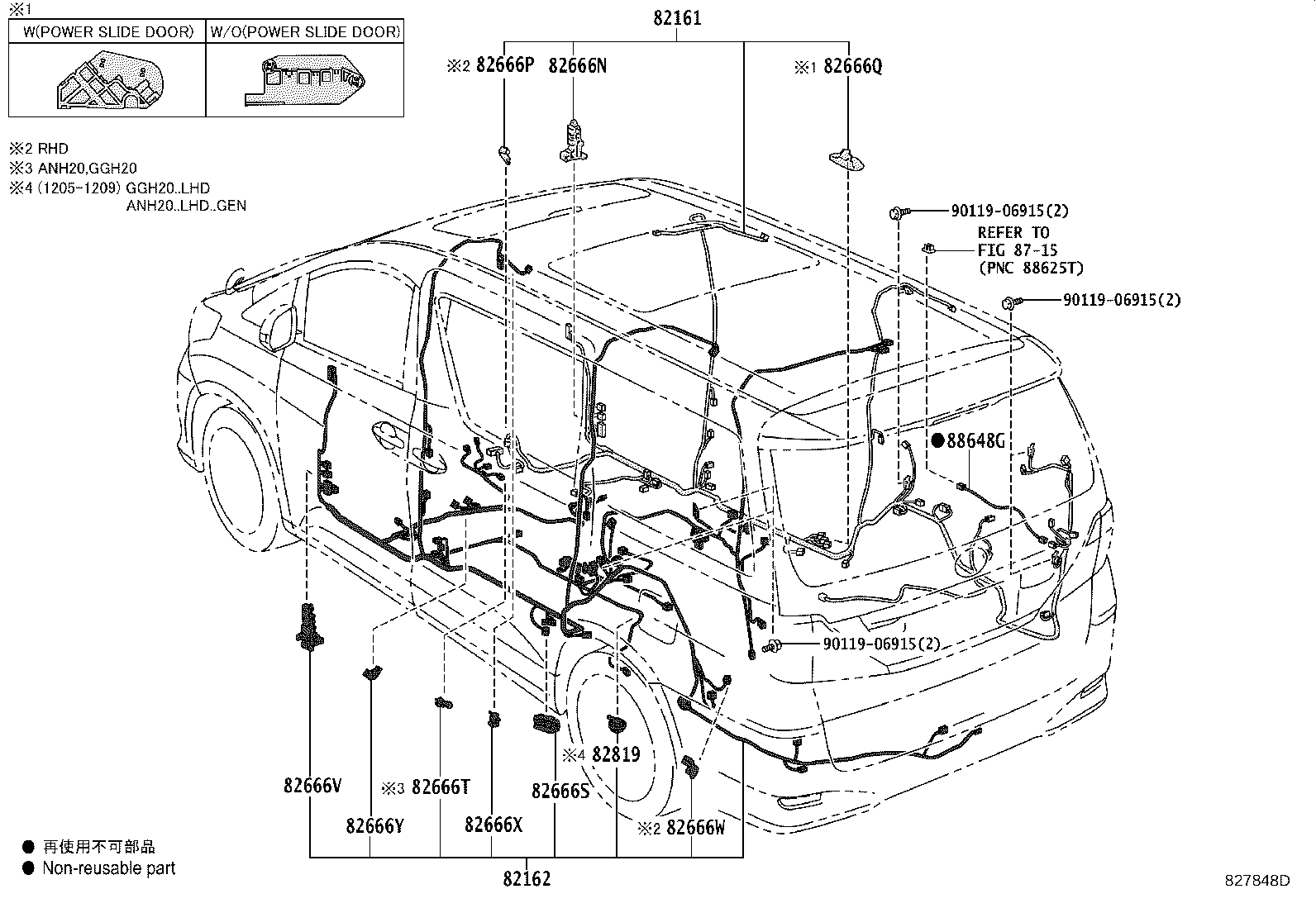

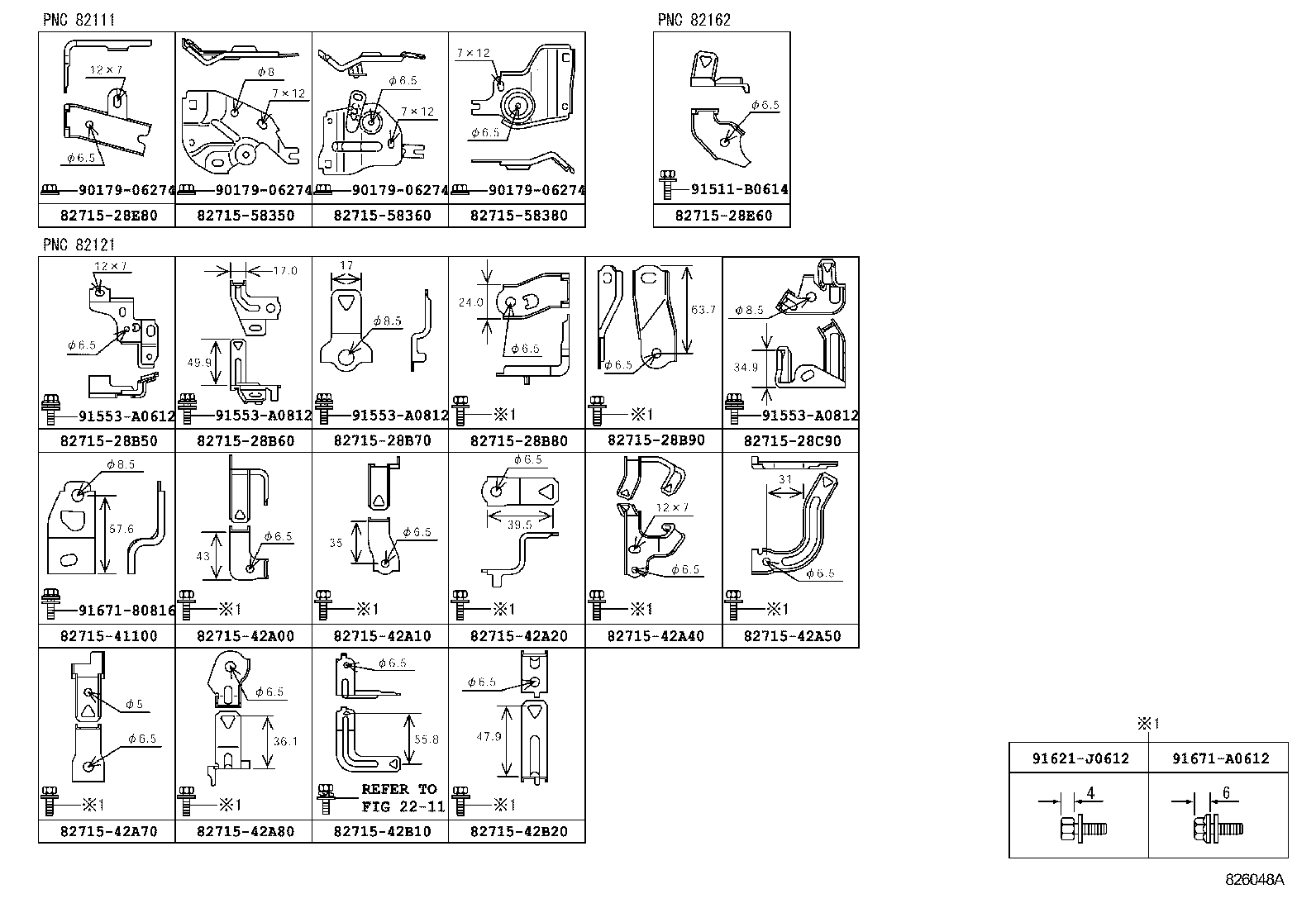

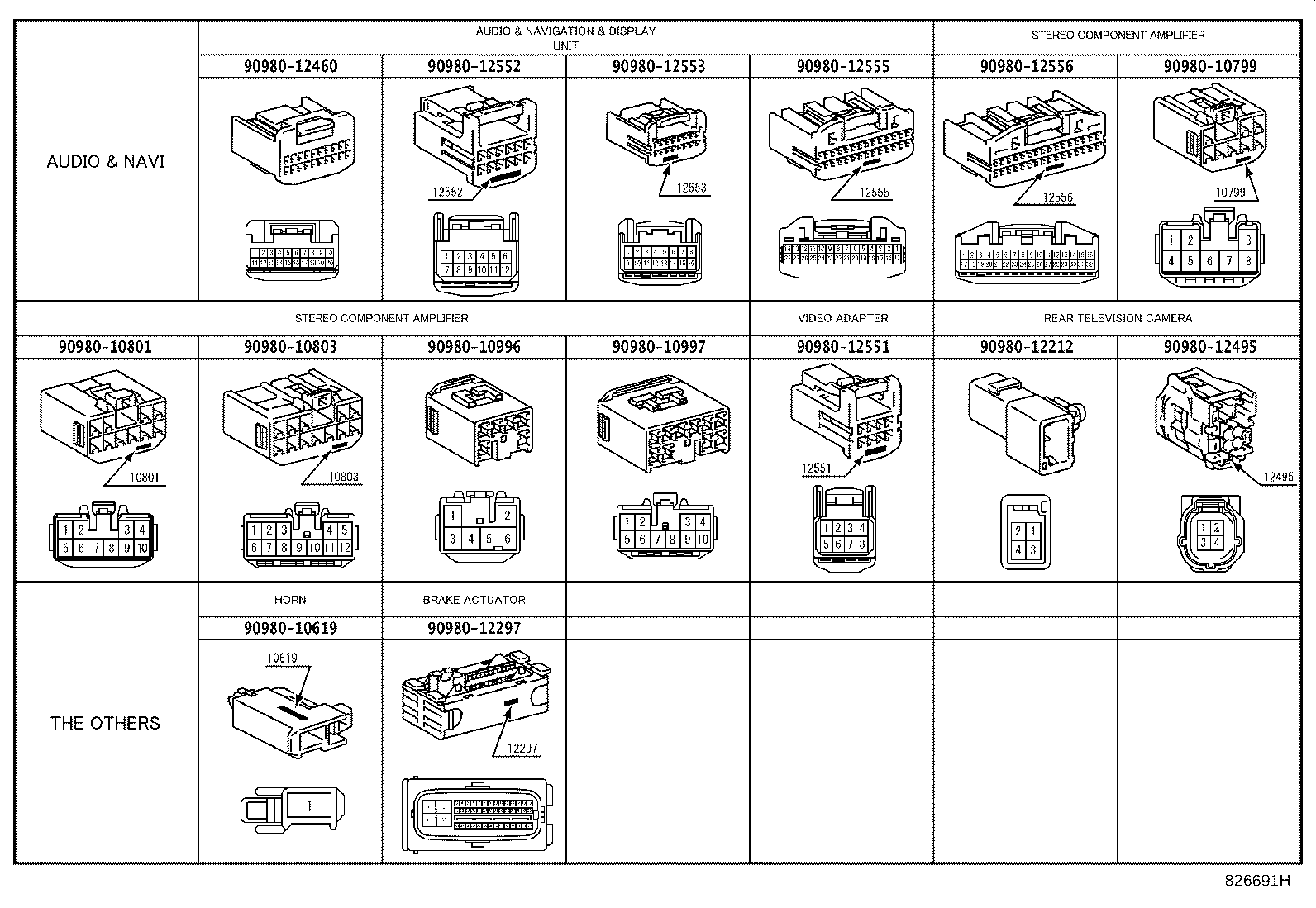

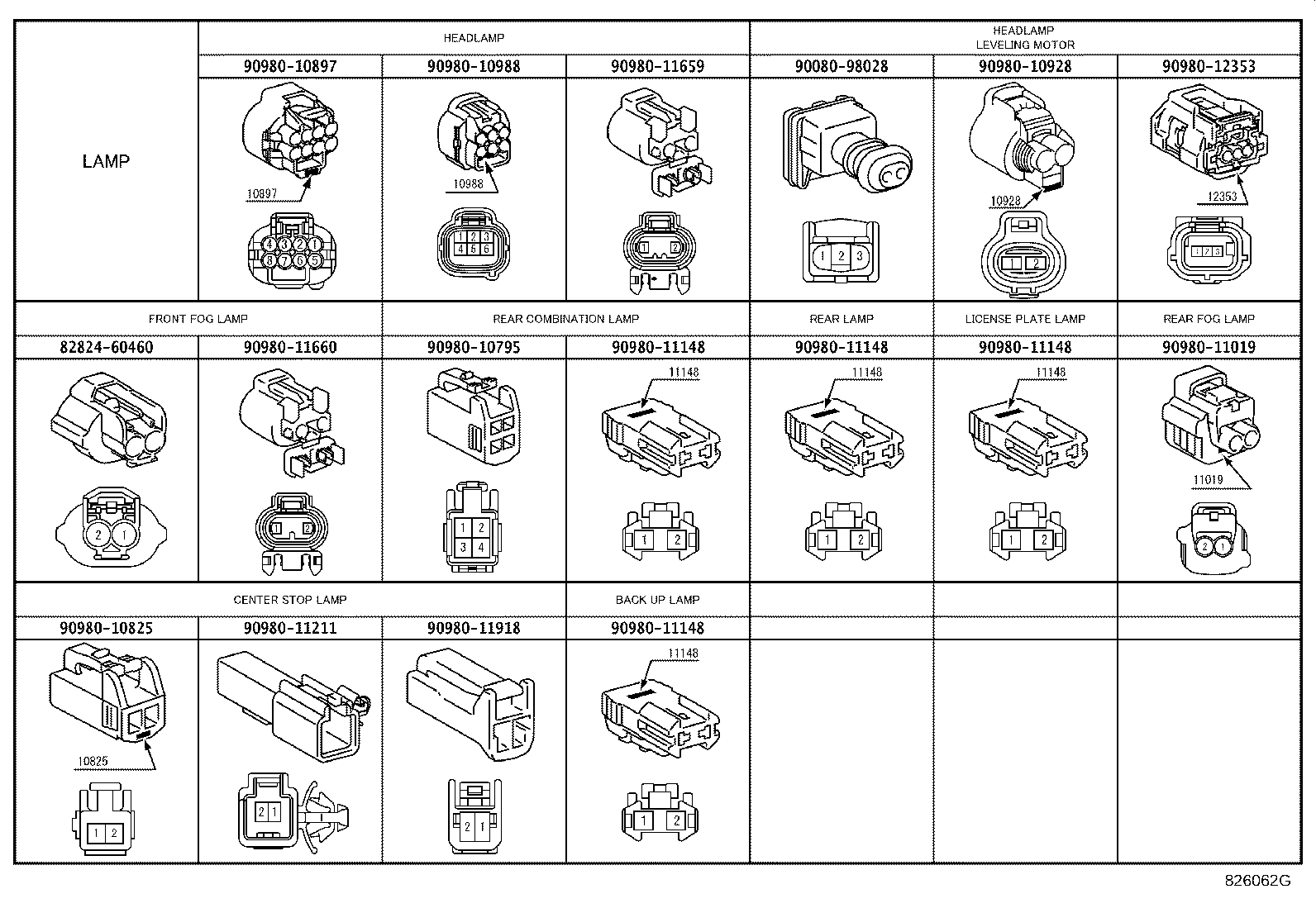

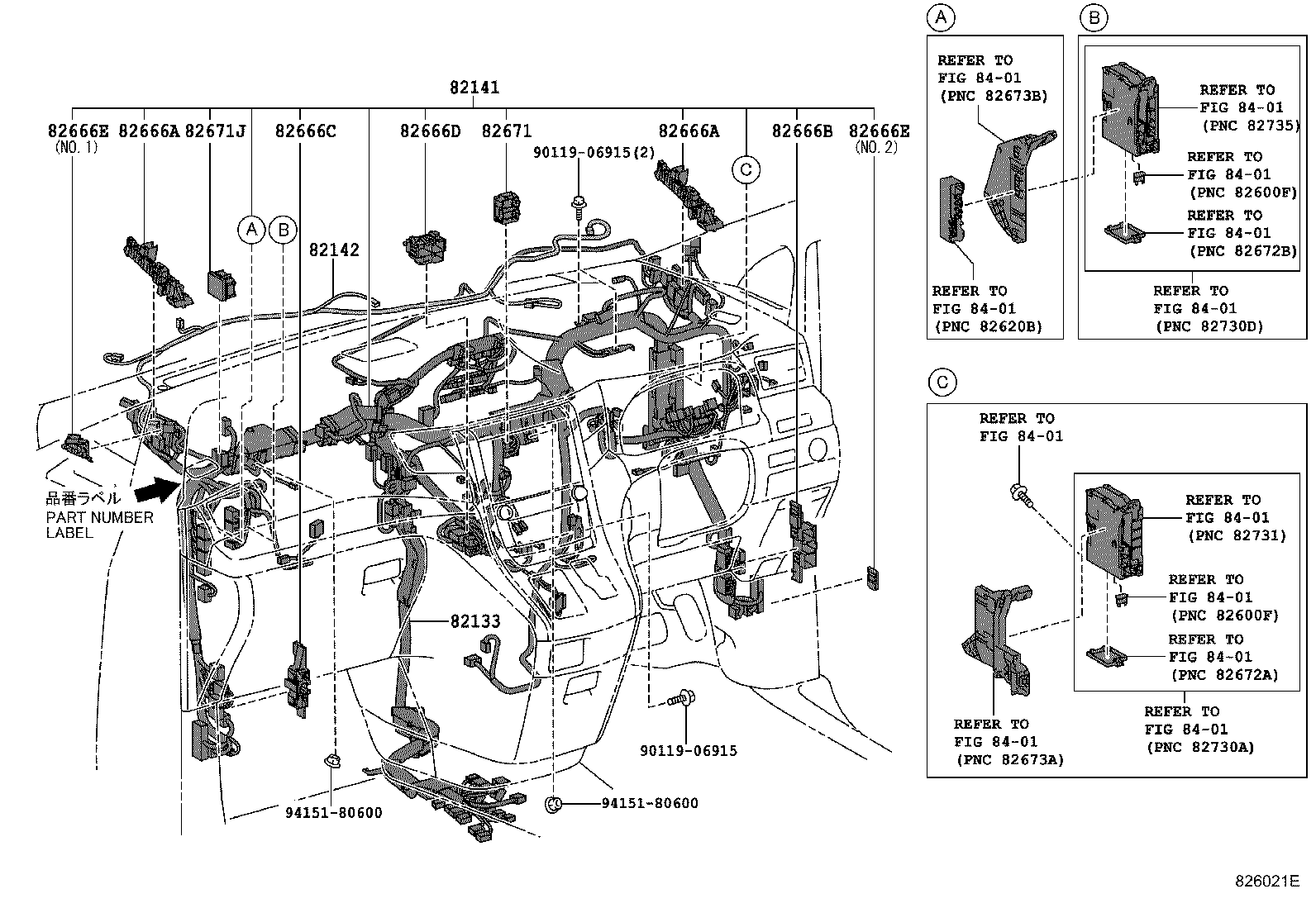

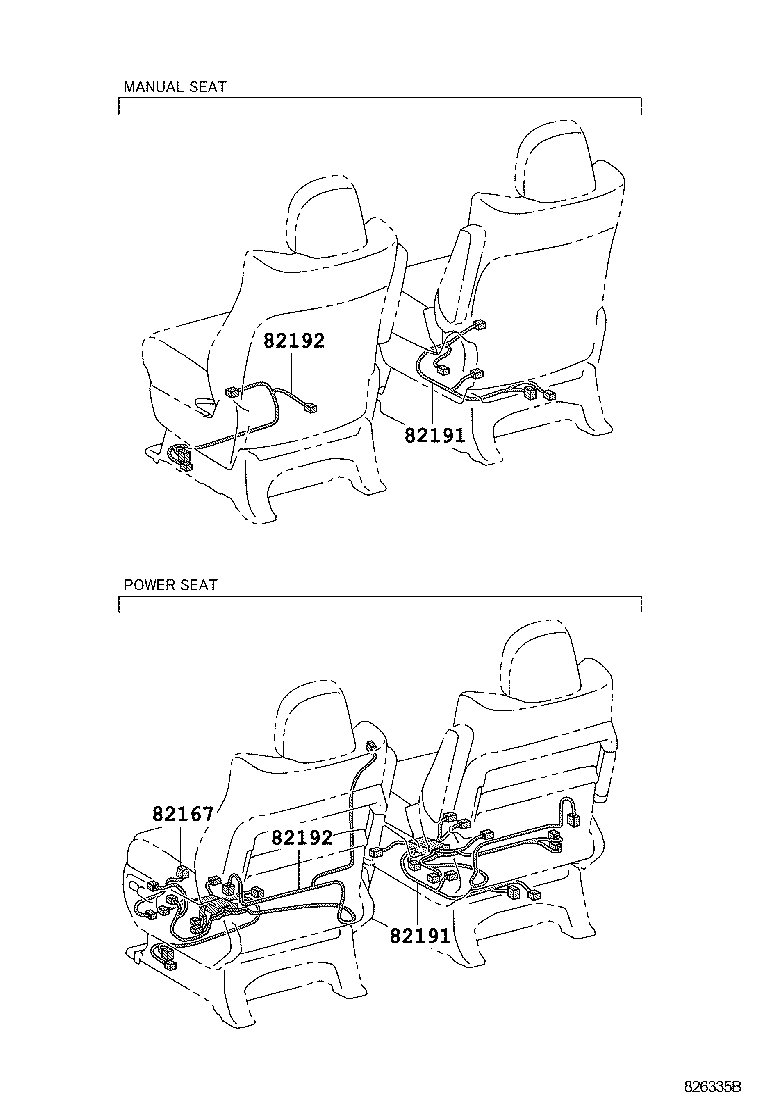

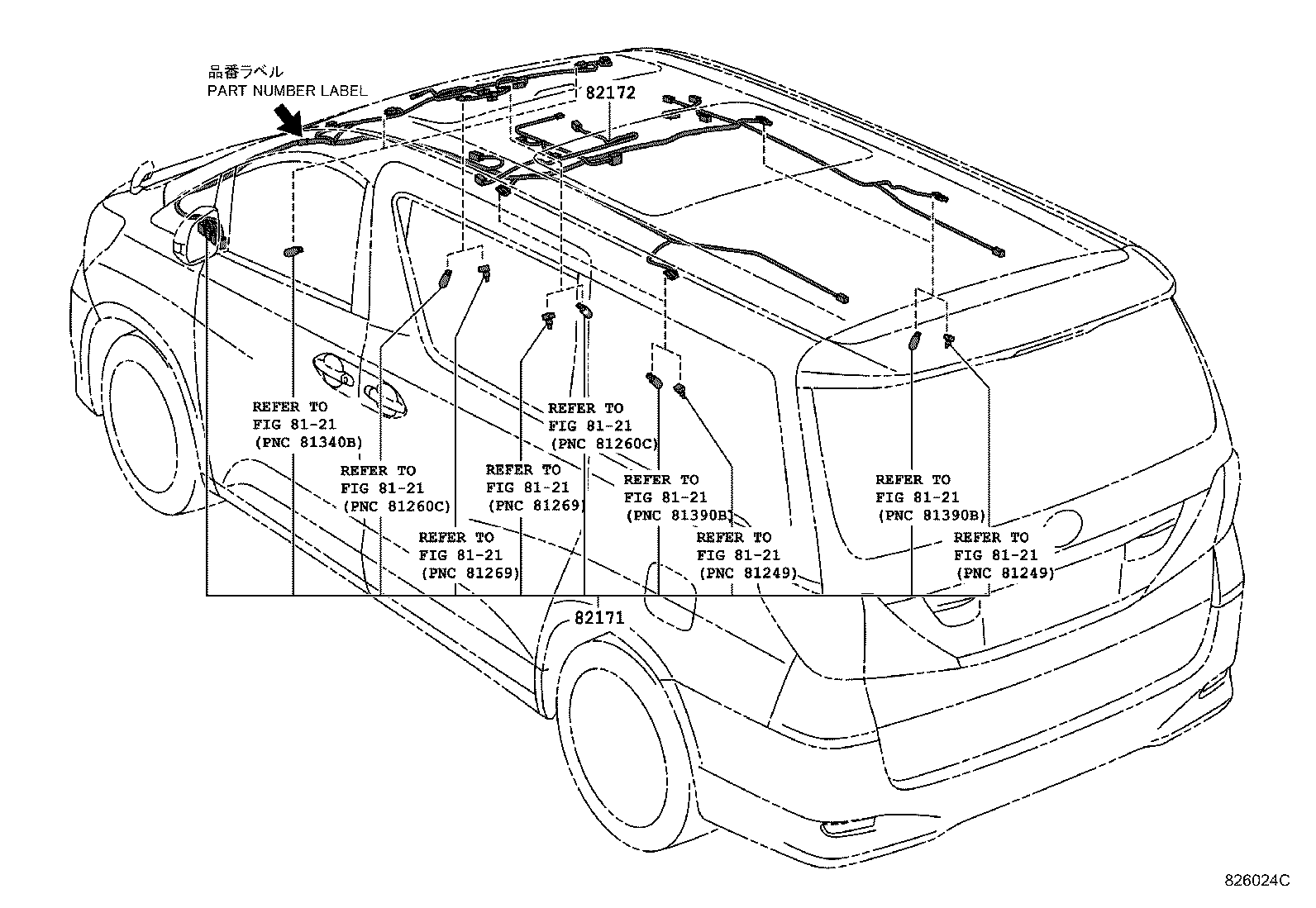

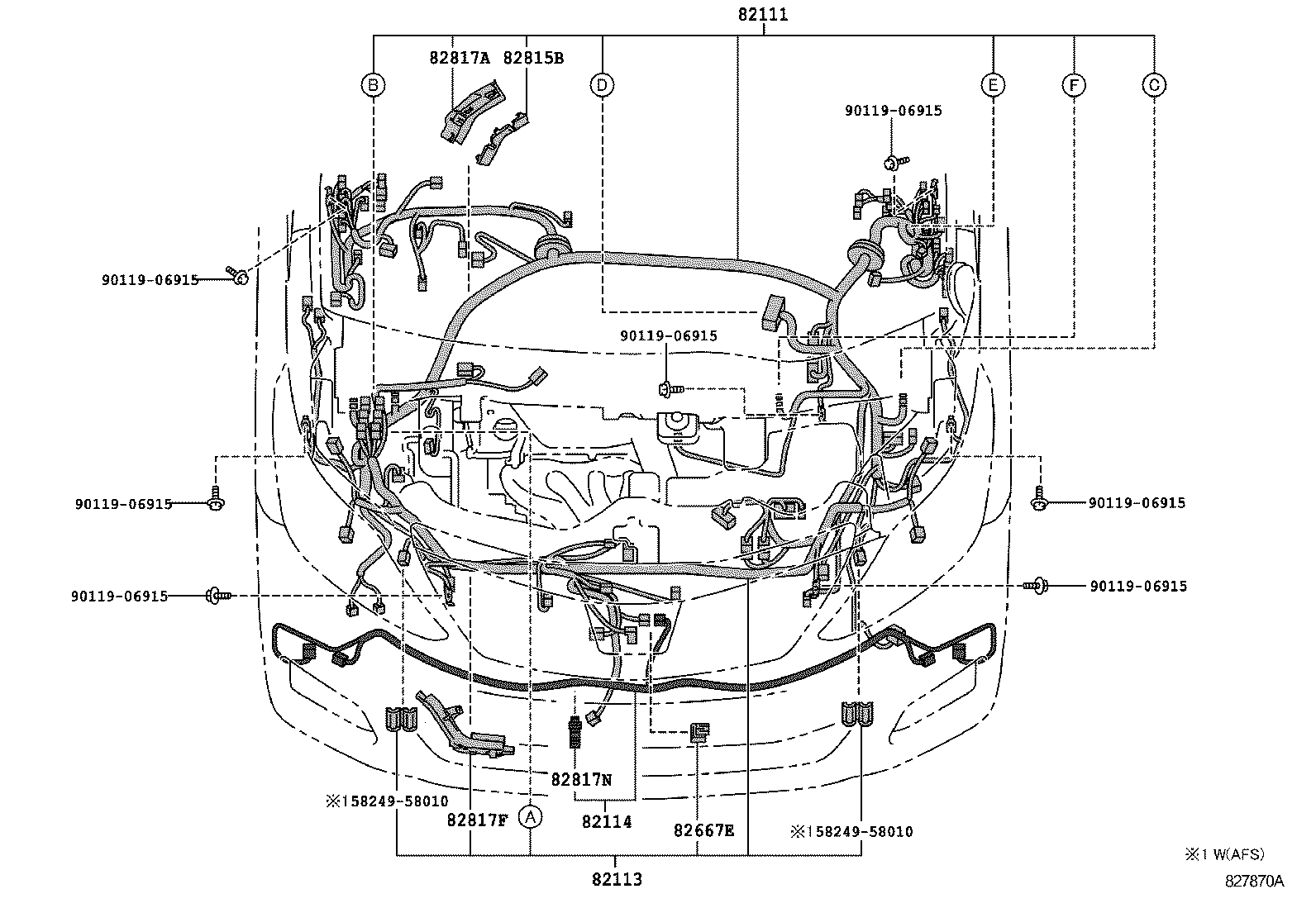

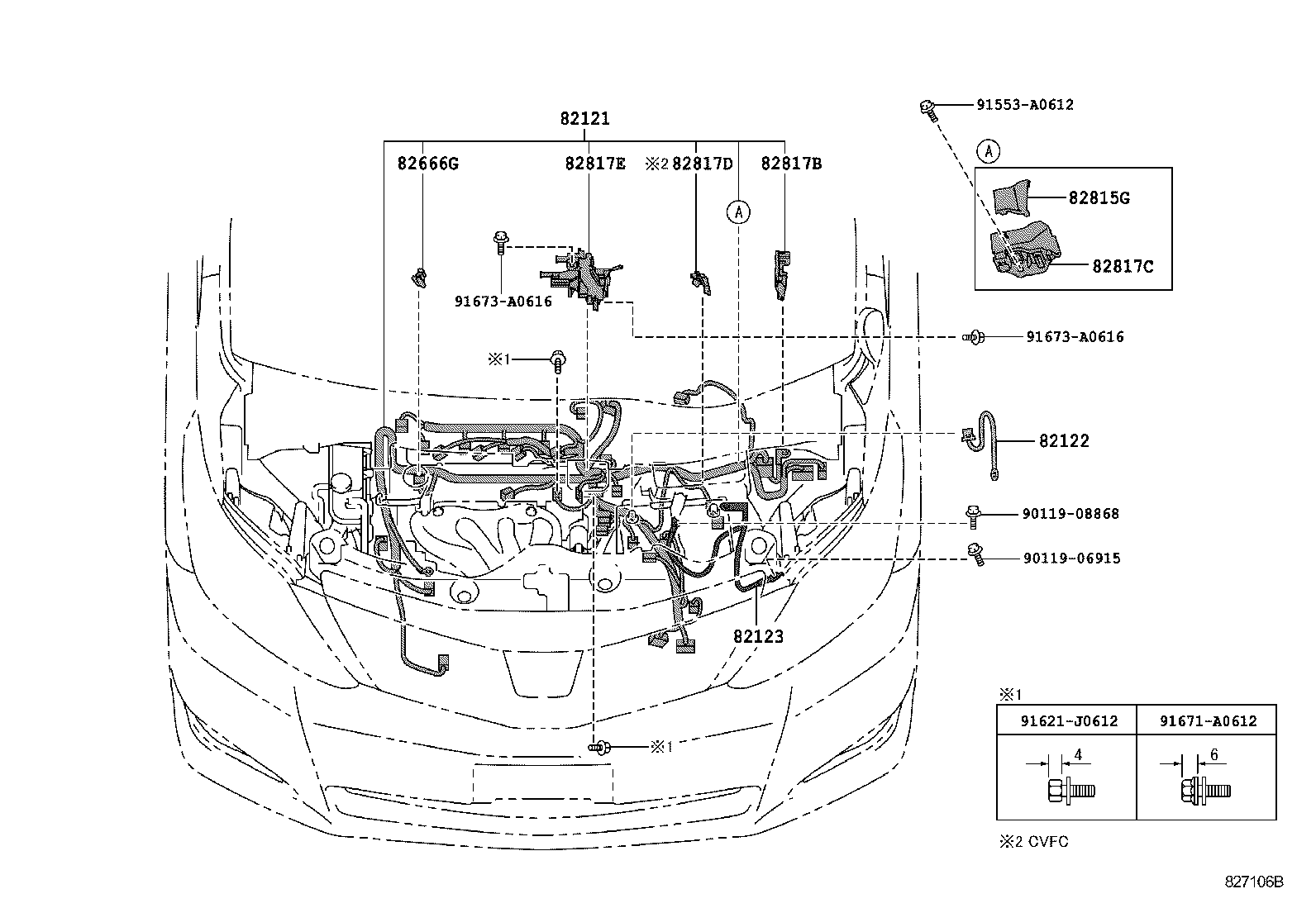

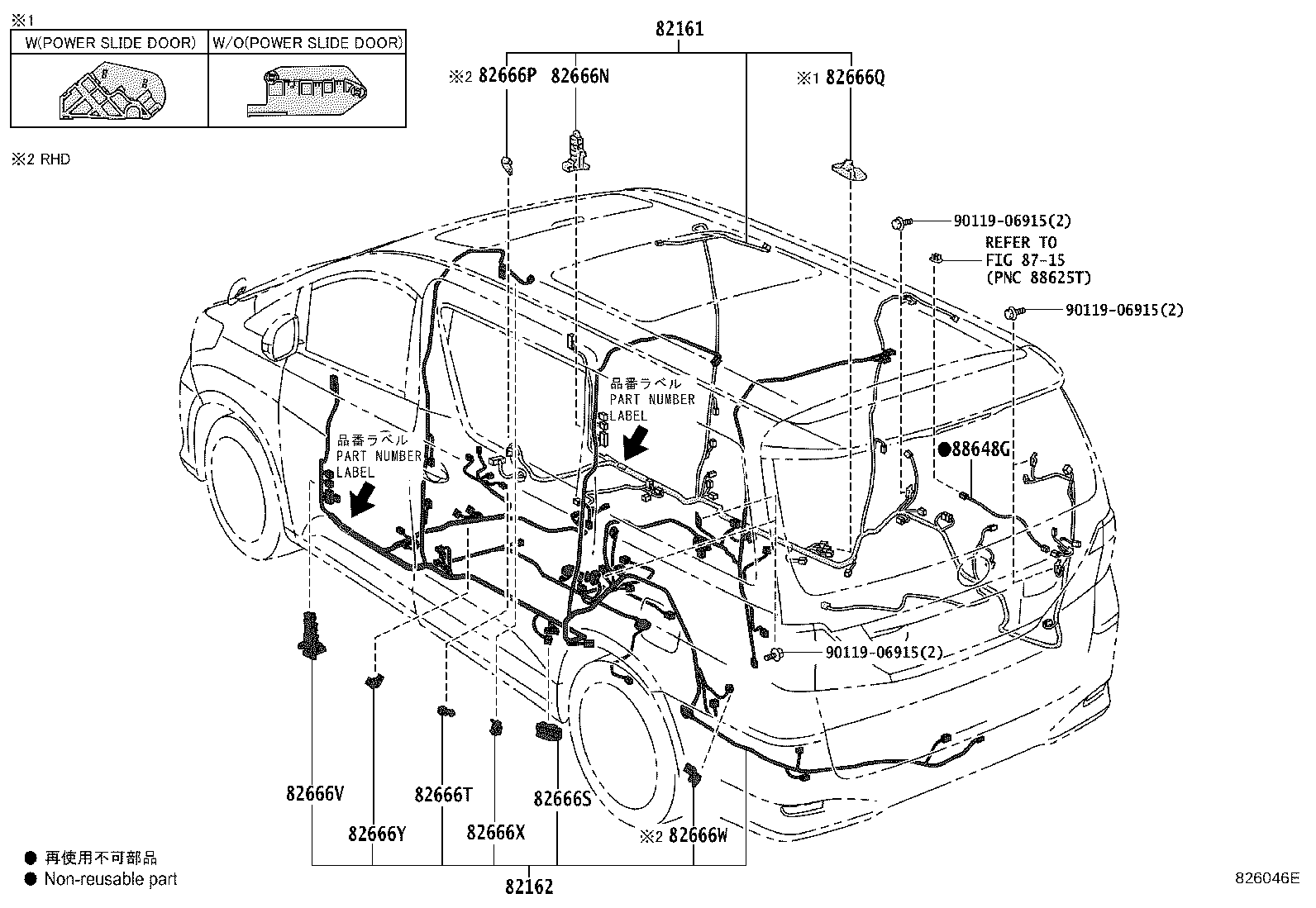

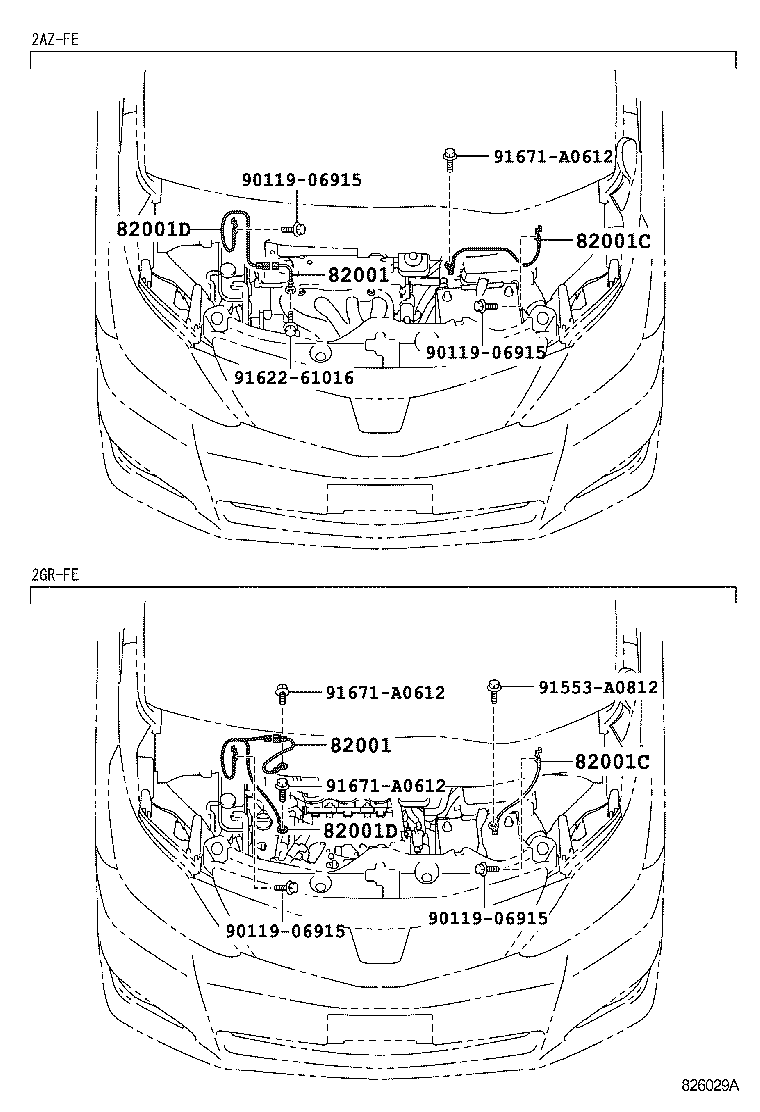

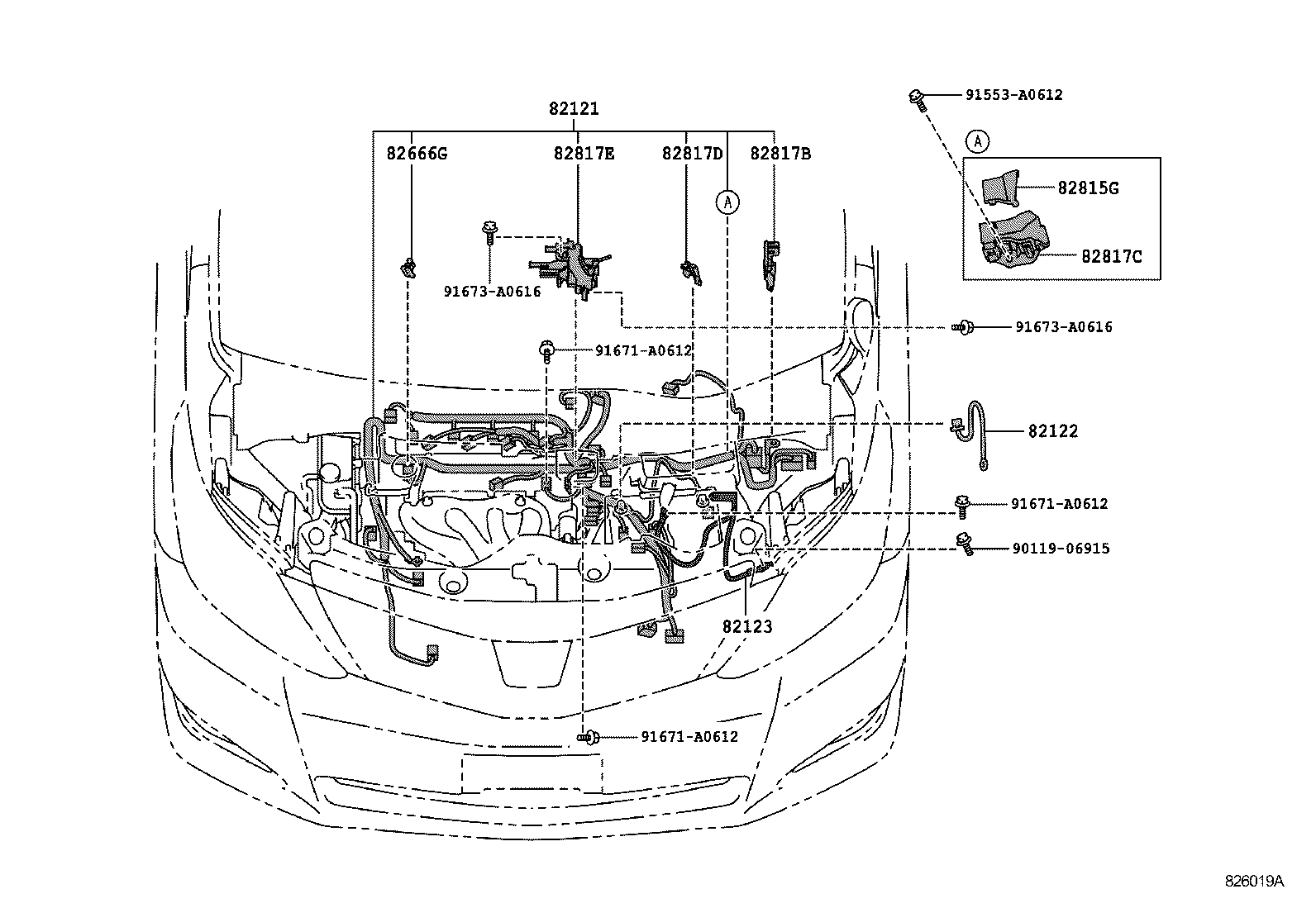

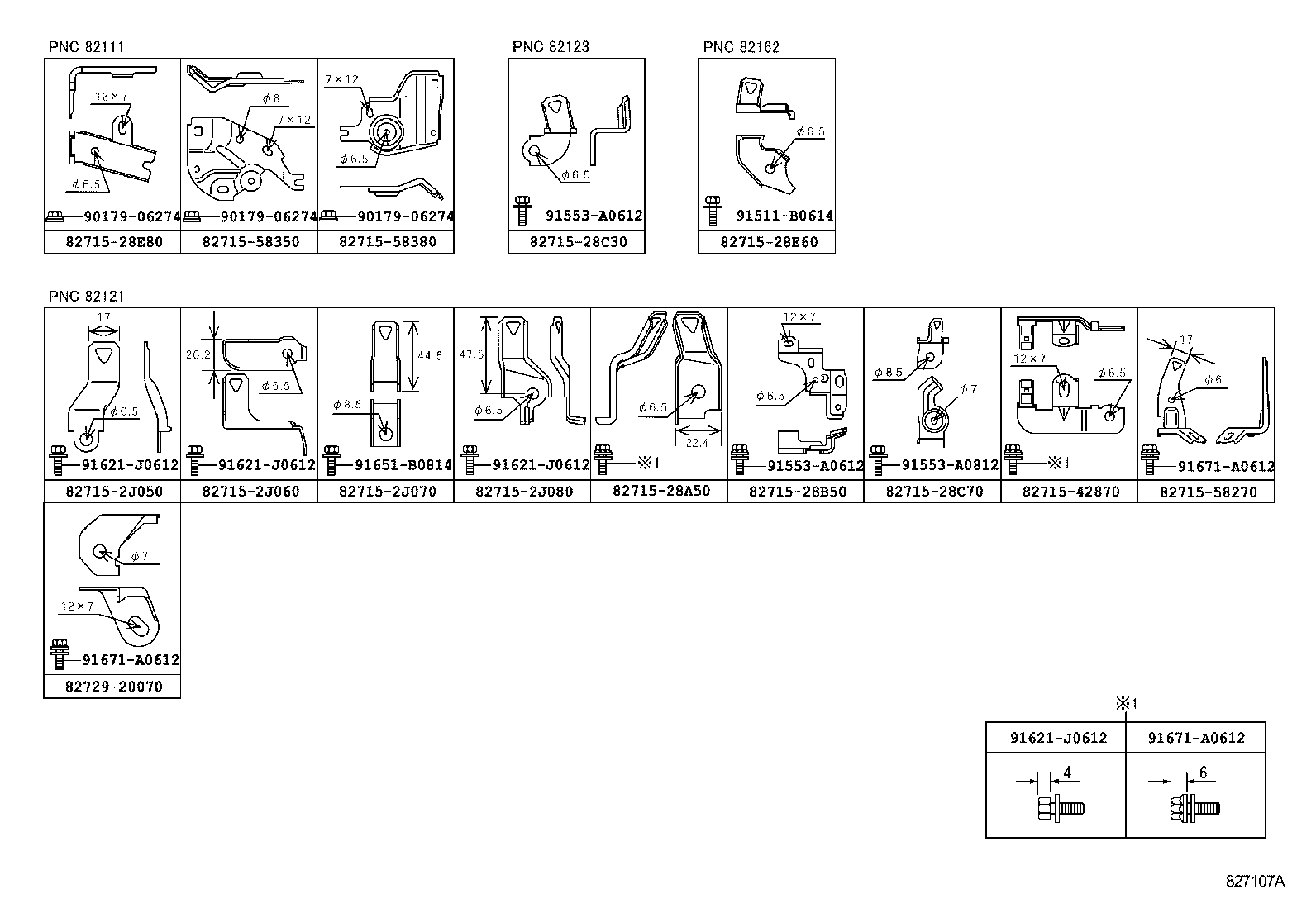

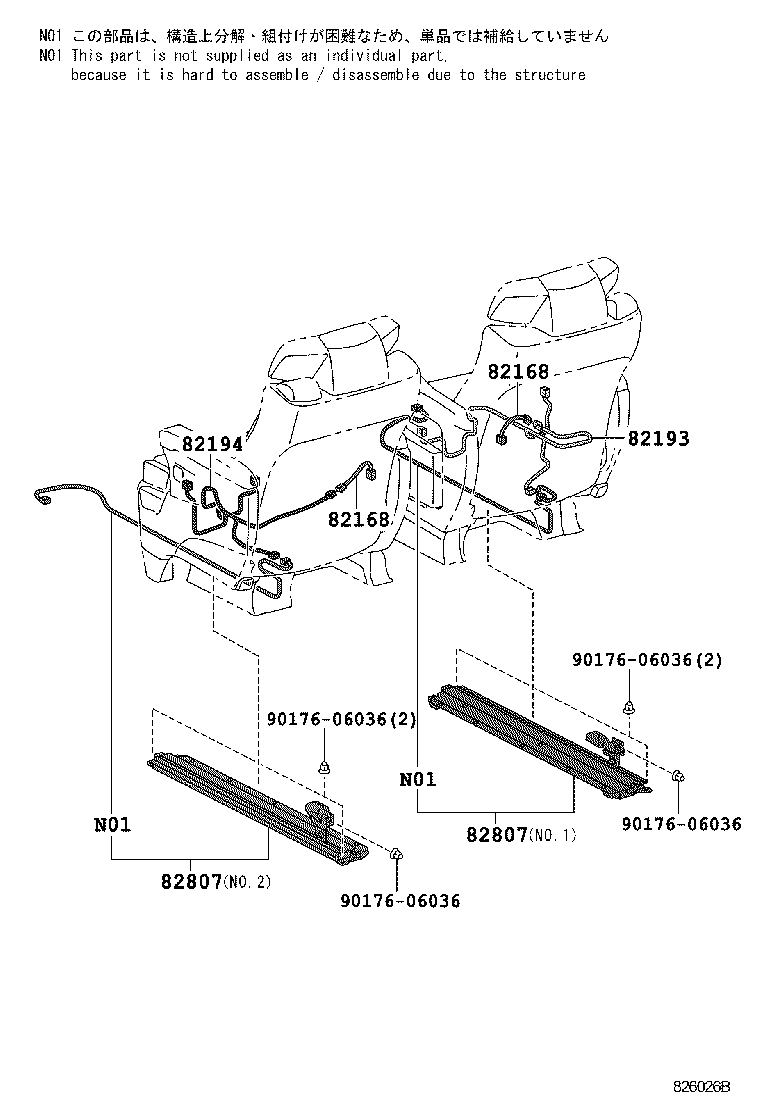

Figure 826664C 826664C 2008-04 → 2011-10 Figure 827109A 827109A 2010-06 → 2011-10 Figure 827868A 827868A 2011-10 → — Figure 827869A 827869A 2011-10 → — Figure 827870A 827870A 2011-12 → — Figure 827855A 827855A 2011-12 → — Figure 826020 826020 2008-04 → — Figure 826019A 826019A 2009-06 → — Figure 827106B 827106B 2010-06 → — Figure 827856A 827856A 2011-12 → — Figure 826021E 826021E 2008-04 → — Figure 827110B 827110B 2010-06 → — Figure 827857B 827857B 2011-12 → — Figure 826022D 826022D 2008-04 → — Figure 827108B 827108B 2010-06 → — Figure 826046E 826046E 2008-04 → 2011-10 Figure 827848D 827848D 2011-10 → — Figure 826024C 826024C 2008-04 → 2011-10 Figure 827849B 827849B 2011-10 → — Figure 827851B 827851B 2011-12 → — Figure 826335B 826335B 2008-04 → — Figure 827112A 827112A 2010-06 → — Figure 826026B 826026B 2008-04 → 2011-10 Figure 826026B 826026B 2011-10 → — Figure 826048A 826048A 2008-04 → — Figure 826027B 826027B 2009-06 → — Figure 827107A 827107A 2010-06 → — Figure 827845A 827845A 2011-12 → — Figure 826029A 826029A 2008-04 → — Figure 827850B 827850B 2011-12 → — Figure 826062G 826062G 2008-04 → — Figure 827853D 827853D 2008-04 → — Figure 826691H 826691H 2008-04 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82001D Cable, Bond, NO.3
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82113 Wire, Engine Room, NO.3
82114 Wire, Engine Room, NO.4
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82133 Wire, Cowl, NO.3
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82166 Wire, Console Box
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
82219A Wire, Sensor
82284 Wire, Earth
82505 Wiring Sub-assy, Front Door, RH
82506 Wiring Sub-assy, Front Door, LH
82620 Block Assy, Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82666N Holder, Connector NO.10
82666P Holder, Connector NO.11
82666Q Holder, Connector NO.12
82666S Holder, Connector NO.13
82666T Holder, Connector NO.14
82666V Holder, Connector NO.15
82666W Holder, Connector NO.16
82666X Holder, Connector NO.17
82666Y Holder, Connector NO.18
82667E Holder, Connector, NO.20
82671 Block, Junction
82671J Block, Junction, NO.2
82807 Protector Set, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82819 Grommet, Wiring Harness
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82823 Cap, Terminal, NO.1
88648G Wire, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
