Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

140 part groups · 15 illustrations

Illustrations

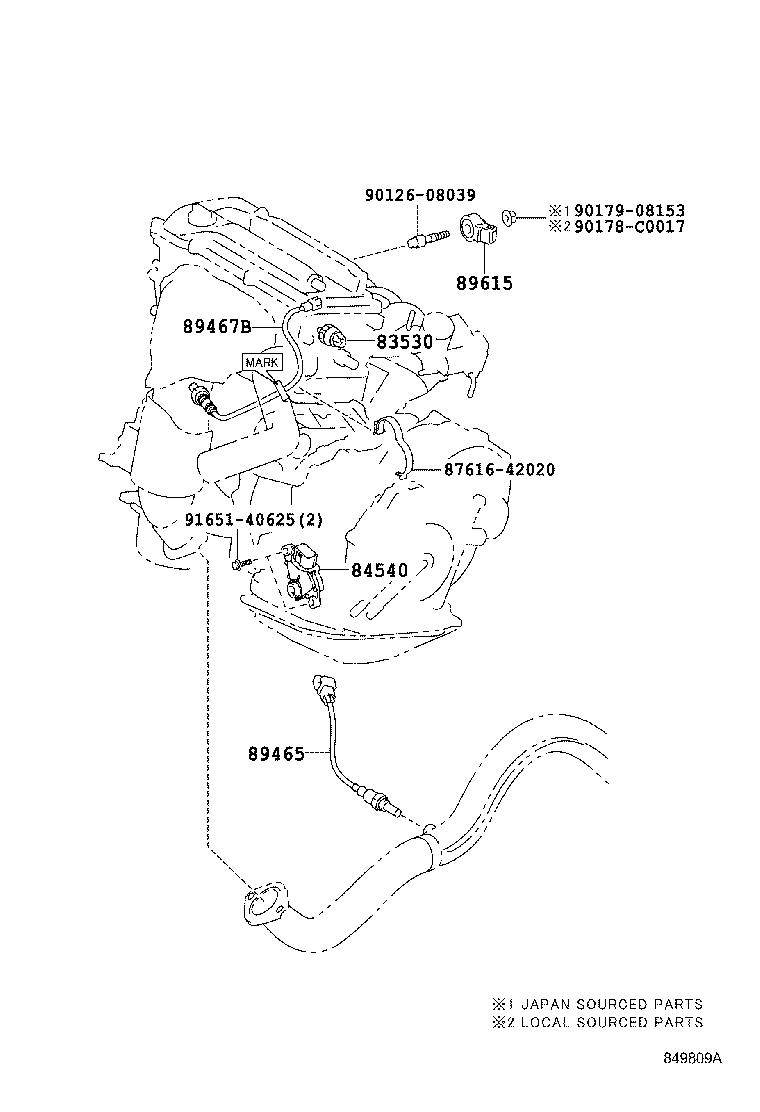

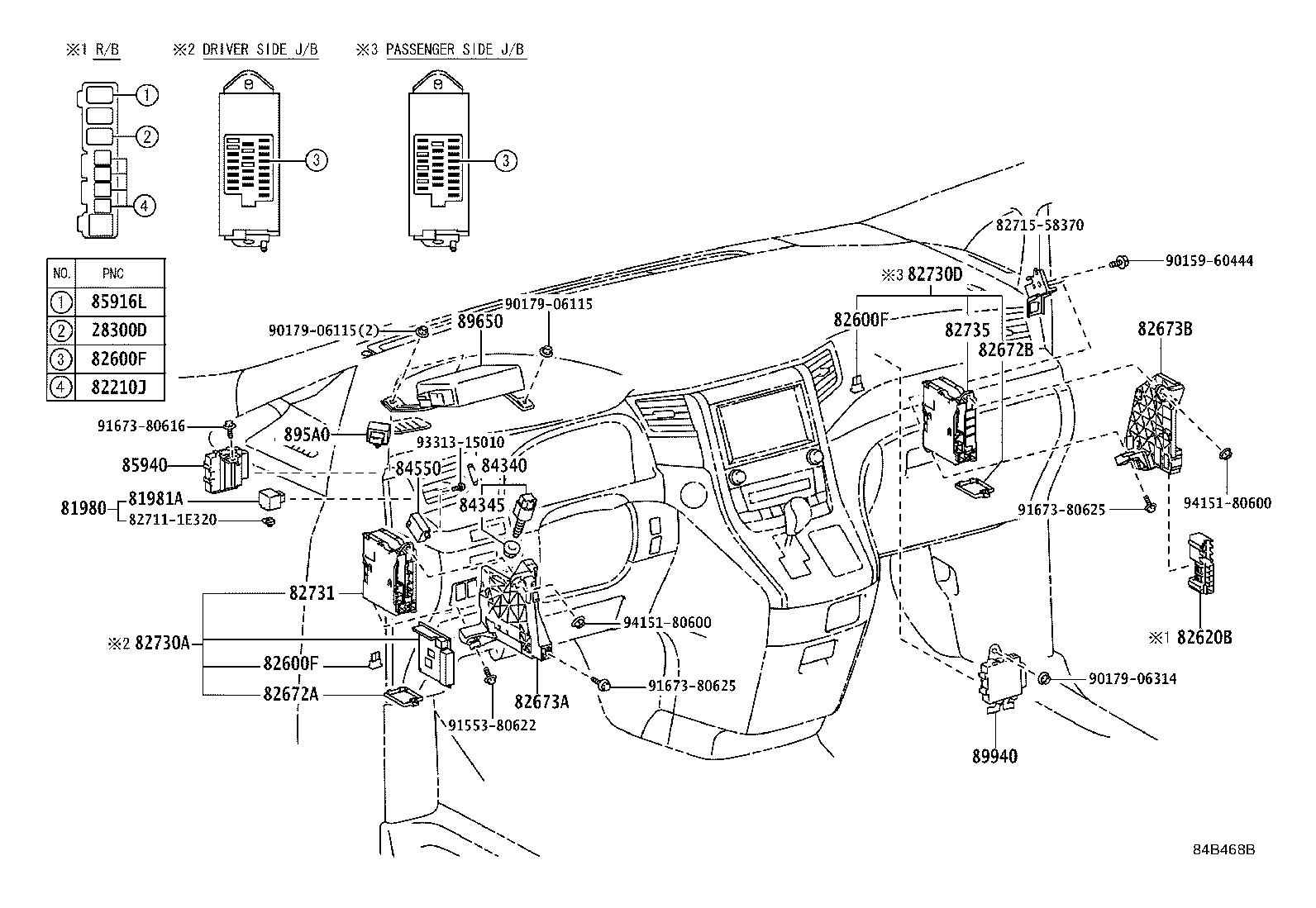

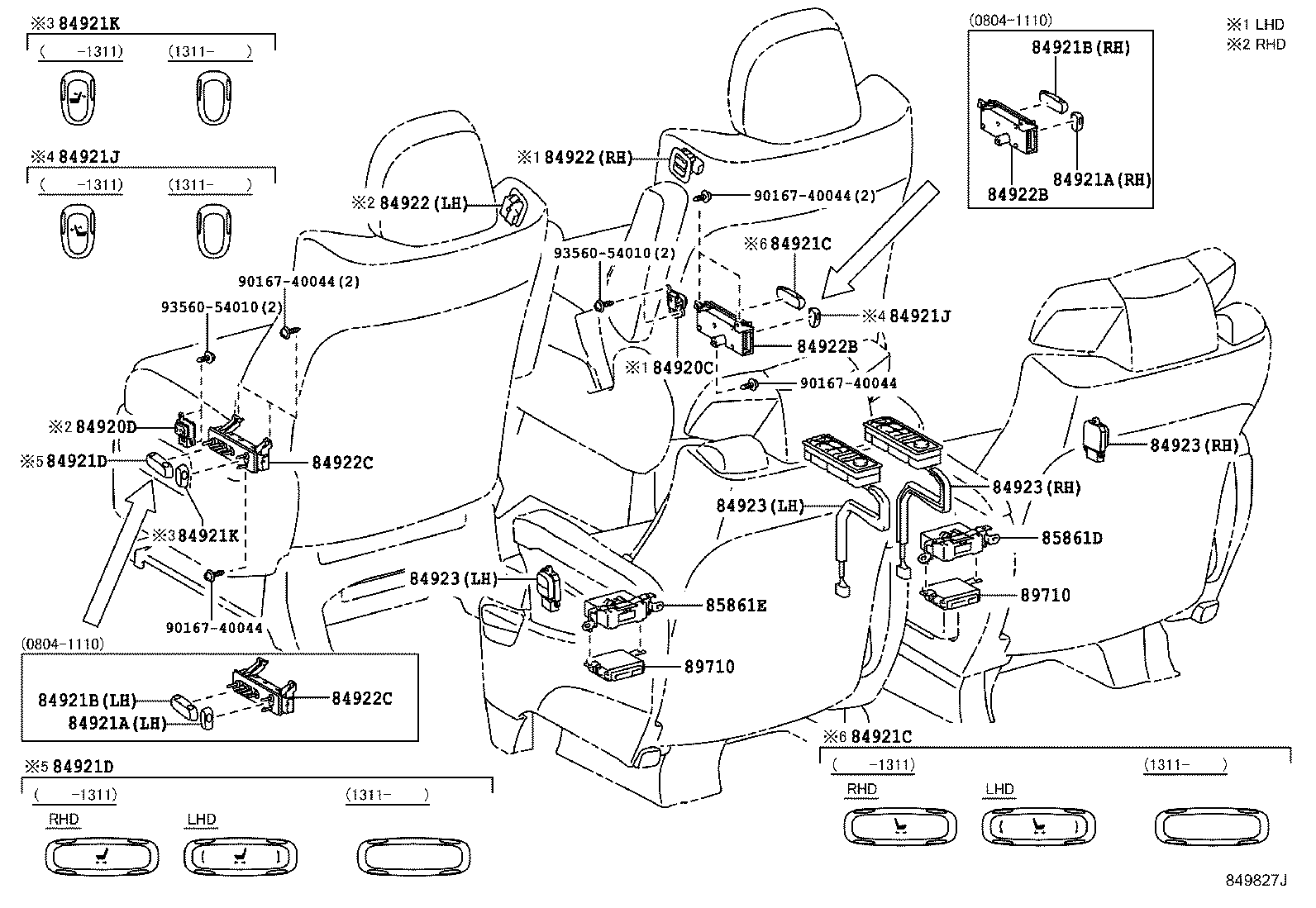

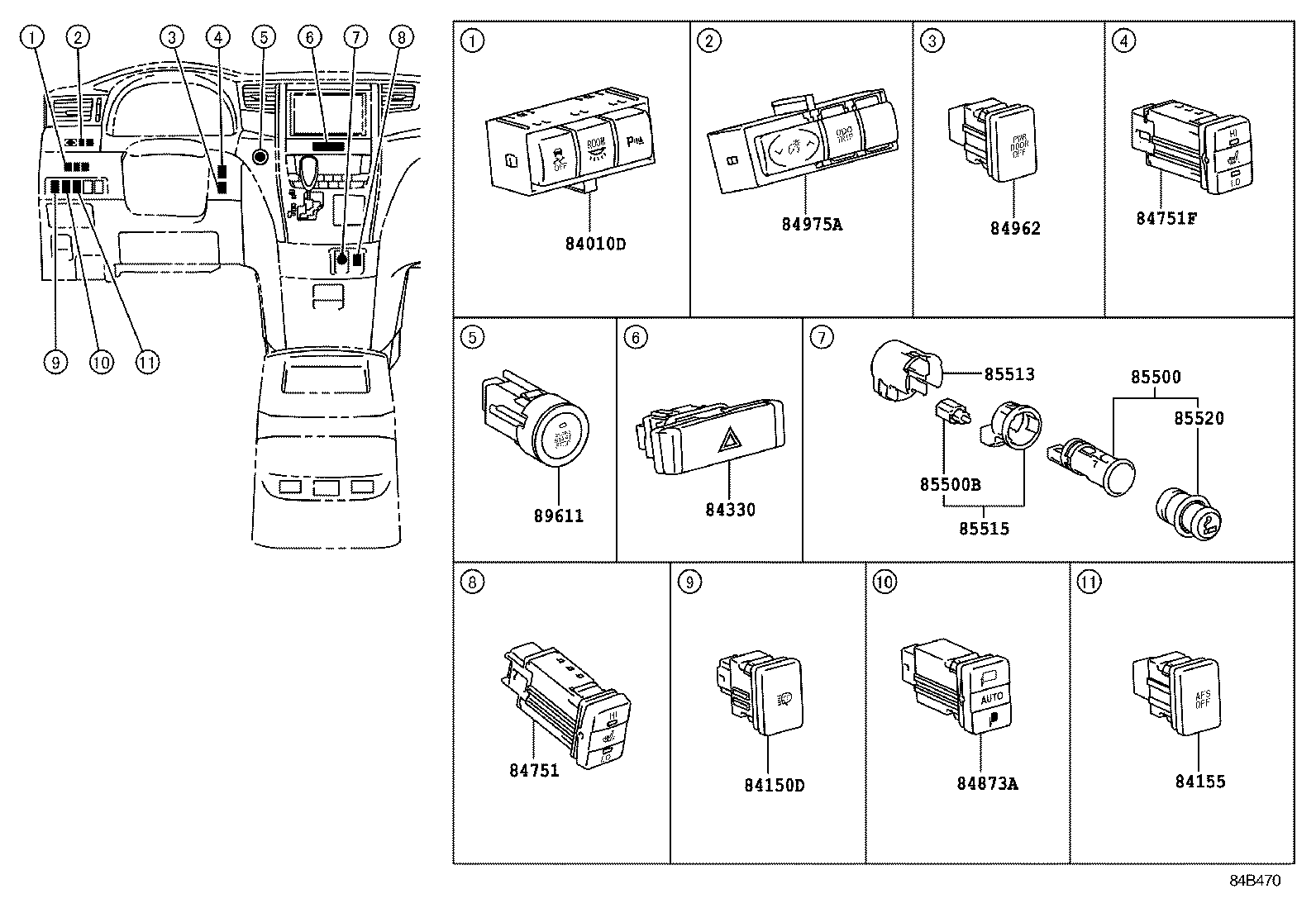

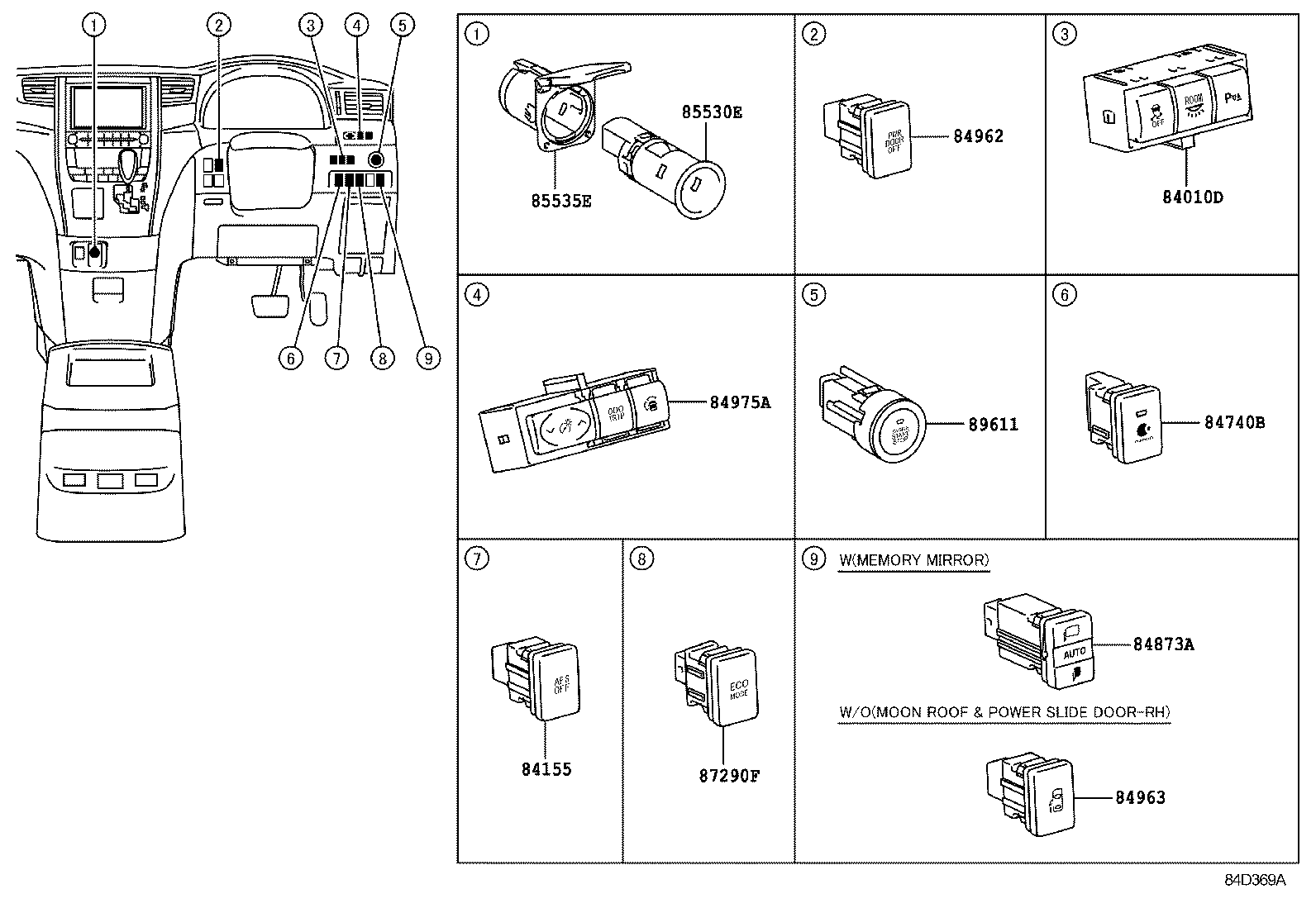

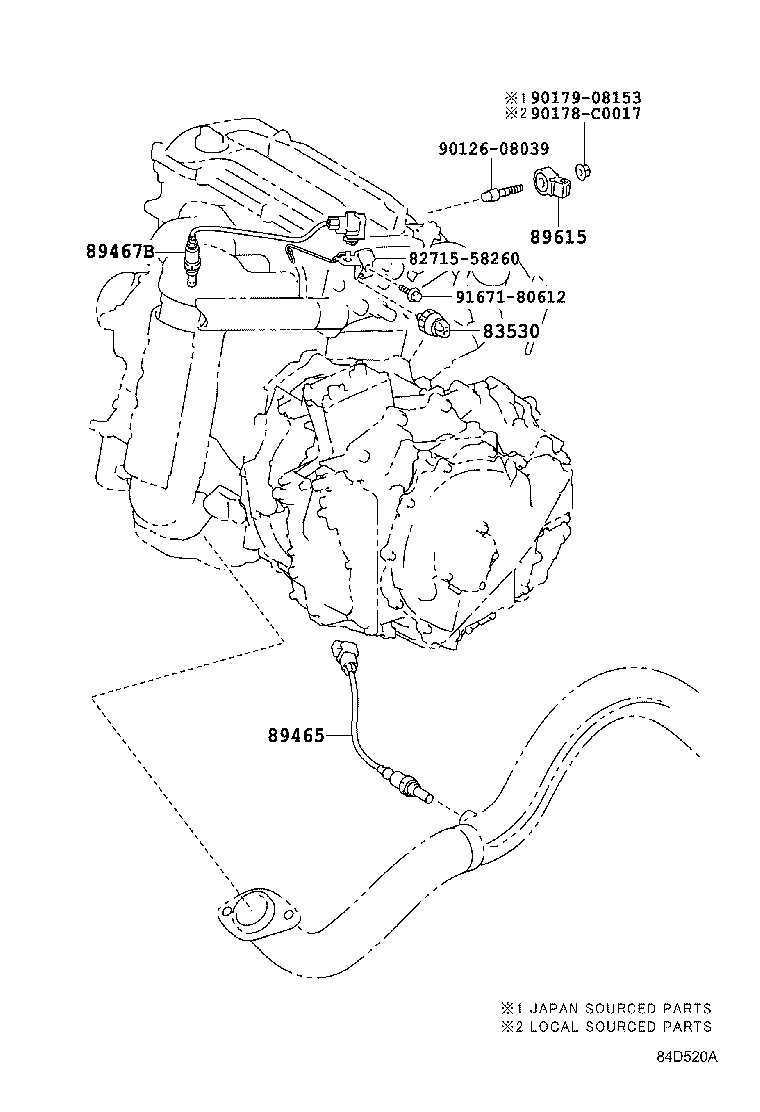

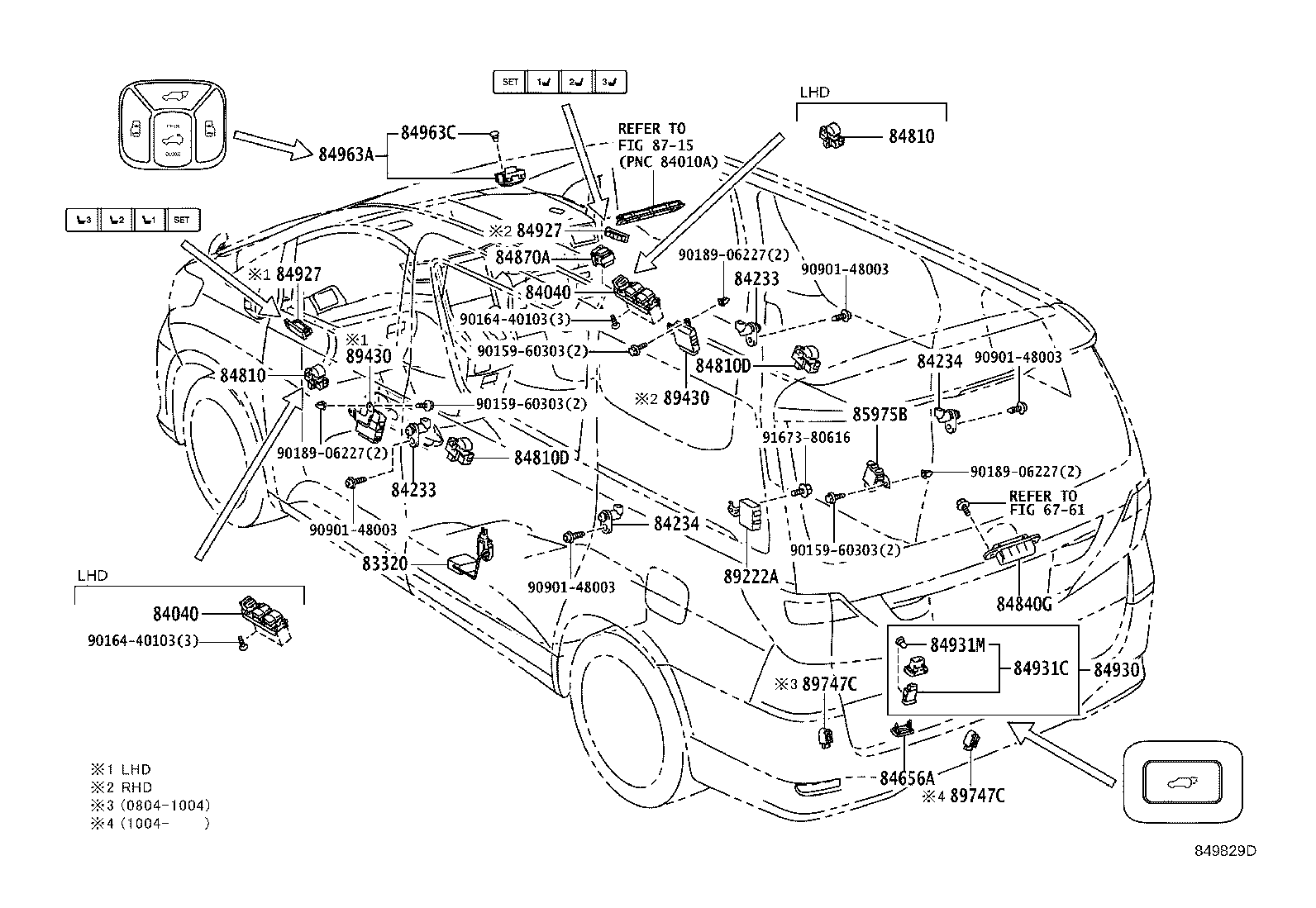

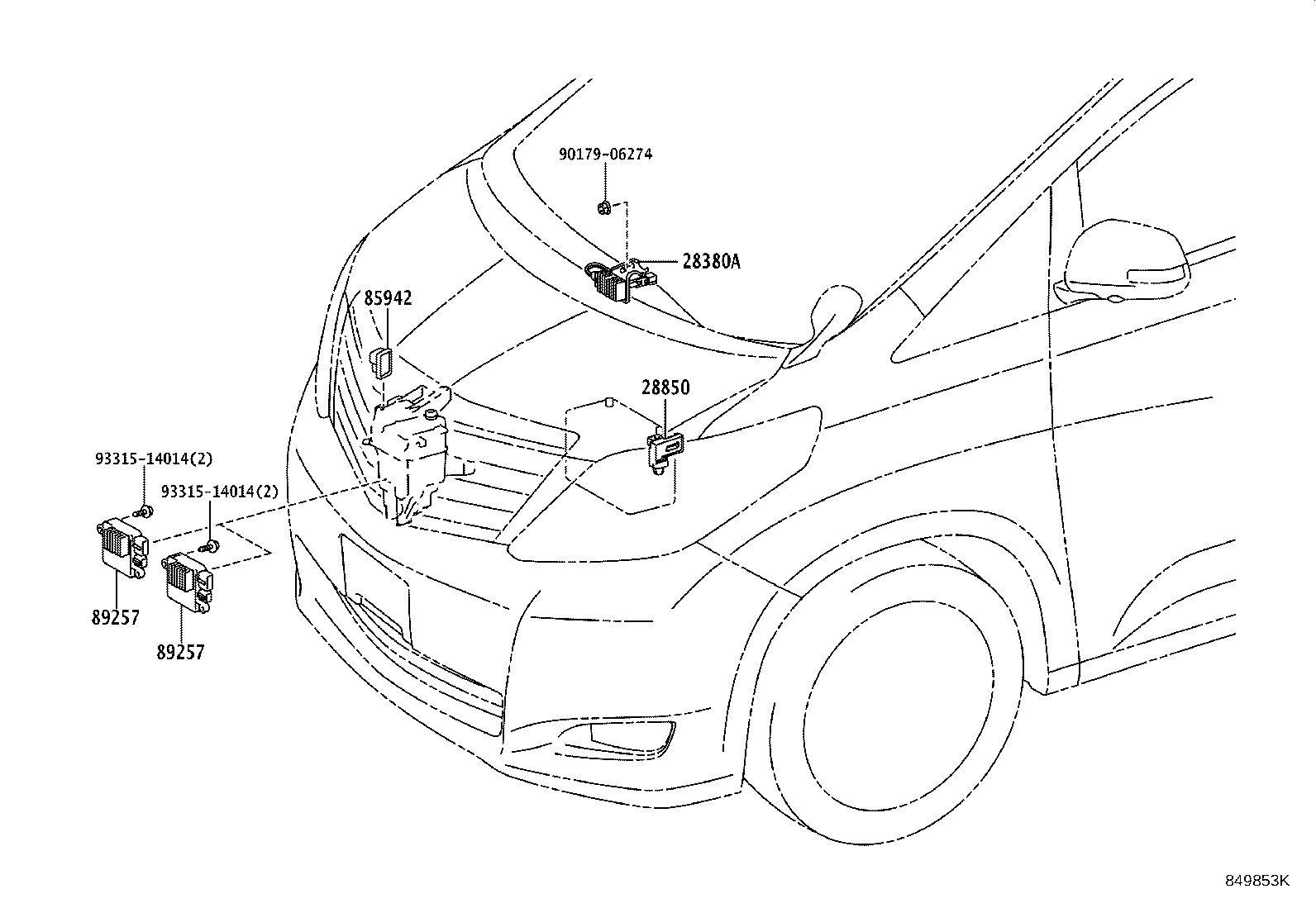

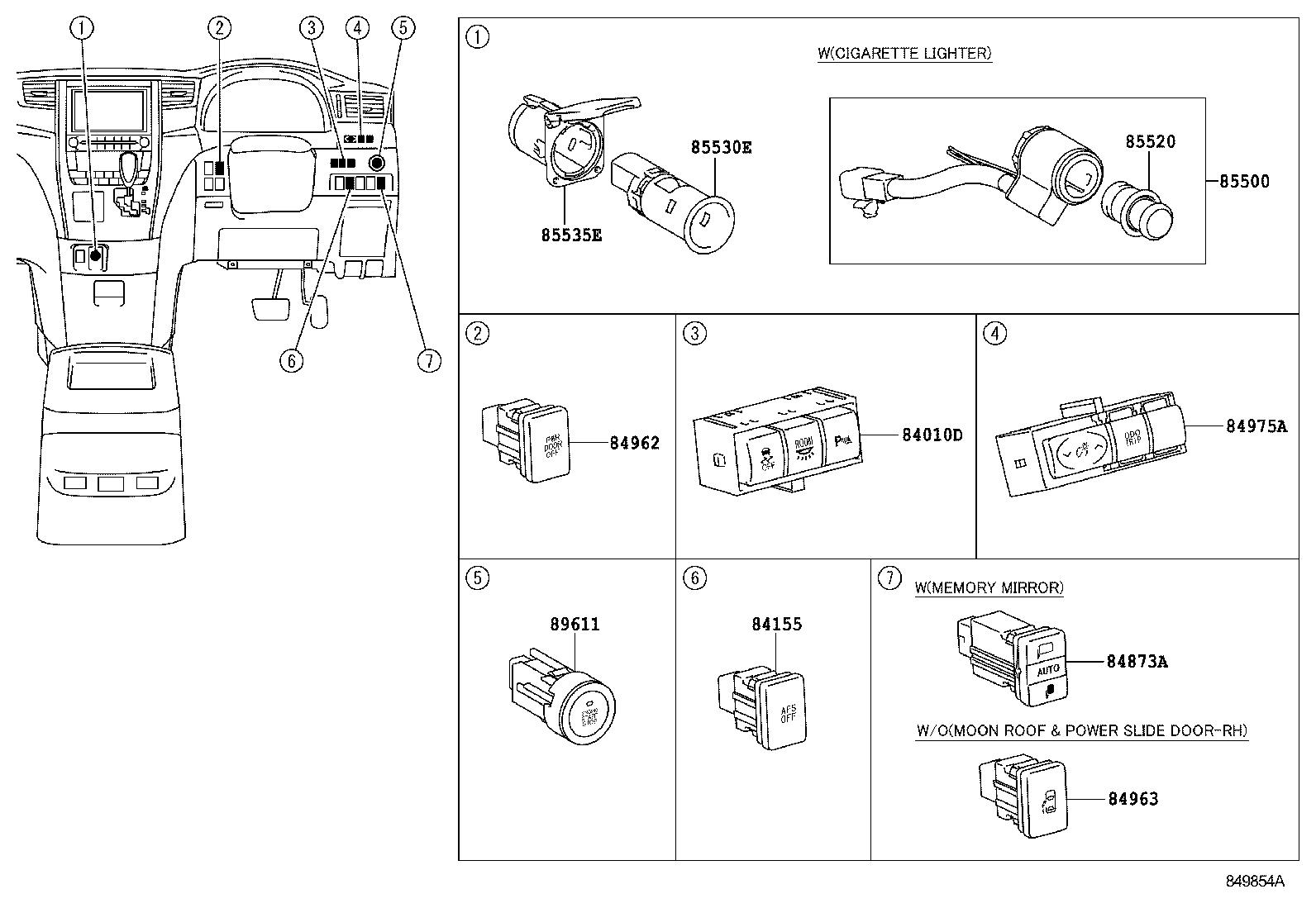

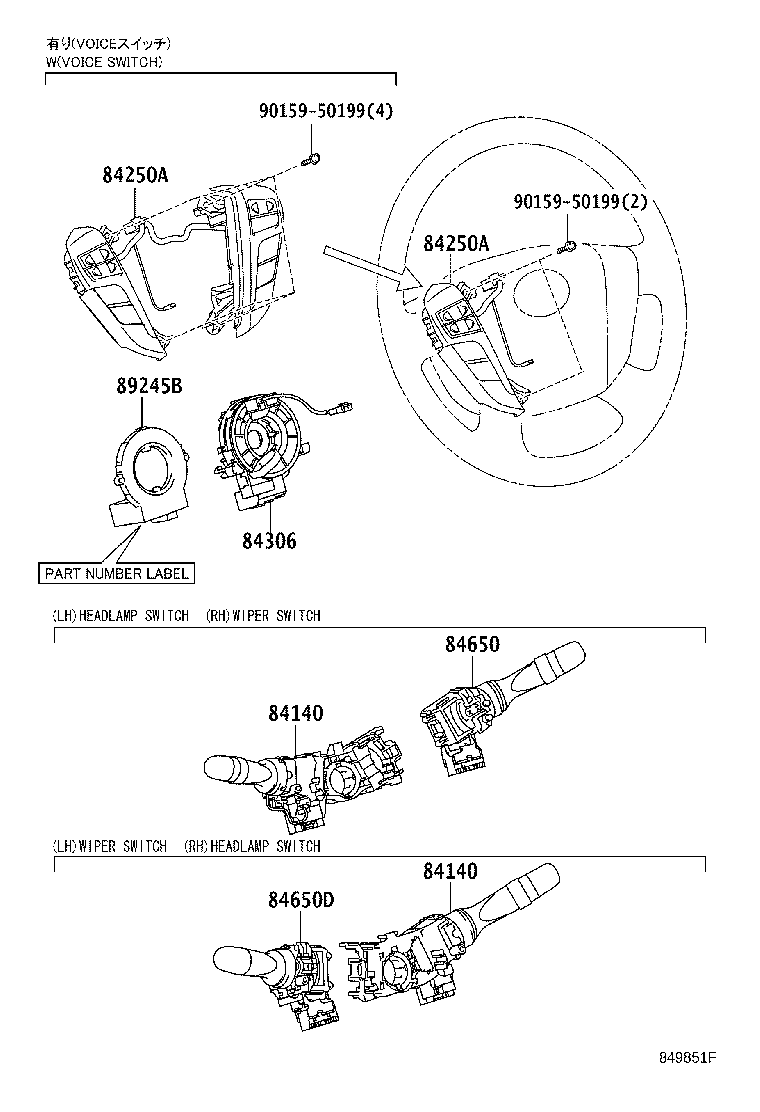

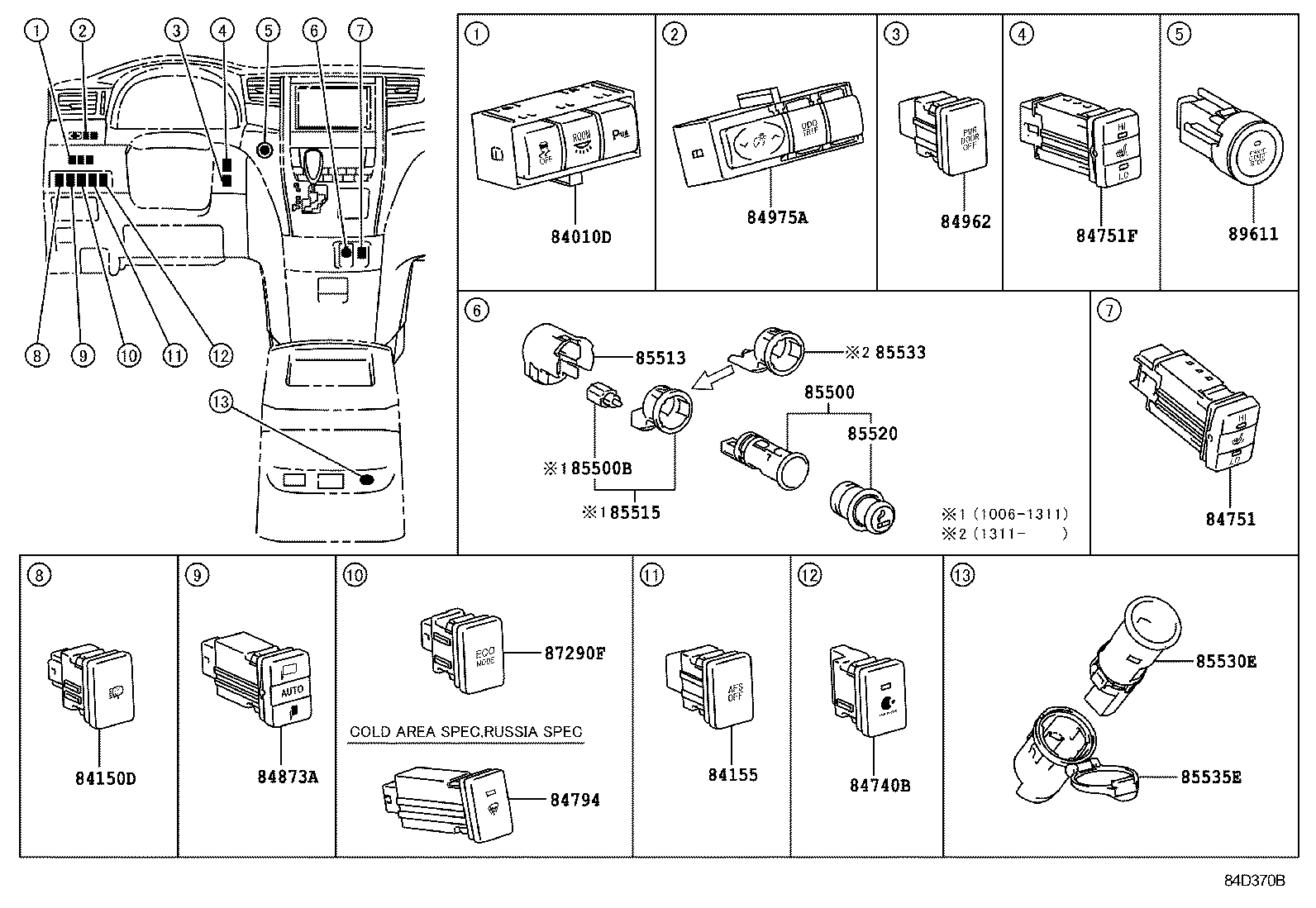

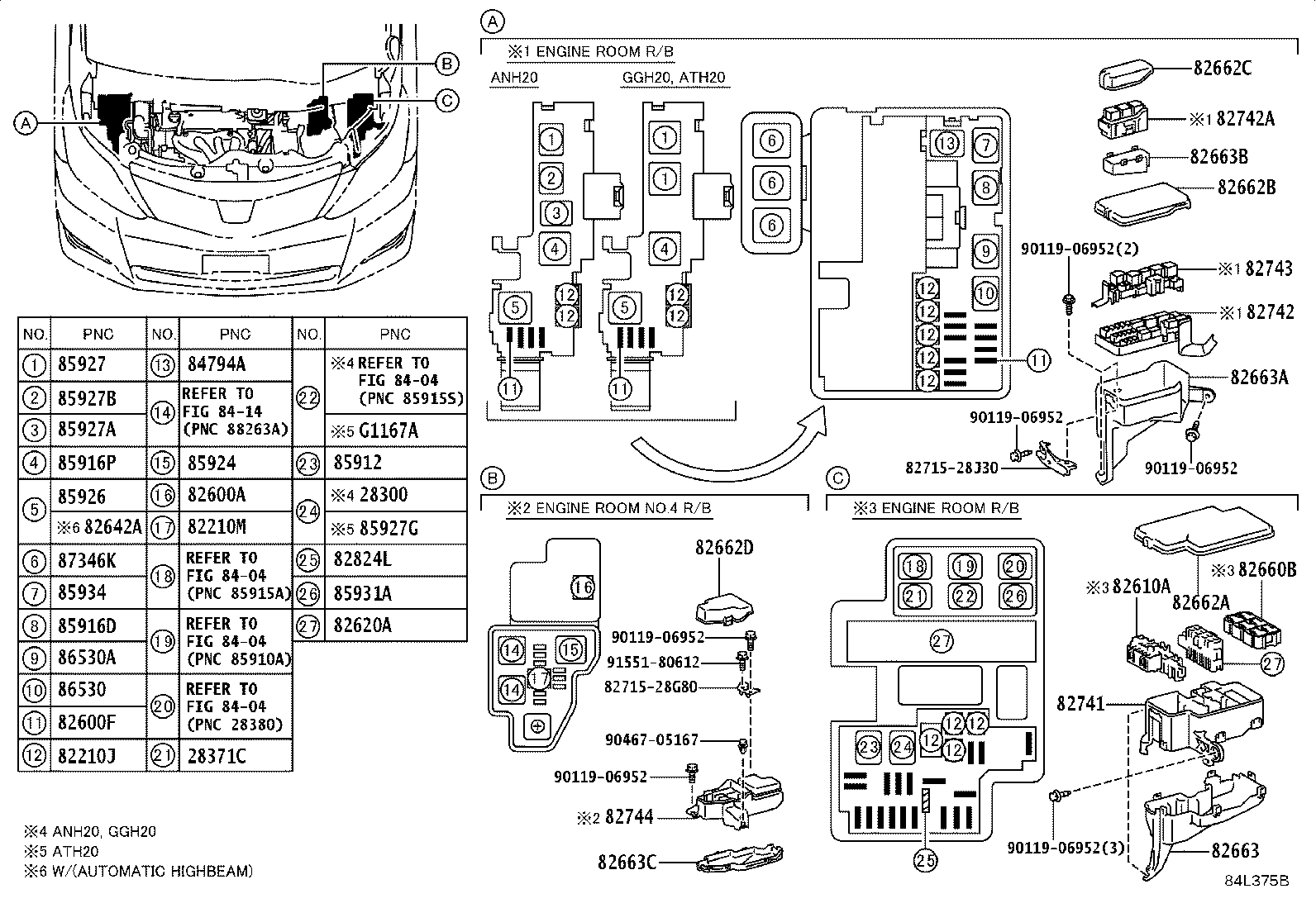

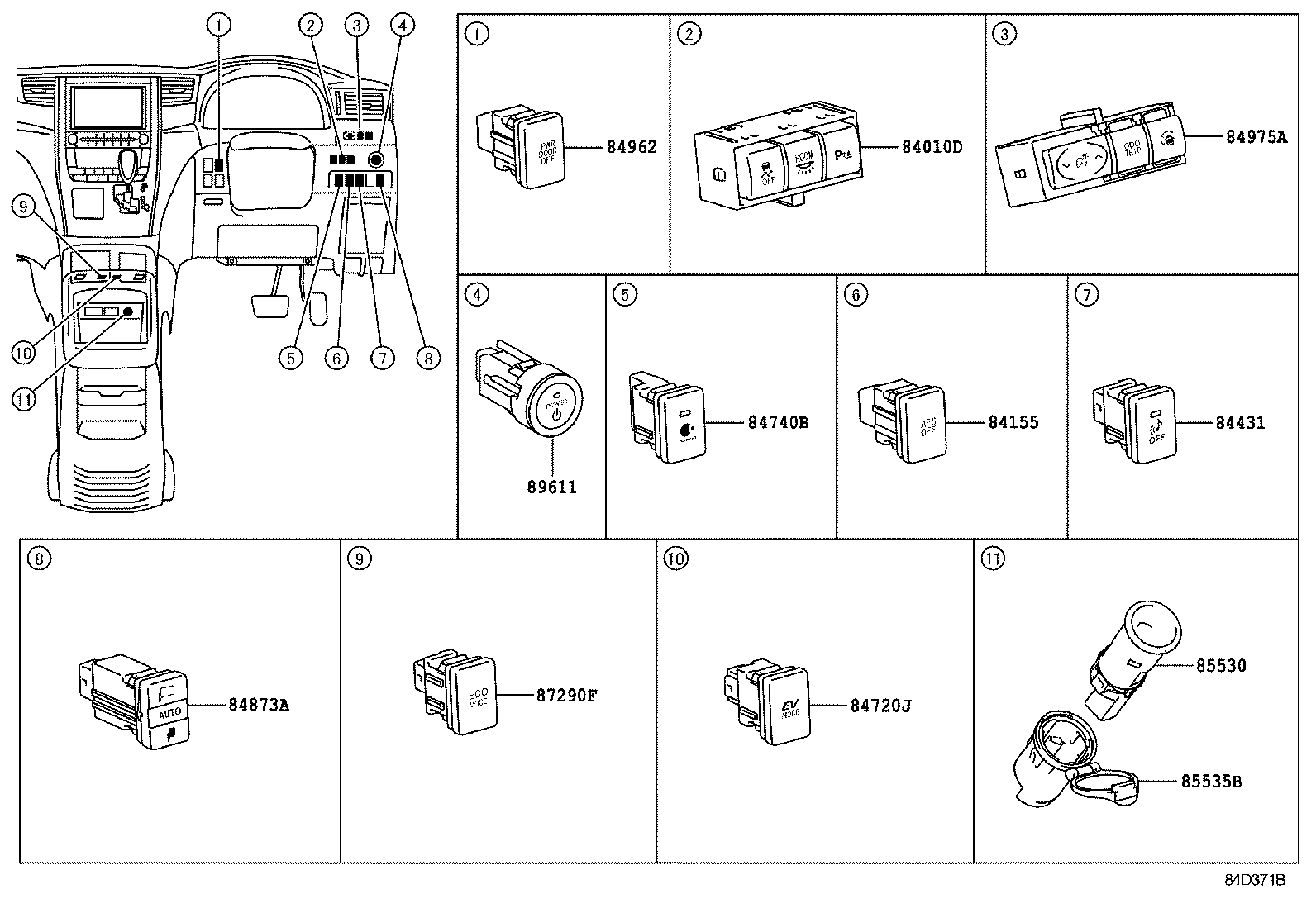

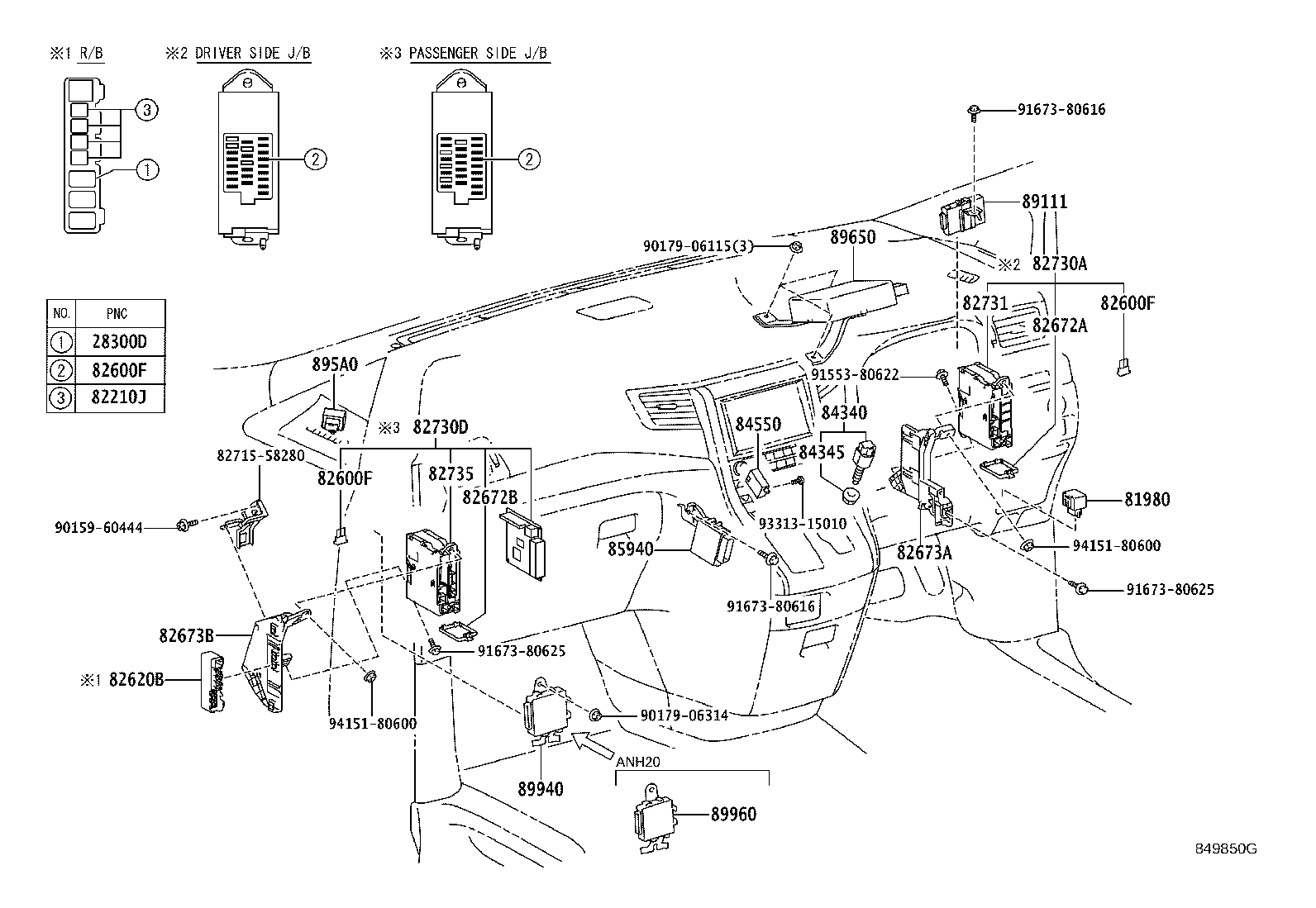

Figure 849810B 849810B 2008-04 → — Figure 849809B 849809B 2009-06 → — Figure 84D520A 84D520A 2011-12 → — Figure 849853K 849853K 2008-04 → — Figure 84L375B 84L375B 2008-04 → — Figure 849850G 849850G 2008-04 → — Figure 84B468B 84B468B 2010-05 → — Figure 849854A 849854A 2008-04 → 2011-10 Figure 84D369A 84D369A 2011-10 → — Figure 84D371B 84D371B 2011-12 → — Figure 84B470 84B470 2010-05 → 2011-10 Figure 84D370B 84D370B 2011-10 → — Figure 849851F 849851F 2008-04 → — Figure 849827J 849827J 2008-04 → — Figure 849829D 849829D 2008-04 → —

Part groups

PNCDescription
28300 Relay Assy, Starter
28300D Relay, Starter Cut
28371C Relay, Ignition, NO.2
28380A Resister, Fuel Pump
28850 Sensor Assy, Battery Current
81980 Flasher Assy, Turn Signal
81981A Flasher, Turn Signal
82210J Fusible Link
82210M Fusible Link
82600A Fuse, High Current
82600F Fuse, Fuse Block
82610A Block Assy, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82642A Relay, Running Light
82660B Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82662D Cover, Relay Block, Upper, NO.4
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82672B Cover, Junction Block
82673A Bracket, Junction Block, NO.1
82673B Bracket, Junction Block, NO.2
82730A Block Assy, Driver Side Junction
82730D Block Assy, Passenger Side Junction
82731 Block, Driver Side Junction
82735 Block, Passenger Side Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82742A Block, Engine Room Relay, NO.5
82743 Block, Engine Room Relay, NO.3
82744 Block, Engine Room Relay, NO.4
82824L Pin, Short
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84010D Control & Panel Assy, Integration
84040 Master Switch Assy,Multiplex Network
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84155 Switch, Headlamp Swivel Main
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84250A Switch Assy, Steering Pad
84306 Cable Sub-assy, Spiral
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84431 Switch, Vehicle Approaching Speaker
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84656A Bezel, Switch
84720J Switch Assy, Pattern Select
84740B Switch Assy, Air Purifier
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84794 Switch, FR Wiper Deicer
84794A Relay, FR Wiper Deicer
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84873A Switch, Retractable Outer Mirror
84920C Switch Assy, Power Seat Front, RH
84920D Switch Assy, Power Seat Front, LH
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84921C Knob, Power Seat Switch, RH
84921D Knob, Power Seat Switch, LH
84921J Knob, Power Seat Switch, RH
84921K Knob, Power Seat Switch, LH
84922 Switch, Front Power Seat
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84923 Switch, Rear Power Seat
84927 Switch, Seat Memory
84930 Switch Assy, Door Control
84931C Switch, Back Door Control
84931M Bulb, Door Control Switch
84962 Switch, Power Slide Door Main
84963 Switch, Power Slide Door Control, NO.1
84963A Switch, Power Slide Door Control, NO.2
84963C Bulb, Power Slide Control Switch, NO.2
84975A Trip & Rheostat Switch Assy
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85513 Cover, Cigarette Lighter
85515 Stay, Cigarette Lighter Bezel
85520 Knob And Element Assy, Cigarette Lighter
85530 Socket Assy, Power Outlet, NO.1
85530E Socket Assy, Power Outlet, NO.3
85533 Lens, Cigarette Lighter Indicator
85535B Cover, Power Outlet Socket, NO.1
85535E Cover, Power Outlet Socket, NO.2
85861D Computer, Seat Climate Control, Rear RH
85861E Computer, Seat Climate Control, Rear LH
85912 Relay, Defogger
85916D Relay, Fog Lamp
85916L Relay, Rear Fog Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85927 Relay, Cooling Fan
85927A Relay, Cooling Fan, NO.2
85927B Relay, Cooling Fan, NO.3
85927G Relay, Air Conditioner Water Pump
85931A Relay, Brake Lamp
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
85975B Relay, Slide Door Closer, RH
86530 Relay Assy, Horn
86530A Relay, Horn
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
89111 Computer, Network Gateway
89222A Computer, Multiplex Network Door
89245B Sensor, Steering
89257 Computer, Cooling Fan
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89465A Sensor, Oxygen NO.2
89467B Sensor, Air Fuel Ratio
89467C Sensor, Air Fuel Ratio, NO.2
89530C Computer Assy, Transmission Control
895A0 Relay Assy, Stop Lamp Control
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89710 Computer Assy, Position Control
89747C Buzzer, Power Slide Back Door Warning
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
G1167A Relay (FOR OIL PUMP MOTOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
