Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

9 part groups · 2 illustrations

Illustrations

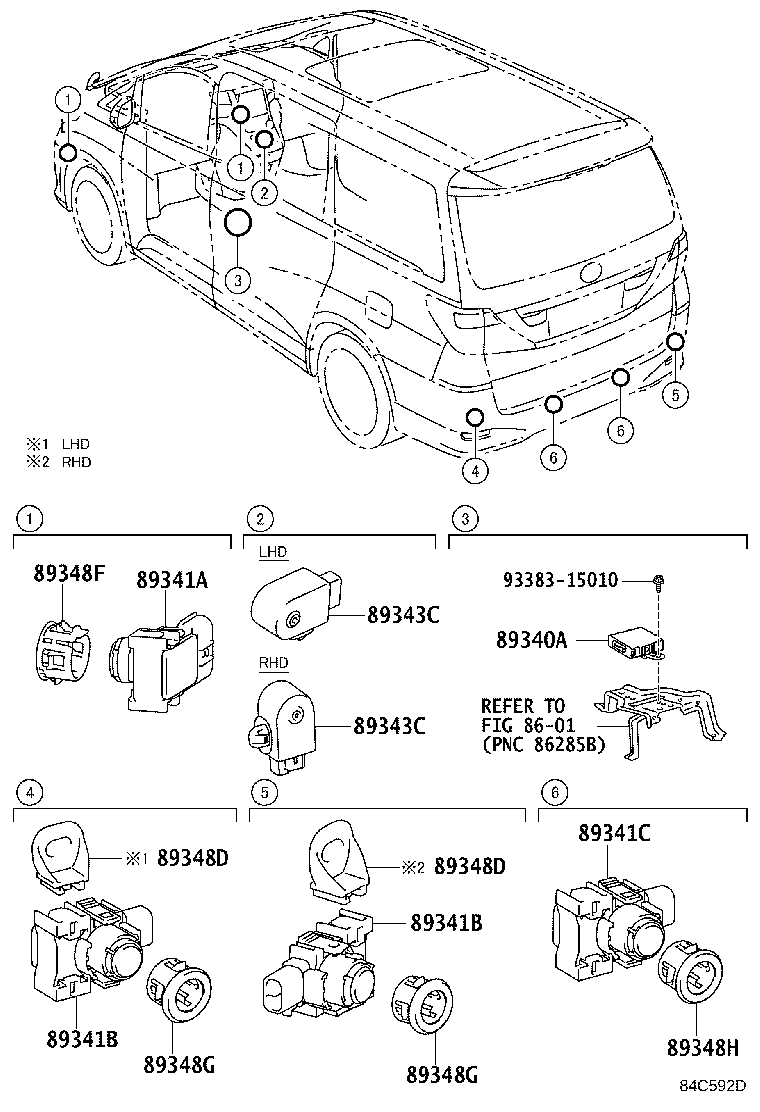

Figure 849826D 849826D 2008-04 → 2011-10 Figure 84C592D 84C592D 2011-10 → —

Part groups

PNCDescription
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89341C Sensor, Ultrasonic, NO.3
89343C Buzzer, Clearance Warning, NO.1
89348D Clip, Ultrasonic Sensor
89348F Bezel, Ultrasonic Sensor, NO.1
89348G Bezel, Ultrasonic Sensor, NO.2
89348H Bezel, Ultrasonic Sensor, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
