Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

9 part groups · 2 illustrations

Illustrations

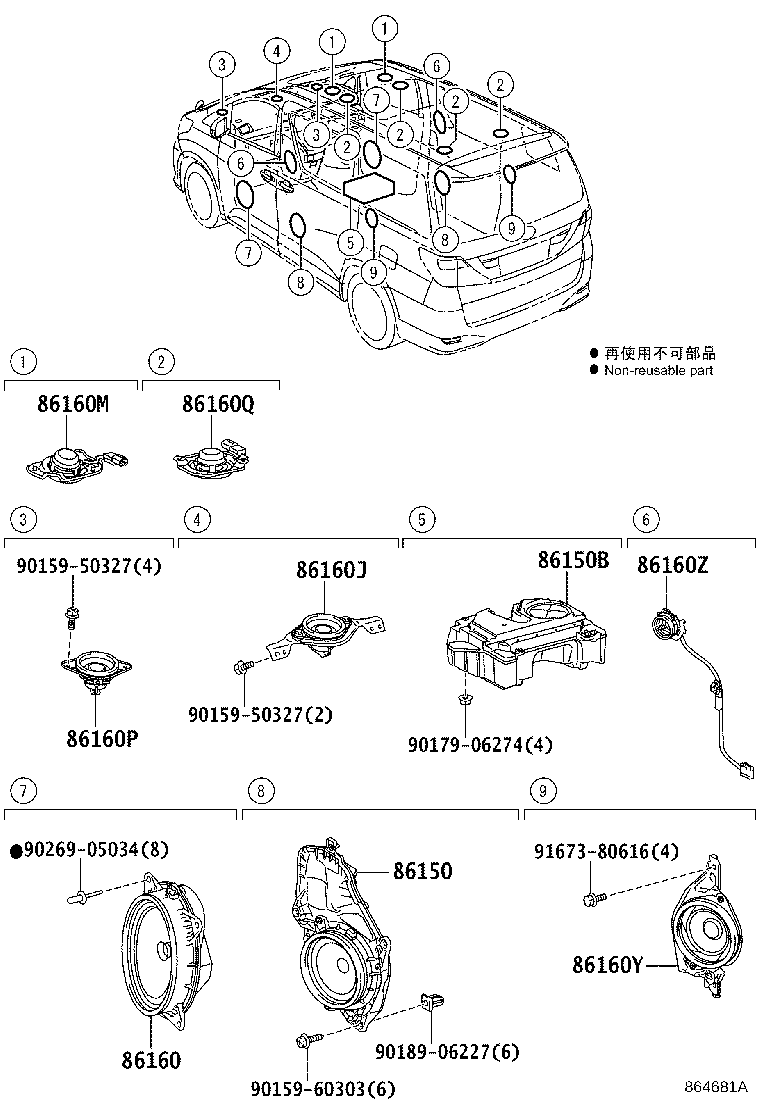

Figure 863560A 863560A 2008-04 → 2011-10 Figure 864681A 864681A 2011-10 → —

Part groups

PNCDescription
86150 Speaker Assy, W/Box, NO.1
86150B Speaker Assy, W/Box, NO.2
86160 Speaker Assy, Front NO.1
86160J Speaker Assy, Front NO.3
86160M Speaker Assy, Roof
86160P Speaker Assy, Front NO.2
86160Q Speaker Assy, Roof
86160Y Speaker Assy, Rear NO.2
86160Z Speaker Assy, Rear NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
