Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01

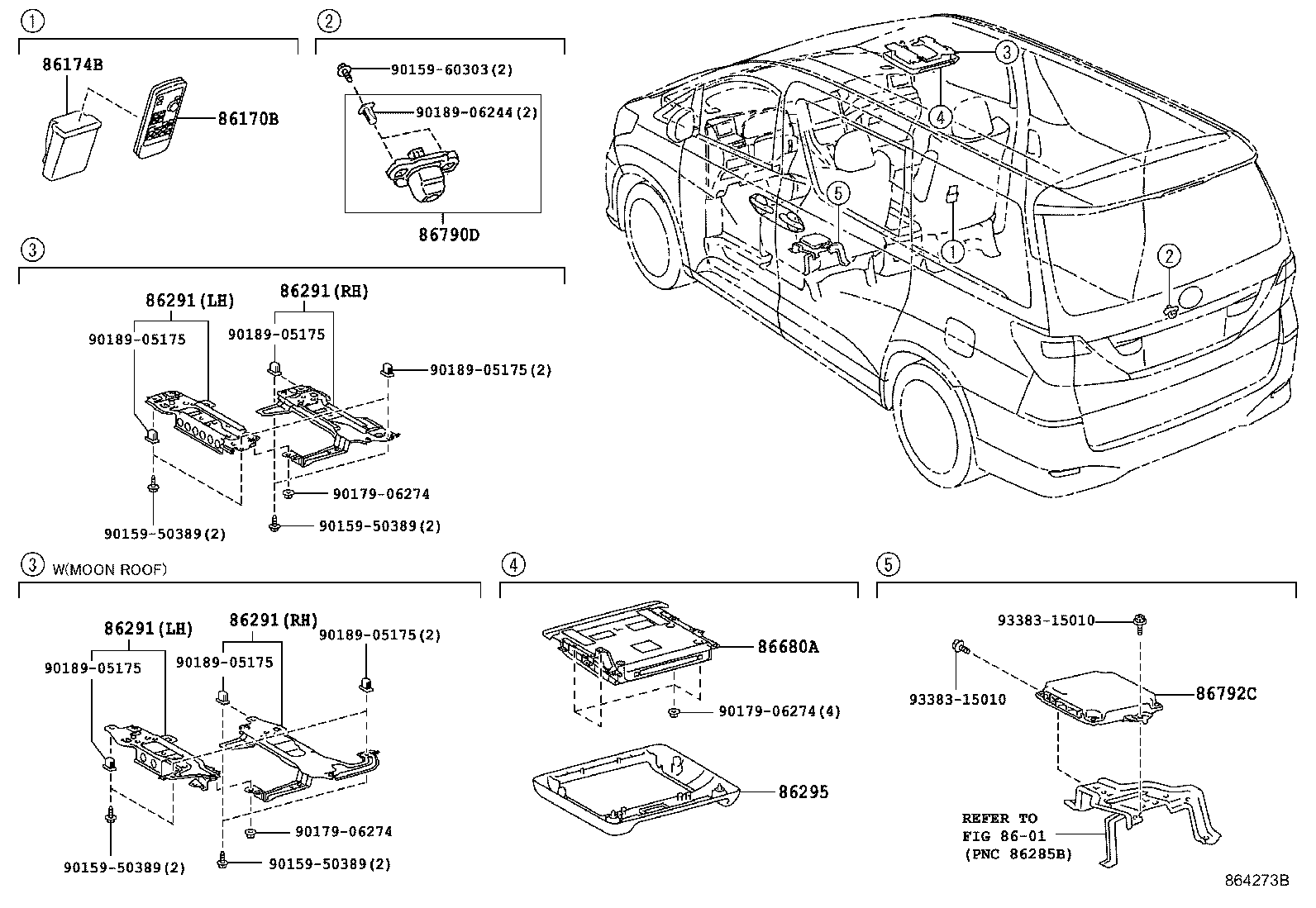

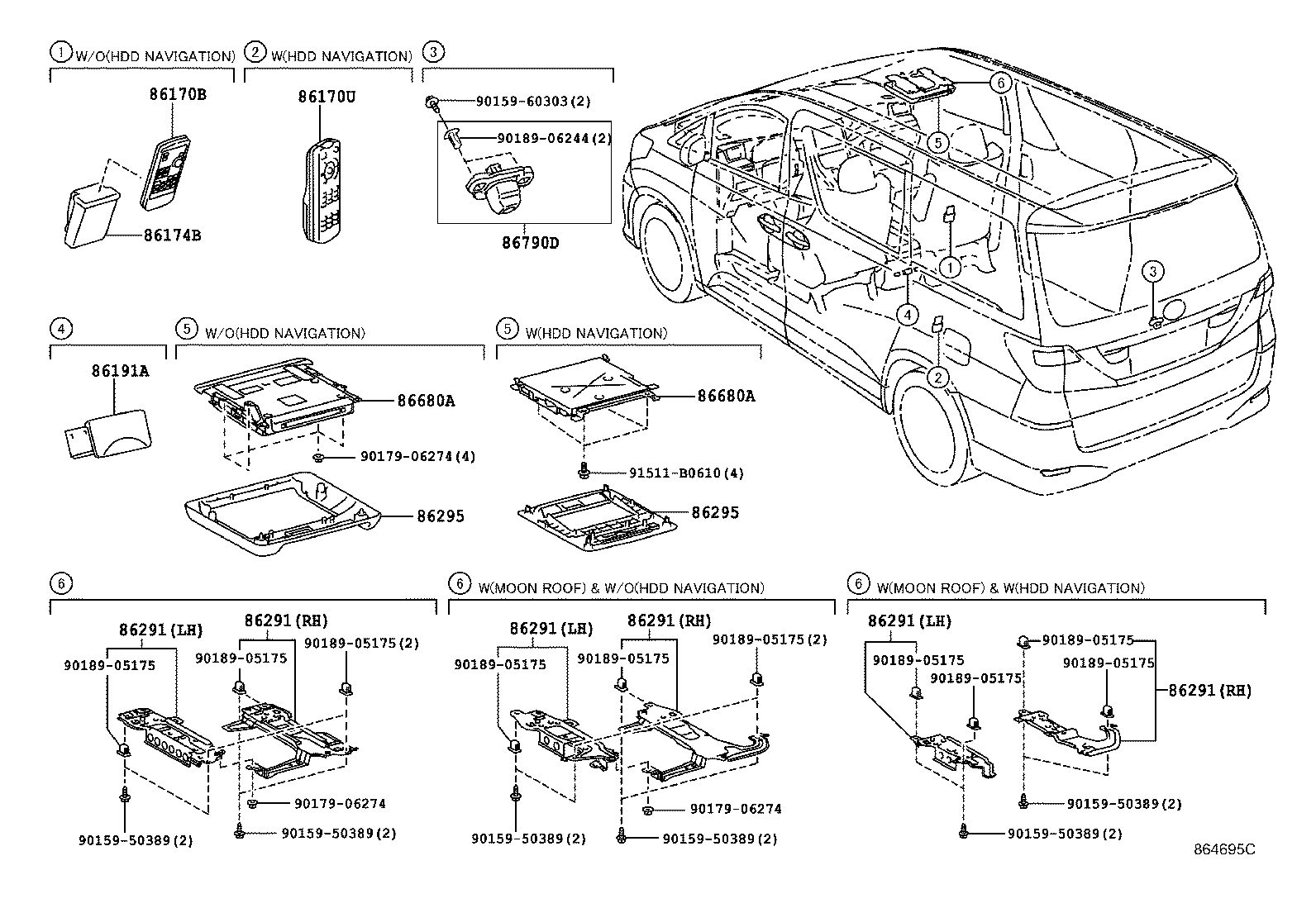

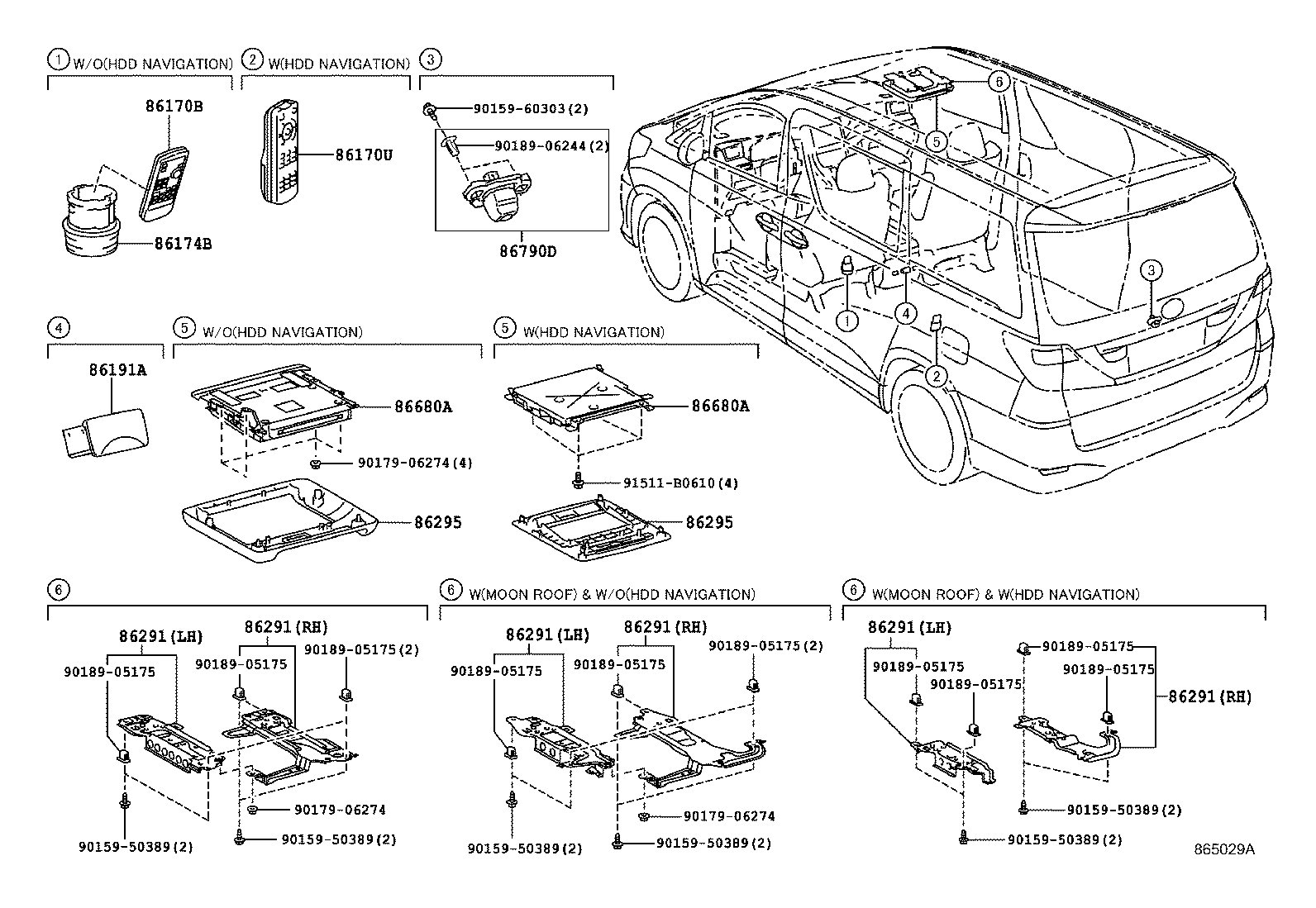

Camera & Rear Monitor Display
9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 86170B | Switch & Volume Assy, Television |
| 86170U | Switch & Volume Assy, Rear |
| 86174B | Case, Switch & Volume |
| 86191A | Terminal, Video(VIDEO ADAPTER) |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |
| 86790D | Camera Assy, Television, RR |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
