Toyota Alphard/Vellfire/HV
2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General
Supported model
Data version 2015-01
Mirror

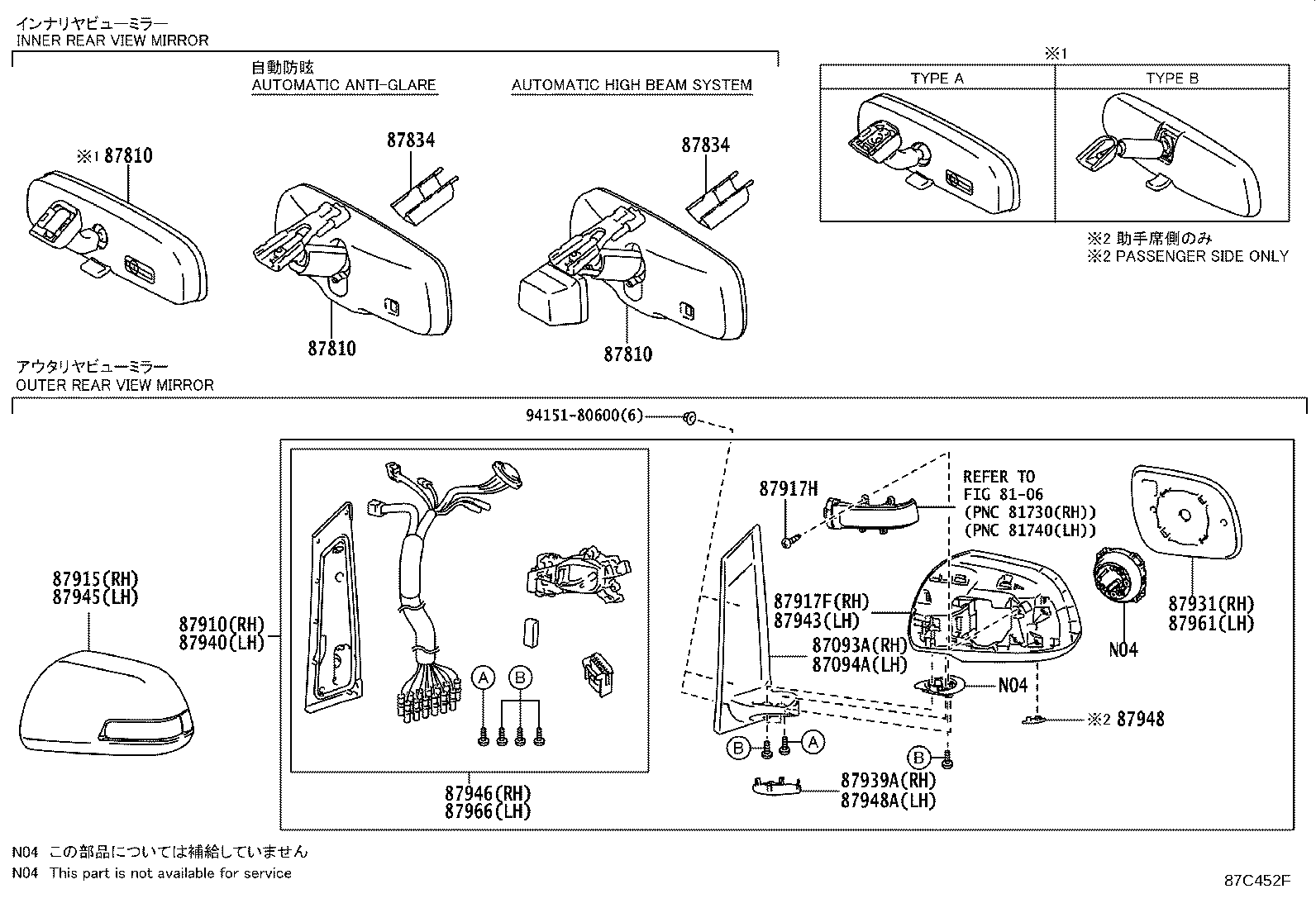

27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53117F | Retainer, Front Fender Side View Device |
| 87088 | Arm Sub-assy, Outer Under Rear View Mirror |
| 87091 | Mirror Set, Outer Rear View, NO.1 |
| 87091A | Mirror Set, Outer Rear View, NO.2 |
| 87093A | Stay Sub-assy, Outer Rear View Mirror, RH |
| 87094A | Stay Sub-assy, Outer Rear View Mirror, LH |
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87915 | Cover, Outer Mirror, RH |
| 87917F | Body, Outer Mirror, RH |
| 87917H | Screw, Outer Mirror, NO.2 |
| 87930 | Device Assy, Front Fender Side View, LH |
| 87931 | Outer Mirror, RH |
| 87939A | Cover, Outer Mirror Hole, RH |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87943 | Body, Outer Mirror, LH |
| 87944 | Cover, Front Fender Side View Device, LH |
| 87945 | Cover, Outer Mirror, LH |
| 87946 | Retractor, Outer Mirror, RH |
| 87948 | Cover, Outer Mirror Hole, LH |
| 87948A | Cover, Outer Mirror Hole, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
| 87961 | Mirror Outer, LH |
| 87966 | Retractor, Outer Mirror, LH |
| 87973 | Cover, Outer Under RR View Mirror |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
