Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

32 part groups · 3 illustrations

Illustrations

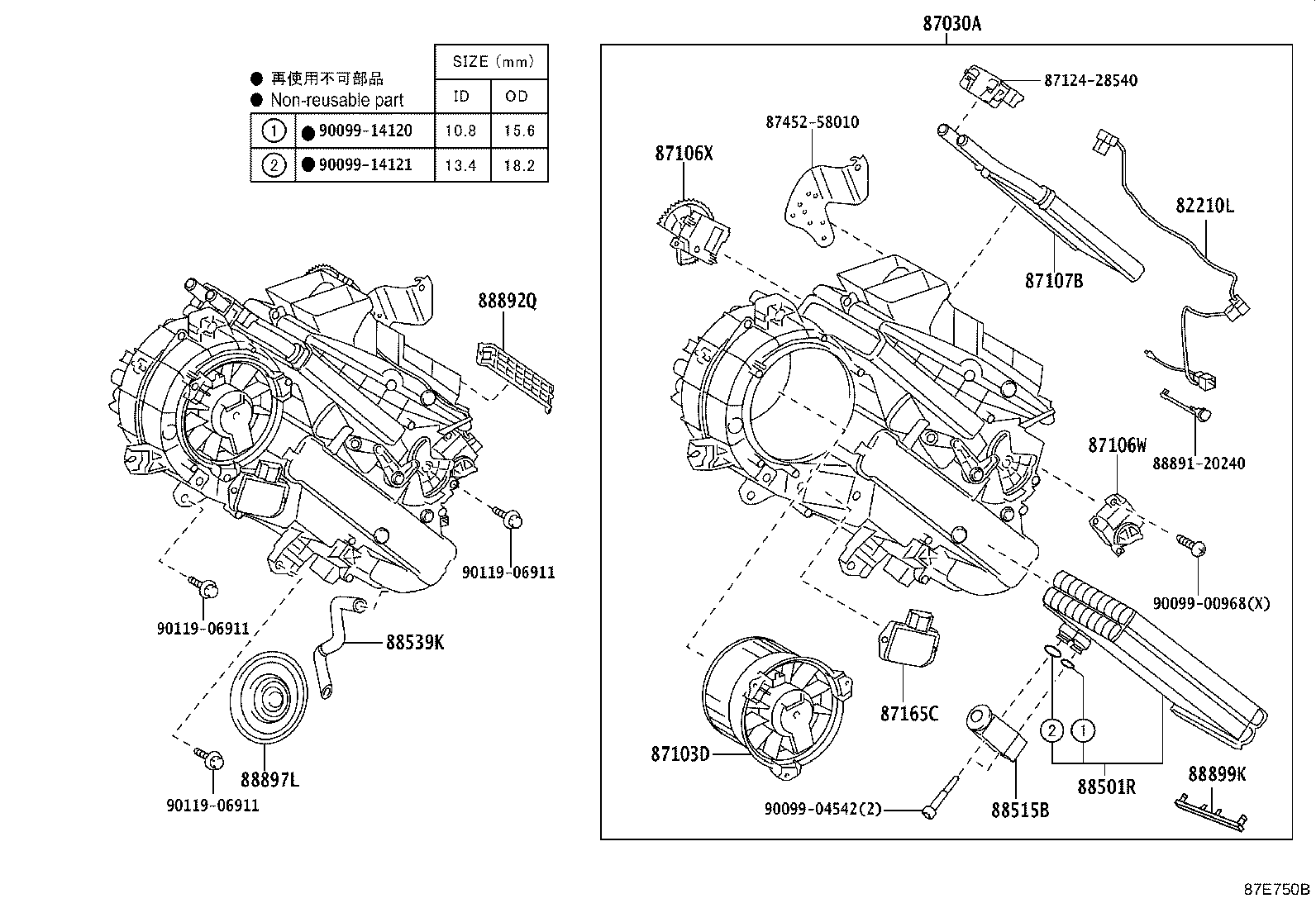

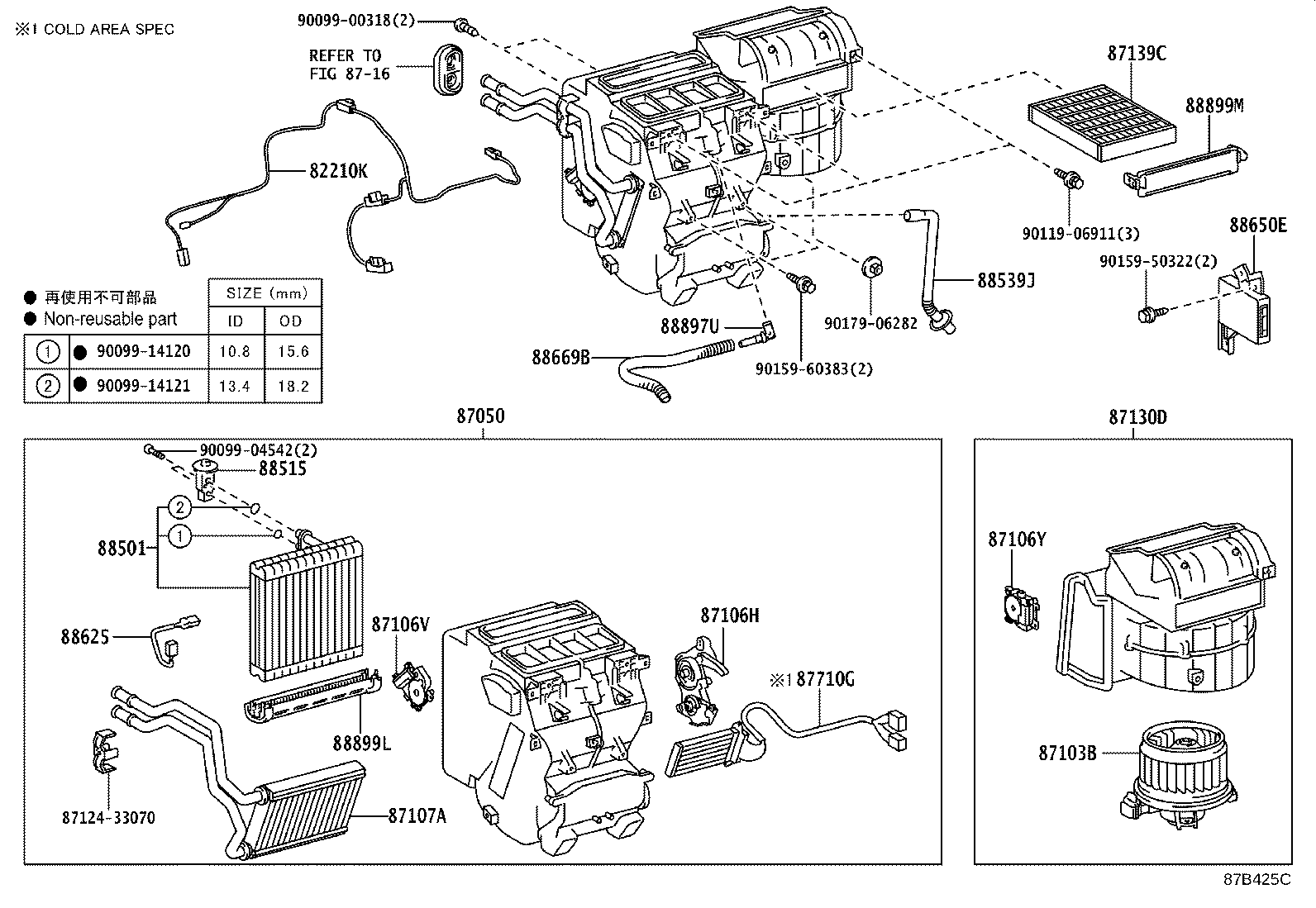

Figure 87A075F 87A075F 2008-04 → — Figure 87B425C 87B425C 2010-06 → — Figure 87E750B 87E750B 2008-04 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
82210L Harness Assy, Air Conditioner, NO.2
87030A Unit Assy, Cooling, Rear
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87103D Motor Sub-assy, Blower W/Fan(FOR REAR)
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87106W Servo Sub-assy, Damper(FOR AIRMIX REAR)
87106X Servo Sub-assy, Damper(FOR MODE REAR)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87107B Unit Sub-assy, Heater Radiator
87130D Blower Assy
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88501R Evaporator Sub-assy (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88892Q Plate, Cooler
88897L Grommet (FOR DRAIN HOSE)
88897U Pipe, Aspirator
88899K Plate, Cover
88899L Parts, Cooling Unit
88899M Plate, Cover(FOR AIR FILTER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
