Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

24 part groups · 8 illustrations

Illustrations

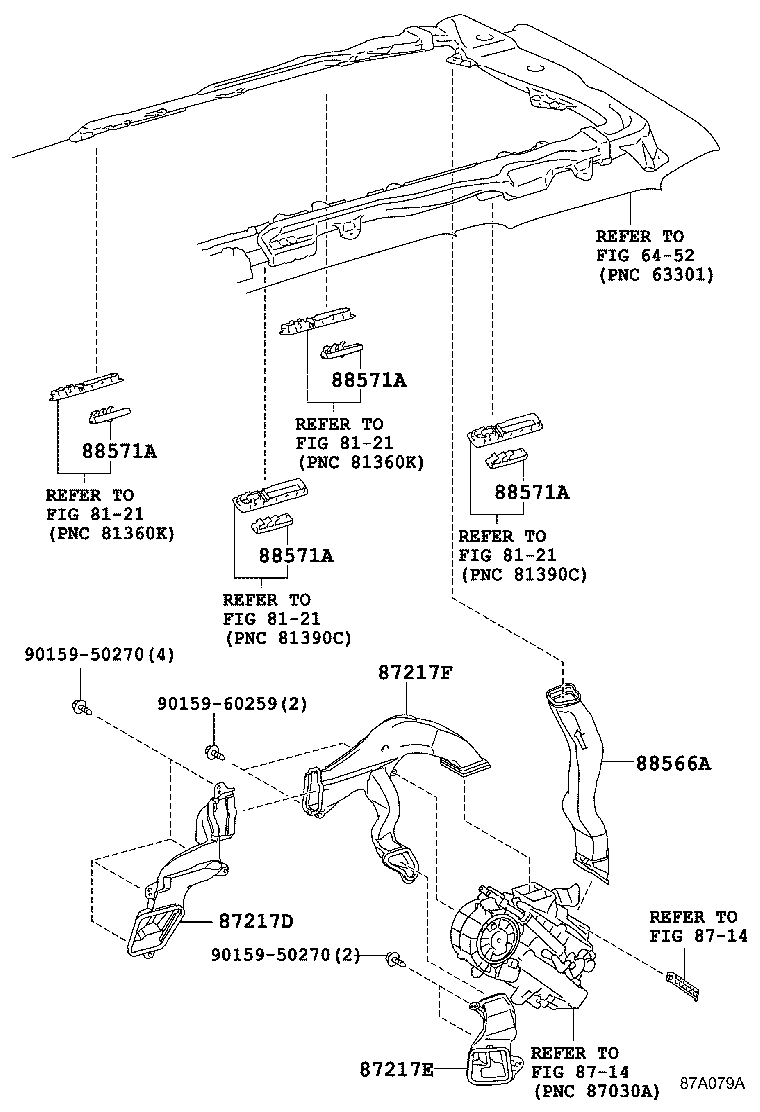

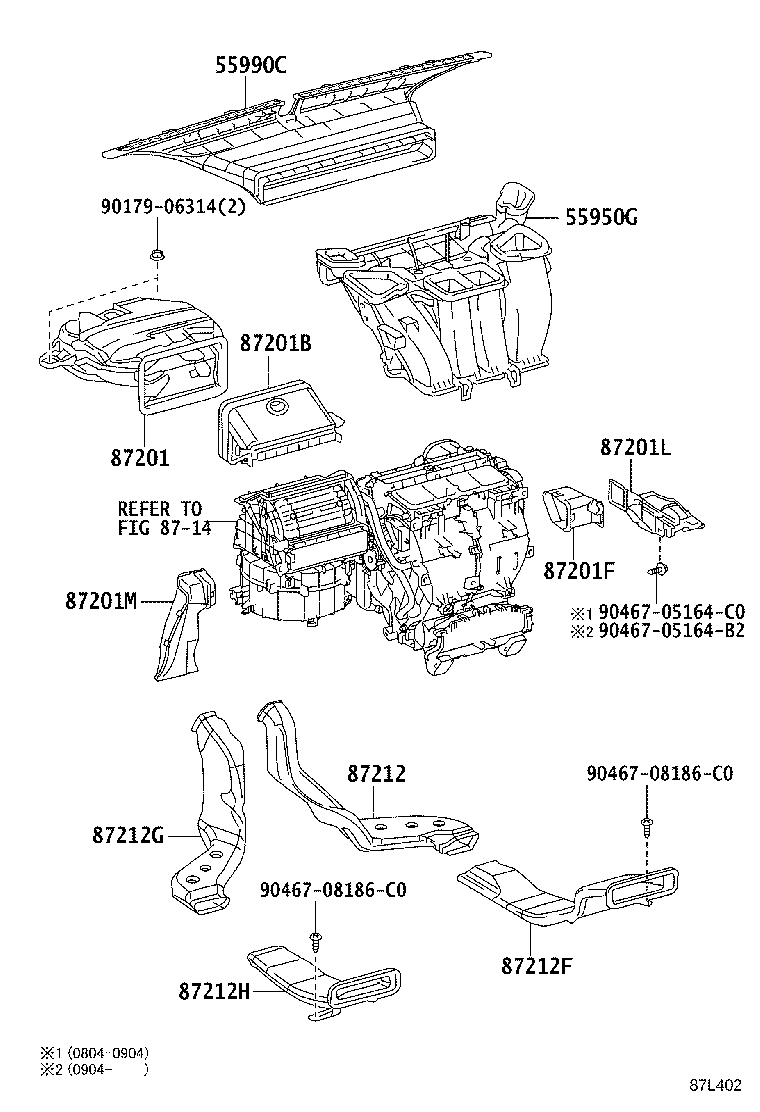

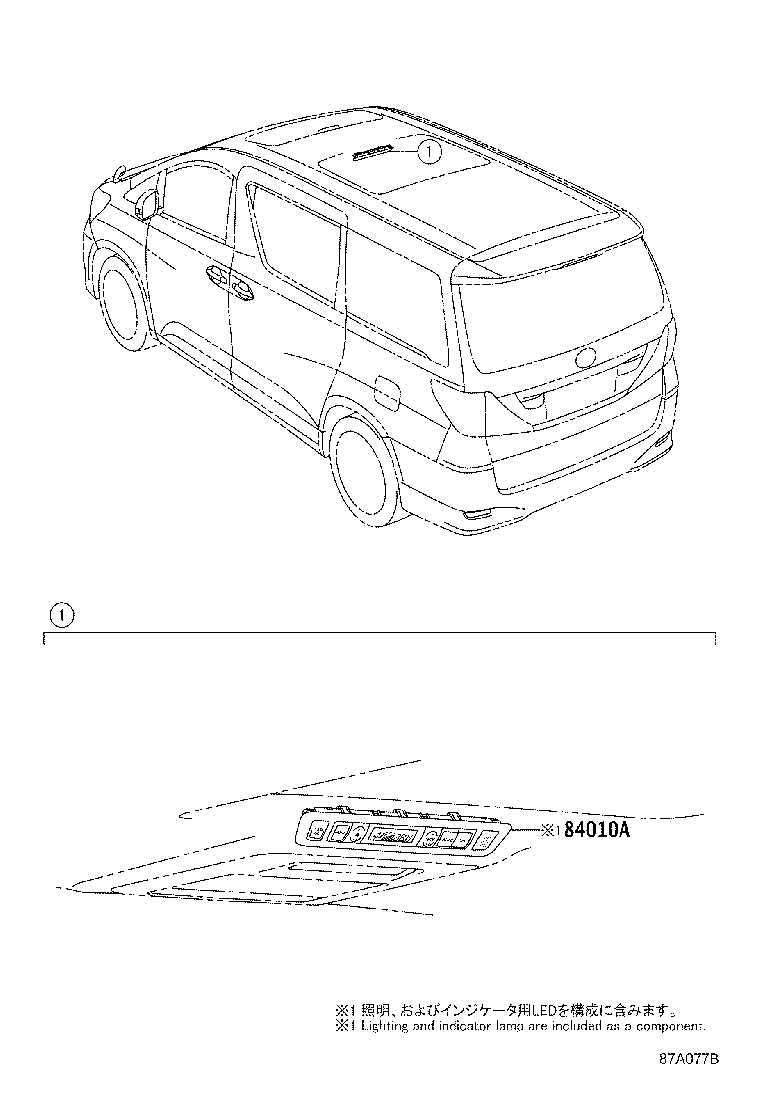

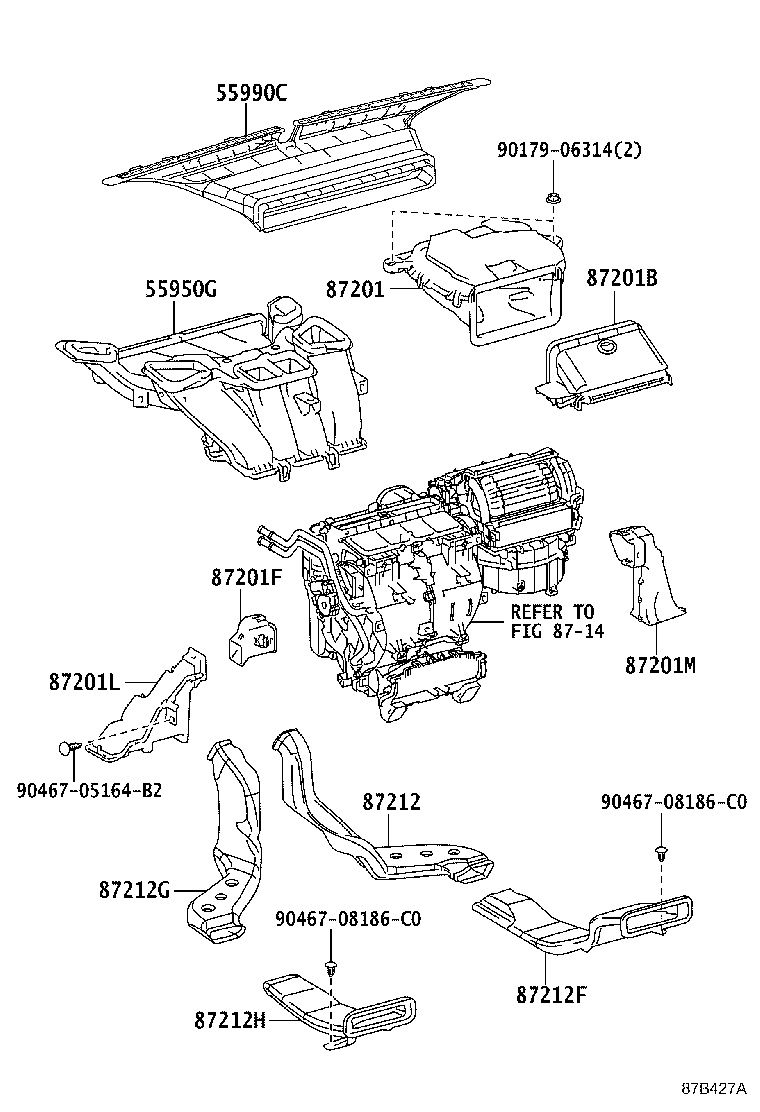

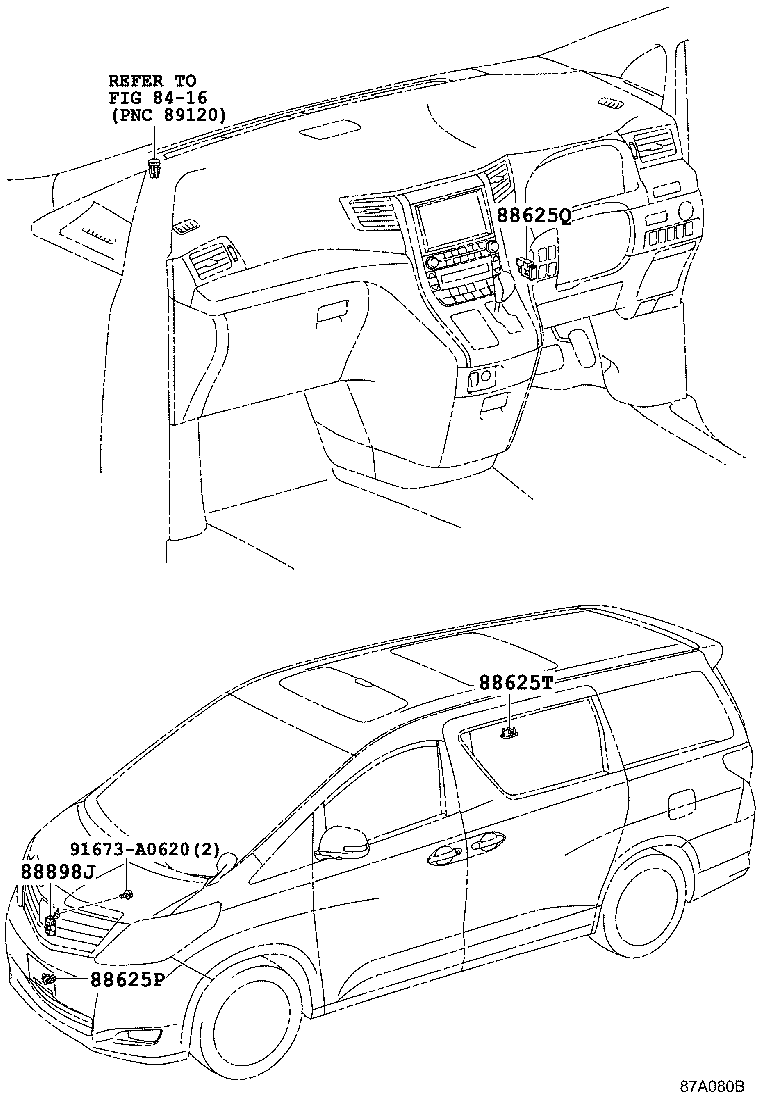

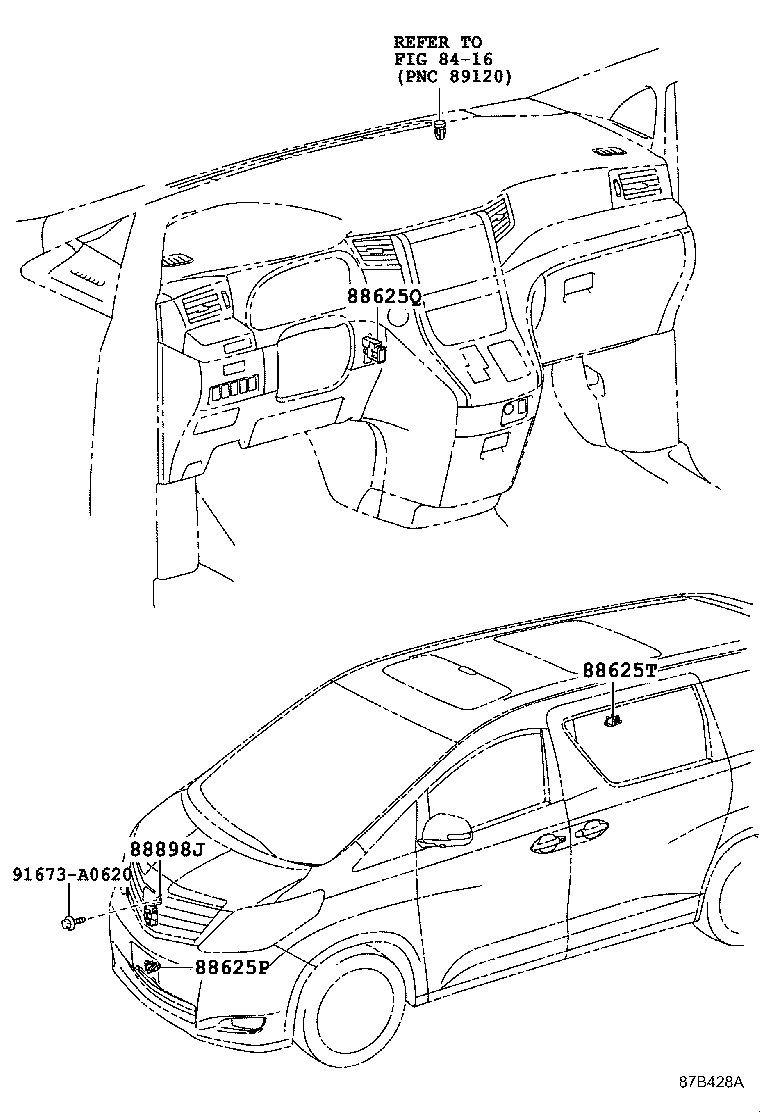

Figure 87A076C 87A076C 2008-04 → — Figure 87B426C 87B426C 2010-06 → — Figure 87A077B 87A077B 2008-04 → — Figure 87L402 87L402 2008-04 → — Figure 87B427A 87B427A 2010-06 → — Figure 87A079A 87A079A 2008-04 → — Figure 87A080B 87A080B 2008-04 → — Figure 87B428A 87B428A 2010-06 → —

Part groups

PNCDescription
55900 Control Assy, Air Conditioner
55902C Panel Sub-assy, Air Conditioner
55935A Circuit, Center Cluster Module
55950G Nozzle Assy, Defroster
55990C Nozzle Assy, Center Defroster
84010A Control & Panel Assy, Integration
87201 Duct Sub-assy, Air, NO.1
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201L Duct Sub-assy, Air, NO.4
87201M Duct Sub-assy, Air, NO.5
87212 Duct, Air, Rear NO.1
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87212H Duct, Air, Rear NO.4
87217D Duct, Air, Rear Side NO.1
87217E Duct, Air, Rear Side NO.2
87217F Duct, Air, Rear Side NO.3
88566A Duct, Cooler Air, NO.1
88571A Grille, Air Outlet
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88625T Thermistor, Cooler (ROOM TEMP. SENSOR NO.2)
88898J Sensor, Smog Ventilation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
