Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

22 part groups · 8 illustrations

Illustrations

Figure 87A082C

87A082C 2008-04 → —

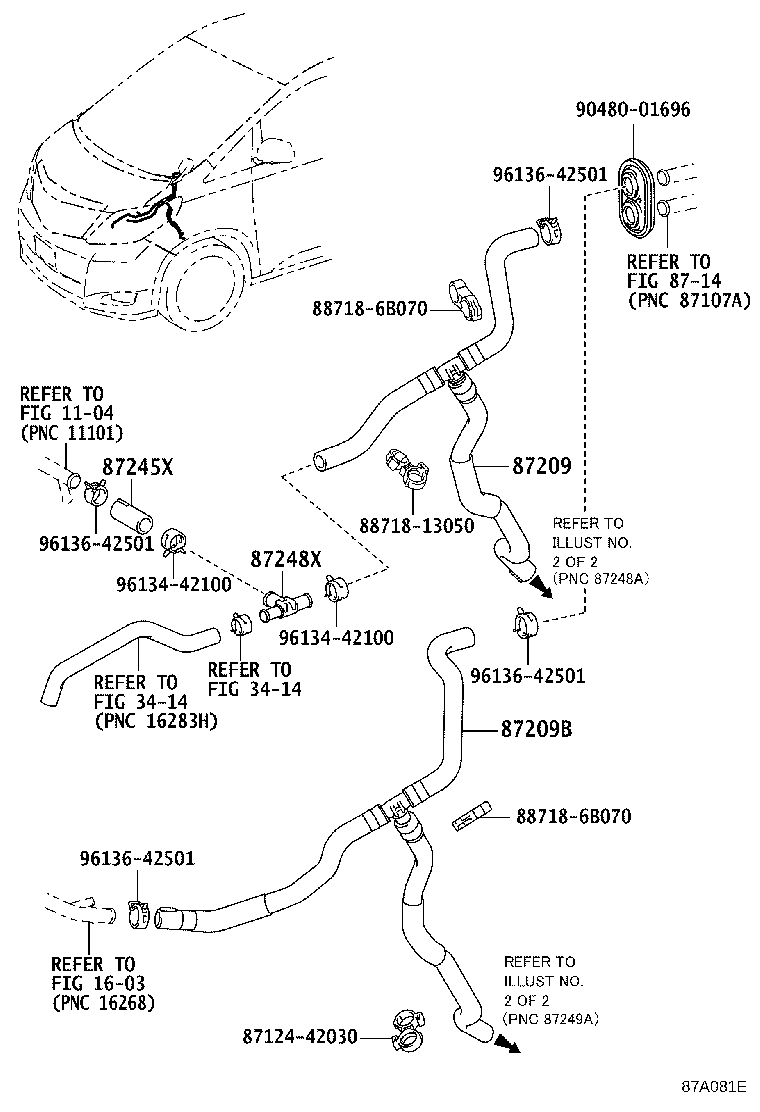

Figure 87A081E

87A081E 2009-06 → —

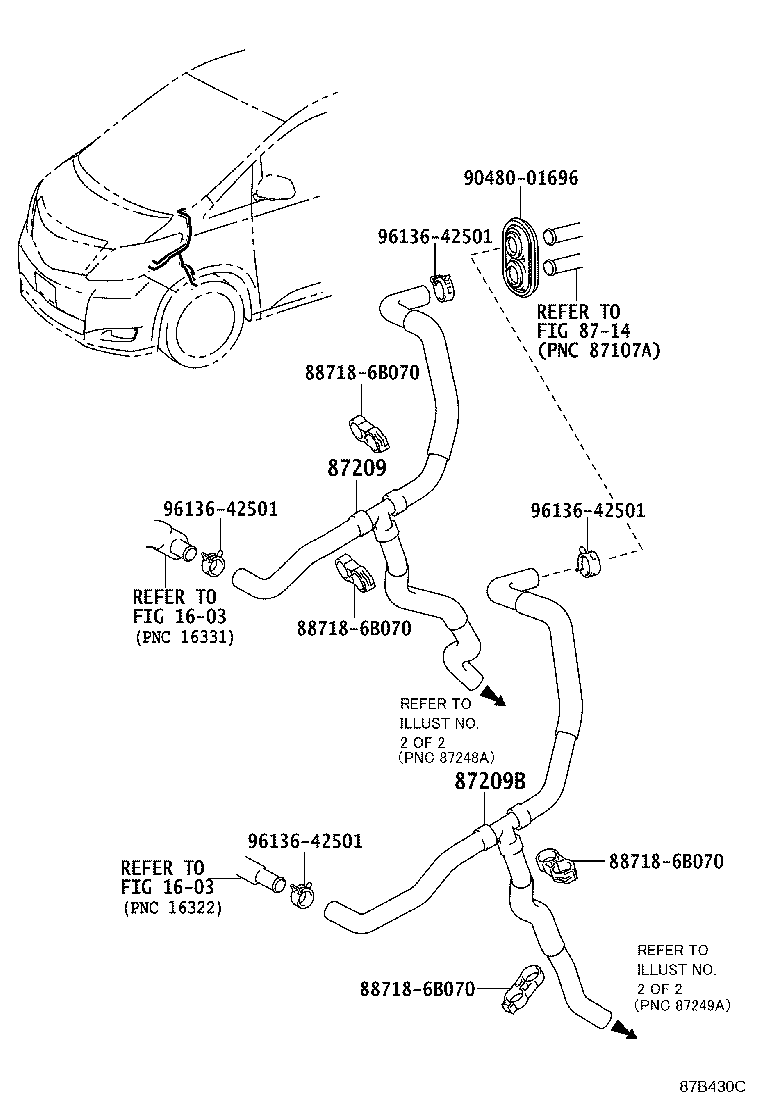

Figure 87B430C

87B430C 2010-06 → —

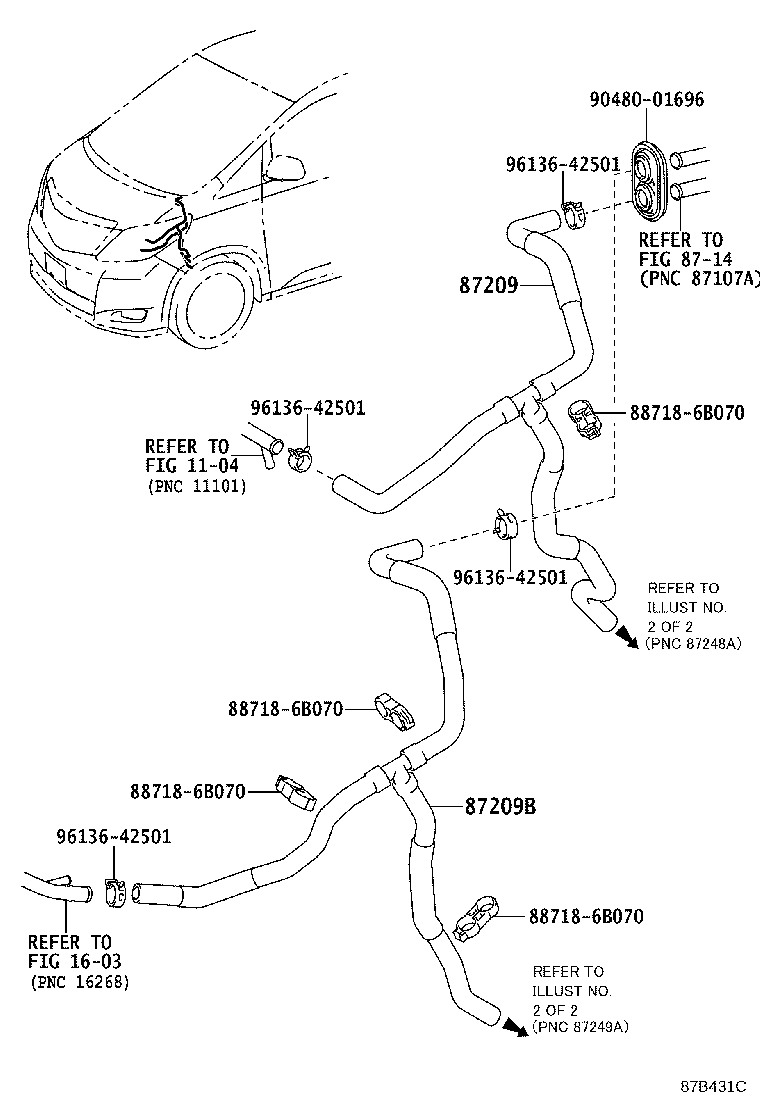

Figure 87B431C

87B431C 2010-06 → —

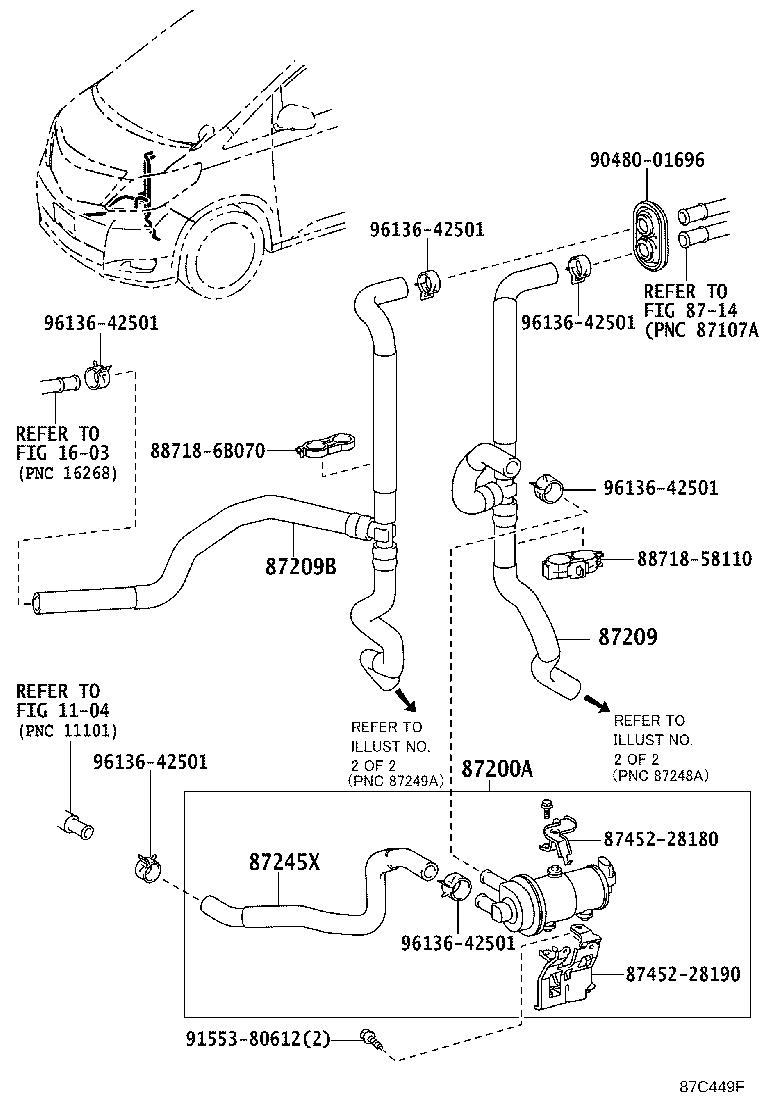

Figure 87C449F

87C449F 2011-11 → —

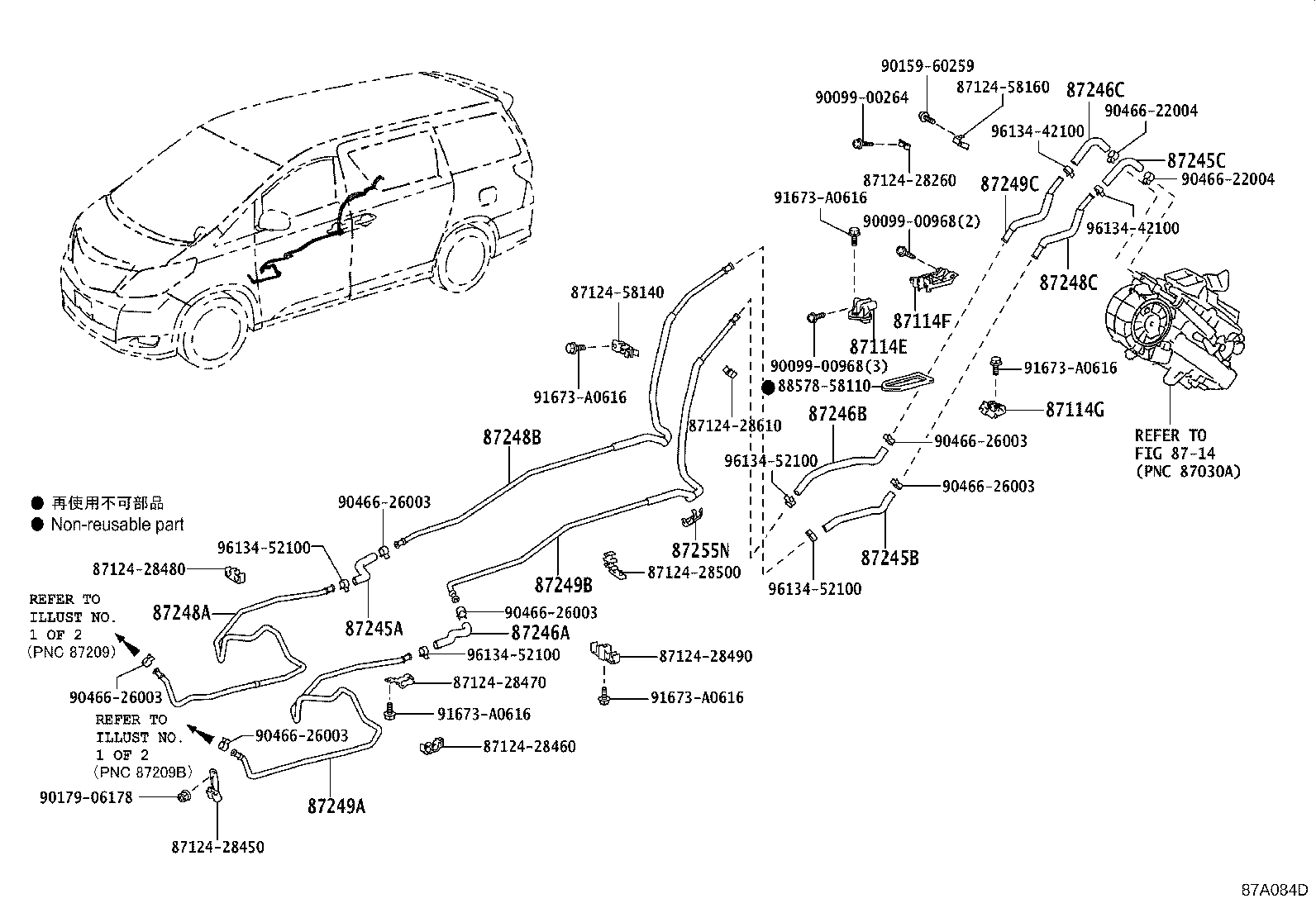

Figure 87A084D

87A084D 2008-04 → —

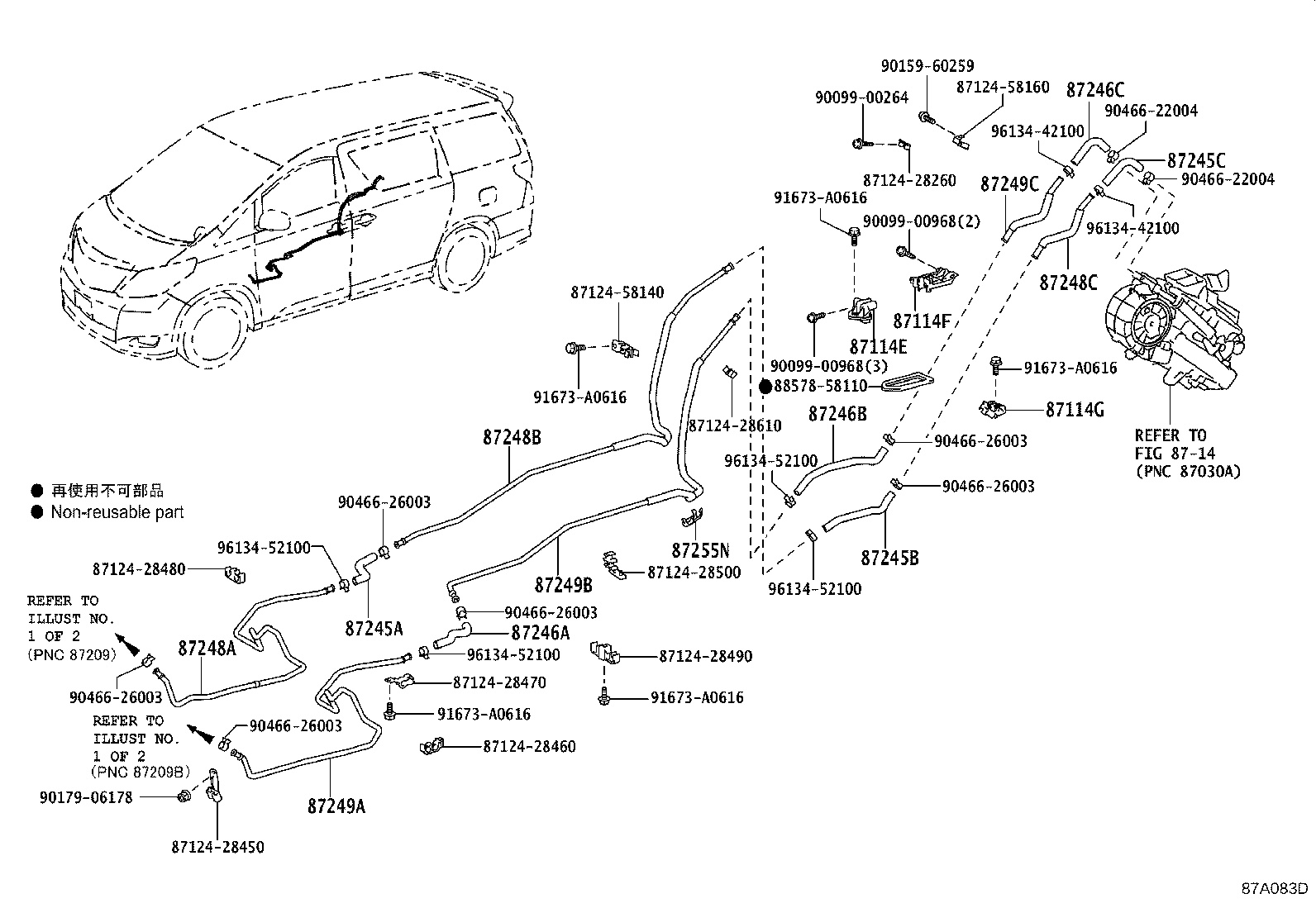

Figure 87A083D

87A083D 2009-06 → —

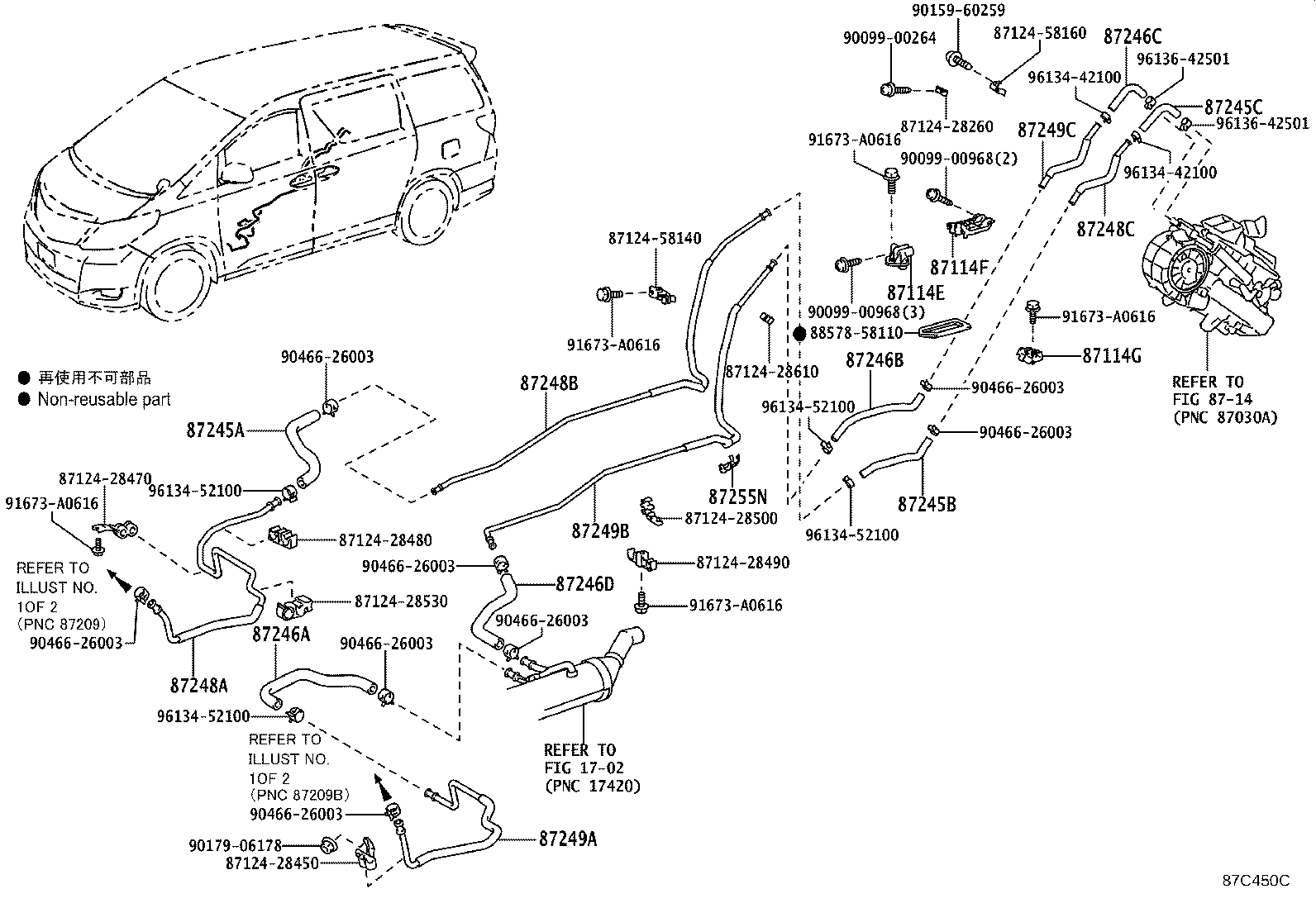

Figure 87C450C

87C450C 2011-11 → —

Part groups

PNC	Description
87114E	Cover, Heater, NO.1
87114F	Cover, Heater, NO.2
87114G	Cover, Heater, NO.3
87200A	Pump Assy, Water(FOR HEATER)
87209	Hose Sub-assy, Water
87209B	Hose Sub-assy, Water, B
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245X	Hose, Heater Water
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87246D	Hose, Heater Water, Outlet D
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87248C	Pipe, Heater Water Inlet, C
87248X	Pipe, Heater Water
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B
87249C	Pipe, Heater Water Outlet, C
87255N	Pipe, Heater Protector, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
