Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

21 part groups · 8 illustrations

Illustrations

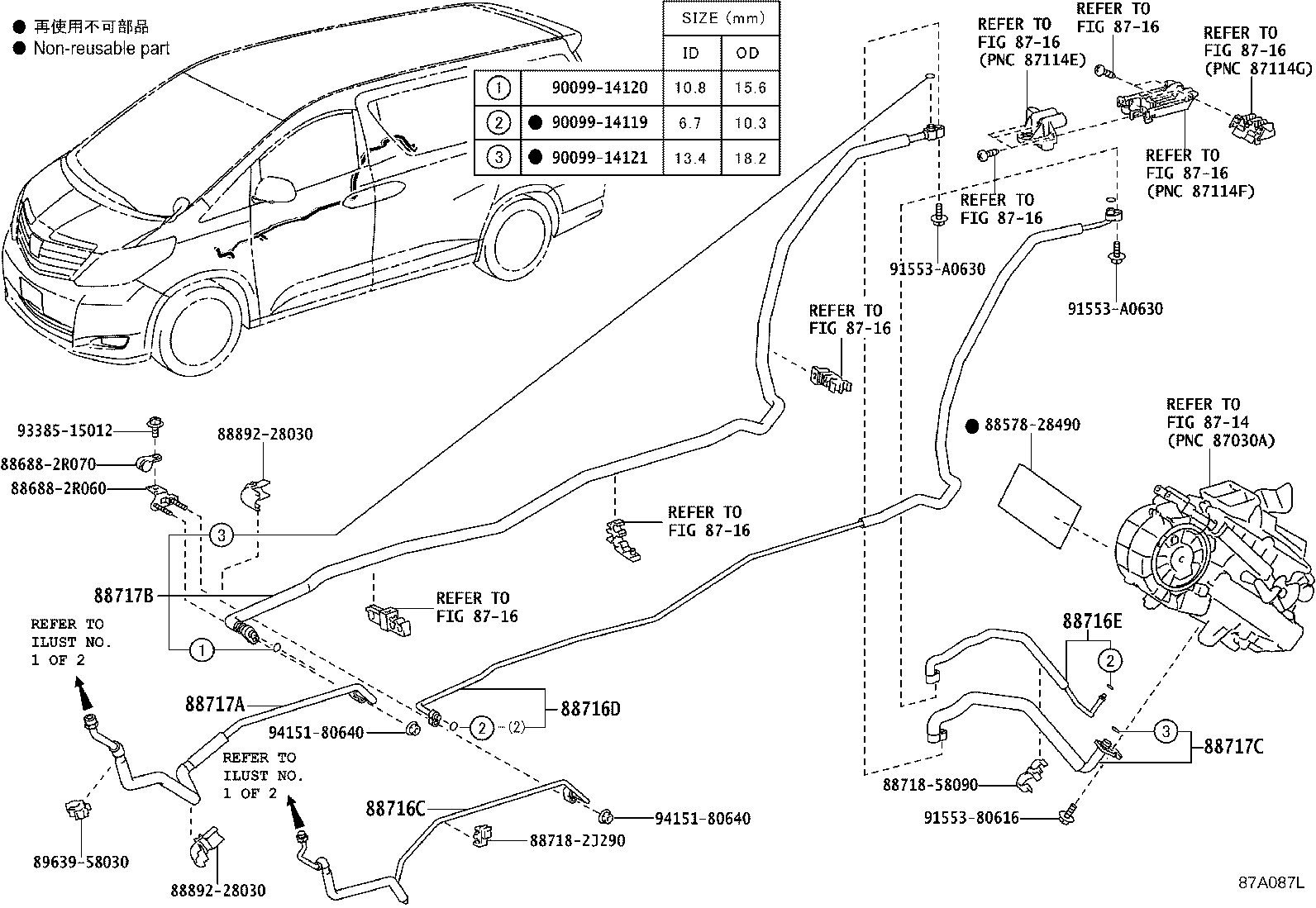

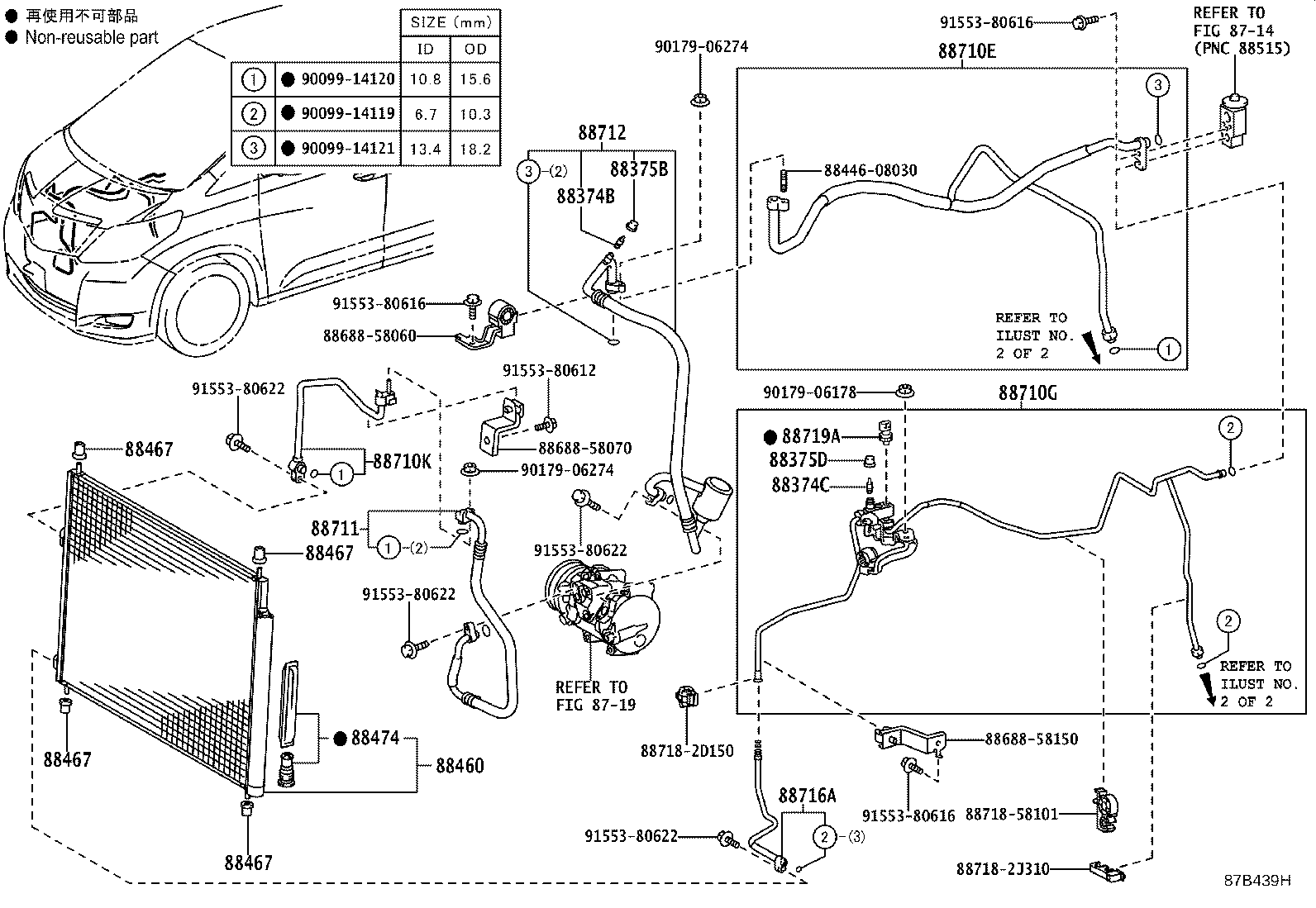

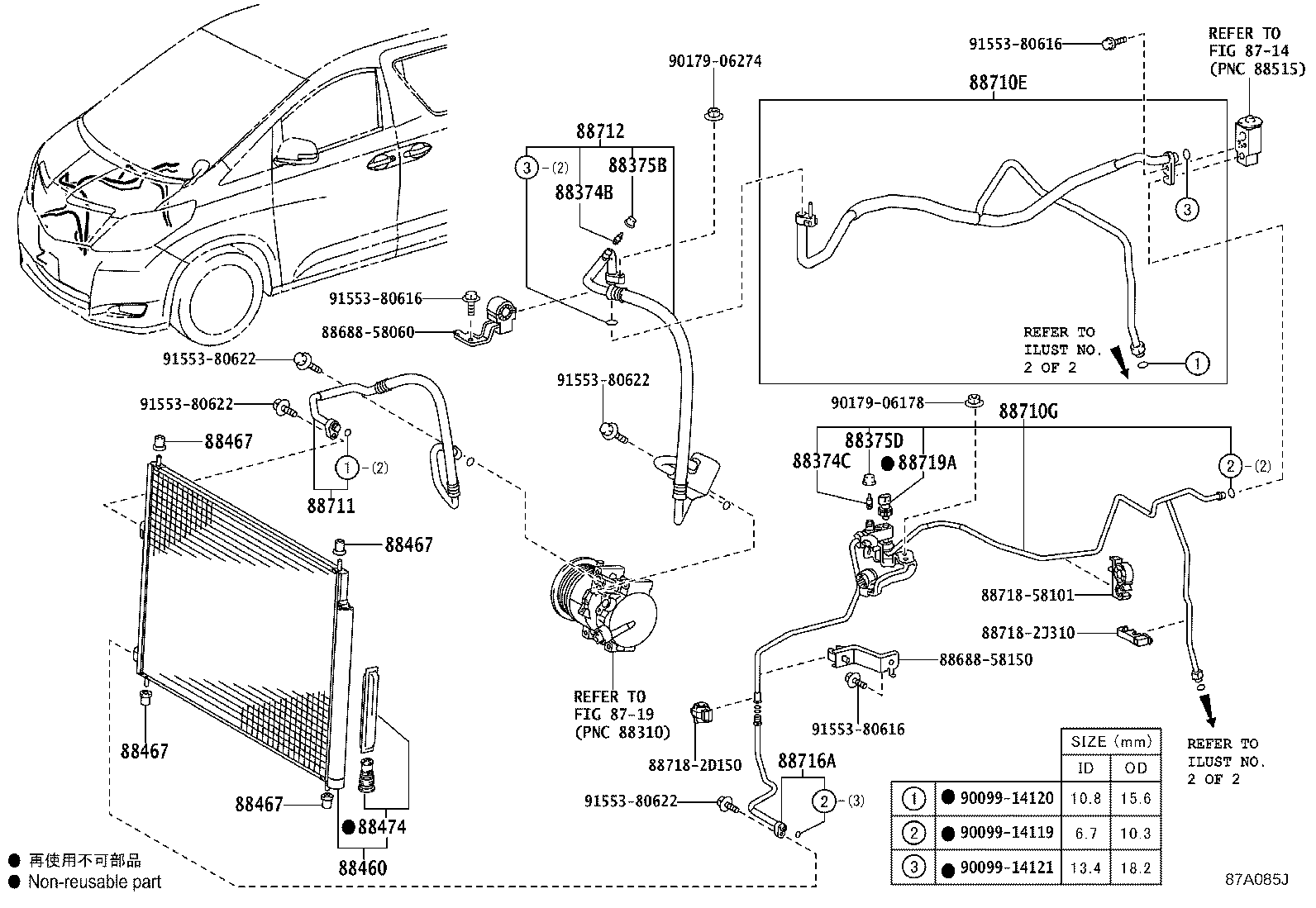

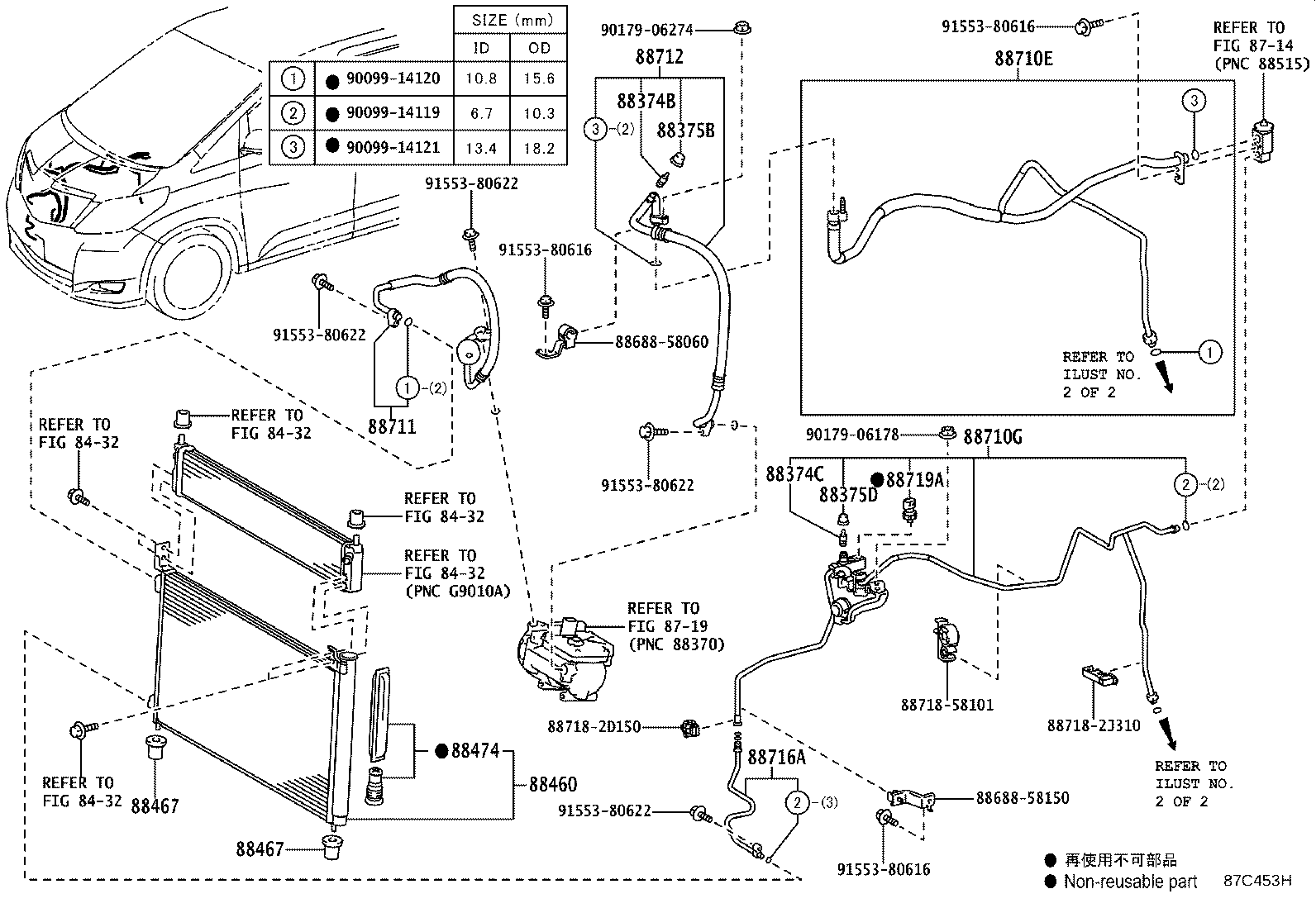

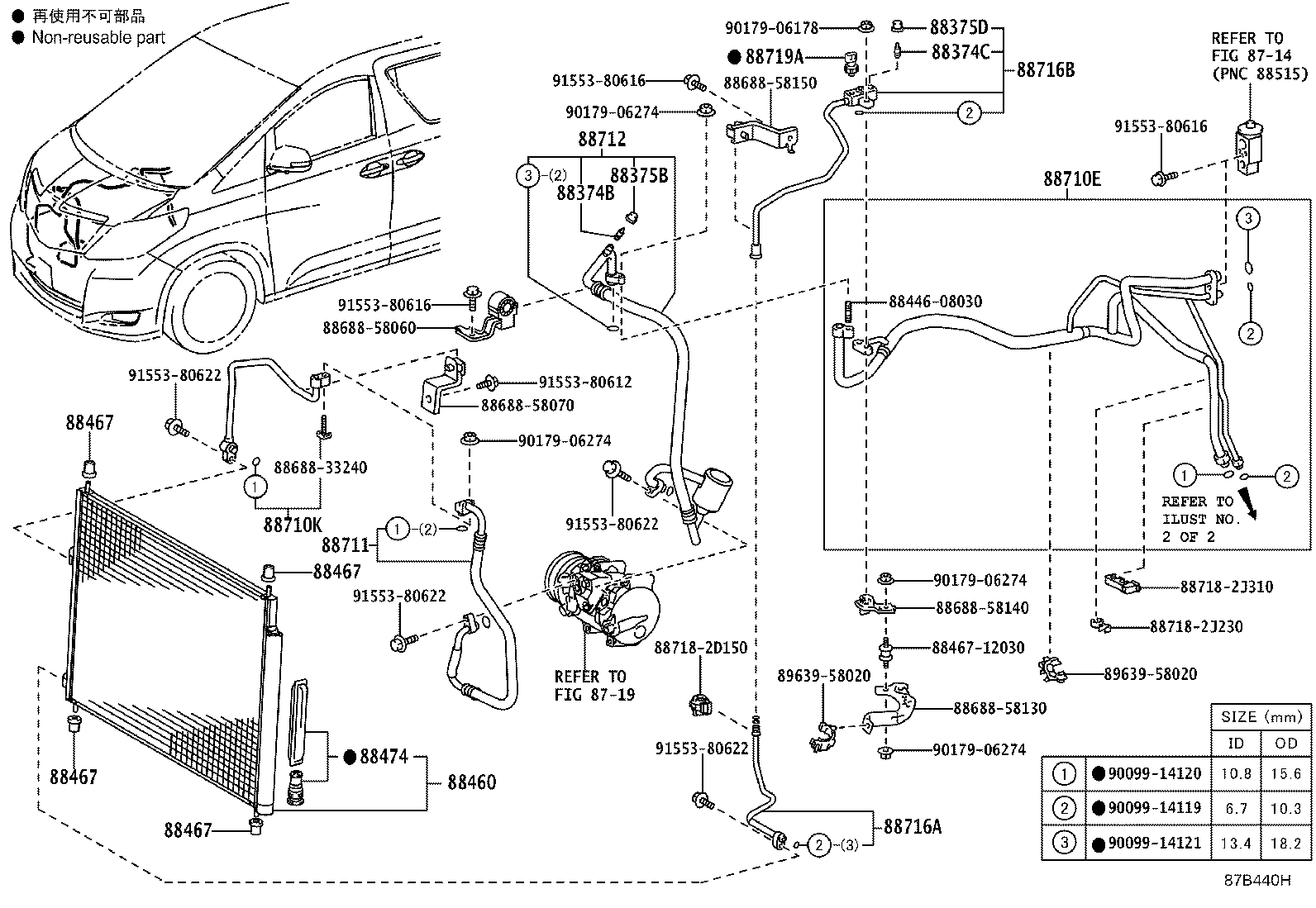

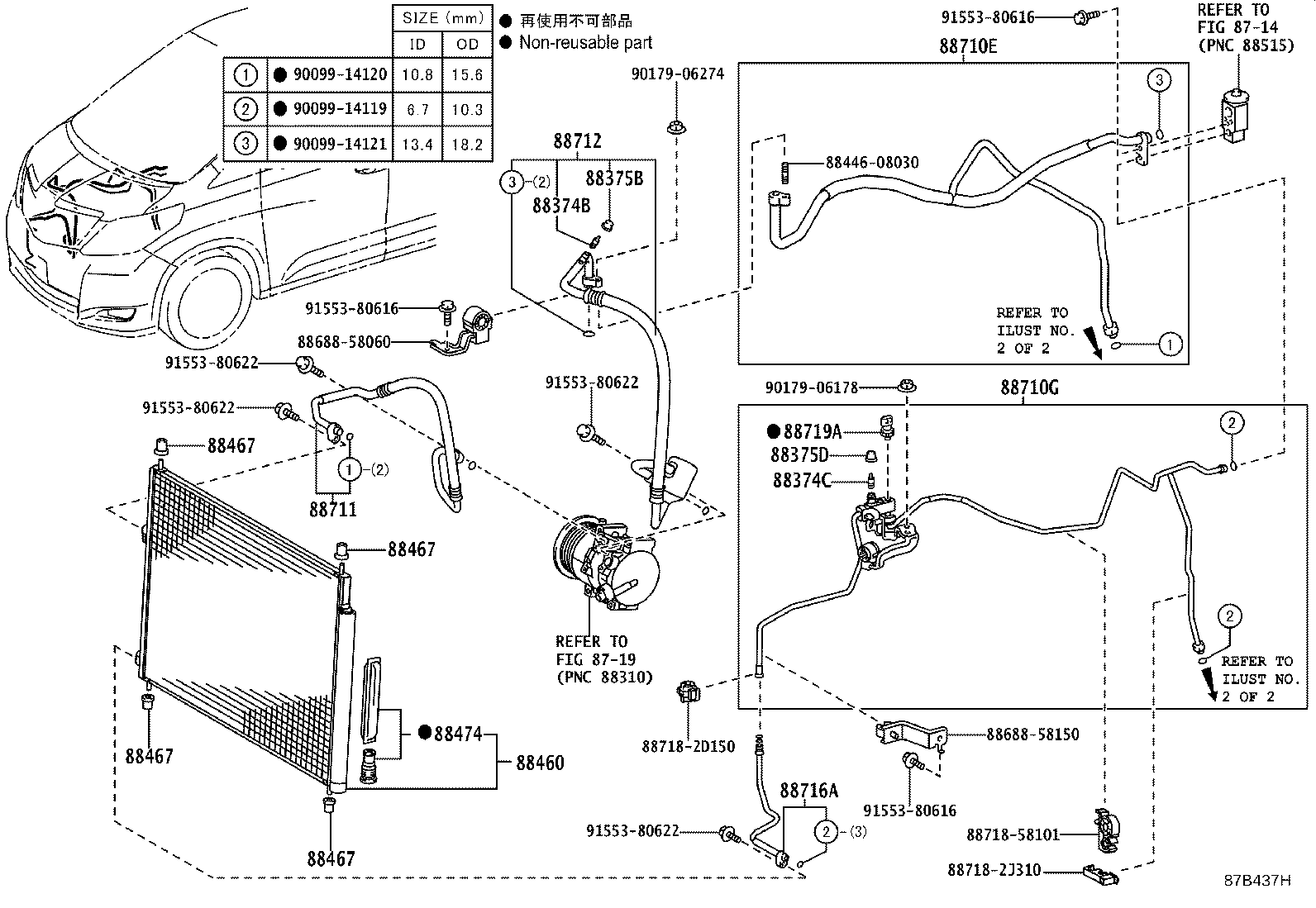

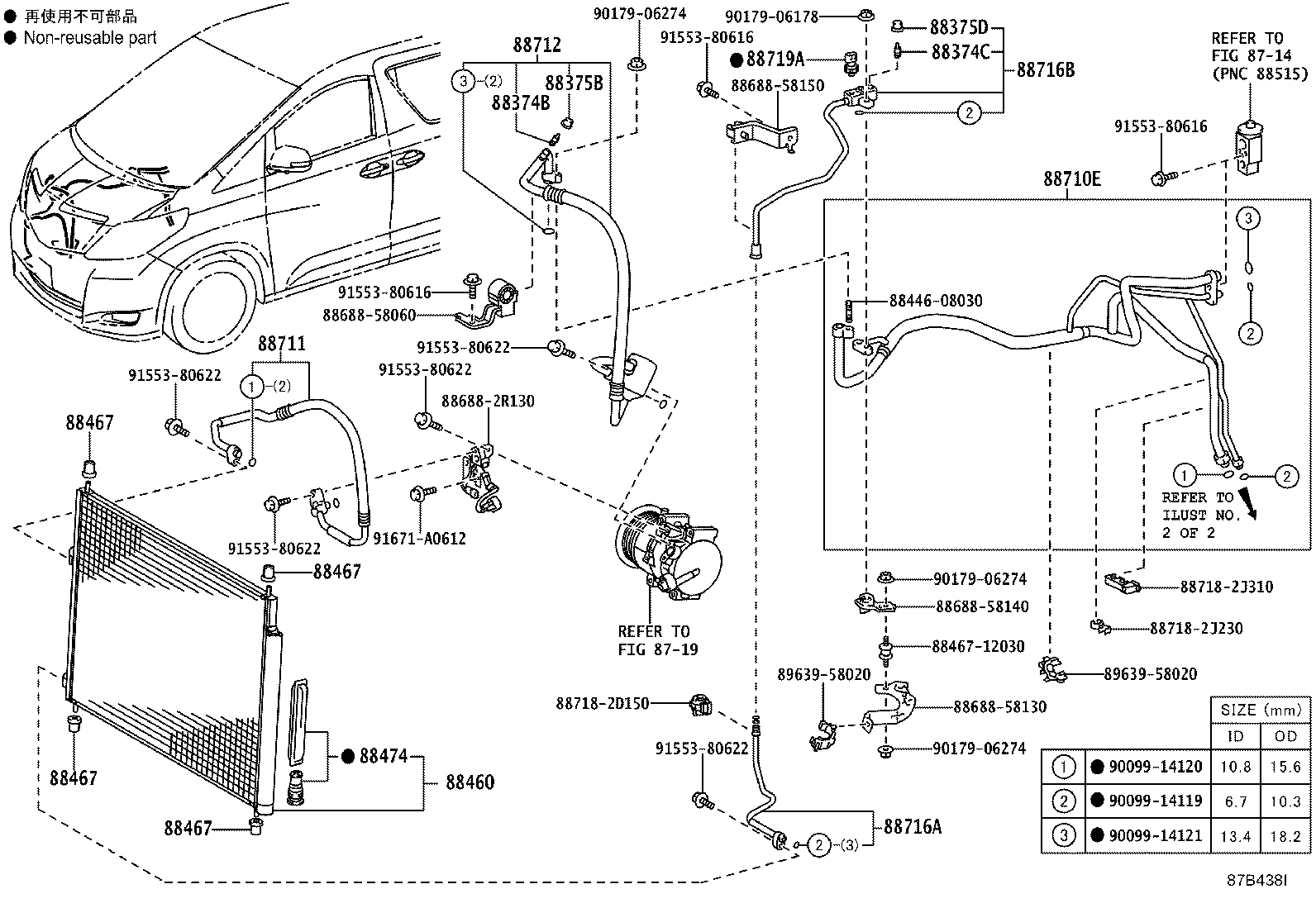

Figure 87A086J 87A086J 2008-04 → — Figure 87A085J 87A085J 2009-06 → — Figure 87B437H 87B437H 2010-06 → — Figure 87B438I 87B438I 2010-06 → — Figure 87B439H 87B439H 2010-06 → — Figure 87B440H 87B440H 2010-06 → — Figure 87C453H 87C453H 2011-10 → — Figure 87A087L 87A087L 2008-04 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88710K Tube & Accessory Assy, Air Conditioner, NO.3
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716D Pipe, Cooler Refrigerant Liquid, D
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
