Toyota Alphard/Vellfire/HV

2008-04 → 2015-01 · chassis ANH20,ATH20,GGH20 · catalogue 713230 · General

Supported model Data version 2015-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Purifier OR Ion Generator

5 part groups · 4 illustrations

Illustrations

Figure 87A090A

87A090A 2008-04 → 2011-10

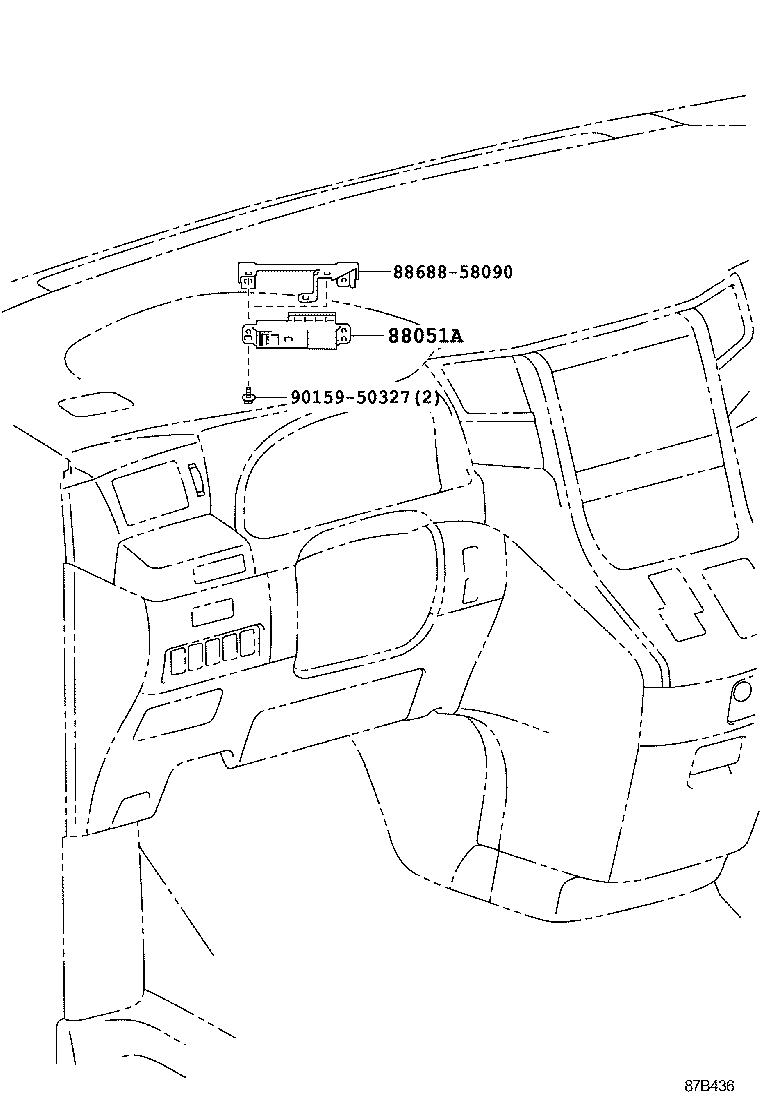

Figure 87B436

87B436 2010-05 → 2011-10

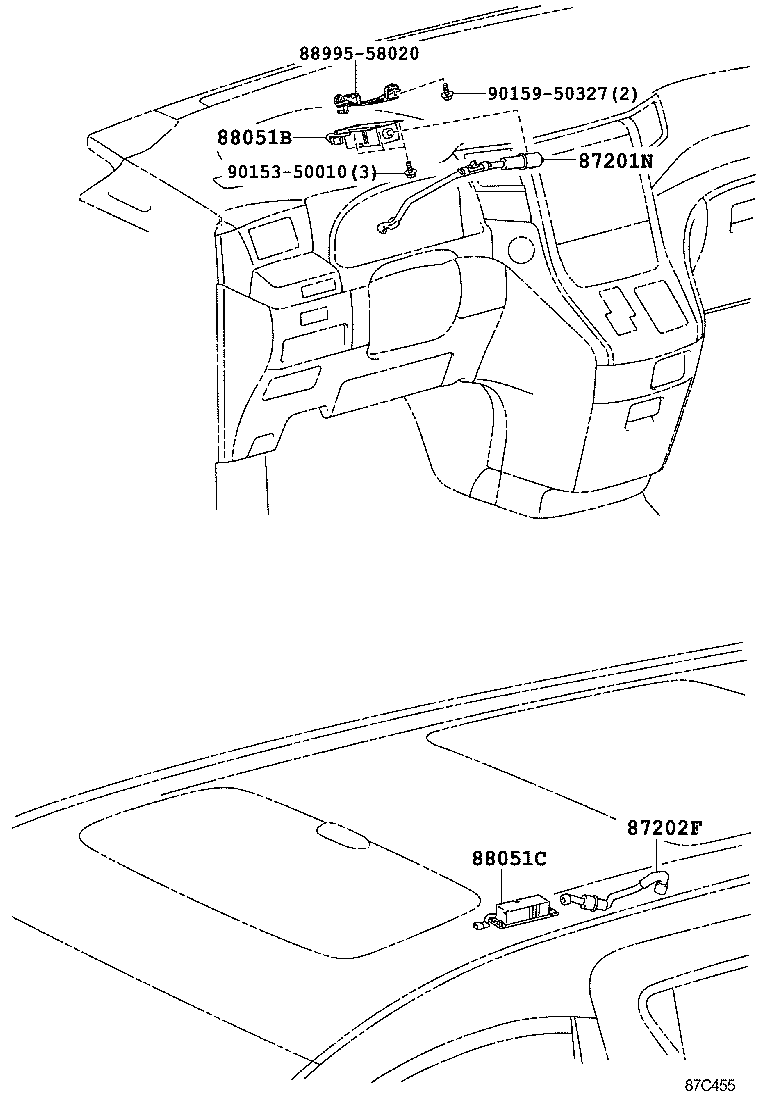

Figure 87C455

87C455 2011-10 → —

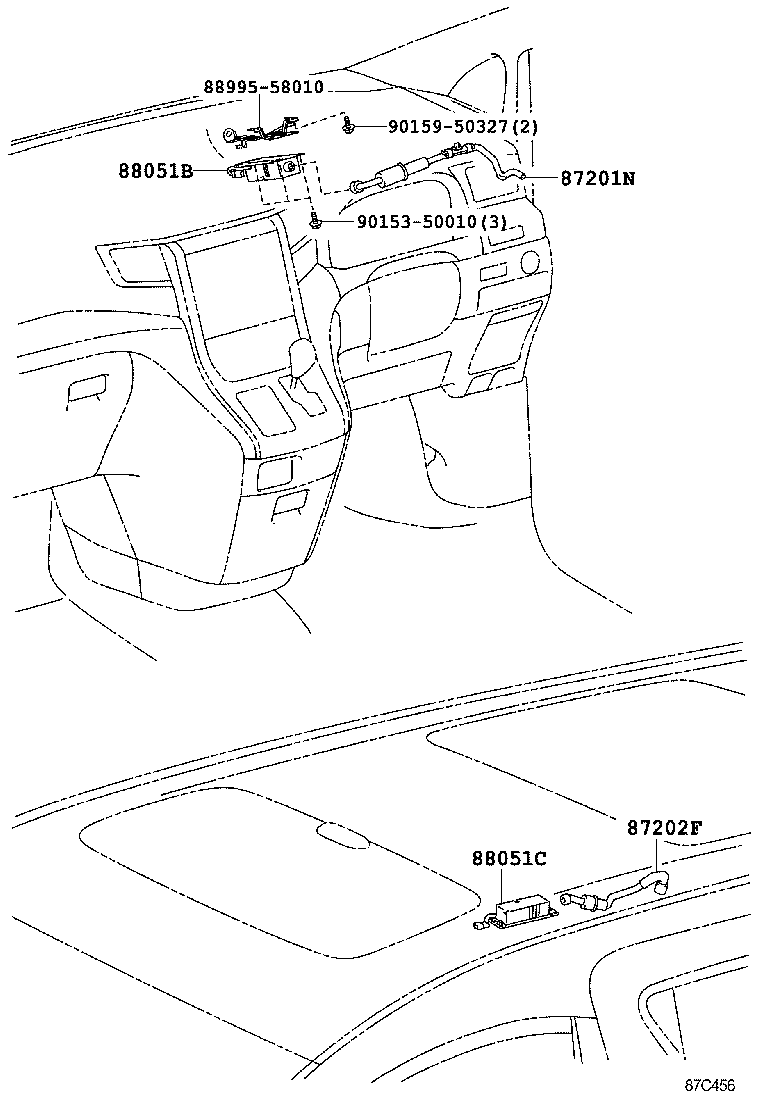

Figure 87C456

87C456 2011-10 → —

Part groups

PNC	Description
87201N	Duct Sub-assy, Air
87202F	Duct Sub-assy, Air, Rear
88051A	Generator Sub-assy,Ion
88051B	Generator Sub-assy, Ion, NO.1
88051C	Generator Sub-assy, Ion, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
